Sheet 05.169
Lucky Tone · Loudspeakers

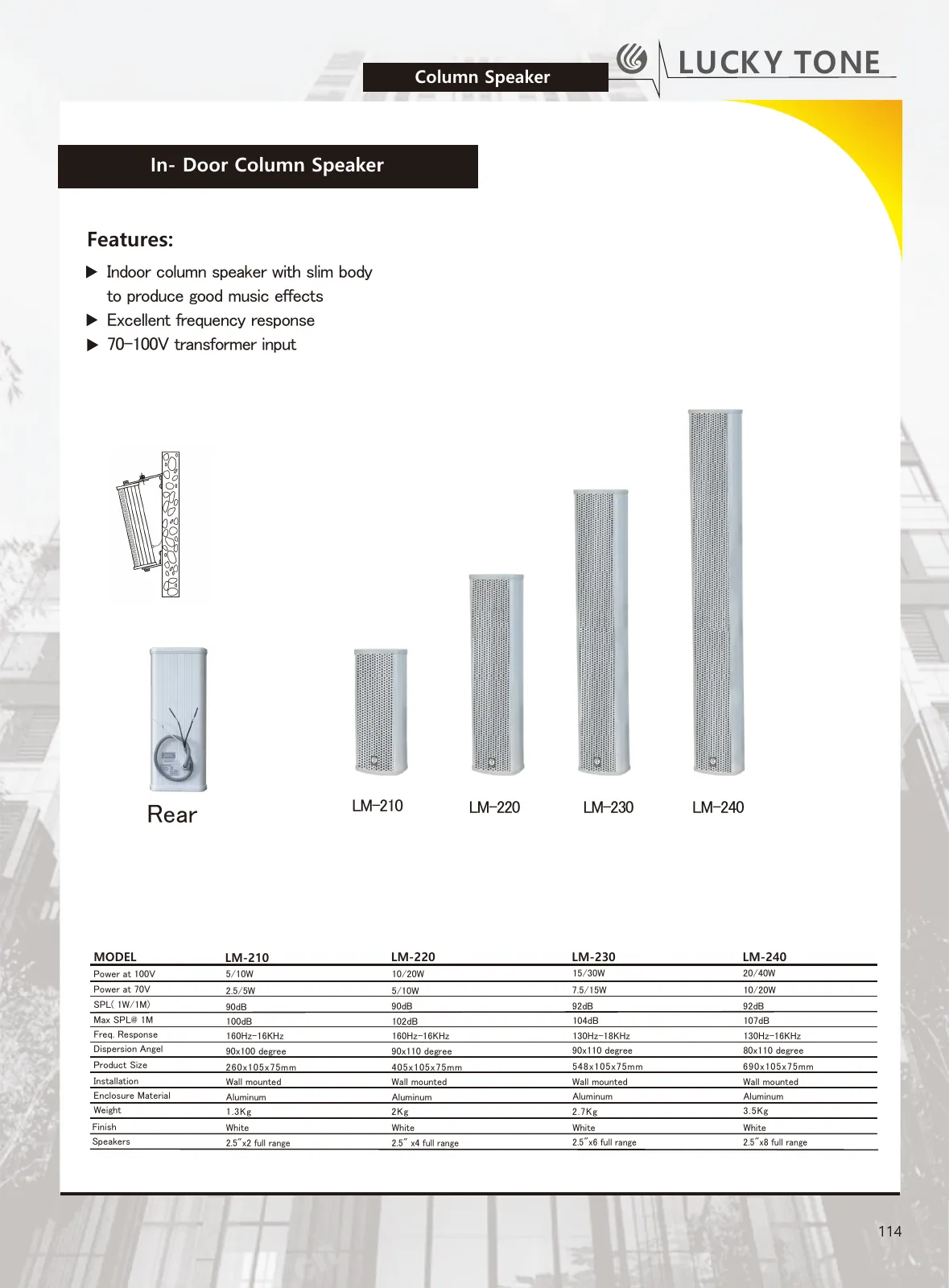

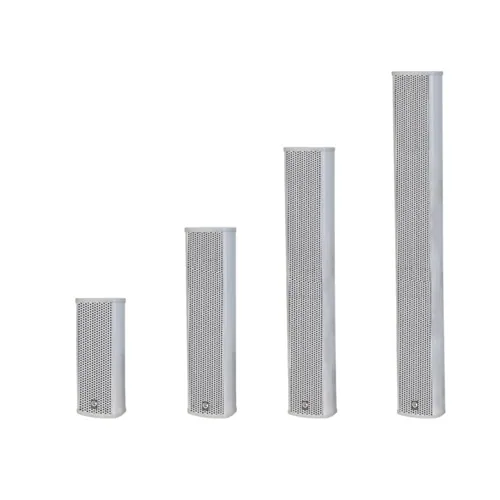

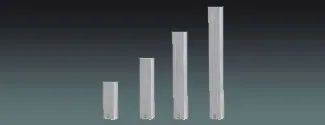

Indoor Column Speaker
ModelLM-210 / LM-220 / LM-230 / LM-240
- Weight
- LM-210: 1.30kg; LM-220: 2.00kg; LM-230: 2.70kg; LM-240: 3.50kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Indoor Column SpeakerPrice on requestRequest a quotation
01Models4 models in the family
Models compared.
| MODEL | LM-210 | LM-220 | LM-230 | LM-240 |
|---|---|---|---|---|
| Power at 100V | 5/10W | 10/20W | 15/30W | 20/40W |
| Power at 70V | 2.5/5W | 5/10W | 7.5/15W | 10/20W |
| SPL (1W/1M) | 90dB | 90dB | 92dB | 92dB |
| Max SPL@1M | 100dB | 102dB | 104dB | 107dB |
| Freq.Response | 160Hz-16KHz | 160Hz-16KHz | 130Hz-18KHz | 130Hz-16KHz |
| Dispersion Angel | 90×100 degree | 90×110 degree | 90×110 degree | 80×110 degree |
| Product Size | 260x105x75mm | 405x105x75mm | 548x105x75mm | 690x105x75mm |
| Installation | Wall Mounted | Wall Mounted | Wall Mounted | Wall Mounted |
| Enclosure Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Weight | 1.30kg | 2.00kg | 2.70kg | 3.50kg |
| Finish | White | White | White | White |
| Speakers | 2.5″x2 Full range | 2.5″x4 Full range | 2.5″x6 Full range | 2.5″x8 Full range |
02Documents1 file · 1.1 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
