Sheet 05.118
Lucky Tone · Loudspeakers

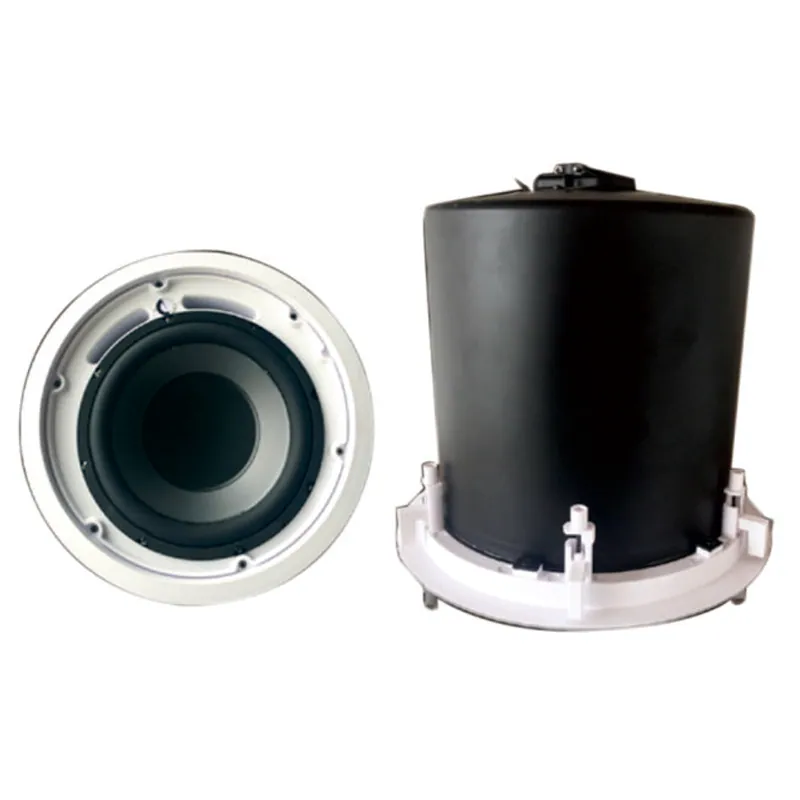

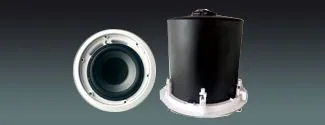

10″ Ceiling Subwoofer
ModelLT-10.1
This subwoofer ceiling speaker equipped with 100V line transformer and can handle up to 240W of RMS power as well as for low impedance at 4 ohm, and it handles low frequency at 35Hz,
- Weight
- 9Kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
10″ Ceiling SubwooferPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 13 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications13
- MODEL
- LT-10.1
- Power at 100V
- 240 / 120 / 60W, 240W@4Ω
- Power at 70V
- 120 / 60 / 30W, 240W@4Ω
- SPL (1W/1M)
- 89dB
- Max SPL@1M
- 112dB
- Freq.Response
- 35Hz-15KHz
- Cutout Size
- Dia 330mm
- Product Size
- 360mm (Dia) *330mm (H)
- Installation
- Inceiling
- Enclosure Material
- ABS front and metal dome
- Weight
- 9Kg
- Finish
- White front & black dome
- Speakers
- 10 inch
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
- which is truly suitable for sub bass applications
- ● High power excursion ceiling subwoofer at 240W with overload protection
- ● Built-in transformer for 100V line, 70V line or 4 ohm input with multi tappingselector in the front
- ● Heavy steel metal enclosure fire dome
- ● Designed for easy installation and maintenance
- ● Great supplement for sub bass for ceiling sound system and others.
