Sheet 05.120

Lucky Tone · Loudspeakers

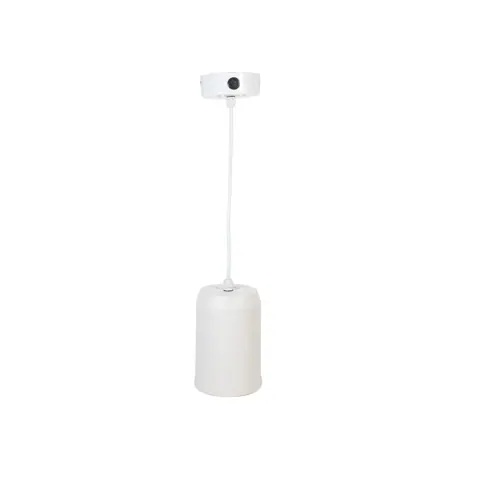

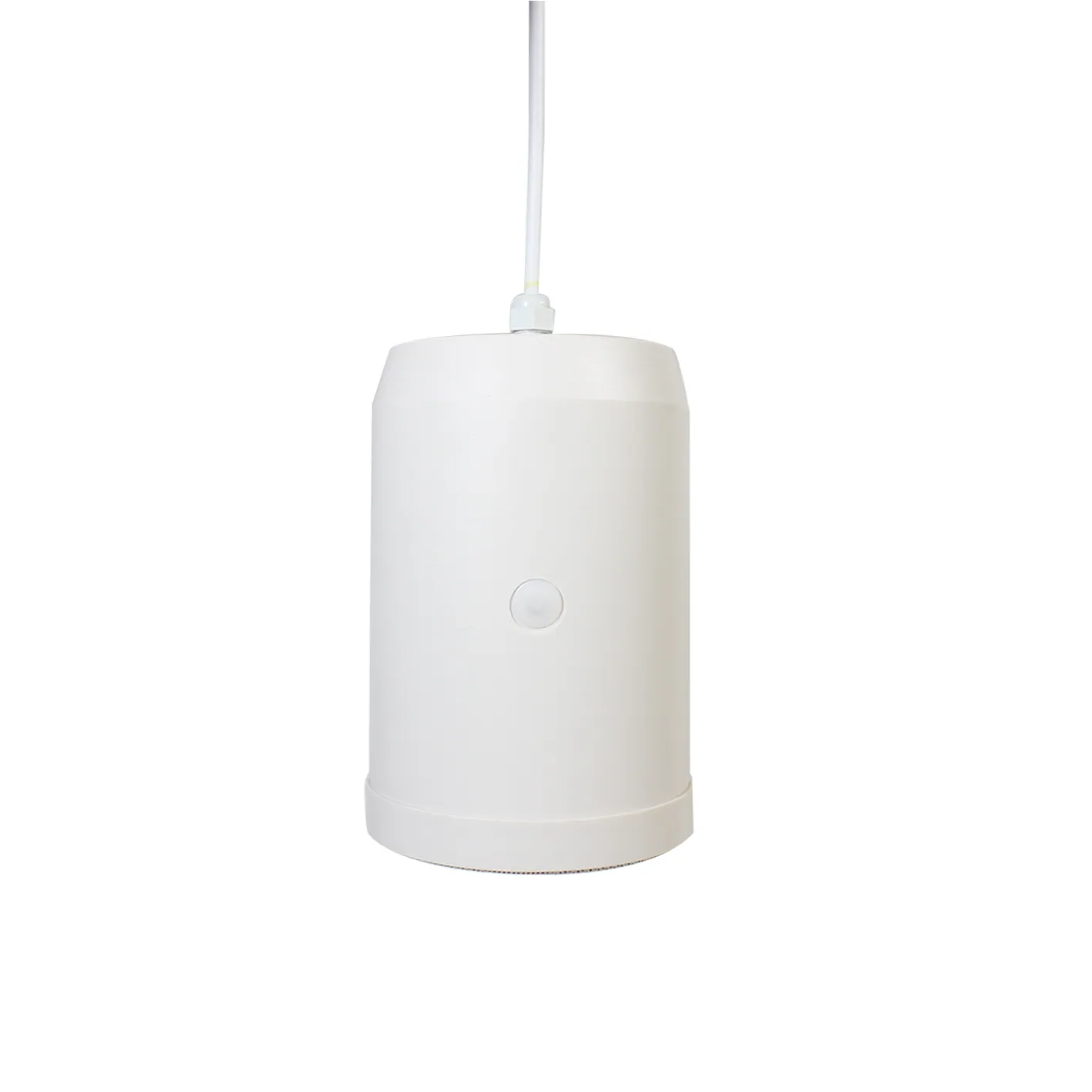

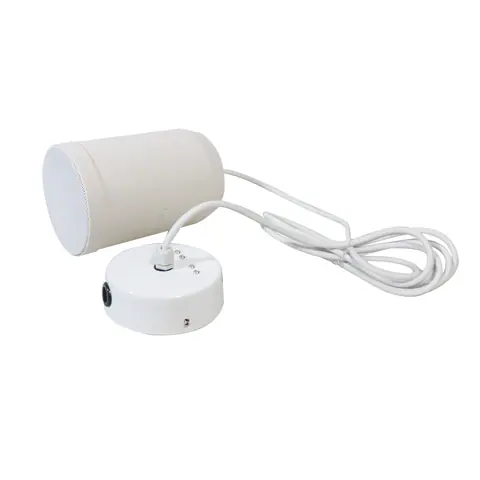

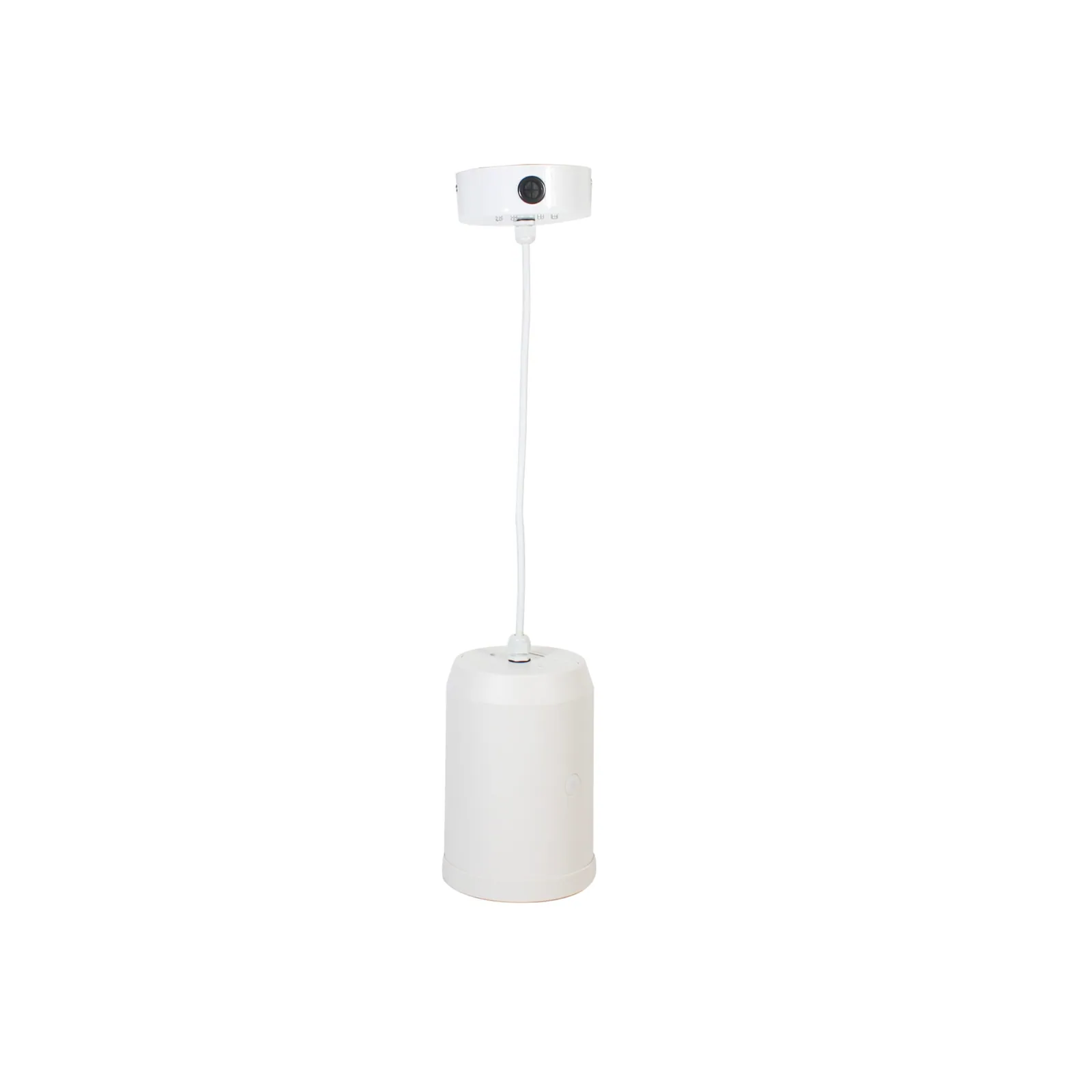

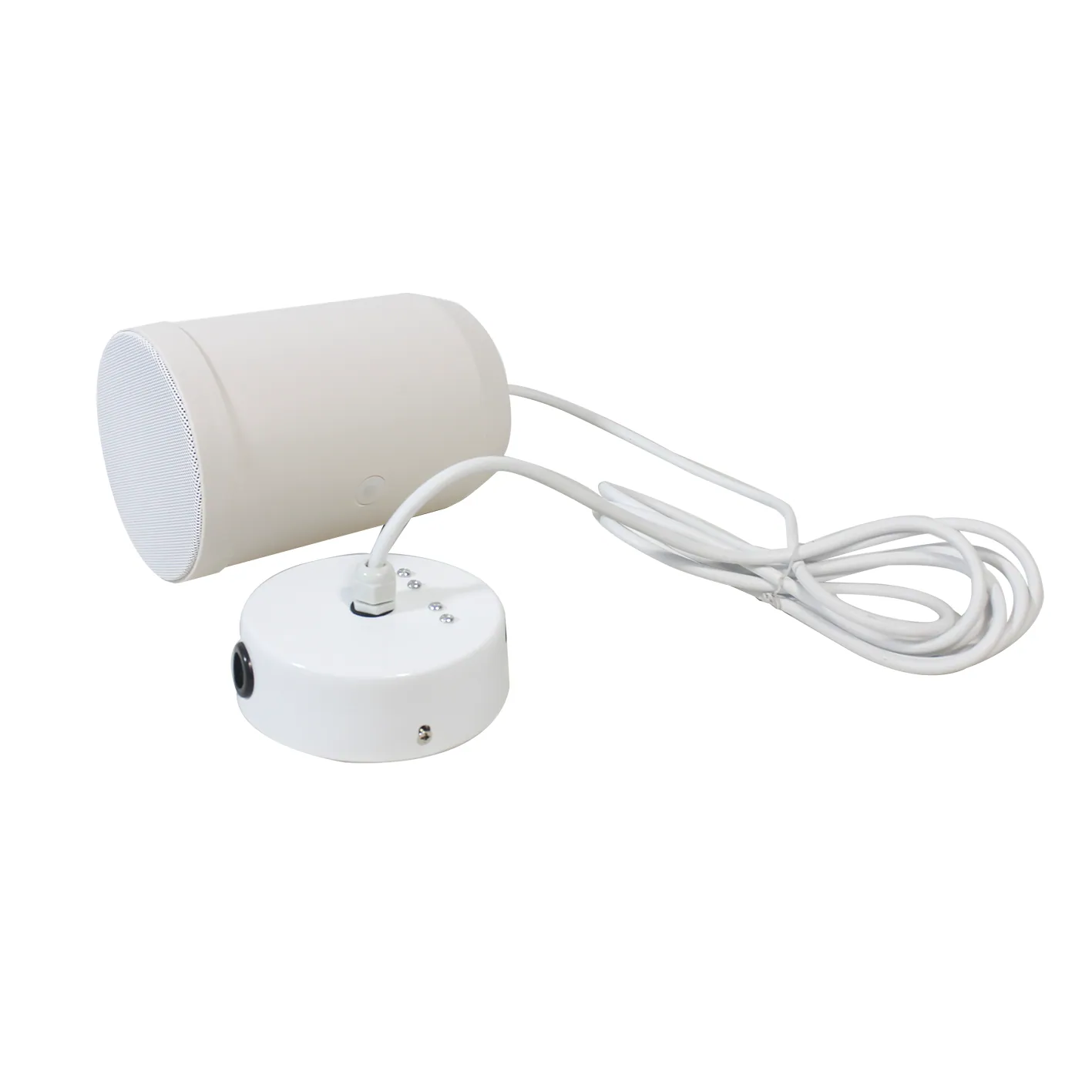

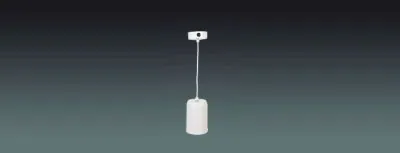

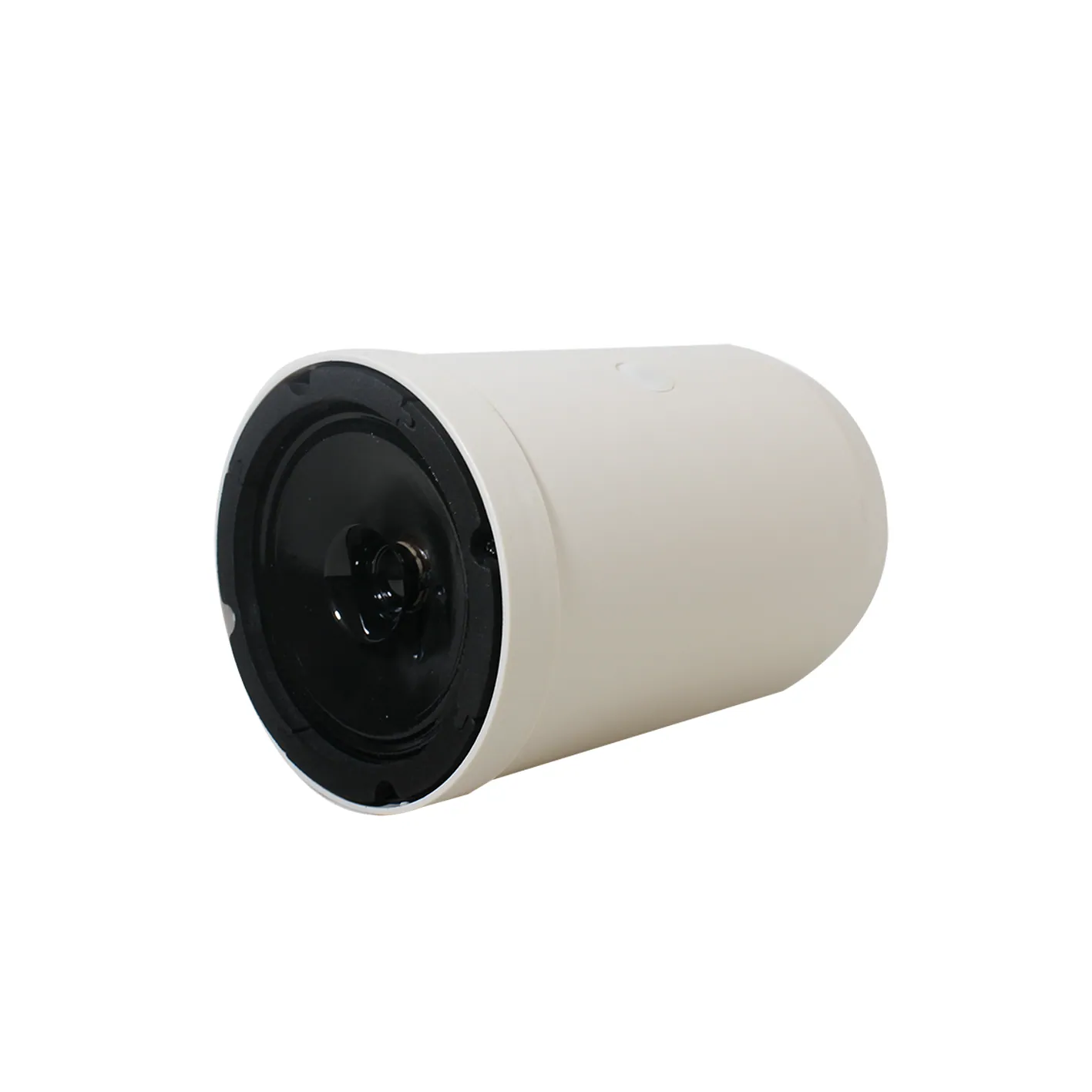

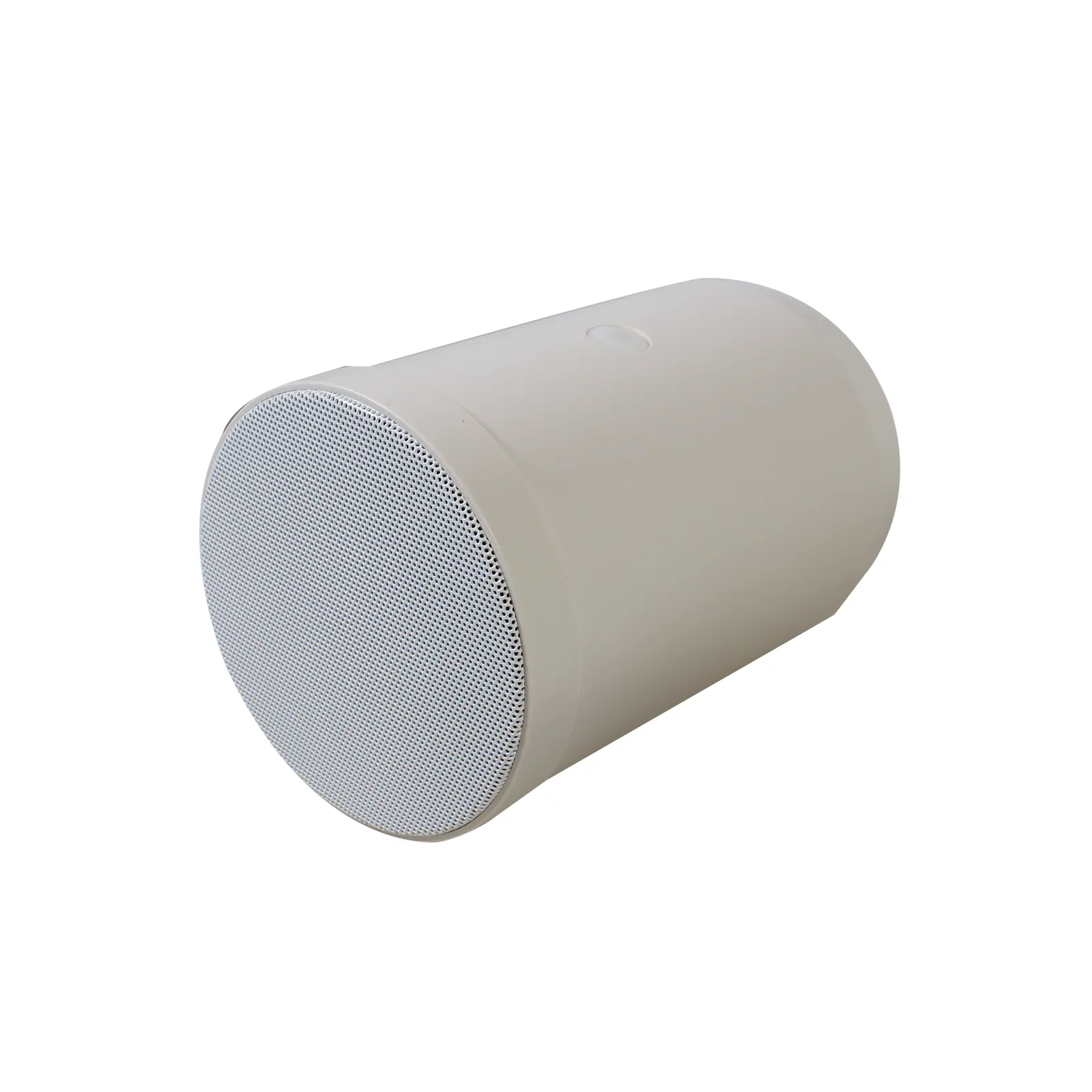

10W ABS Sound Hang Speaker

ModelPJ-510PH EN

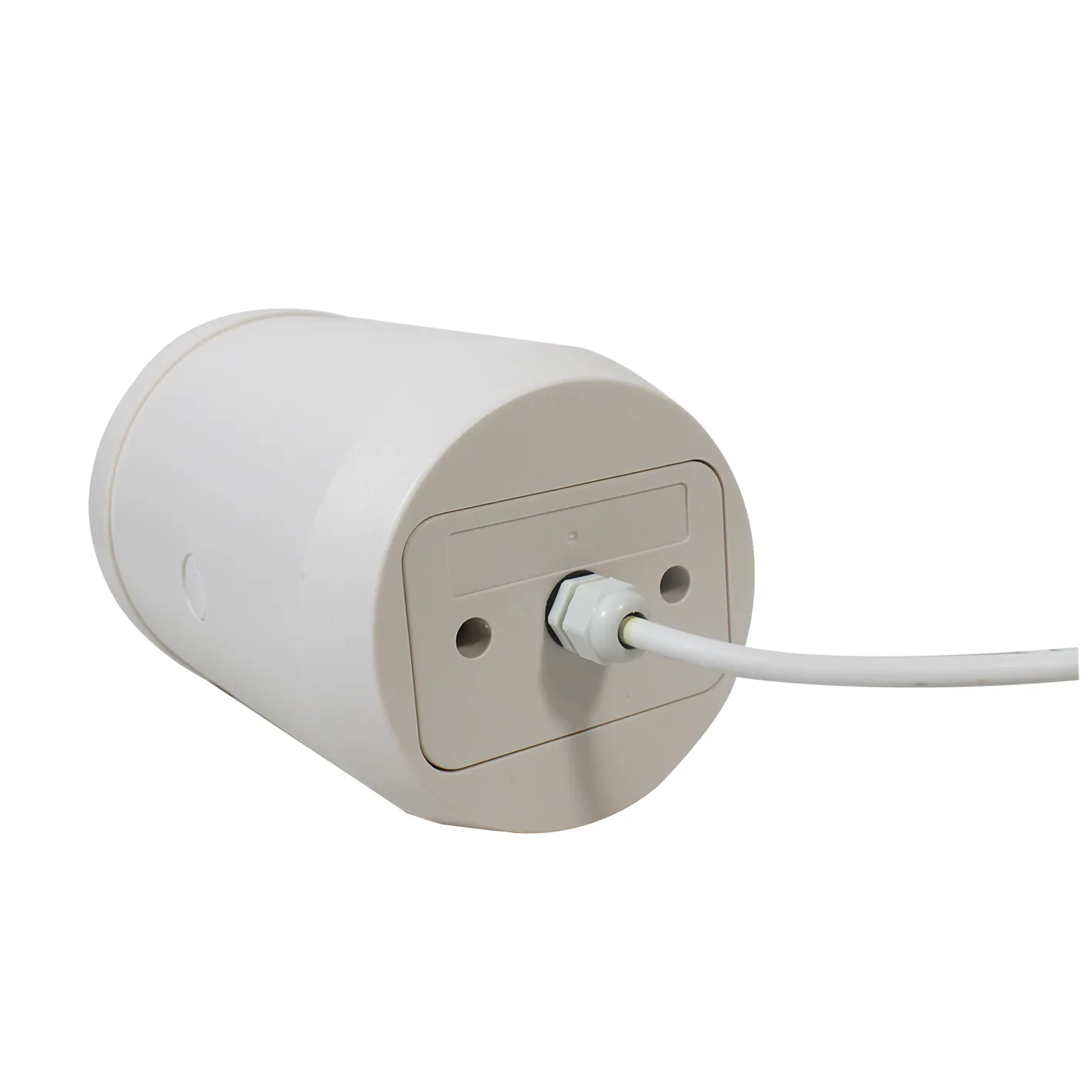

Steel wire inside the cable ensures safe hanging

Weight: 2KG

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 13 values

What this product is, in numbers.

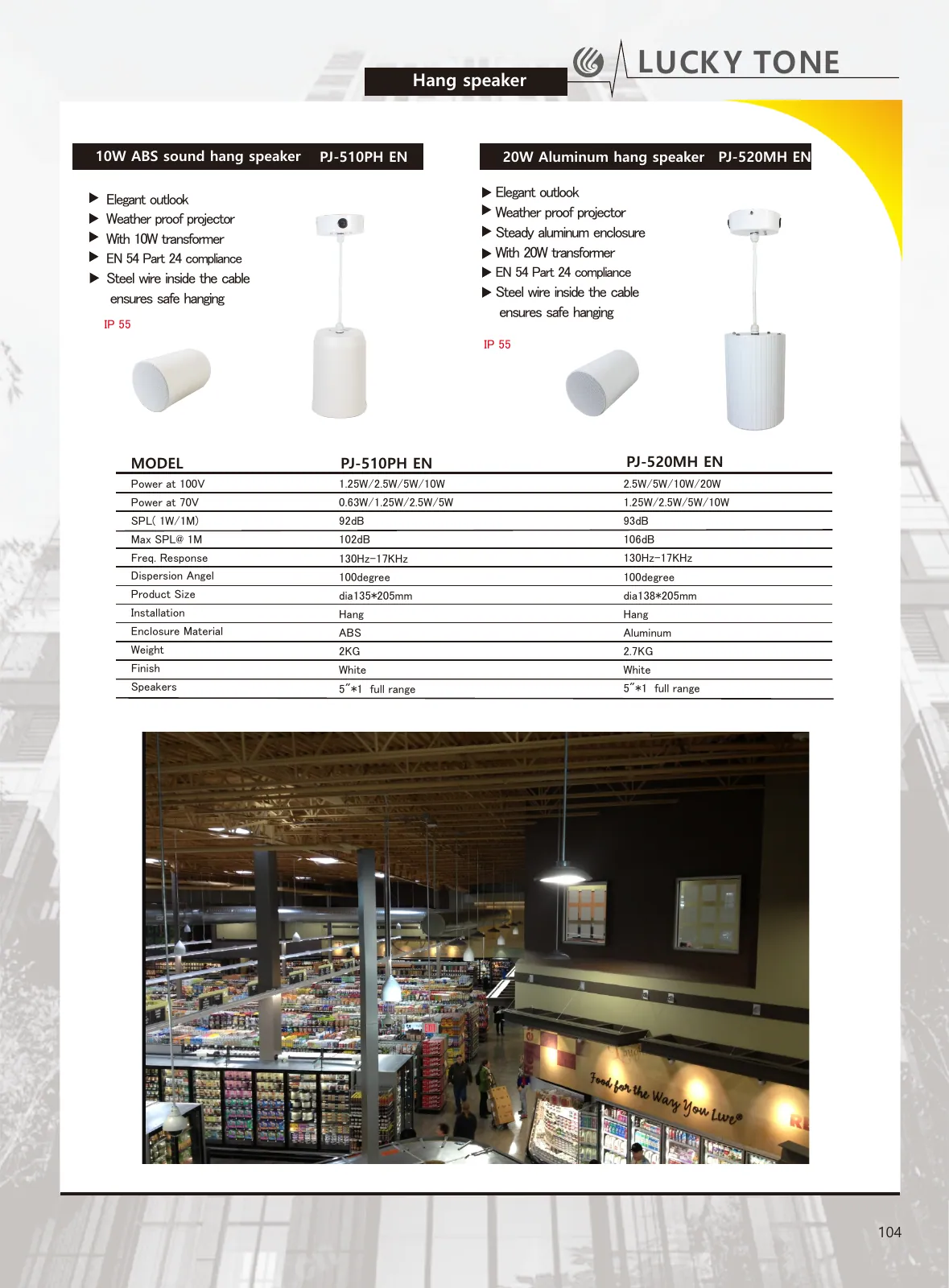

PDFSpecifications2.3 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications13

MODEL: PJ-510PH EN
Power at 100V: 1.25W/2.5W/5W/10W
Power at 70V: 0.63W/1.25W/2.5W/5W
SPL( 1W/1M): 92dB
Max SPL@ 1M: 102dB
Freq. Response: 130Hz-17KHz
Dispersion Angel: 100degree
Product Size: dia135*205mm
Installation: Hang
Enclosure Material: ABS
Weight: 2KG
Finish: White
Speakers: 5″*1 full range

02DescriptionManufacturer's description

What it is.

Elegant outlook

Weather proof projector

With 10W transformer

EN 54 Part 24 compliance

IP 55

03Documents1 file · 2.3 MB

Documents and files.

Main document

Specifications

PDF · 2.3 MB

Download specifications
