Sheet 05.119
Lucky Tone · Loudspeakers

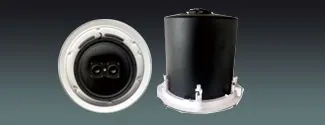

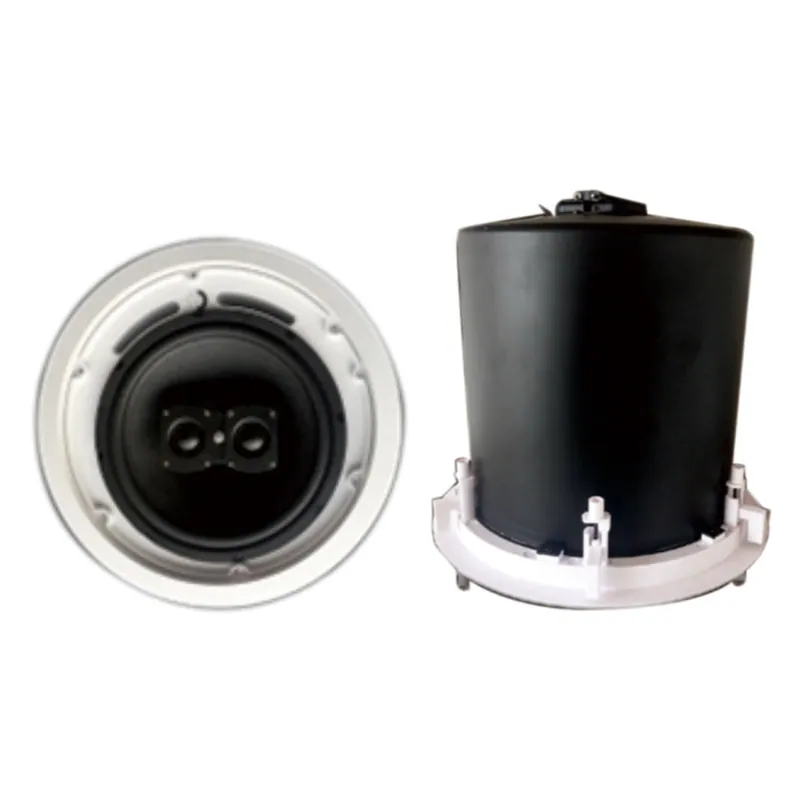

10″ Wide Frequency Ceiling Speaker
ModelLT-10.2
This extra wide frequency ceiling speaker equipped with 100V line transformer and can handle up to 240W of RMS power for low impedance at 8 ohm, and it handles a very wide frequency from 45Hz to 20Khz, which is truely good for both speech and music applications
- Weight
- 9Kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
10″ Wide Frequency Ceiling SpeakerPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 13 values
What this product is, in numbers.

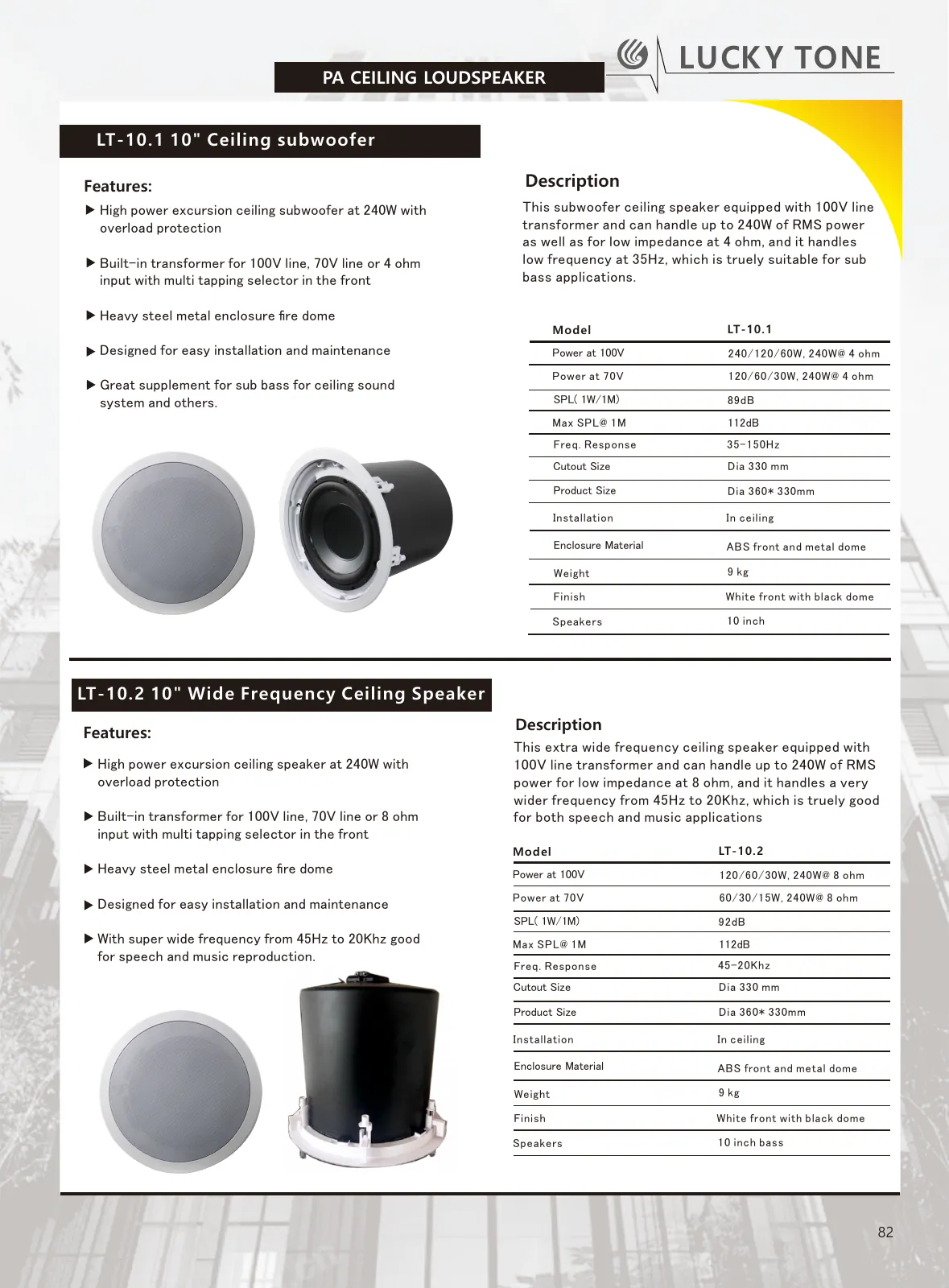

PDFSpecifications2.4 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications13
- MODEL
- LT-10.2
- Power at 100V
- 120 / 60 / 30W, 240W@8Ω
- Power at 70V
- 60 / 30 / 15W, 240W@8Ω
- SPL (1W/1M)
- 92dB
- Max SPL@1M
- 112dB
- Freq.Response
- 45Hz-20KHz
- Cutout Size
- Dia 330mm
- Product Size
- 360mm (Dia) *330mm (H)
- Installation
- Inceiling
- Enclosure Material
- ABS front and metal dome
- Weight
- 9Kg
- Finish
- White front & black dome
- Speakers
- 10 inch bass with dual tweeter
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
- ● High power excursion ceiling speaker at 240W with overload protection
- ● Built-in transformer for 100V line, 70V line or 8 ohm input with multi tapping selector in the front
- ● Heavy steel metal enclosure fire dome
- ● Designed for easy installation and maintenance
- ● With super wide frequency from 45Hz to 20Khz good for speech and music reproduction
