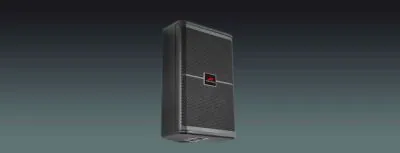

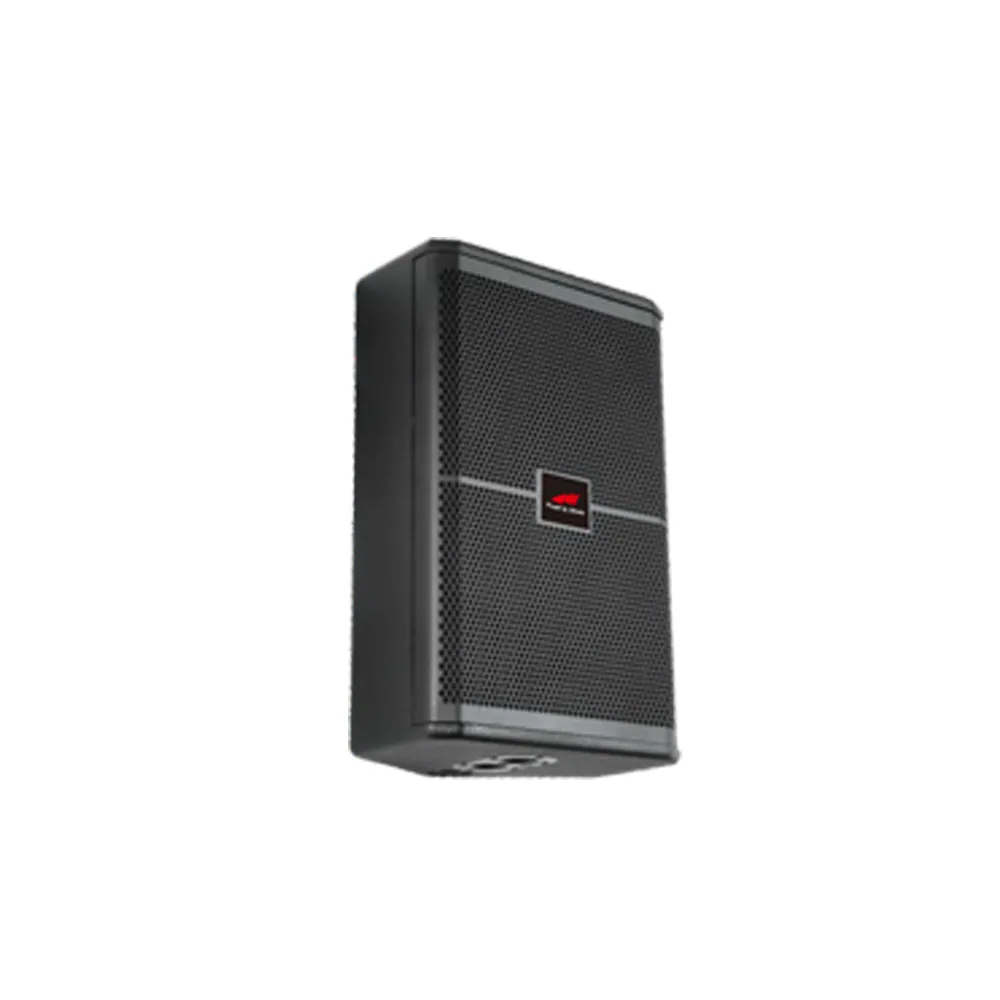

12″ High-Power Two-Way Stage Monitor

ModelPSRX712M

The PSRX712M was designed with one goal-build the lightest, smallest, loudest, clearest stage monitor possible while delivering strikingly professional appearance

Frequency response: 70 Hz – 20kHz (-10 dB)
Dimensions: 349 mm x 546 mm x 260 mm (13.75 in x 21.5 in x 10.25 in)
Weight: 15 kg (33 lb)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 10 values

What this product is, in numbers.

PDFSpecifications800 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications10

Model: PSRX712M
Configuration: 190 magnetic LF, 44 core HF
Frequency Range: 70 Hz – 20kHz (-10 dB)
Frequency Response: 83 Hz – 18 kHz (±3 dB)
Sensitivity(1m/1W): 96dB
Rated/Continuous/Peak power: 400W/800W/1600W
Maximum SPL: 122dB/125dB/128dB
Coverage Pattern: 90º x 50º nominal
Net Weight: 15 kg (33 lb)
Dimensions (H x W x D): 349 mm x 546 mm x 260 mm (13.75 in x 21.5 in x 10.25 in)

02DescriptionManufacturer's description

What it is.

Compact and low-profile for minimal obstruction of audience sight-lines.
90°x 50° nominal coverage.
Bi-amplified or full-range passive operation.
Dual-angle pole socket for applications requiring tripod mounting.
Optional yoke available for trussmounted or suspended applications.
Neodymium magnet Differential Drive® woofer for high-power capacity and very light-weight.
3-inch(diaphragm) neodymium magnet compression driver.

03Documents1 file · 800 KB
