Sheet 05.517
Lucky Tone · Audio sources

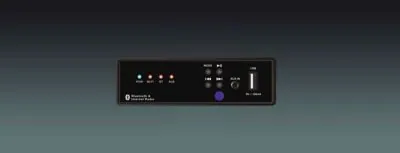

Media Player
ModelMplayer A
Internet radio, Bluetooth, AUX input, USB, APP control
- Frequency response
- : ; Mplayer A: 20Hz – 20kHz
- Power supply
- : ; Mplayer A: DC 5V
- Dimensions
- : ; Mplayer A: 120 x 37 x 24mm
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Media PlayerPrice on requestRequest a quotation
01Models2 models in the family
Models compared.

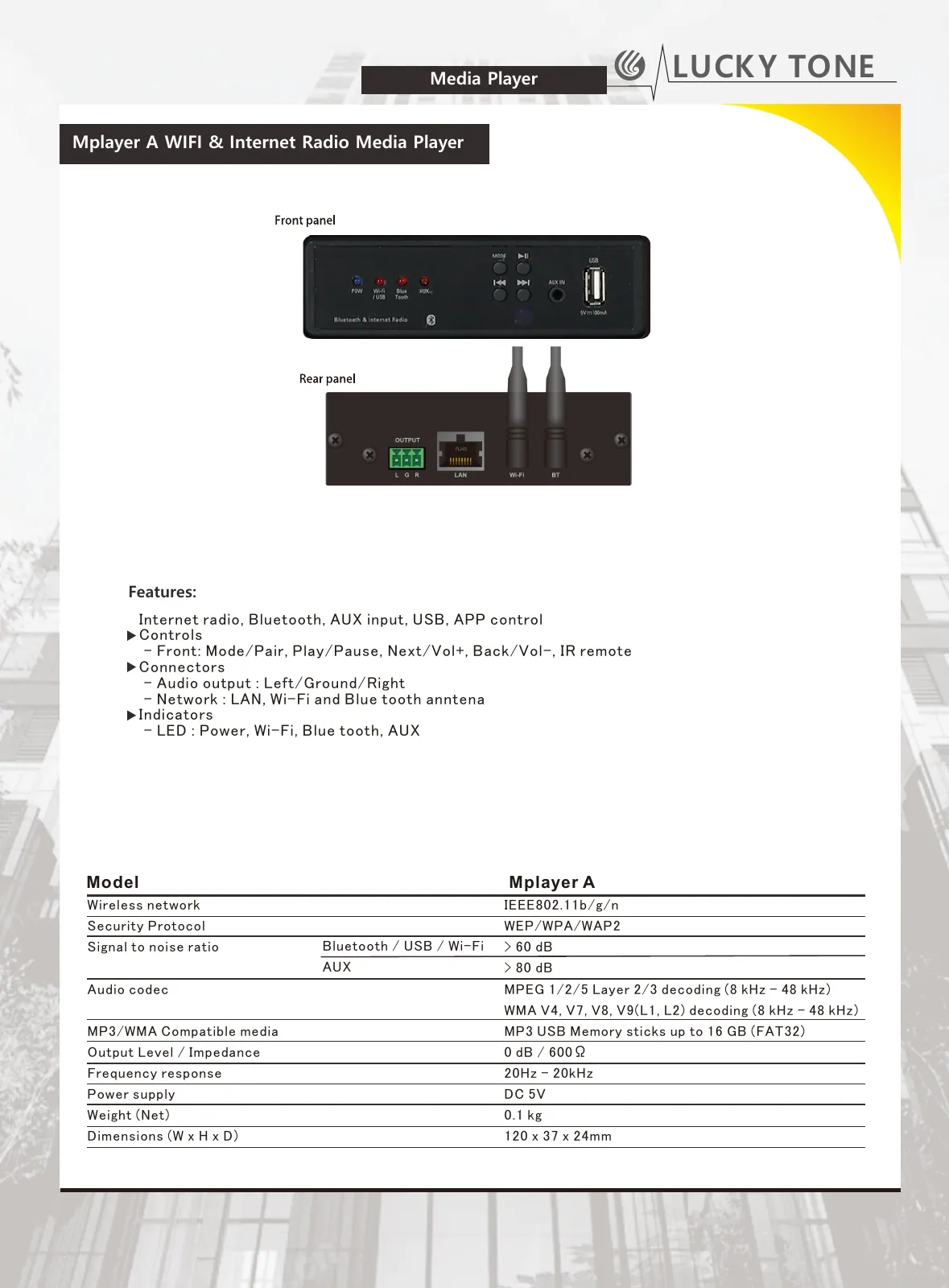

| Model | Mplayer A | |
|---|---|---|
| Wireless network | IEEE802.11b/g/n | |
| Security Protocol | WEP/WPA/WAP2 | |
| Signal to noise ratio | Bluetooth / USB / Wi-Fi AUX | > 60 dB > 80 dB |
| Audio codec | MPEG 1/2/5 Layer 2/3 decoding (8 kHz – 48kHz) WMA V4, V7, V8, V9(L1, L2) decoding (8 kHz – 48 kHz) | |
| MP3/WMA Compatible media | MP3 USB Memory sticks up to 16 GB (FAT32) | |
| Output Level / Impedance | 0 dB / 600Ω | |
| Frequency response | 20Hz – 20kHz | |
| Power supply | DC 5V | |
| Weight (Net) | 0.1 kg | |
| Dimensions (W x H x D) | 120 x 37 x 24mm |
02DescriptionManufacturer's description
What it is.

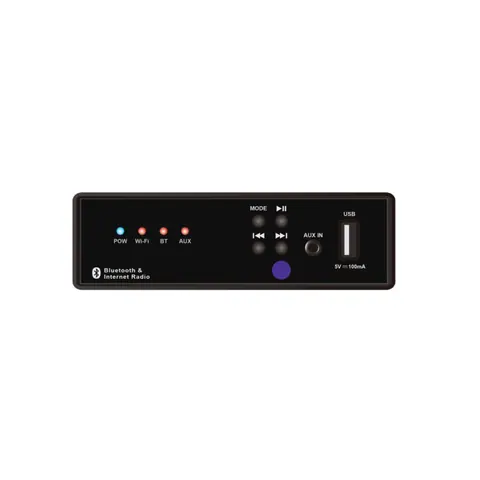

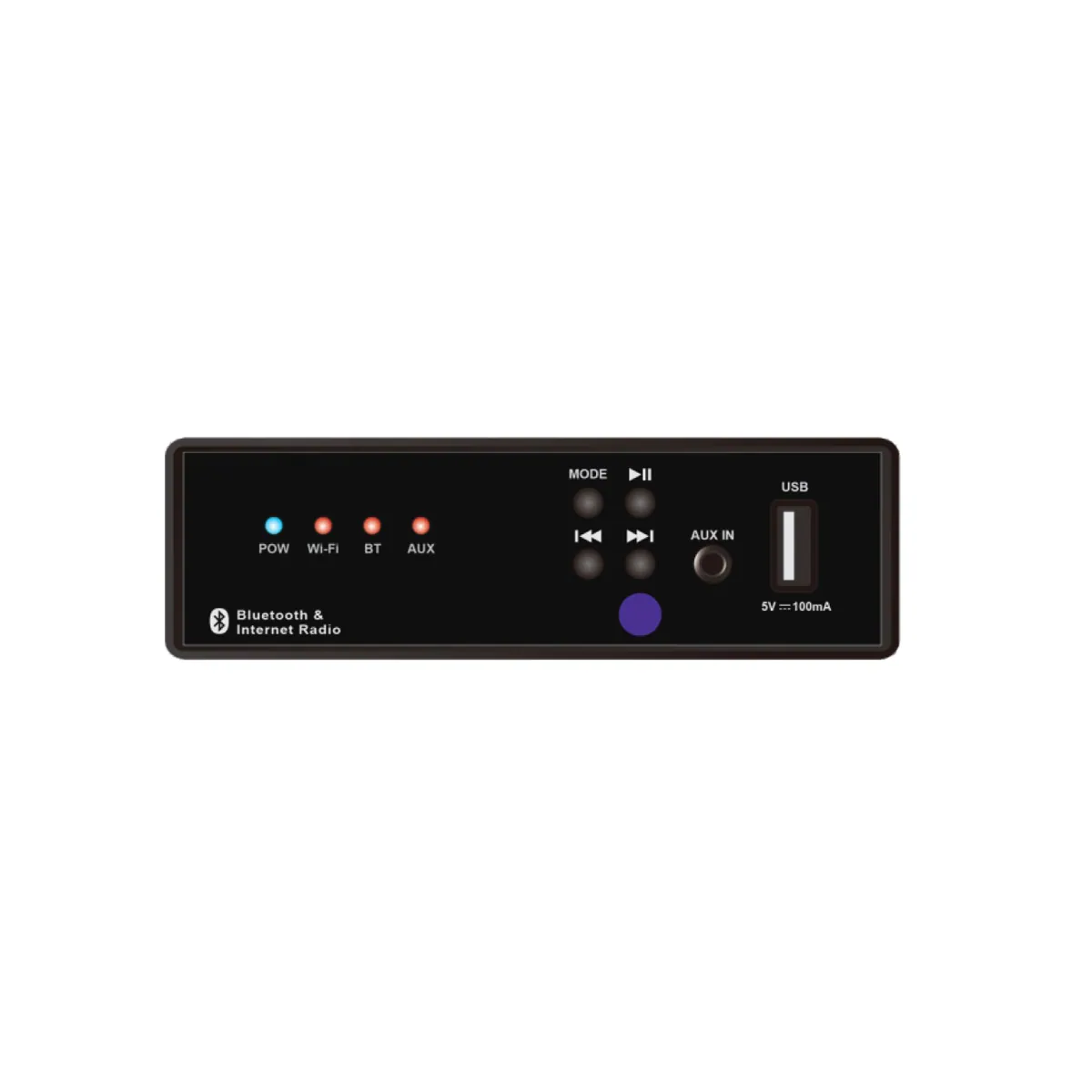

Controls
– Front: Mode/Pair, Play/Pause, Next/Vol+, Back/Vol-, IR remote

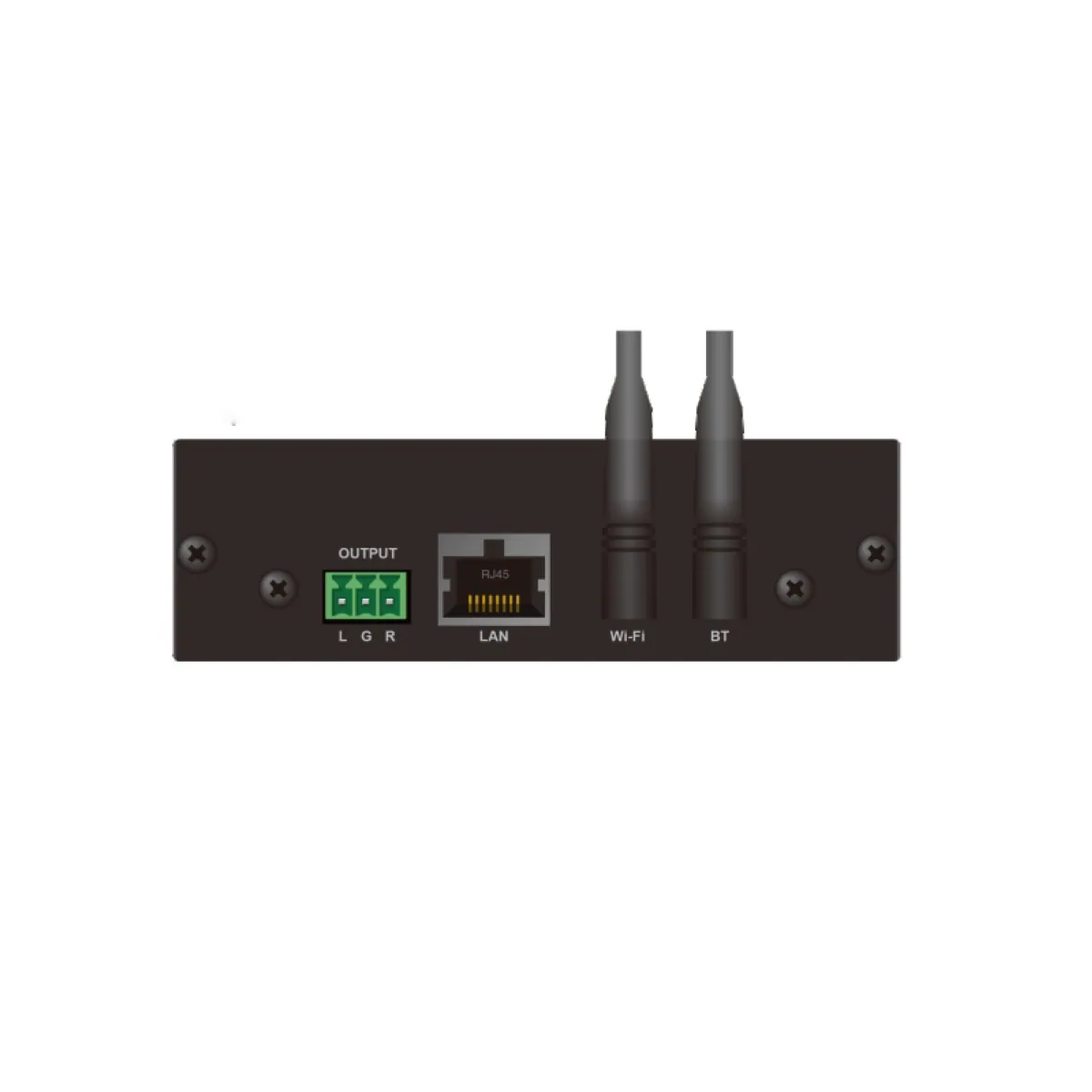

Connectors
– Audio output : Left/Ground/Right
– Network : LAN, Wi-Fi and Blue tooth anntena
Indicators
– LED : Power, Wi-Fi, Blue tooth, AUX
03Documents1 file · 1.1 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
