Sheet 05.518
Lucky Tone · Audio sources
Multi media player
ModelMplayer C
FM radio, BlueTooth, USB & SD card memory interface, AUX inut, IR Remote control
- Frequency response
- : ; Mplayer C: 20Hz – 20kHz
- Power supply
- : ; Mplayer C: DC 5V
- Dimensions
- : ; Mplayer C: 120 x 37 x 24mm
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Multi media playerPrice on requestRequest a quotation
01Models2 models in the family
Models compared.
| MODEL | Mplayer C | |
|---|---|---|
| Fequency range | FM | 87.5-108.0Mhz |
| Channel step | FM | 50kHz |
| Intermediate Frequency | FM | 10.7MHz |
| Sensitivity | FM | 2 uV at 30dB S/N |
| Signal to noise ratio | Bluetooth / FM | > 60 dB |
| Mp3 | > 80 dB | |
| Audio codec | MPEG 1/2/5 Layer 2/3 decoding (8 kHz – 48 kHz) | |
| WMA V4, V7, V8, V9(L1, L2) decoding (8 kHz – 48 kHz) | ||
| MP3/WMA Compatible media | MP3 USB Memory sticks up to 16 GB (FAT32) | |
| Output Level / Impedance | 0 dB / 600Ω | |
| Frequency response | 20Hz – 20kHz | |
| Power supply | DC 5V | |
| Weight (Net) | 0.1 kg | |
| Dimensions (W x H x D) | 120 x 37 x 24mm |
02DescriptionManufacturer's description
What it is.
Controls

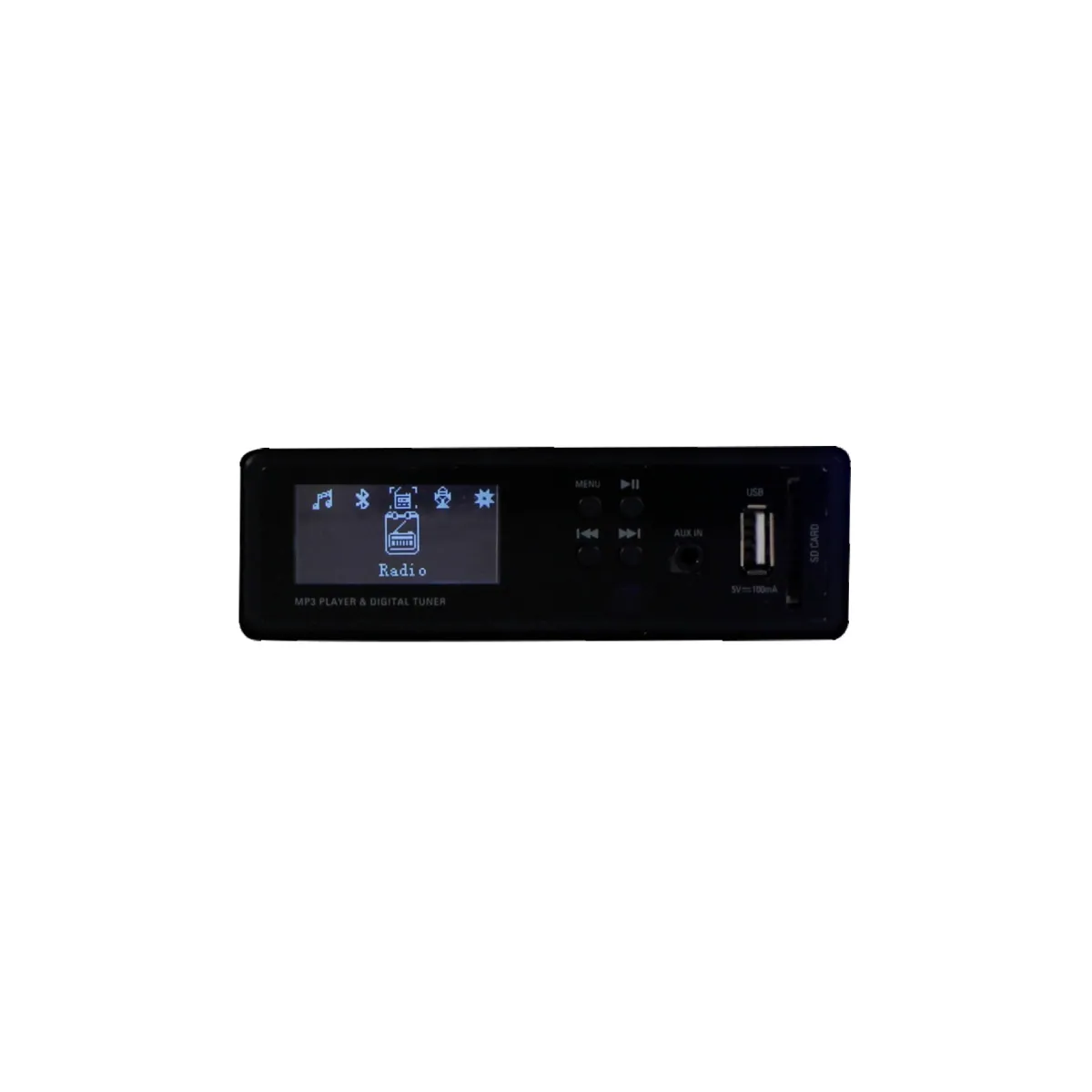

Front: MENU, PLAY, NEXT, BACK

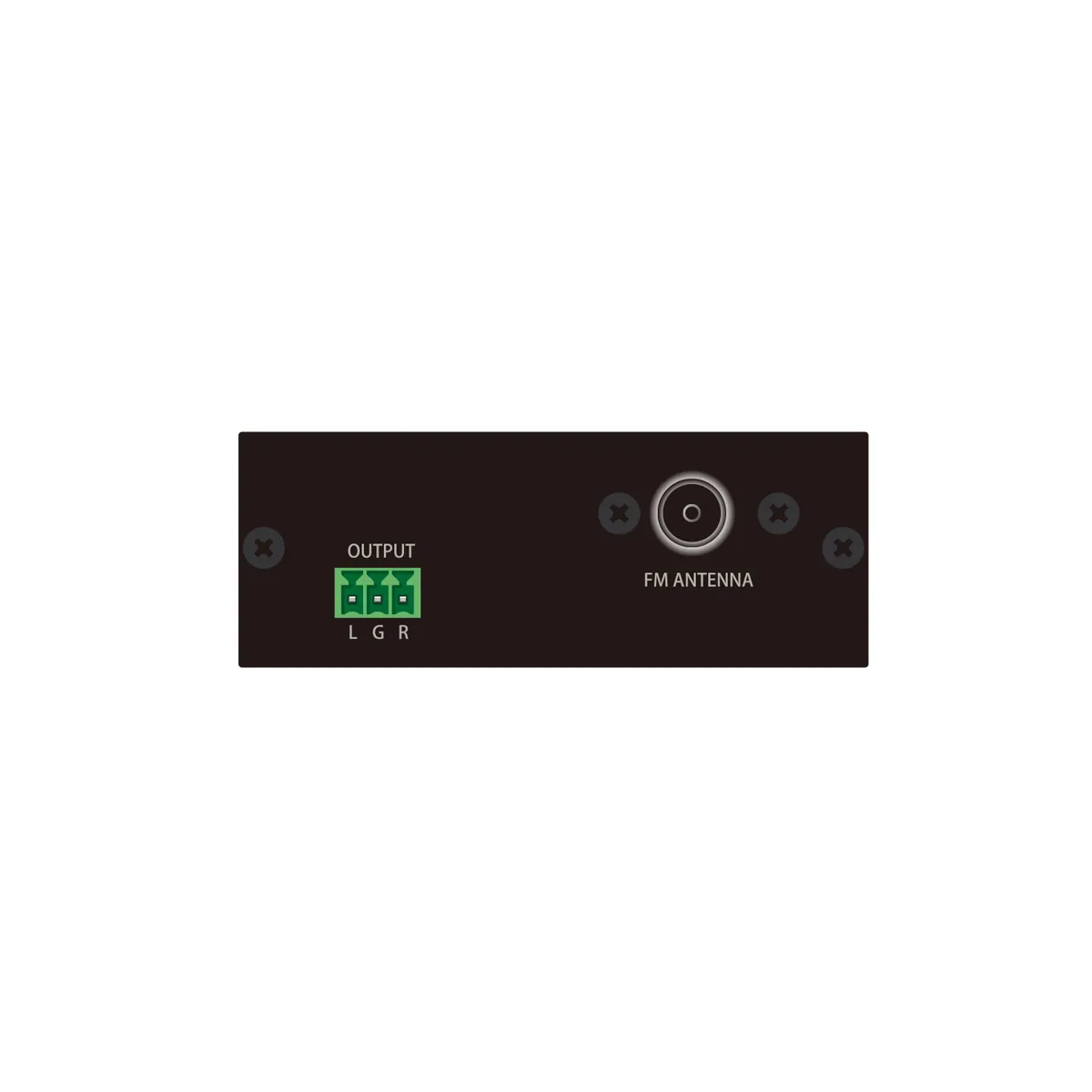

Connectors
- Input: AUX IN phone jack
- Output: Stereo line output with Euroblock
- USB and SD Card slot
- FM antenna input jack
Indicators
1.5” B/W GRAPHIC LCD
03Documents1 file · 1.0 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
