Sheet 05.516
Lucky Tone · Audio sources

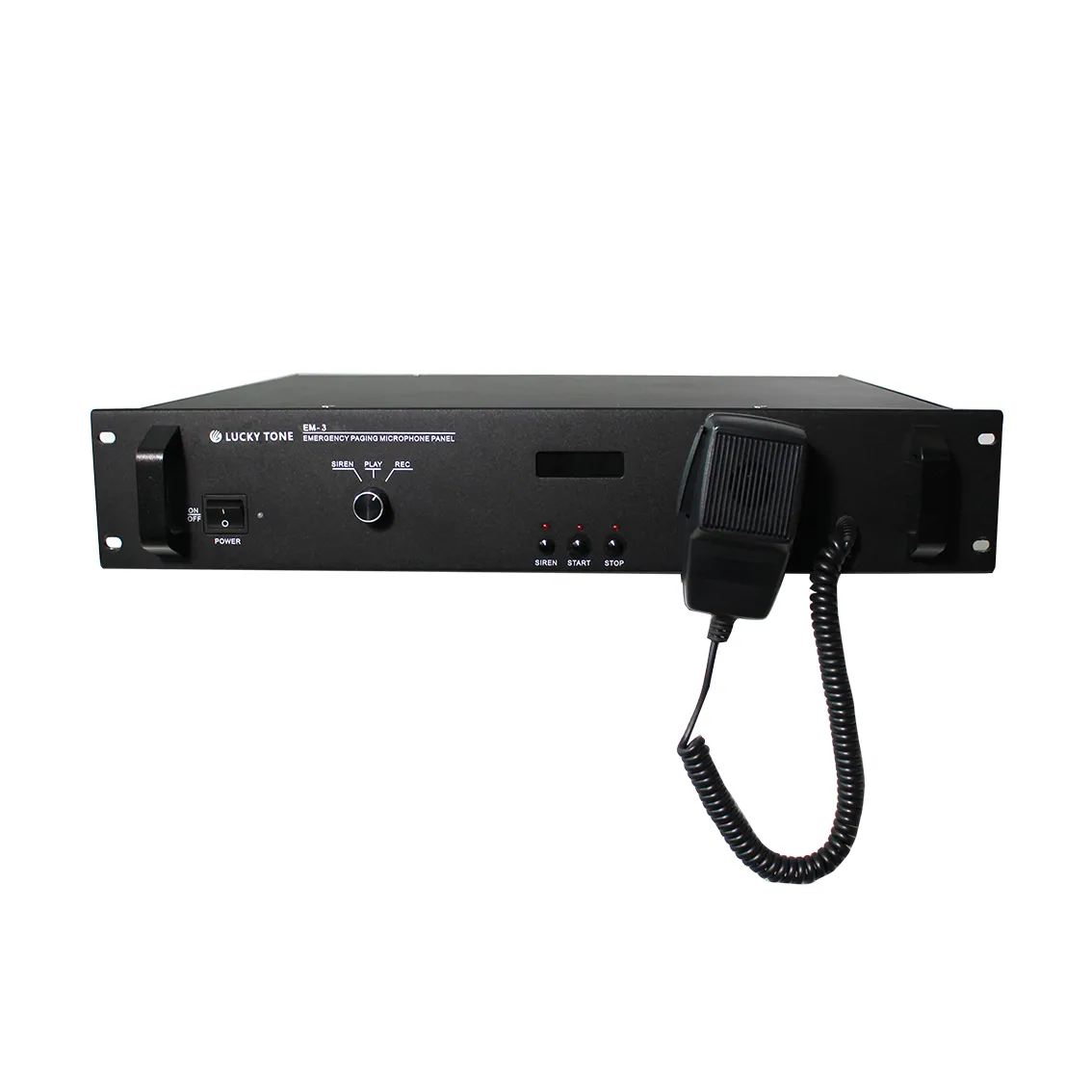

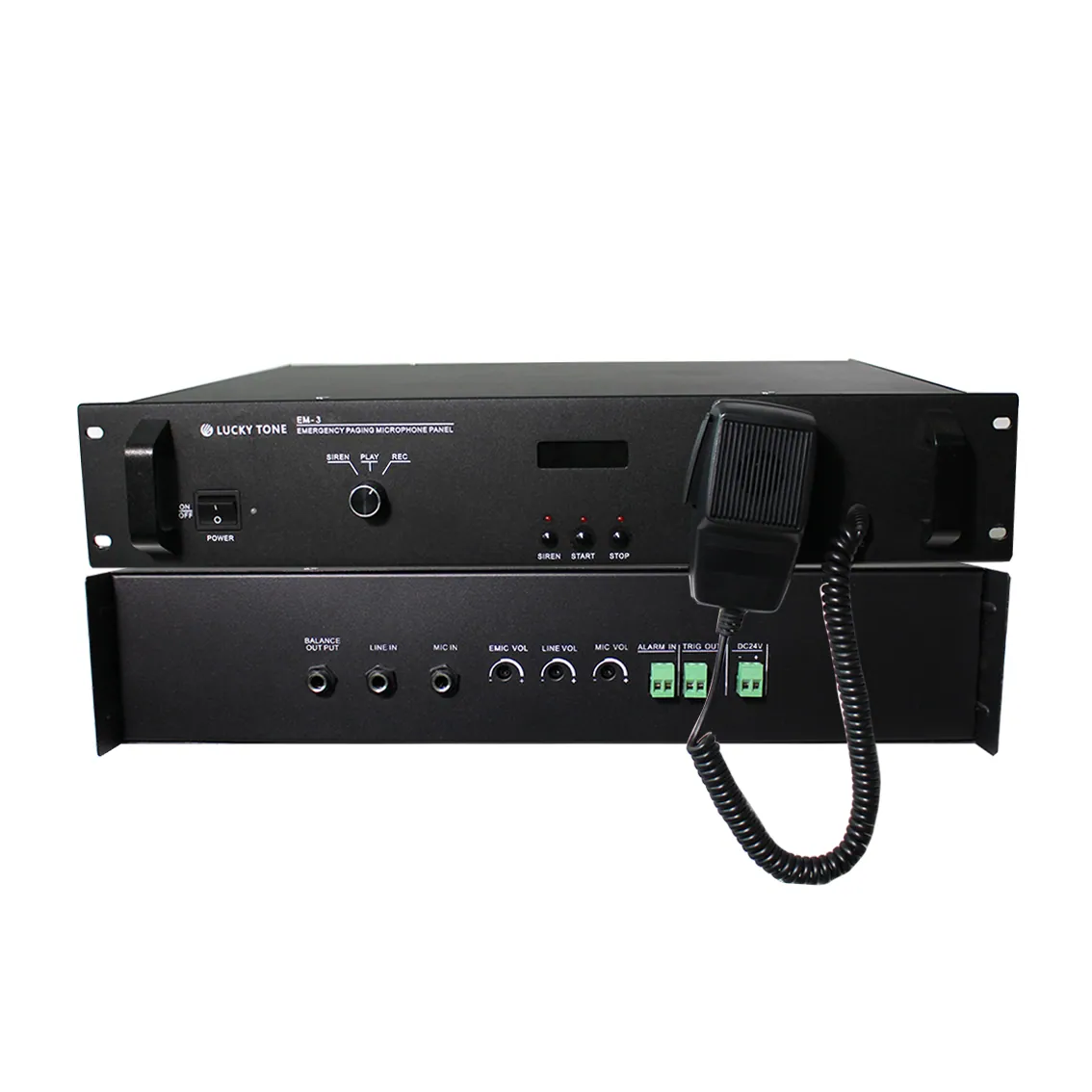

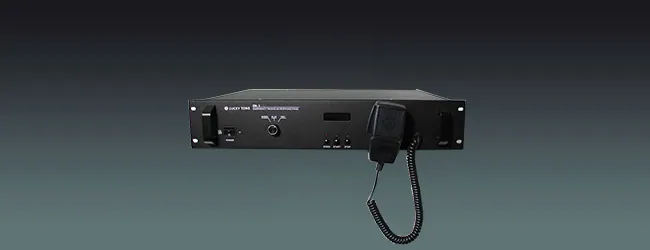

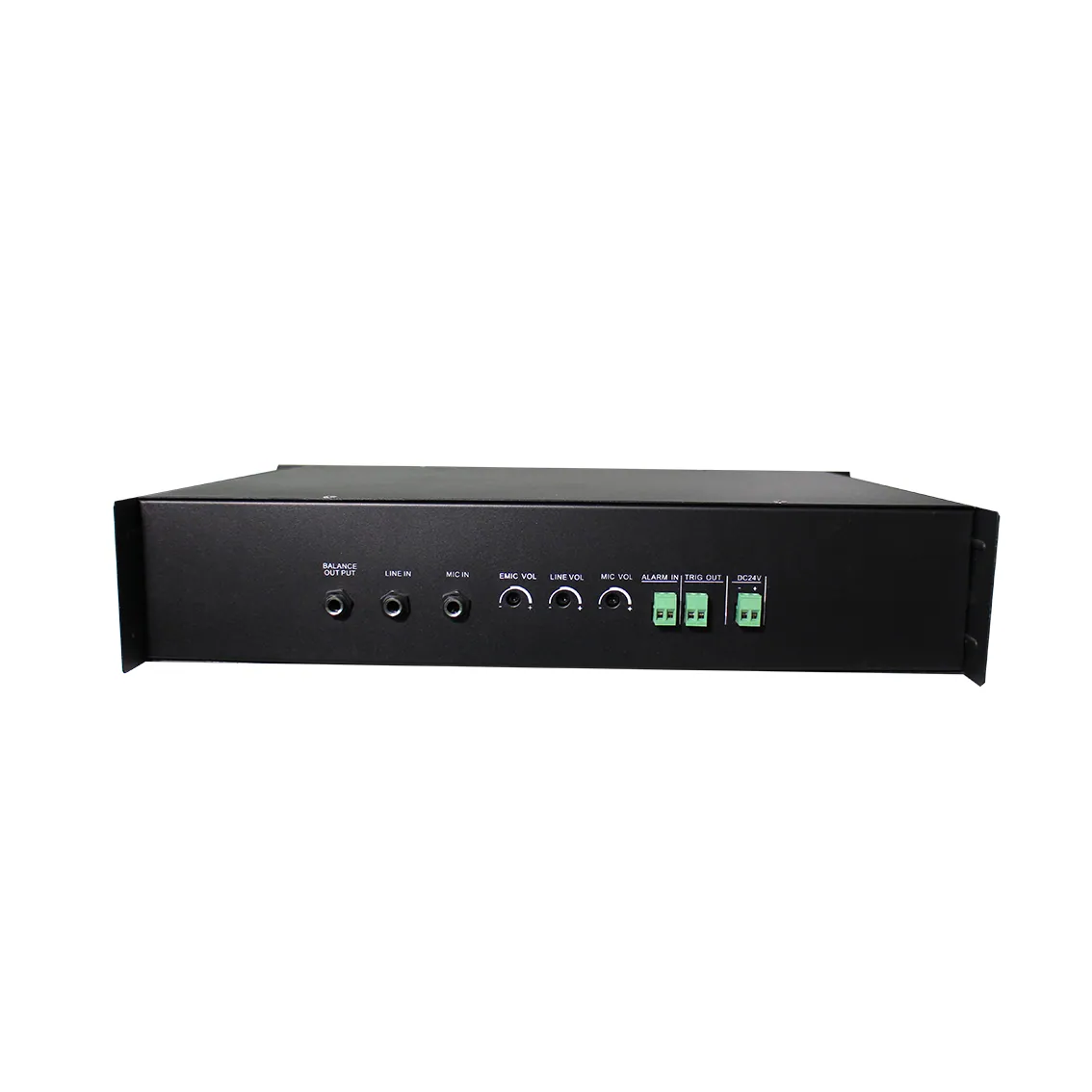

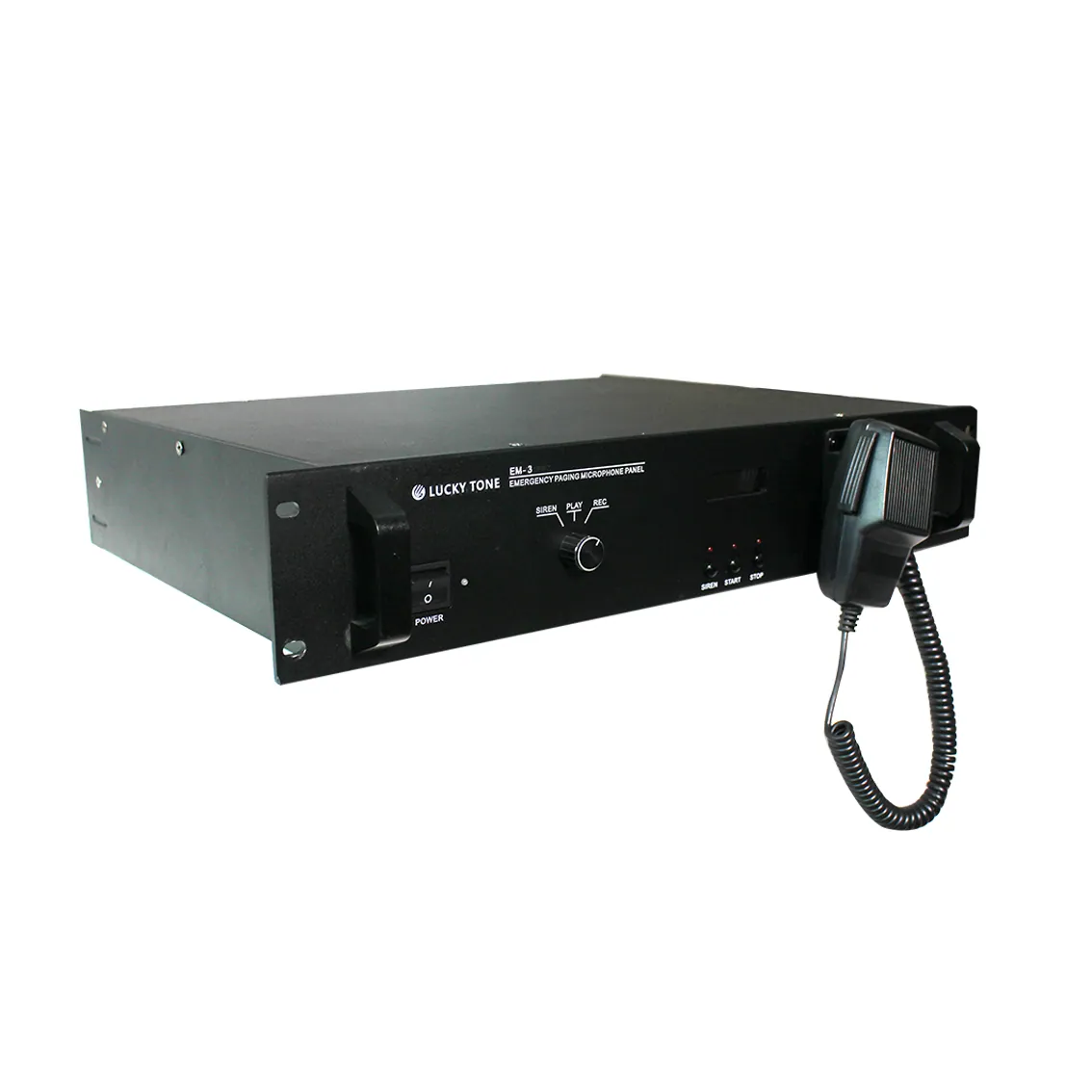

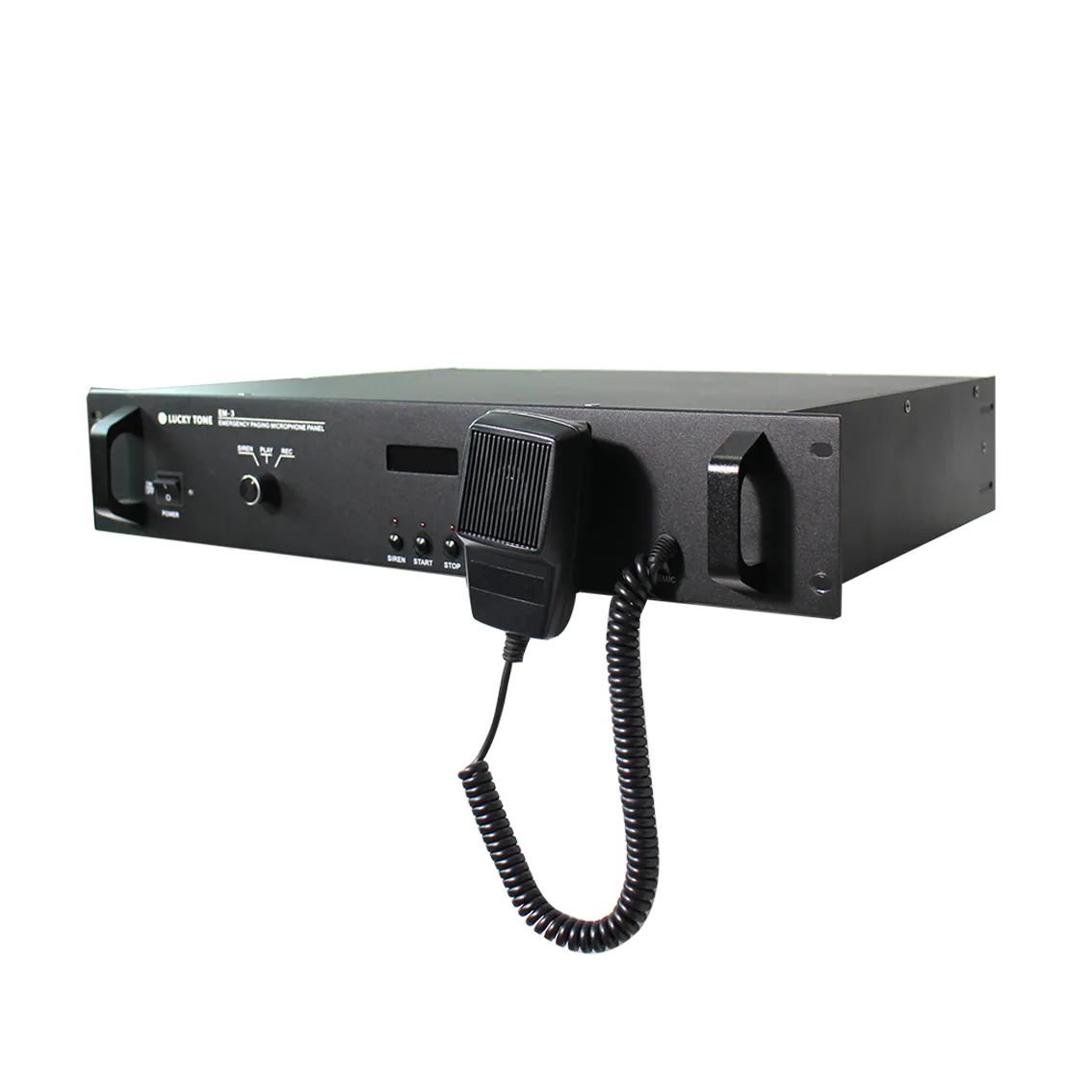

Emergency Microphone Panel
ModelEM-3
LED display screen with flash indicator to show the fire status
- Dimensions
- 89(H)×483(W)×368(D)mm
- Weight
- 5 kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Emergency Microphone PanelPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 12 values
What this product is, in numbers.

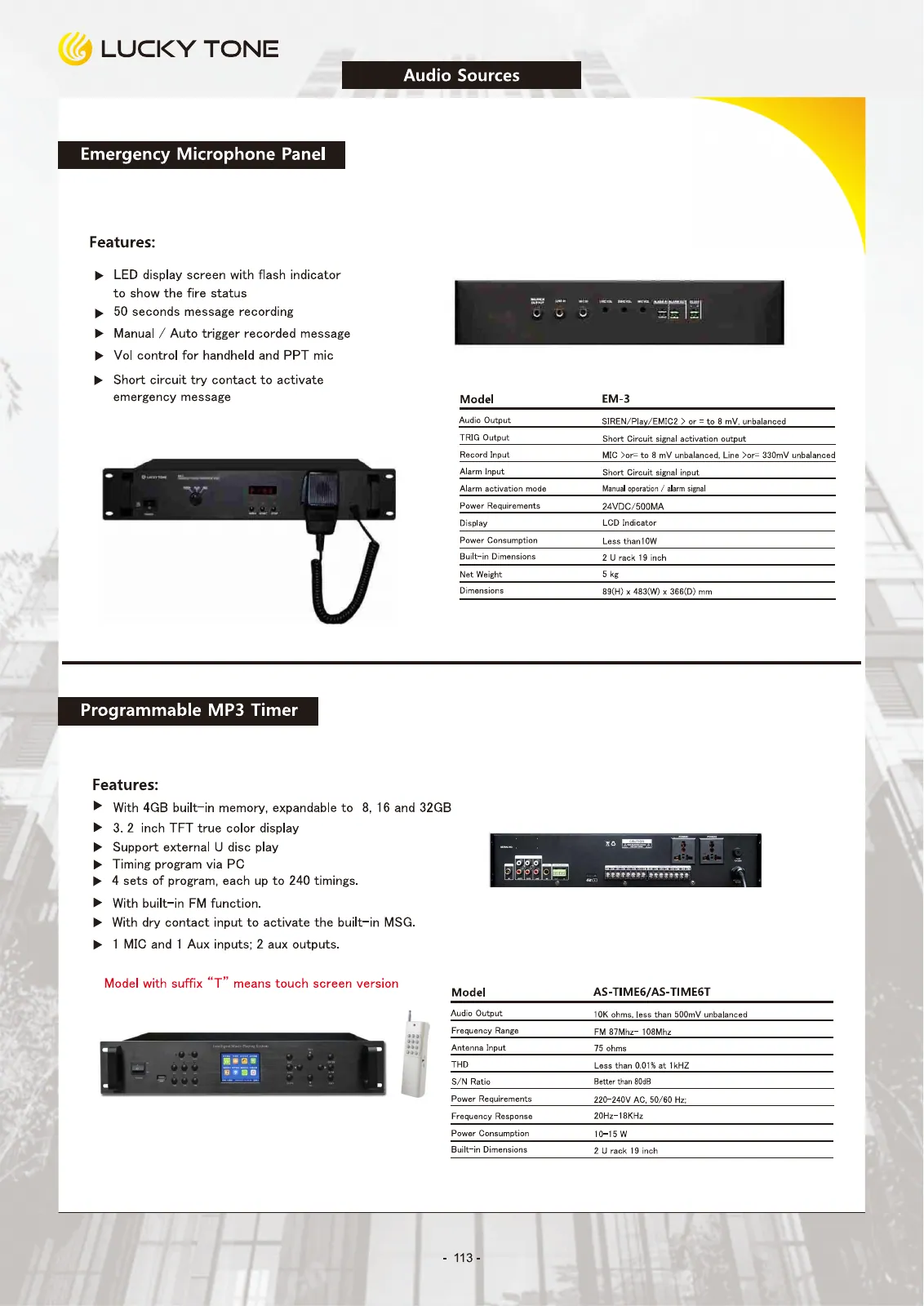

PDFSpecifications608 KB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications12
- Model
- EM-3
- Audio Output
- SIREN/Play/EMIC2>or=to 8 mV,unbalanced
- TRIG Output
- Short Circuit signal activation output
- Record input
- MIC>or=8 mV unbalanced. Line>or=330mV unbalanced
- Alarm Input
- Short Circuit signal input
- Alarm activation mode
- Manual operation/ alarm signal
- Power Requirements
- 24VDC/500MA
- Display
- LCD Indicator
- Power Consumption
- Less than10W
- Built-in Dimensions
- 2 U rack 19 inch
- Net Weight
- 5 kg
- Dimensions
- 89(H)×483(W)×368(D)mm
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Features
- 50 seconds message recording
- Manual / Auto trigger recorded message
- Vol control for handheld and PPT mic
- Short circuit try contact to activate emergency message
03Documents1 file · 608 KB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
