Sheet 05.365
Lucky Tone · Public address

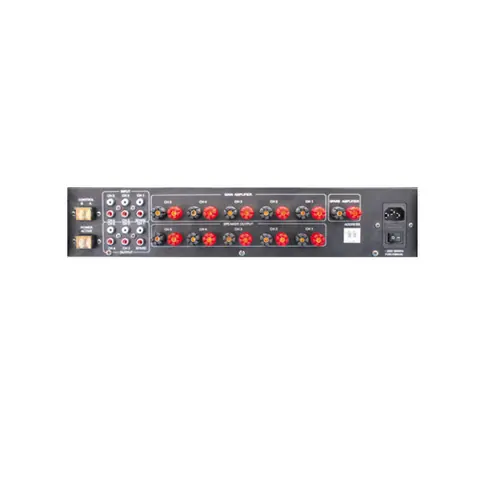

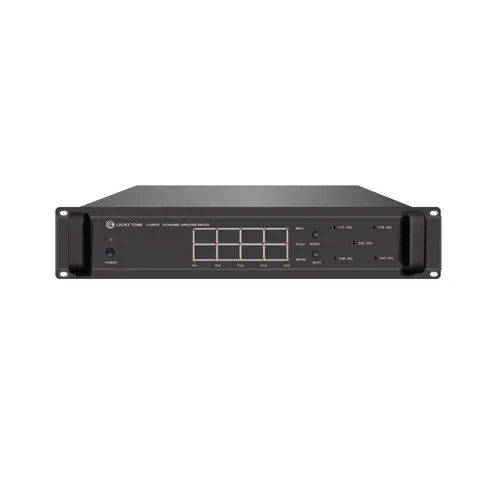

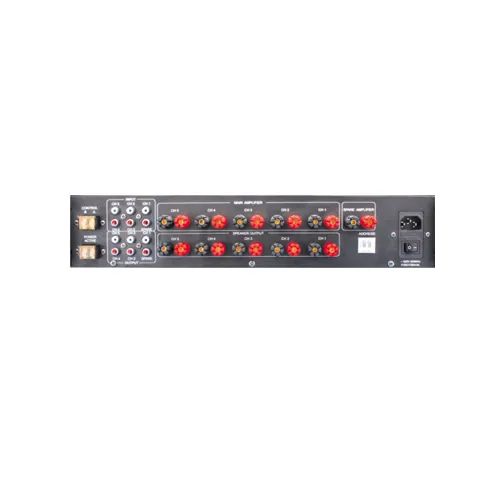

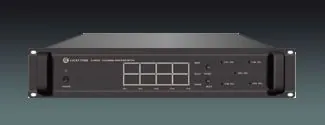

5-channel Amplifier Switch
ModelD-AMS10
● Automatically switch to backup amplifier when amplifier failure is detected
- Dimensions
- 89(H) x 483(W) x 350(D) mm
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
5-channel Amplifier SwitchPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 12 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications12
- MODEL
- D-AMS10
- Input
- 6 audio source channels; 5 main amplifier channels
- Output
- 5 speaker channels
- Check Cycle
- Input: 50mV 20mS; Output: 100mV 20mS
- Channel Switching Cap
- 150V/20A, audio signal
- Controls
- 1 power switch,1 reset button,1 alarm tone control,
- Controls
- 5 volume controls,1 address setting dip
- Indicators
- POWER, CH1 ~ CH5 NORMAL indicators,CH1 ~ CH5
- Indicators
- FAULT indicators,CH1 ~ Ch5 SWITCH indicators
- Protection
- AC fuse: 0.5A
- Power Requirement
- AC 220V ± 10% 50-60Hz; 24VDC
- Dimensions
- 89(H) x 483(W) x 350(D) mm
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Features
- ● Main/Backup Power Amplifier switch
- ● It can manually operate for power amplifier upgrade and maintenance
- ● Manage 10 amplifiers and backup strategy is programmable
- ● Each channel has a volume control, manual switch, and status indicator
