Sheet 05.245
Lucky Tone · Power amplifiers

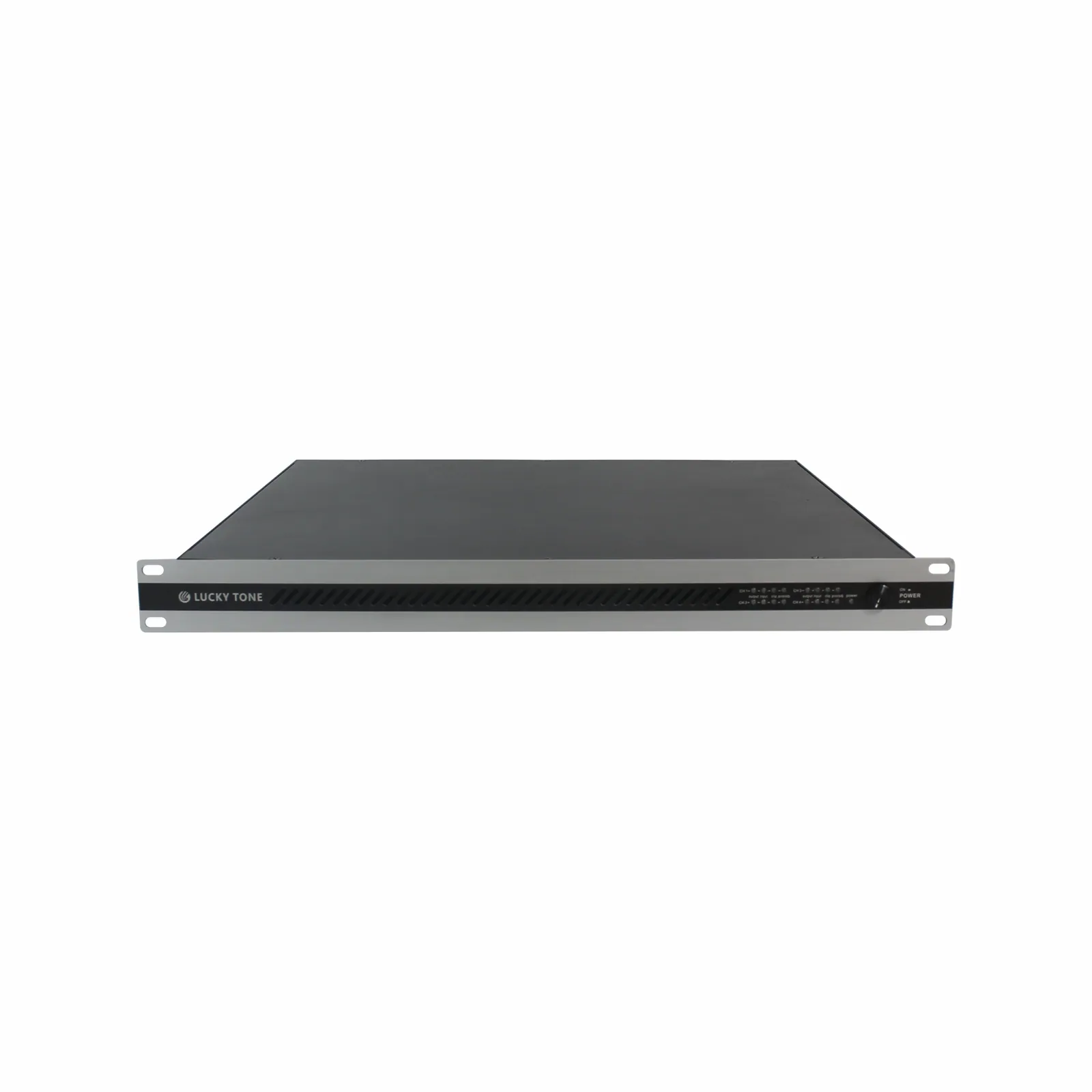

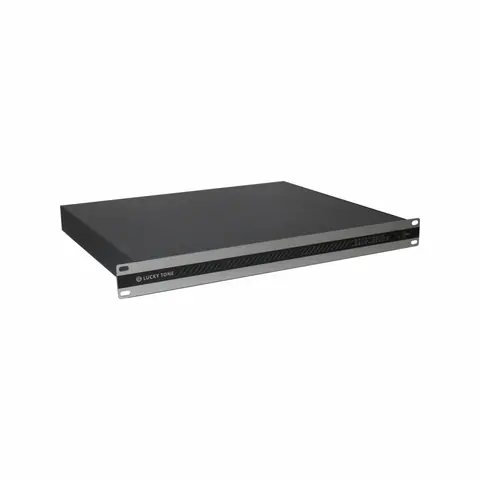

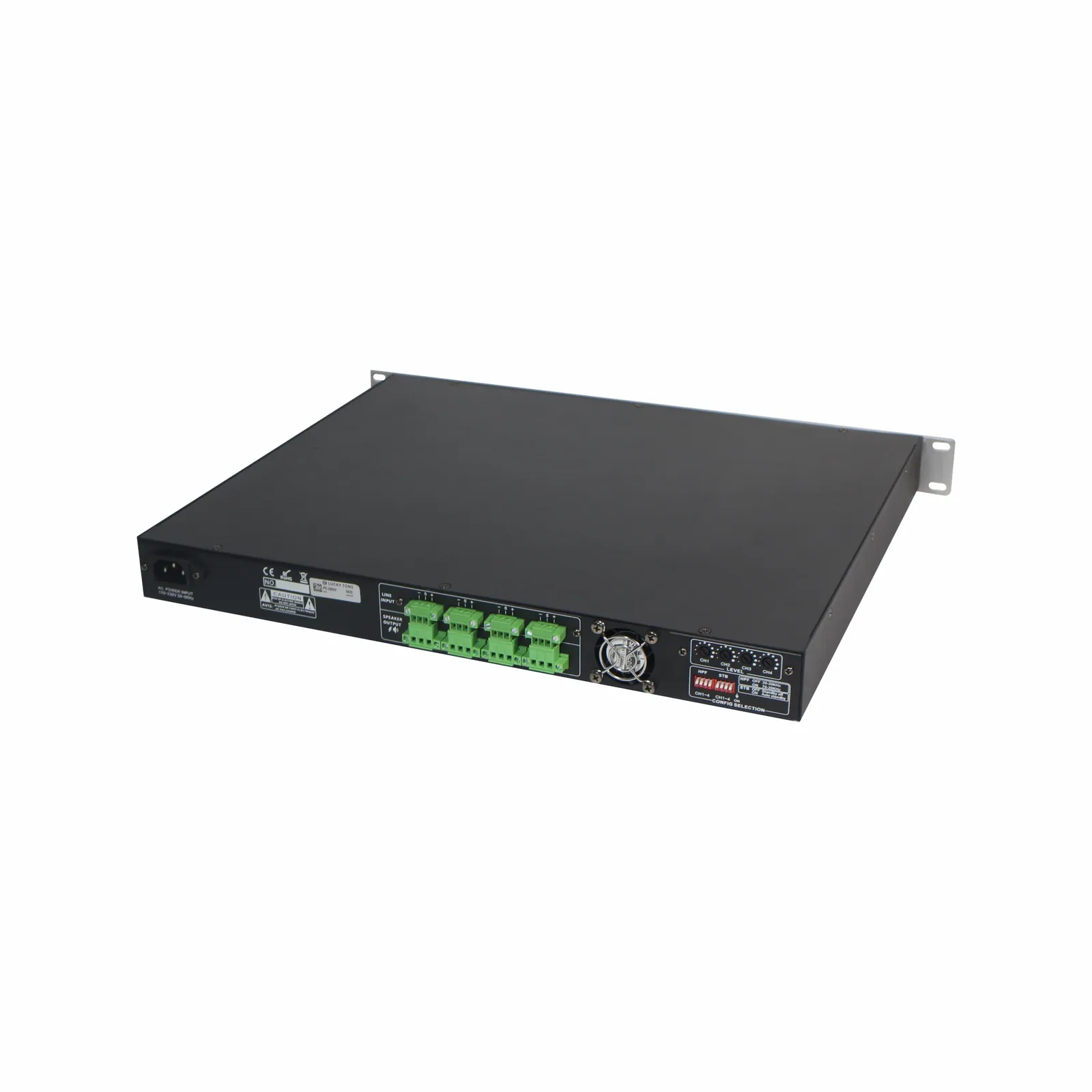

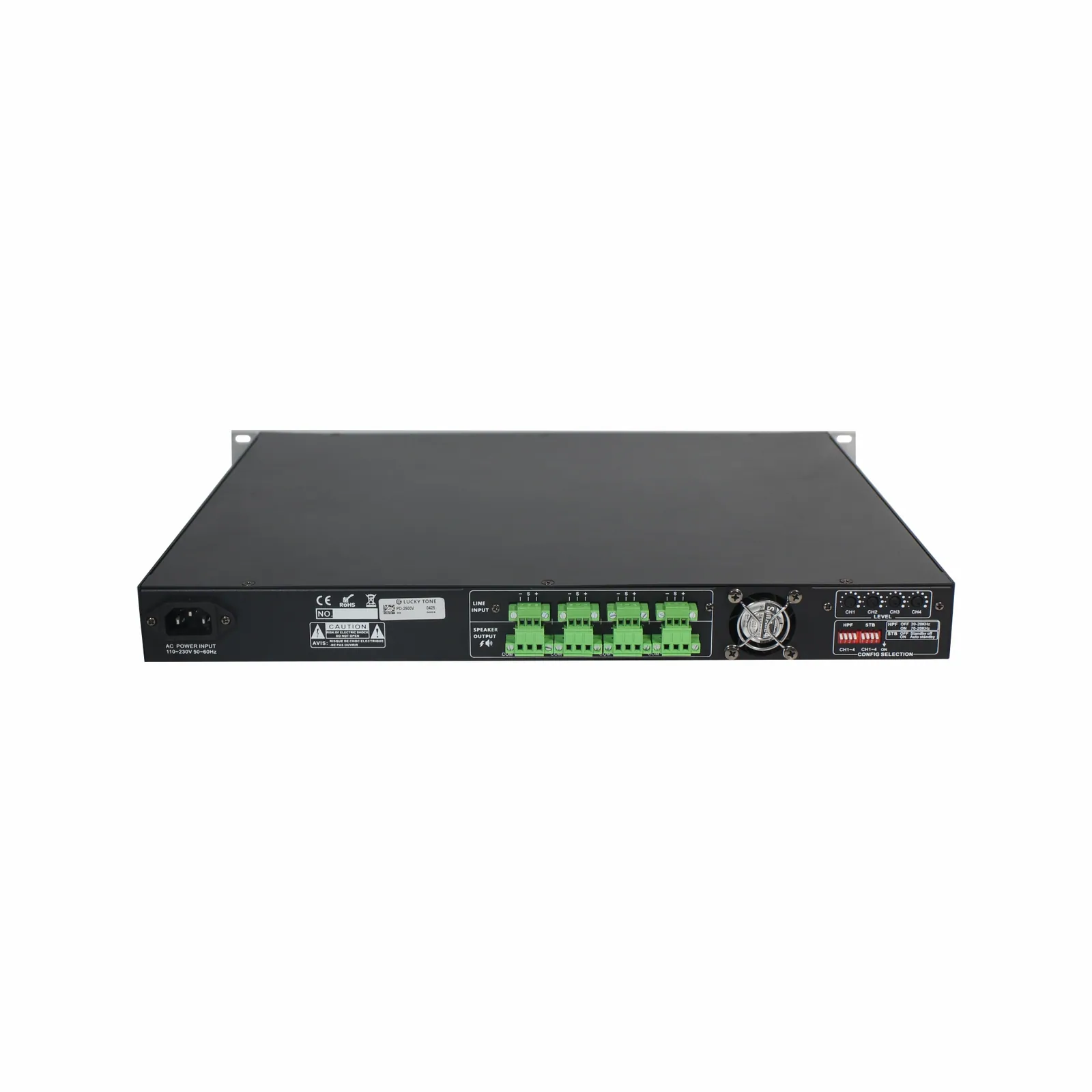

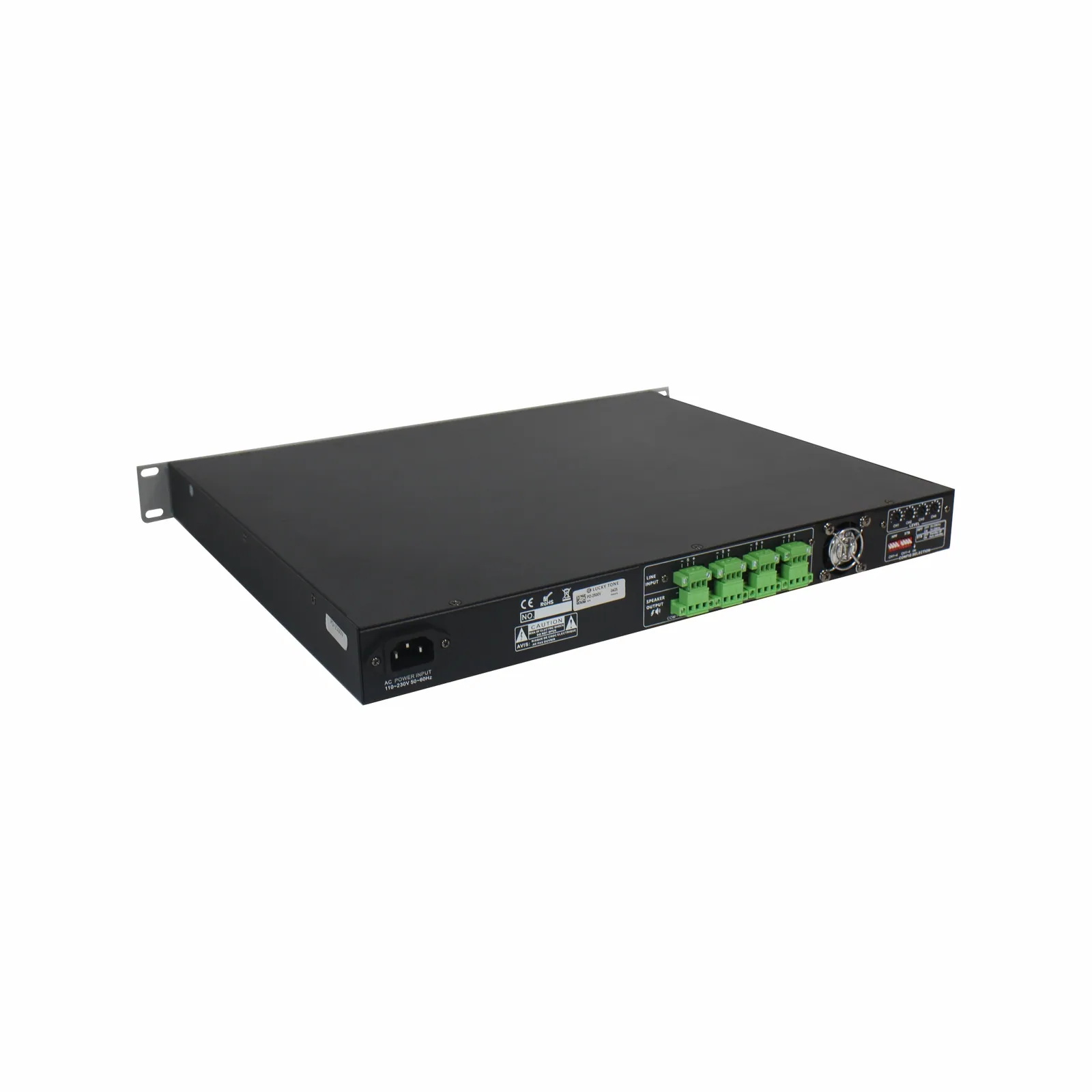

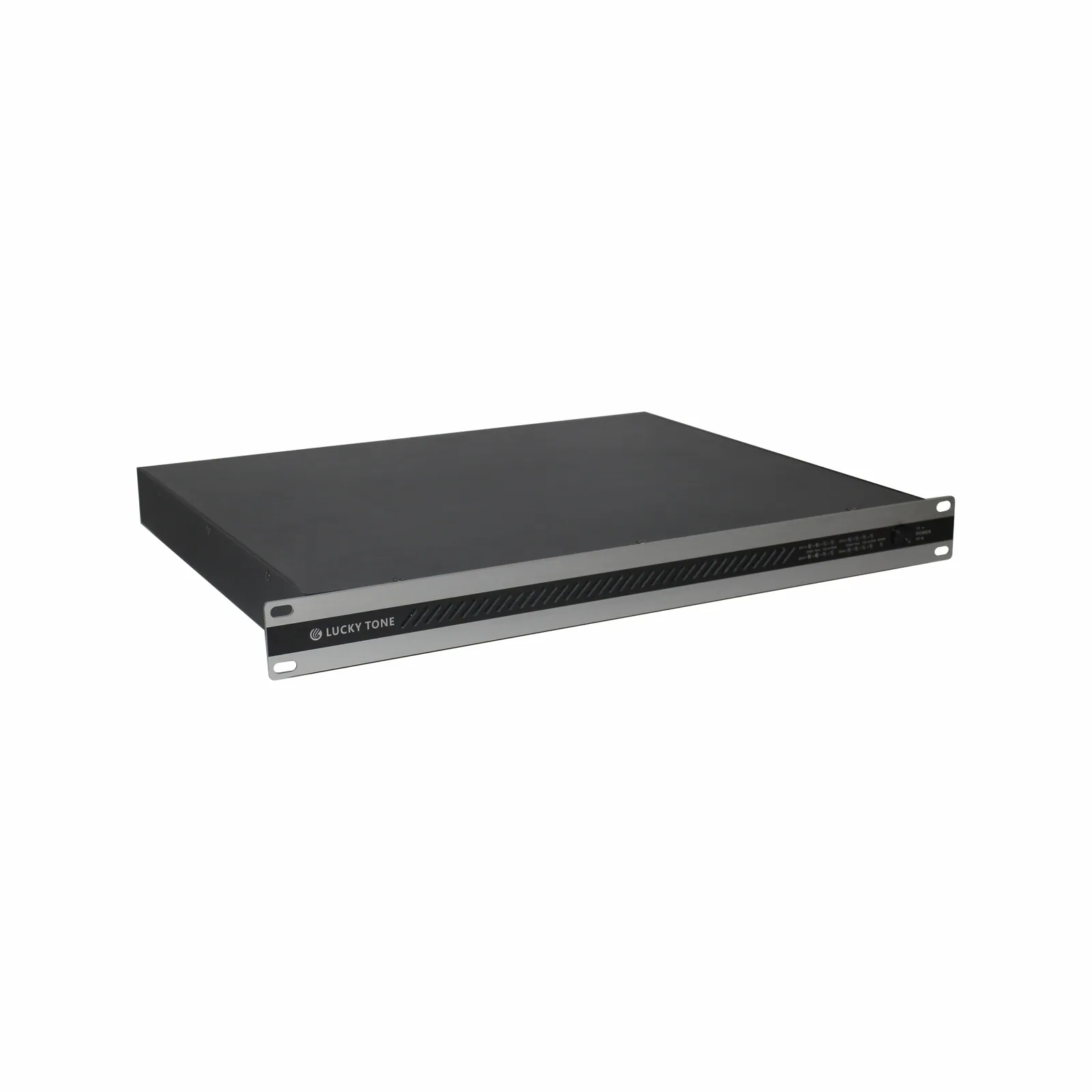

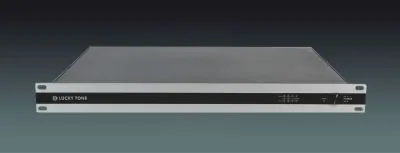

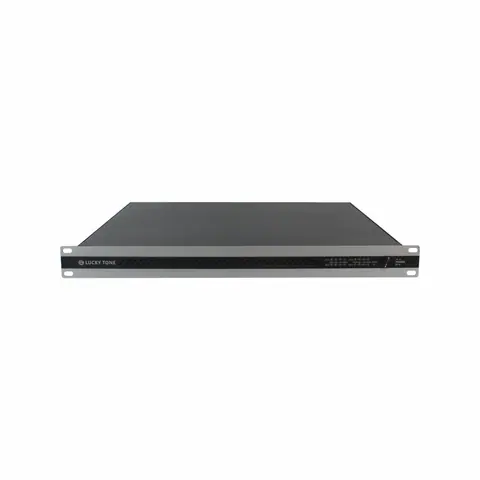

4-channel Class D Power Amplifier
ModelPD-460 V2 / PD-4120 V2 / PD-4240 V2 / PD-4350V2 / PD-4500V2
Highly flexible class D amplifiers available at 60W, 120W, 240W, 350W and 500W RMS Power, 4 channels respectively, and equipped with phoenix inputs for a wide variety of voice and background music applications such as retail shops, restaurants and bars, service centers, houses of worship, warehouses and many more.
- Output power
- PD-460 V2: 4x60W; PD-4120 V2: 4x120W; PD-4240 V2: 4x240W; PD-4350V2: 4x350W; PD-4500V2: 4x500W
- Frequency response
- L/H Cut OFF 20Hz-20KHz (+1/-2dB) L/H Cut ON 70Hz-10KHz (+1/-3dB)
- Power supply
- AC 100-240V, 50-60Hz
- Dimensions
- 484x420x44 mm
- Weight
- PD-460 V2: 8.0kg; PD-4120 V2: 8.3kg; PD-4240 V2: 8.8kg; PD-4350V2: 9.2kg; PD-4500V2: 9.8kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
4-channel Class D Power AmplifierPrice on requestRequest a quotation
01Models5 models in the family
Models compared.
| Model | PD-460 V2 | PD-4120 V2 | PD-4240 V2 | PD-4350V2 | PD-4500V2 |
|---|---|---|---|---|---|
| Description | 4 Channel Class-D Power Amplifier | 4 Channel Class-D Power Amplifier | 4 Channel Class-D Power Amplifier | 4 Channel Class-D Power Amplifier | 4 Channel Class-D Power Amplifier |
| Rated Power Output | 4x60W | 4x120W | 4x240W | 4x350W | 4x500W |
| Speaker Output | 100V, 8ohm | 100V, 8ohm | 100V, 8ohm | 100V, 8ohm | 100V, 8ohm |
| Frequency Response | L/H Cut OFF 20Hz-20KHz (+1/-2dB) L/H Cut ON 70Hz-10KHz (+1/-3dB) | L/H Cut OFF 20Hz-20KHz (+1/-2dB) L/H Cut ON 70Hz-10KHz (+1/-3dB) | L/H Cut OFF 20Hz-20KHz (+1/-2dB) L/H Cut ON 70Hz-10KHz (+1/-3dB) | L/H Cut OFF 20Hz-20KHz (+1/-2dB) L/H Cut ON 70Hz-10KHz (+1/-3dB) | L/H Cut OFF 20Hz-20KHz (+1/-2dB) L/H Cut ON 70Hz-10KHz (+1/-3dB) |
| Input | 0.775V, 0dBu, balanced phoenix connector by four channels | 0.775V, 0dBu, balanced phoenix connector by four channels | 0.775V, 0dBu, balanced phoenix connector by four channels | 0.775V, 0dBu, balanced phoenix connector by four channels | 0.775V, 0dBu, balanced phoenix connector by four channels |
| Input Impedance | 10KΩ | 10KΩ | 10KΩ | 10KΩ | 10KΩ |
| THD | <0.1% (1KHz/-3dBv, 100W) | <0.1% (1KHz/-3dBv, 100W) | <0.1% (1KHz/-3dBv, 100W) | <0.1% (1KHz/-3dBv, 100W) | <0.1% (1KHz/-3dBv, 100W) |
| S/N Ratio | >80dB | >80dB | >80dB | >80dB | >80dB |
| Crosstalk | >60dB, 1KHz, Max output | >60dB, 1KHz, Max output | >60dB, 1KHz, Max output | >60dB, 1KHz, Max output | >60dB, 1KHz, Max output |
| Power Consumption | 300W | 550W | 1100W | 1650W | 2100W |
| Power Supply | AC 100-240V, 50-60Hz | AC 100-240V, 50-60Hz | AC 100-240V, 50-60Hz | AC 100-240V, 50-60Hz | AC 100-240V, 50-60Hz |
| Dimension | 484x420x44 mm | 484x420x44 mm | 484x420x44 mm | 484x420x44 mm | 484x420x44 mm |
| Weight | 8.0kg | 8.3kg | 8.8kg | 9.2kg | 9.8kg |
02DescriptionManufacturer's description
What it is.
Features
High efficient at 80 to 90% conversion rate
Light weight and compact 1U design
Grounding connection
Reliability. High quality electronic components and each channel has separated isolation to ensure one fail will not affect others.
Individual volume control for each channel
LED level meter
Speaker output short circuit protection
