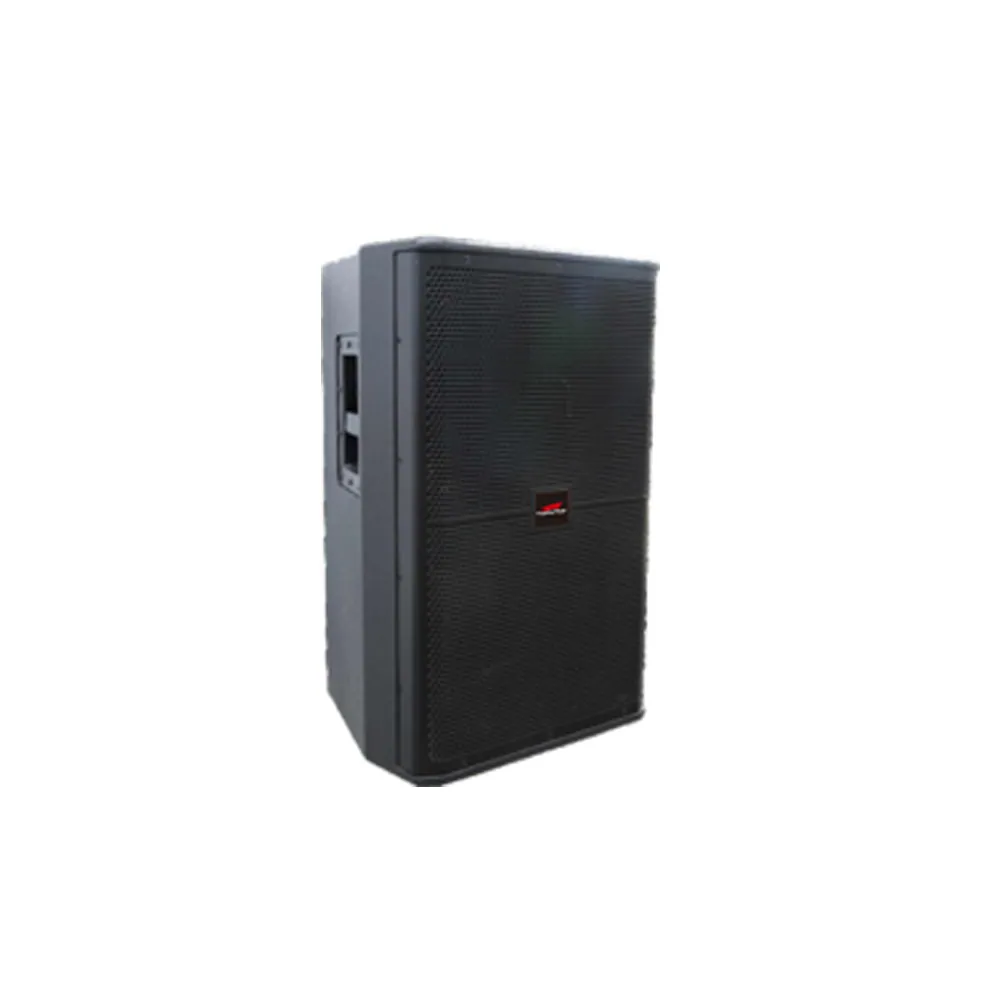

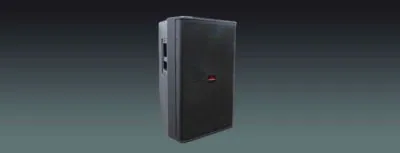

15″ High-Power Two-Way Loudspeaker

ModelPSRX715

The PSRX715 offers the highest level of performance available from a portable, pole or tripod mountable speaker.

Frequency response: 40 Hz – 20kHz (-10 dB)
Dimensions: 711 mm x 439 mm x 406 mm (28 in x 17.3 in x 16 in)
Weight: 22 kg (48 lb.)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 10 values

What this product is, in numbers.

PDFSpecifications800 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications10

Model: PSRX715
Configuration: 100 core 220 magnetic LF, 75 core HF
Frequency Range: 40 Hz – 20kHz (-10 dB)
Frequency Response: 53 Hz – 20 kHz (±3 dB)
Sensitivity(1m/1W): 97dB
Rated/Continuous/Peak power: 500W/1000W/2000W
Maximum SPL: 124dB/127dB/130dB
Coverage Pattern: 75º x 50º nominal
Net Weight: 22 kg (48 lb.)
Dimensions (H x W x D): 711 mm x 439 mm x 406 mm (28 in x 17.3 in x 16 in)

02DescriptionManufacturer's description

What it is.

Light-weight and very high-power.
75°x 50°coverage.
Bi-amplified or full-range passive operation.
Dual-angle pole socket for applications requiring tripod mounting.

Flying version available (PSRX715F) with five suspension points. May be used with optional M10 eyebolts or detachable track fittings.

Differential Drive® woofer with magnet for high power capacity and very light-weight.
3-inch (voice-coil) compression driver
15 inch plywood speaker
High power, reliable and performance
Black painted finish

03Documents1 file · 800 KB
