Sheet 05.102
Lucky Tone · Loudspeakers

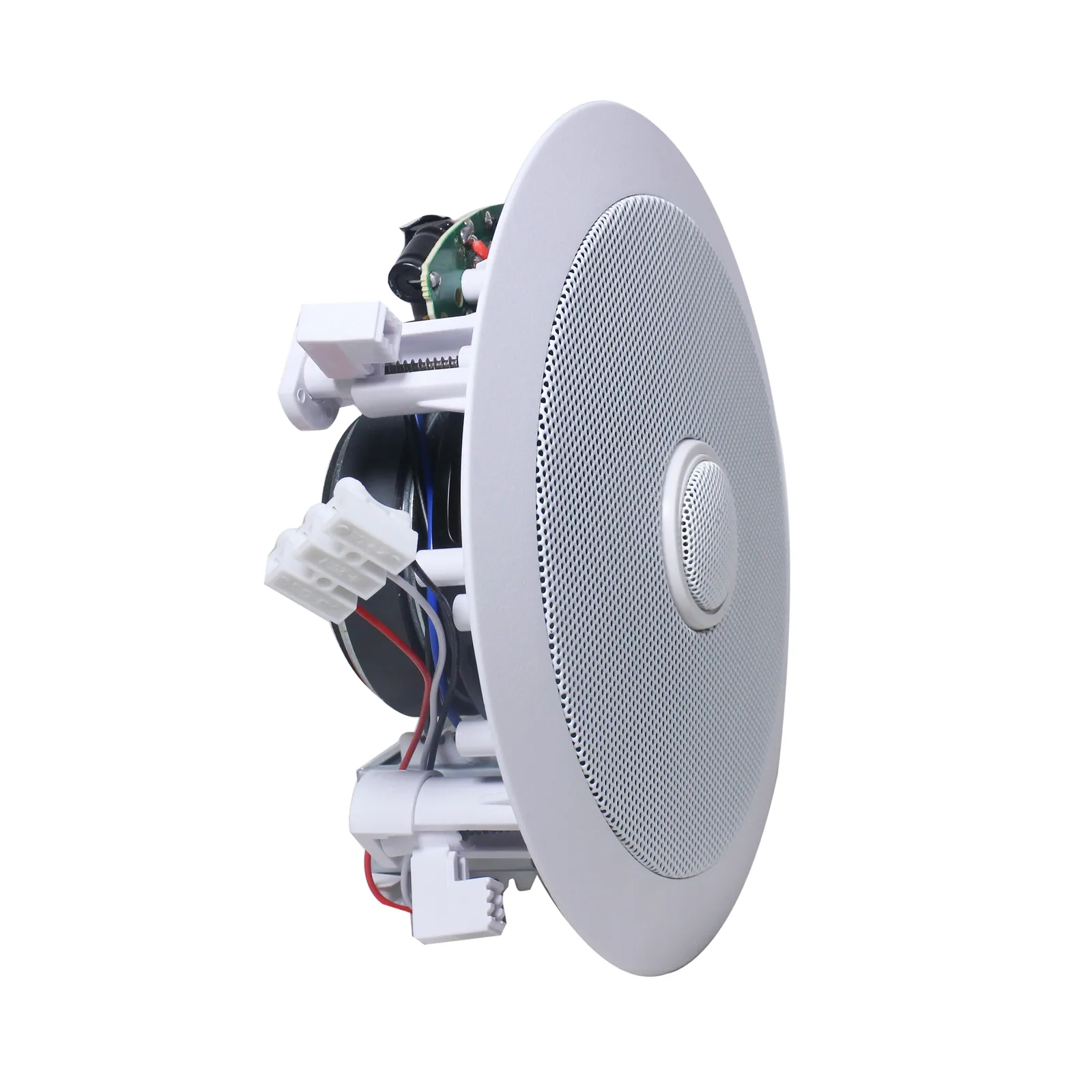

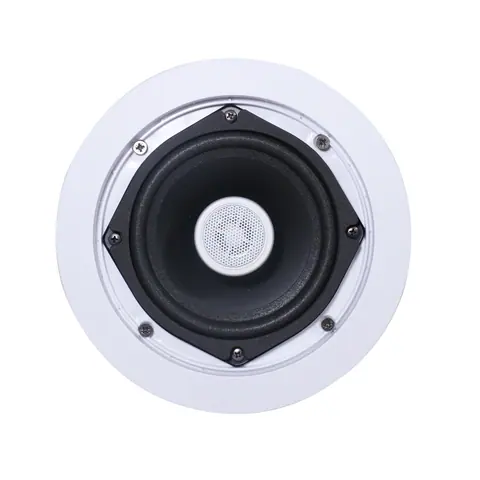

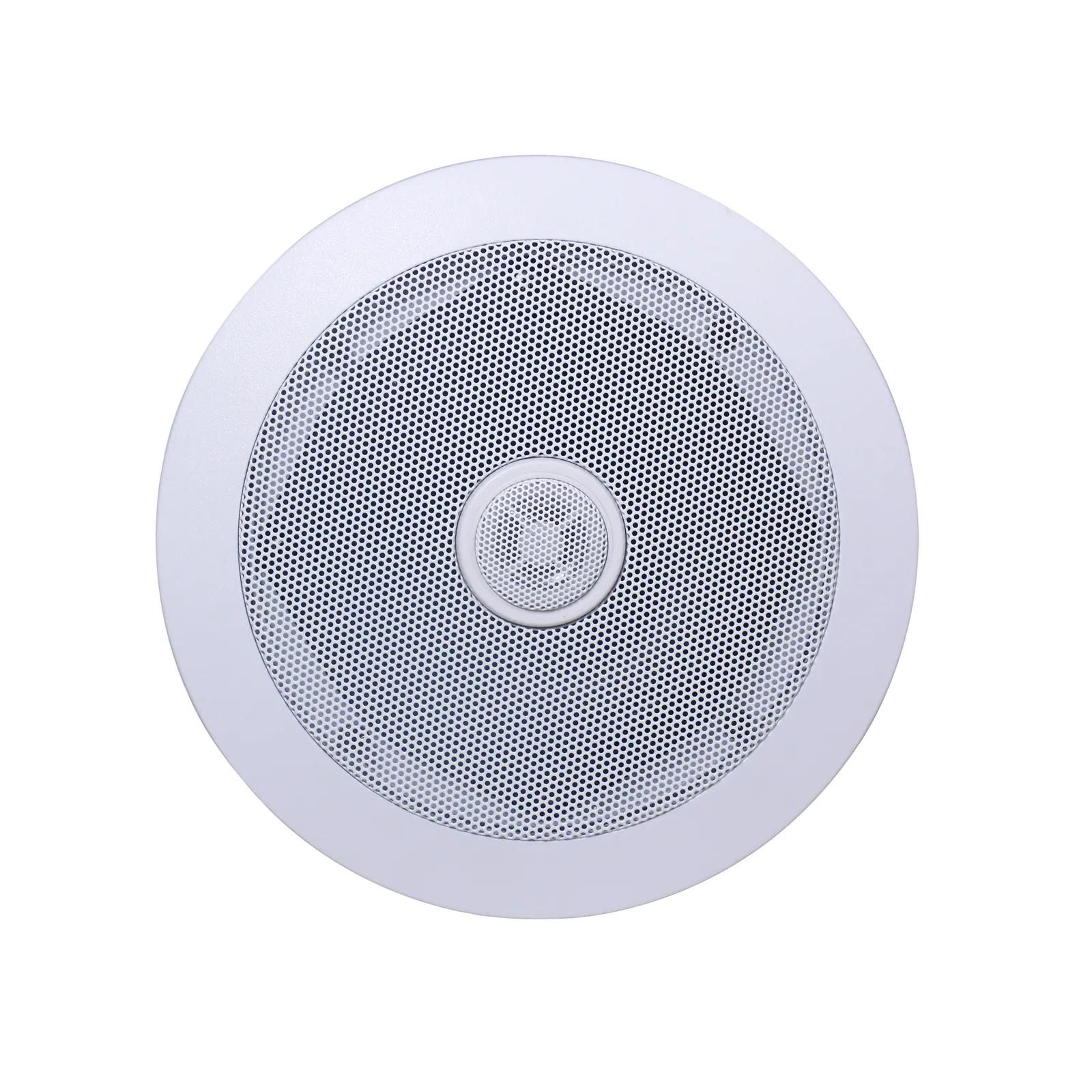

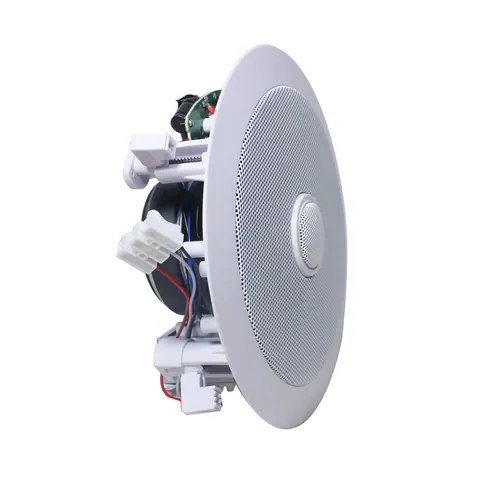

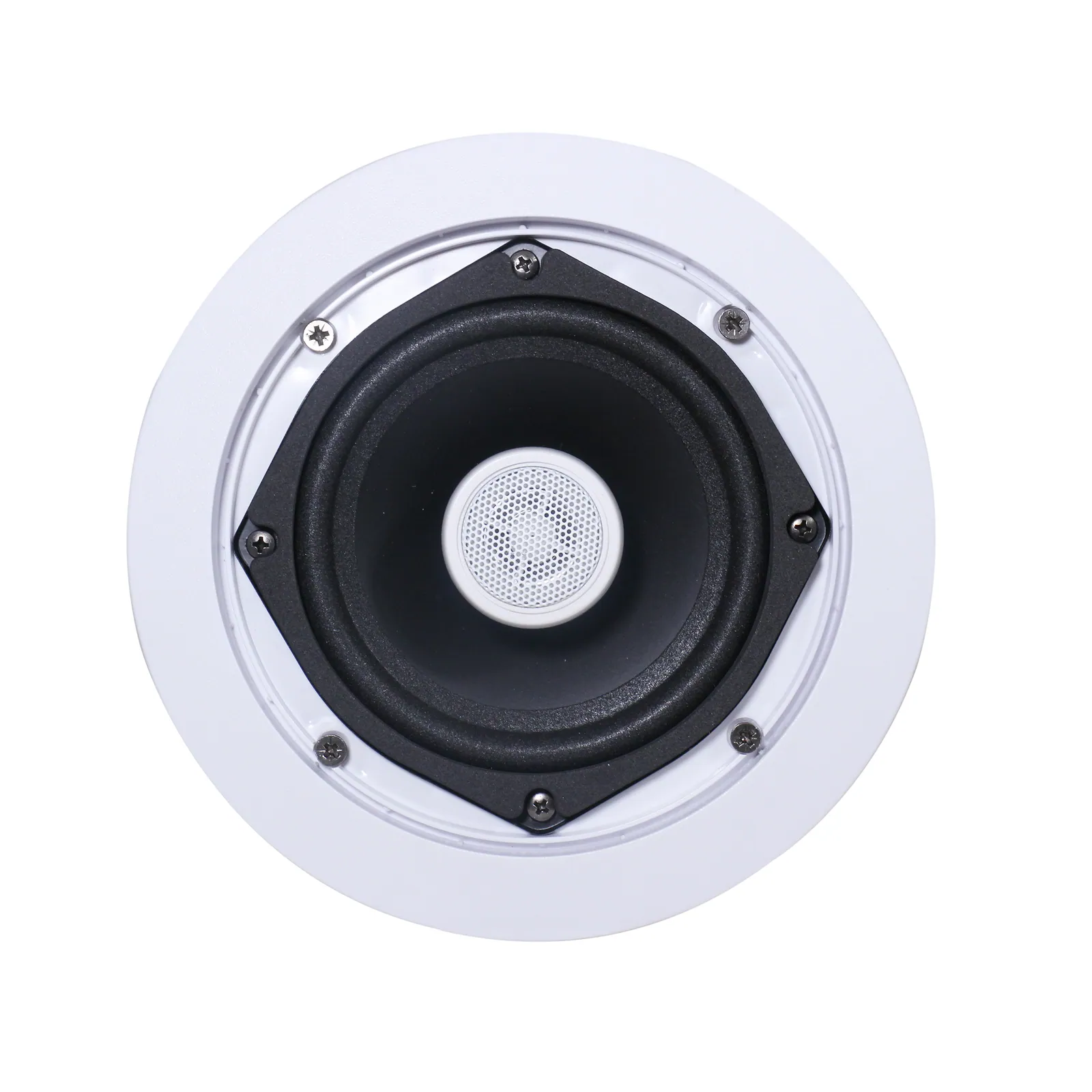

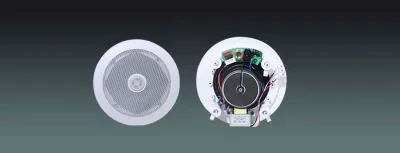

5″ Coaxial Ceiling Speaker
ModelSC16T

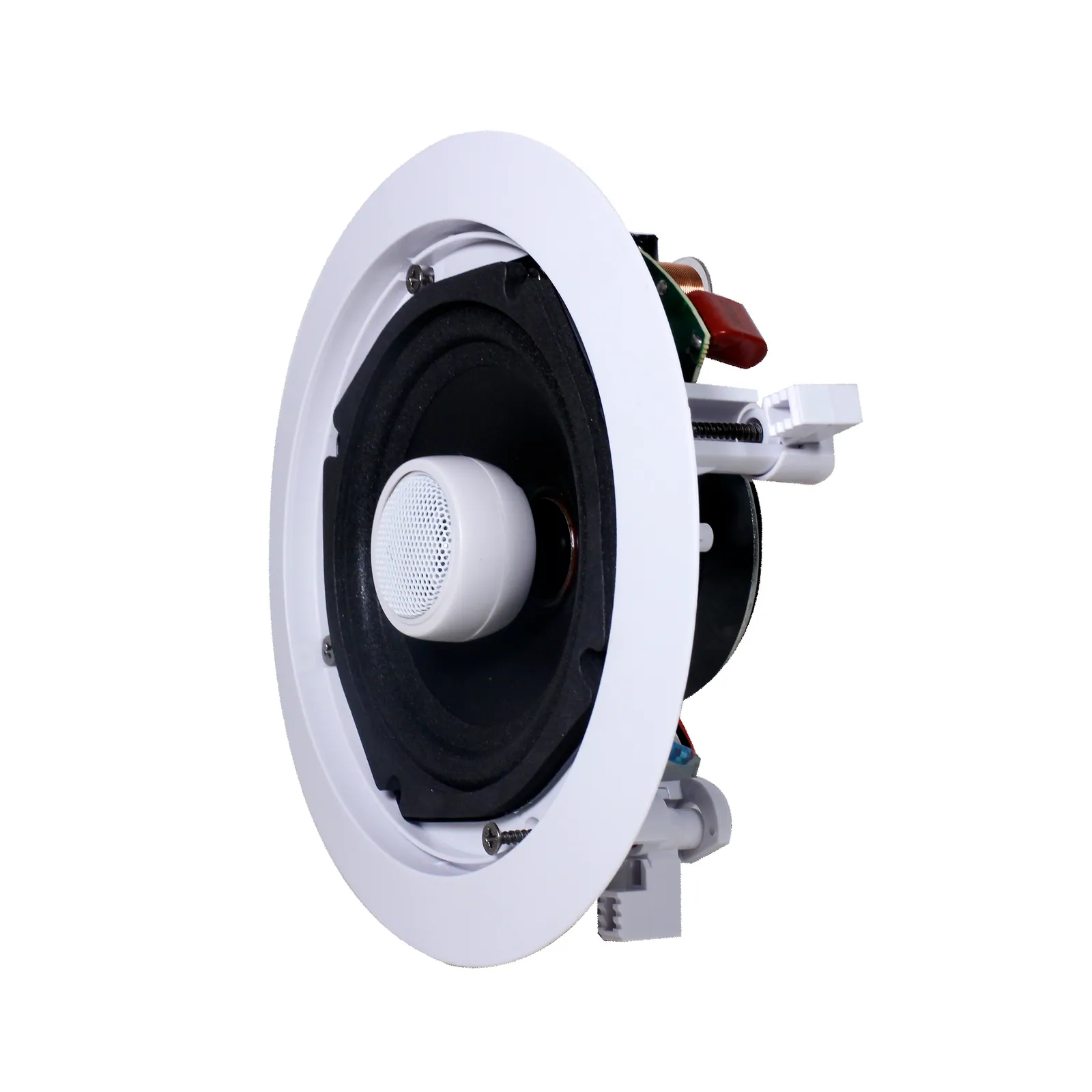

The treble has a 15-degree tilt angle and can be adjusted freely for better pointing.
- Output power
- 20W
- Frequency response
- 60~18KHz
- Weight
- 1.30 Kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
5″ Coaxial Ceiling SpeakerPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 12 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications12
- MODEL
- SC16T
- Rated Power
- 20W
- Power Tapping
- 20W / 10W / 100V
- SPL (1W/1M)
- 88dB
- Frequency Response
- 60~18KHz
- Speaker Driver
- 5″ Coaxial
- Line lnput
- 100V/70V
- Enclosure Material
- ABS, Iron (Grille)
- Net Weight
- 1.30 Kg
- Product Size
- φ203*88mm
- Cut Size
- φ170mm
- Color
- White
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.

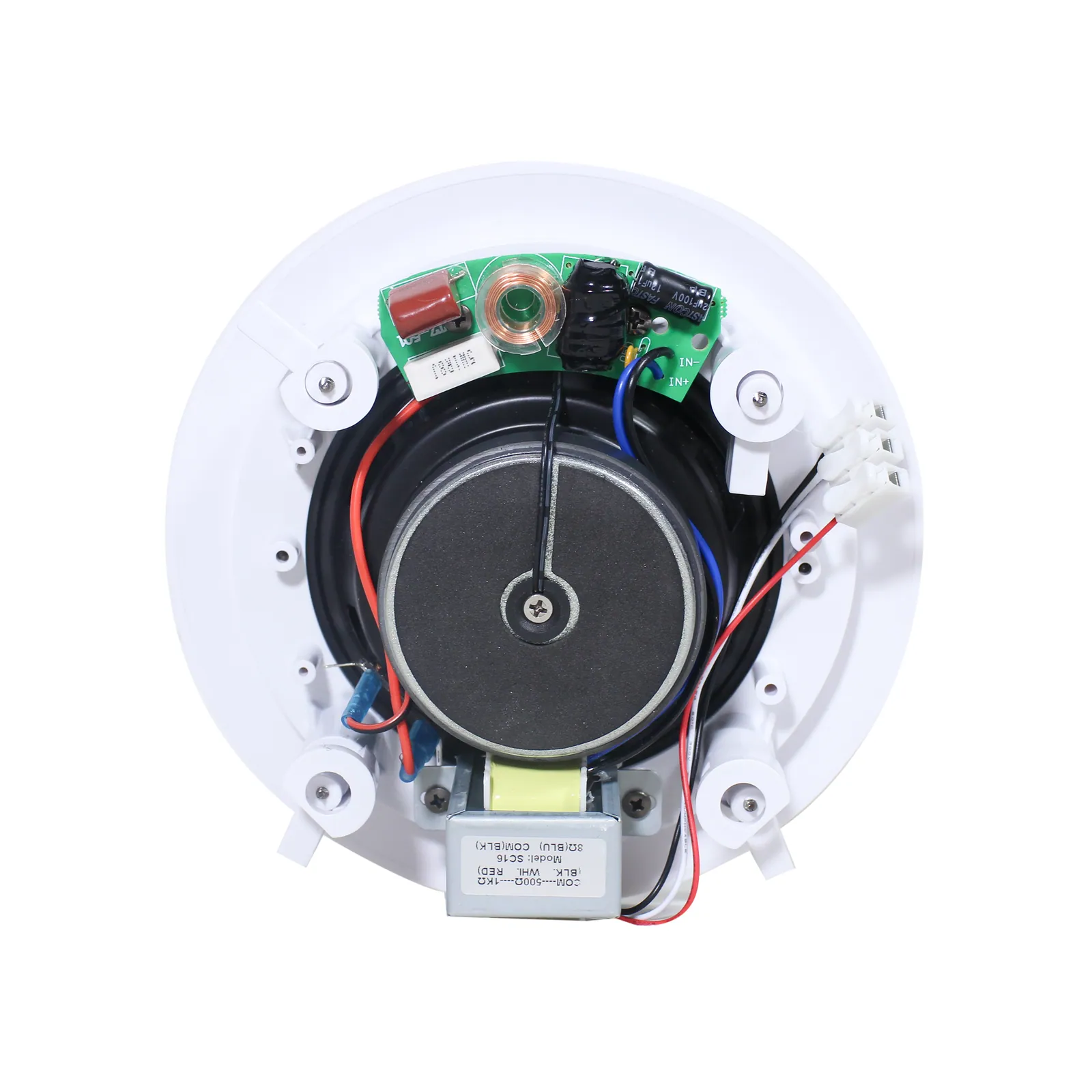

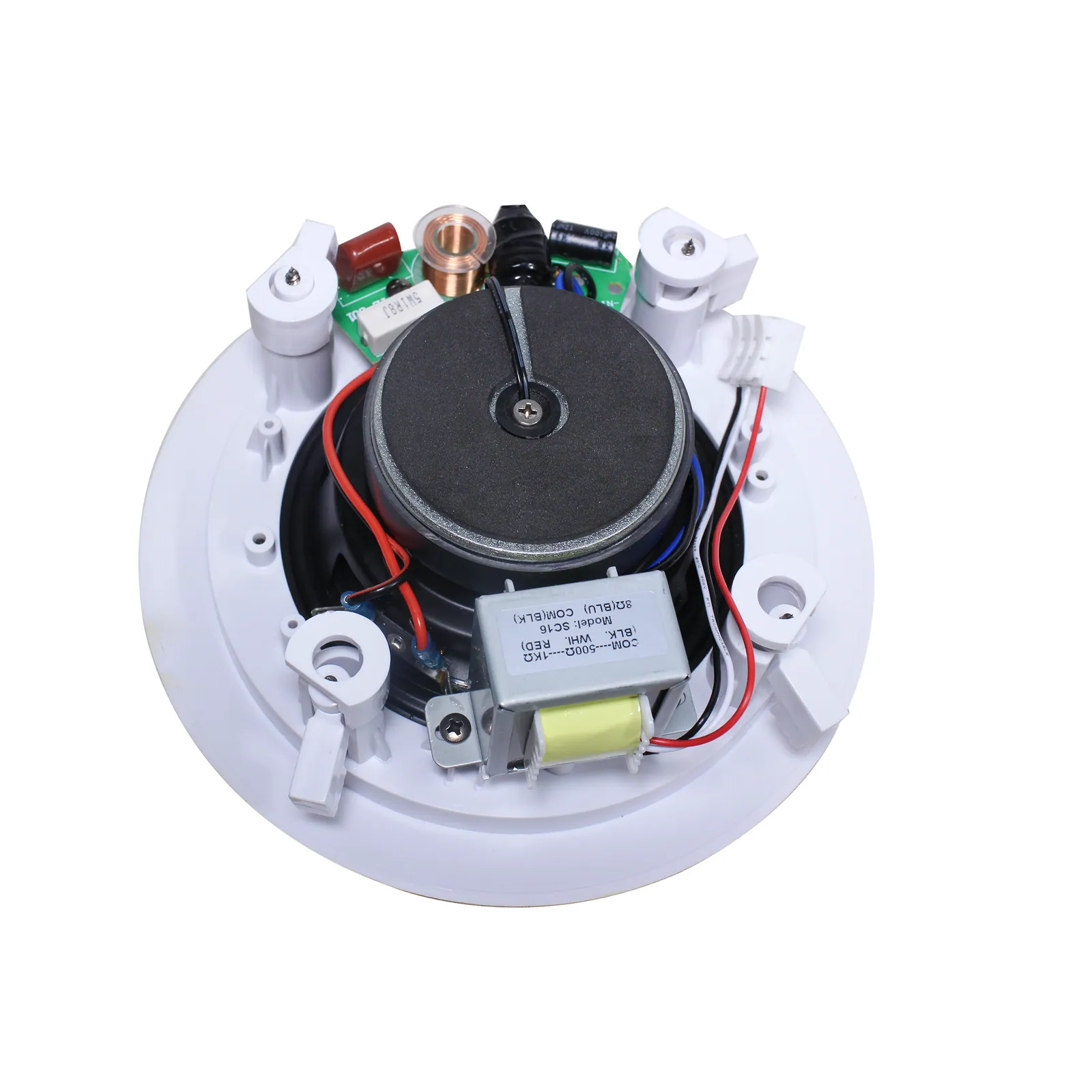

- High performance 2 way speaker.
- With crossover to make the sound better.
- With power selection switch.
