Sheet 05.339
Lucky Tone · IP, SIP and ONVIF

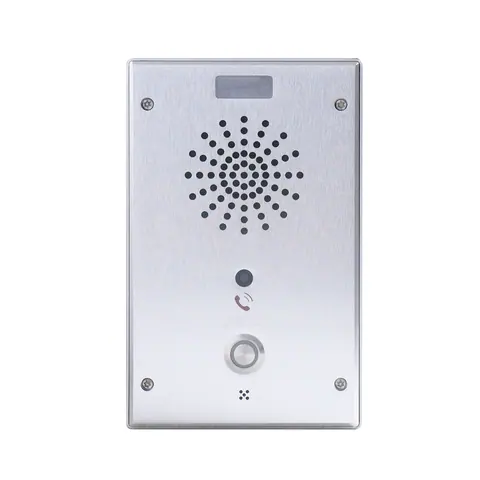

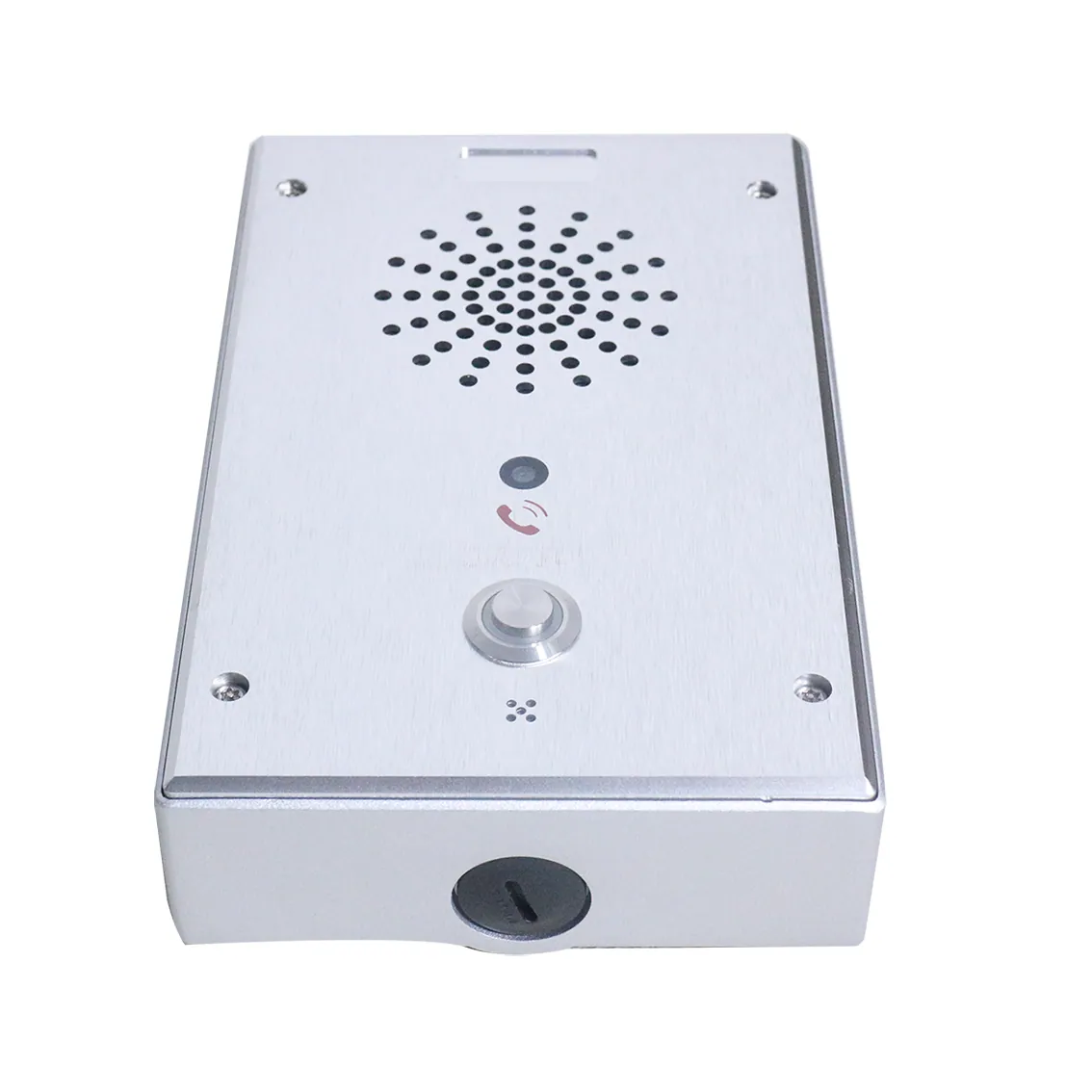

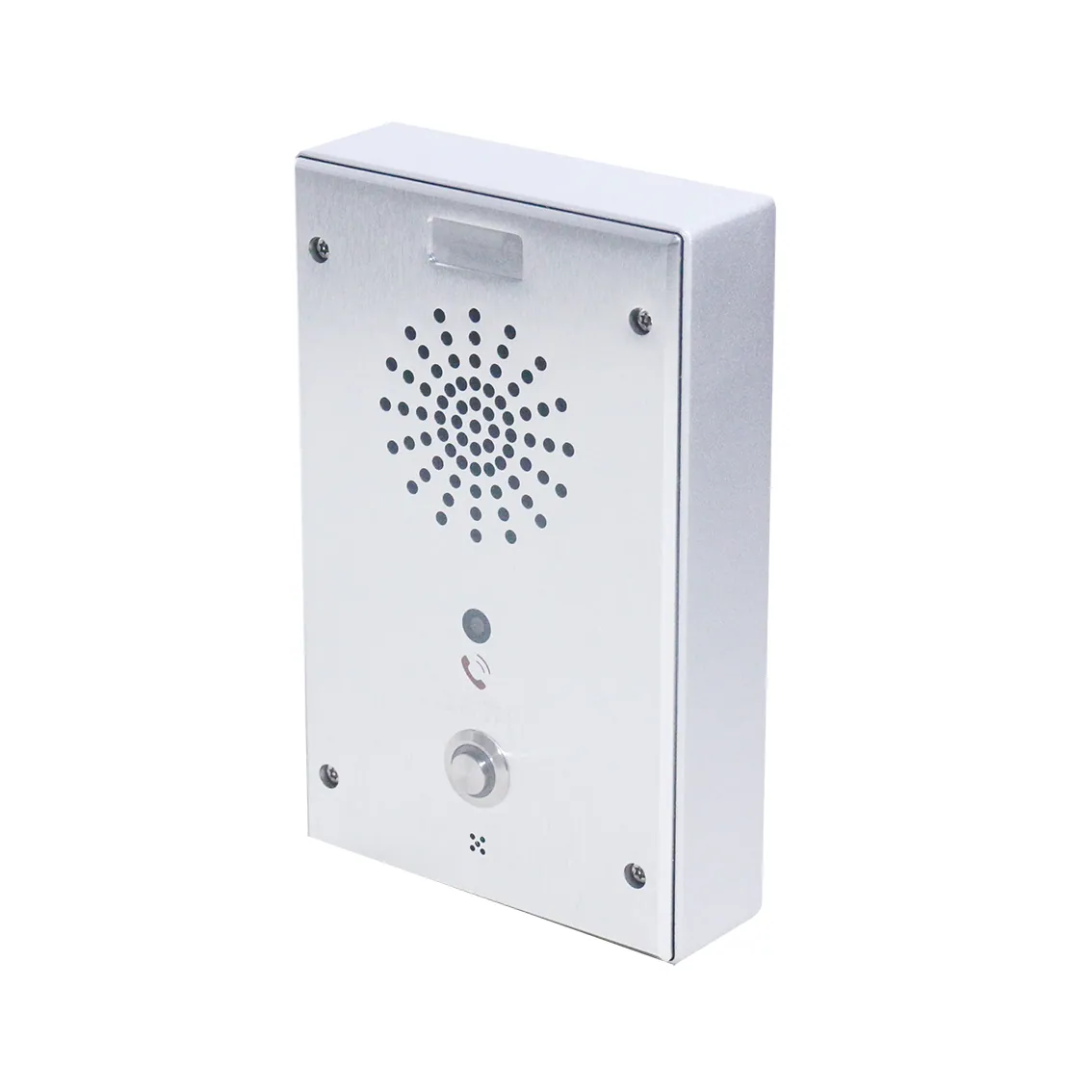

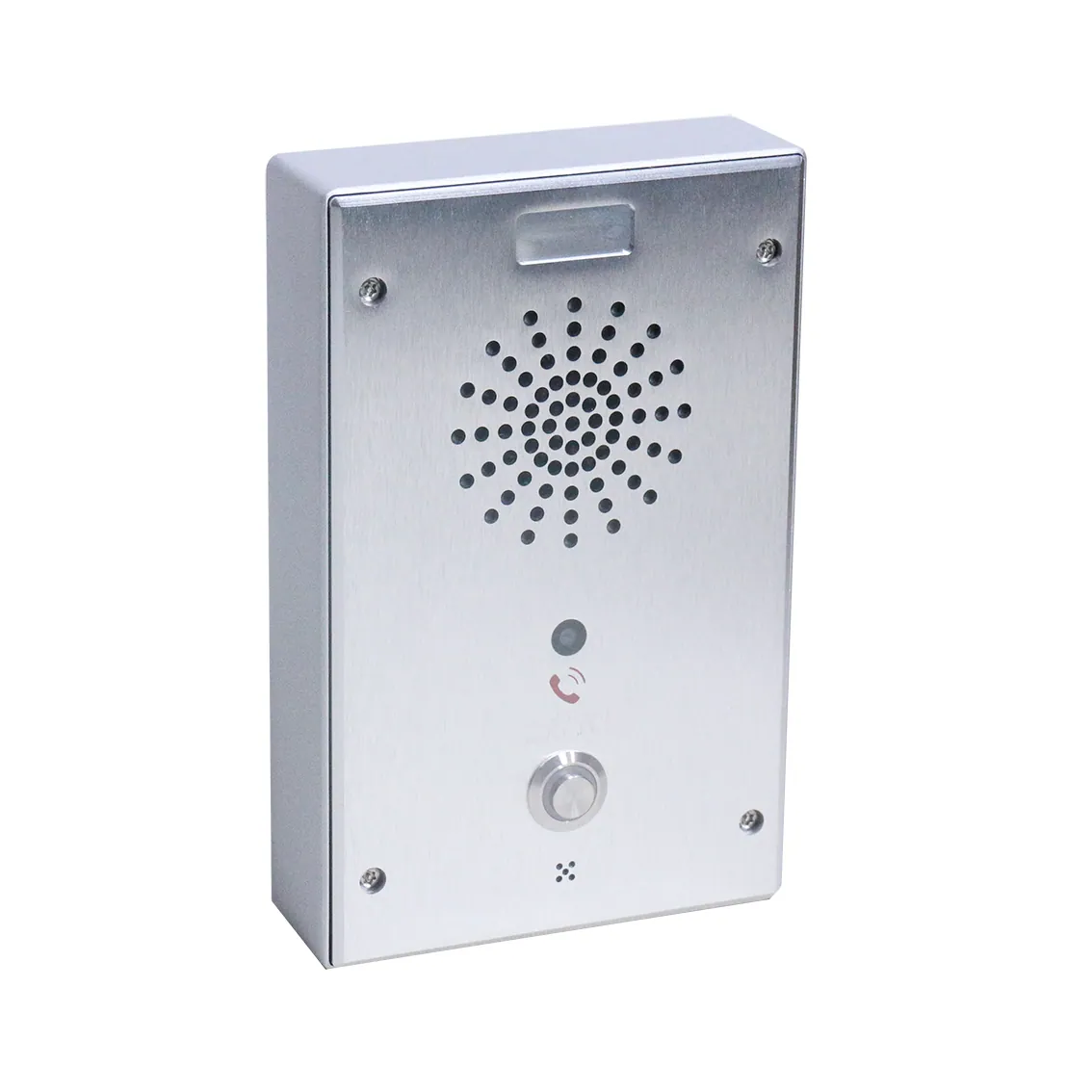

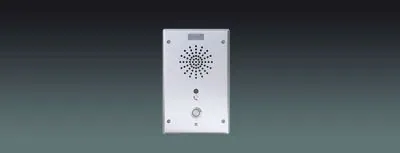

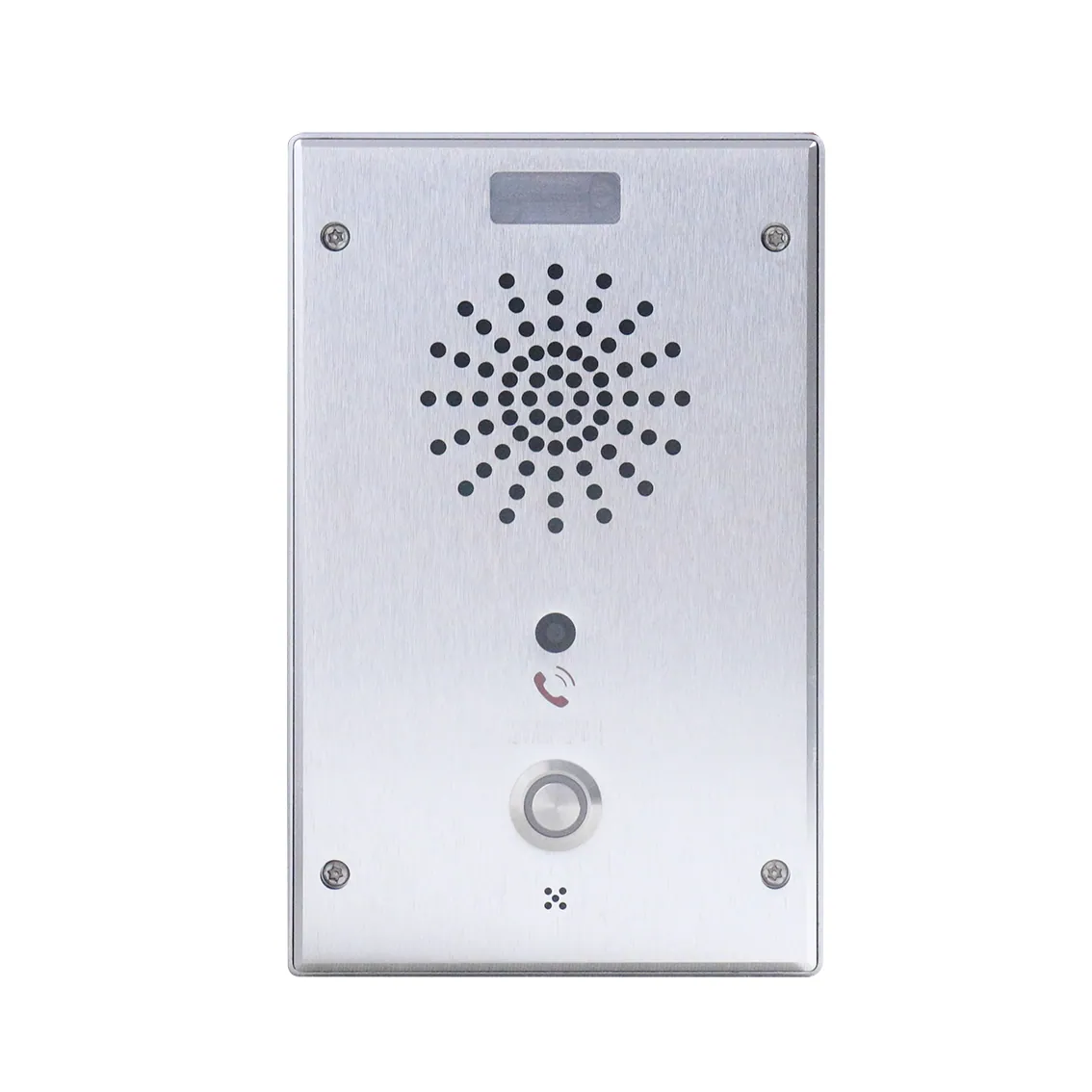

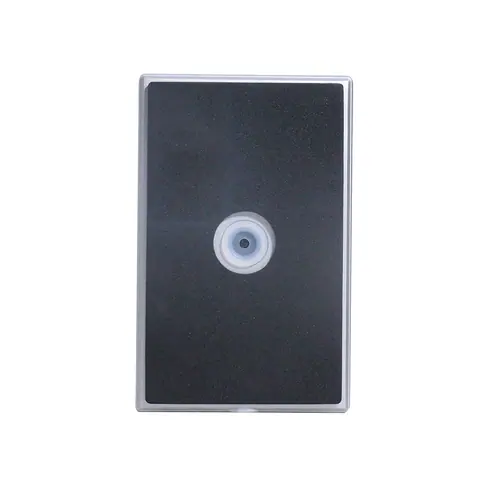

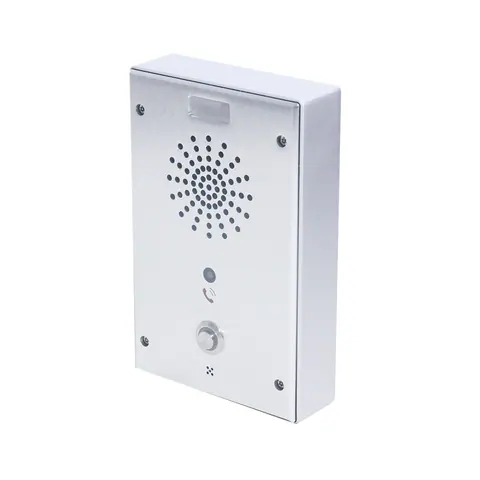

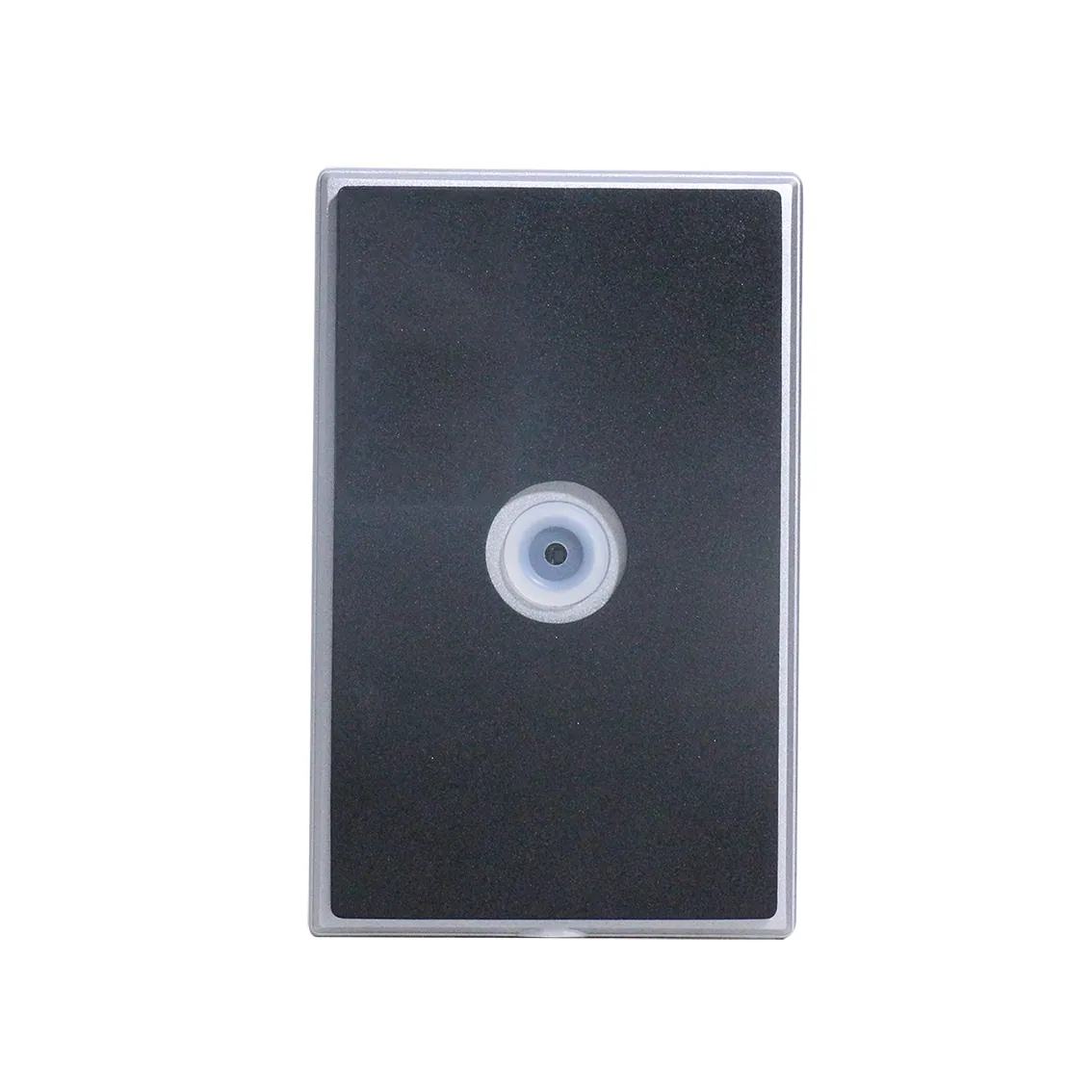

Outdoor Intercom Terminal with audio and video
ModelSIP-TLO1 V
This heavy duty SIP intercom product specially developed for the needs of industry users. It has an exquisite appearance and powerful functions.It integrates intelligent security, audio/video intercom and broadcast functions.
- Power supply
- DC12V/1A or PoE
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Outdoor Intercom Terminal with audio and videoPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 12 values
What this product is, in numbers.

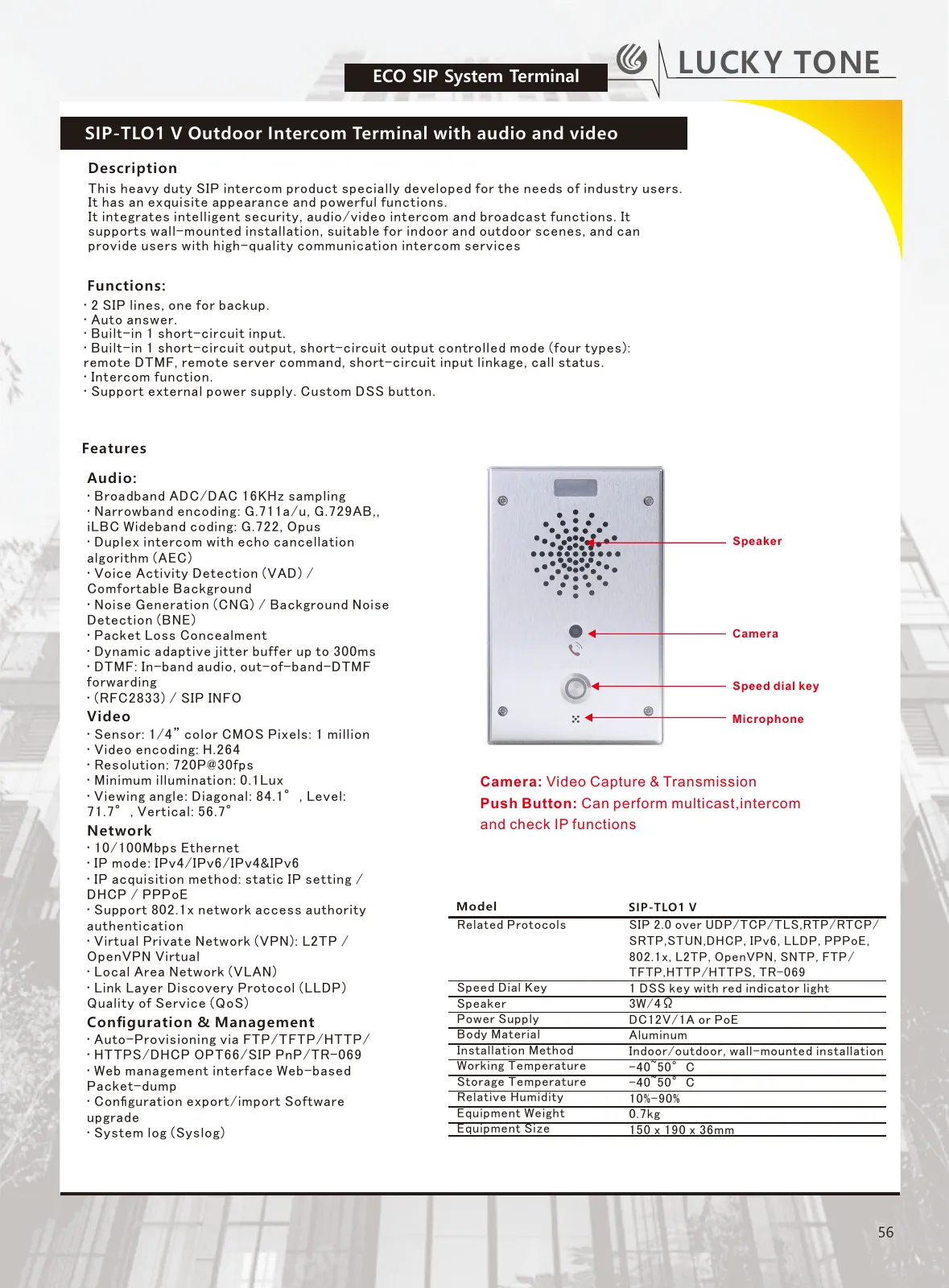

PDFSpecifications1.0 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications12
- MODEL
- SIP-TLO1 V
- Related Protocols
- SIP 2.0 over UDP/TCP/TLS,RTP/RTCP/ SRTP,STUN,DHCP, IPv6, LLDP, PPPoE, 802.1x, L2TP, OpenVPN, SNTP, FTP/ TFTP,HTTP/HTTPS, TR-069
- Speed Dial Key
- 1 DSS key with red indicator light
- Speaker
- 3W/4Ω
- Power Supply
- DC12V/1A or PoE
- Body Material
- Aluminum
- Installation Method
- Indoor/outdoor, wall-mounted installation
- Working Temperature
- -40~50°C
- Storage Temperature
- -40~50°C
- Relative Humidity
- 10%-90%
- Equipment Weight
- 0.7kg
- Equipment Size
- 150 x 190 x 36mm
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
This heavy duty SIP intercom product specially developed for the needs of industry users. It has an exquisite appearance and powerful functions.It integrates intelligent security, audio/video intercom and broadcast functions. It supports wall-mounted installation, suitable for indoor and outdoor scenes, and can provide users with high-quality communication intercom services.
Features
- • 2 SIP lines, one for backup.
- • Auto answer.
- • Built-in 1 short-circuit input.
• Built-in 1 short-circuit output, short-circuit output controlled mode (four types): remote DTMF, remote server command, short-circuit input linkage, call status.
• Intercom function.
• Support external power supply. Custom DSS button.
Audio
- • Broadband ADC/DAC 16KHz sampling
- • Narrowband encoding: G.711a/u, G.729AB,, iLBC Wideband coding: G.722, Opus
- • Duplex intercom with echo cancellation algorithm (AEC)
- • Voice Activity Detection (VAD) /
Comfortable Background
• Noise Generation (CNG) / Background Noise
Detection (BNE)
- • Packet Loss Concealment
- • Dynamic adaptive jitter buffer up to 300ms
- • DTMF: In-band audio, out-of-band-DTMF forwarding
- • (RFC2833) / SIP INFO
Video
• Sensor: 1/4” color CMOS Pixels: 1 million
• Video encoding: H.264
• Resolution: 720P@30fps
• Minimum illumination: 0.1Lux
• Viewing angle: Diagonal: 84.1°, Level: 71.7°, Vertical: 56.7°
Network
• 10/100Mbps Ethernet
- • IP mode: IPv4/IPv6/IPv4&IPv6
- • IP acquisition method: static IP setting / DHCP / PPPoE
- • Support 802.1x network access authority authentication
- • Virtual Private Network (VPN): L2TP / OpenVPN Virtual
- • Local Area Network (VLAN)
- • Link Layer Discovery Protocol (LLDP)
- Quality of Service (QoS)
- Configuration & Management
- • Auto-Provisioning via FTP/TFTP/HTTP/
- • HTTPS/DHCP OPT66/SIP PnP/TR-069
- • Web management interface Web-based Packet-dump
- • Configuration export/import Software upgrade
- • System log (Syslog)
03Documents1 file · 1.0 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
