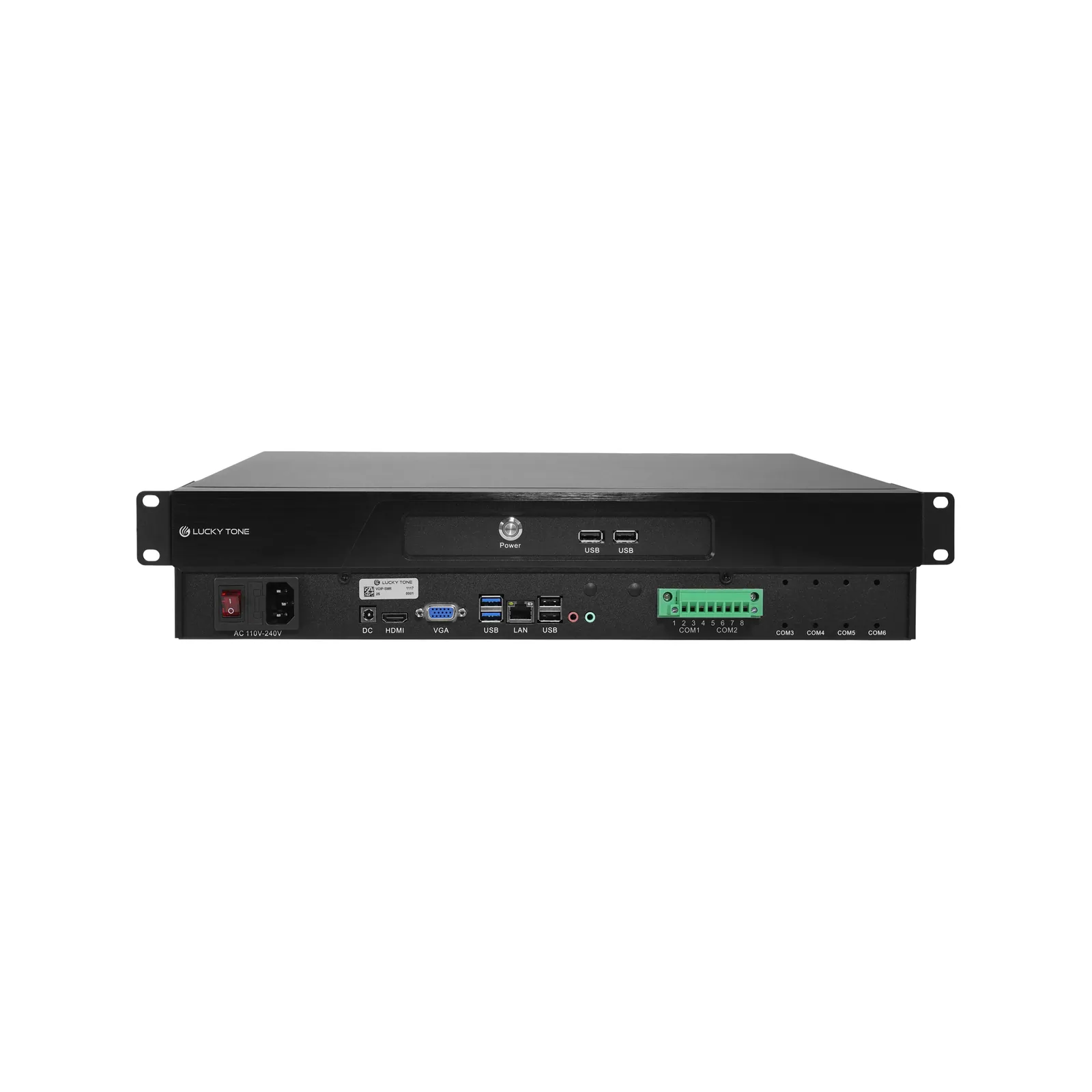

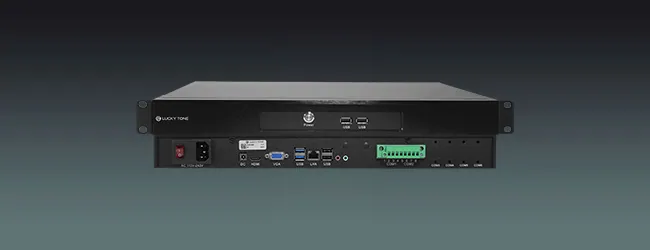

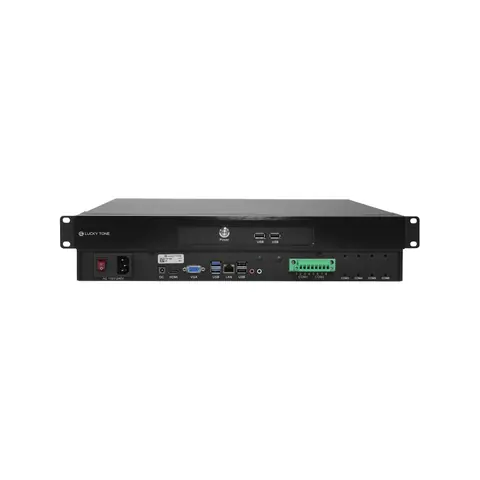

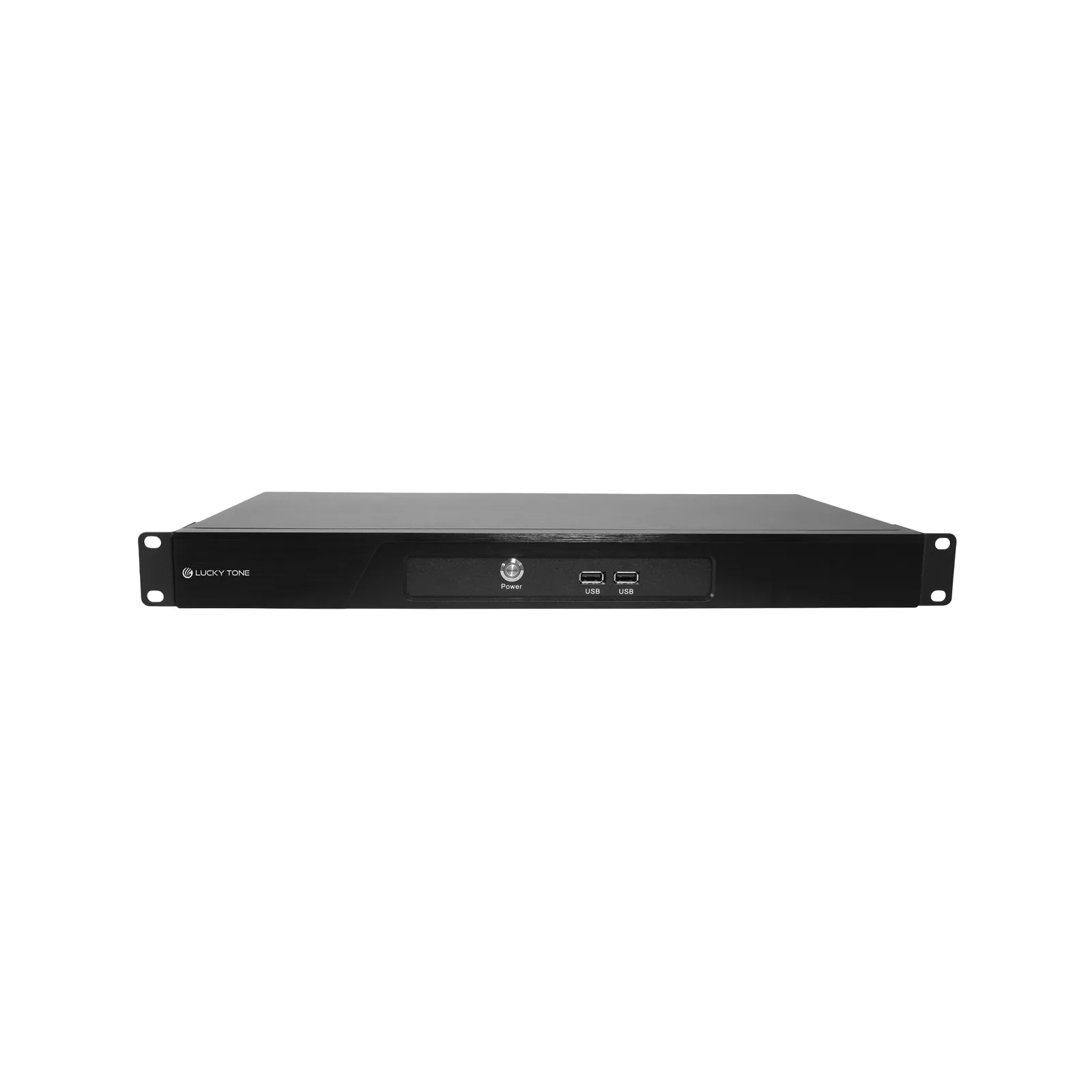

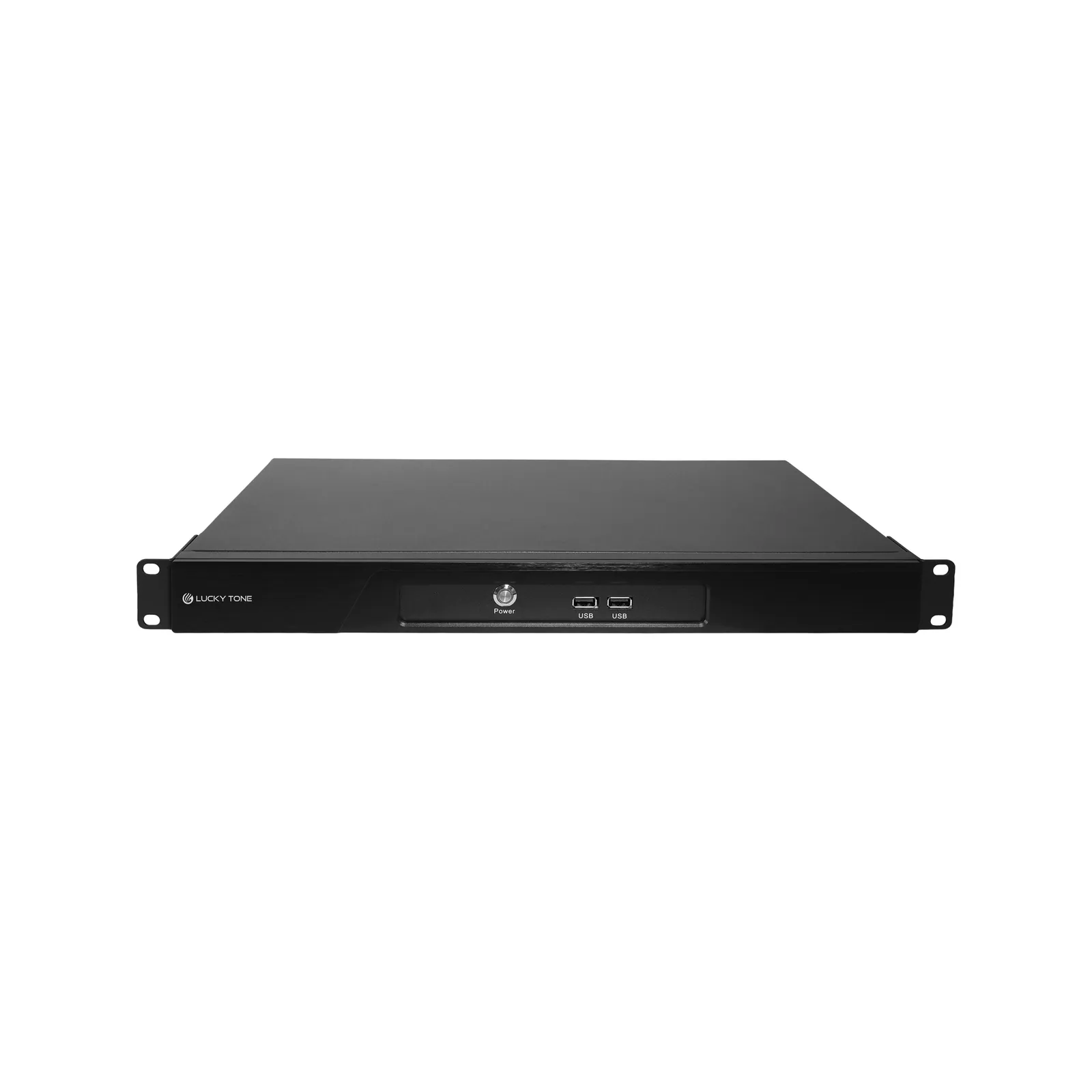

VoIP Audio Management Server for Network PA & BGM Systems

ModelVOIP-SMR

Supports up to 320 kbps HD MP3 audio files and streaming media for background music playback with real-time or scheduled loop tasks across single or multiple zones.

Power supply: AC 110–240 V or DC 12 V, 5 A
Dimensions: 440 × 250 × 45 mm
Weight: 3.24kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 14 values

What this product is, in numbers.

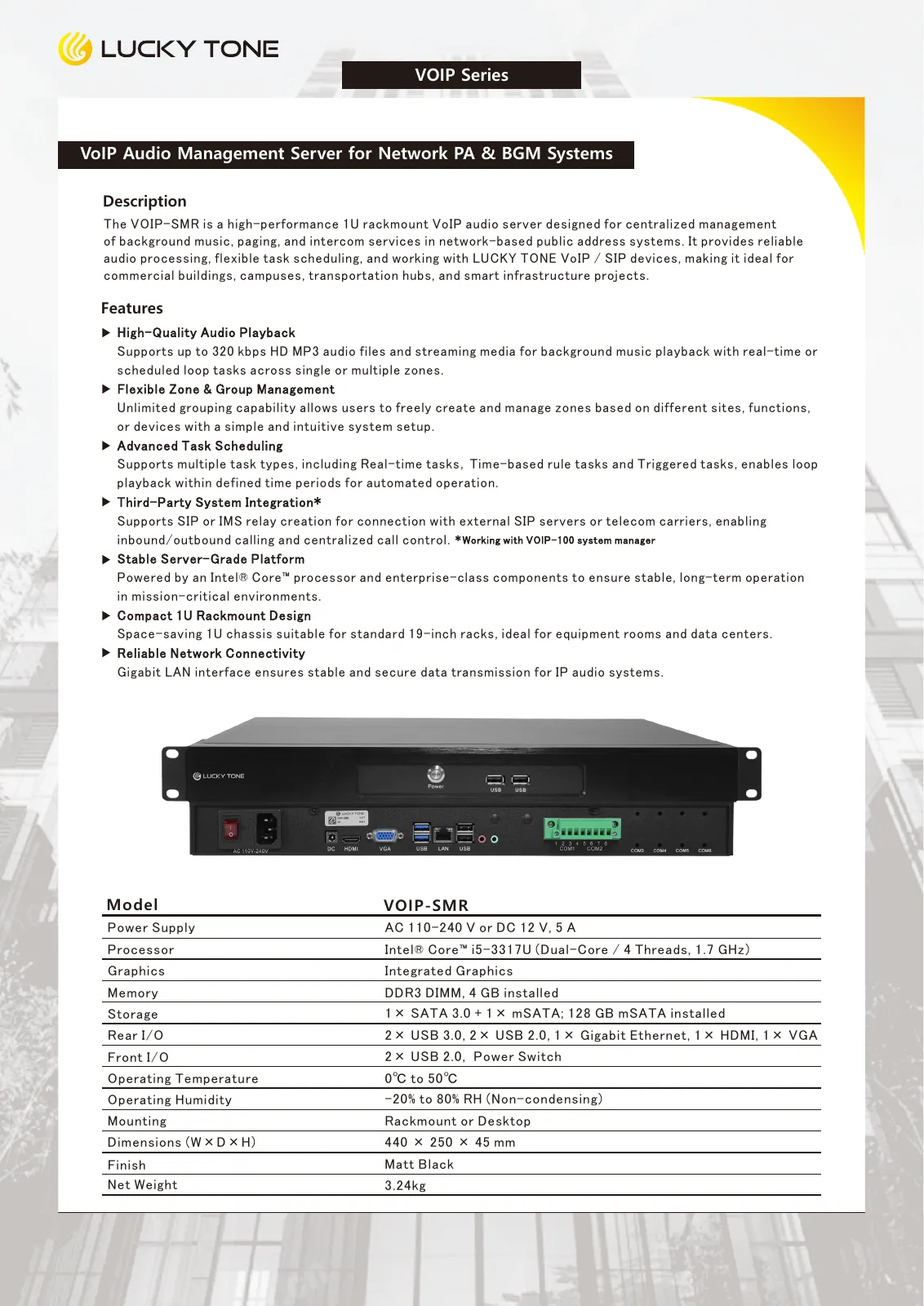

PDFSpecifications1.3 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications14

Model: VOIP-SMR
Power Supply: AC 110–240 V or DC 12 V, 5 A
Processor: Intel® Core™ i5-3317U (Dual-Core / 4 Threads, 1.7 GHz)
Graphics: Integrated Graphics
Memory: DDR3 DIMM, 4 GB installed
Storage: 1× SATA 3.0 + 1× mSATA; 128 GB mSATA installed

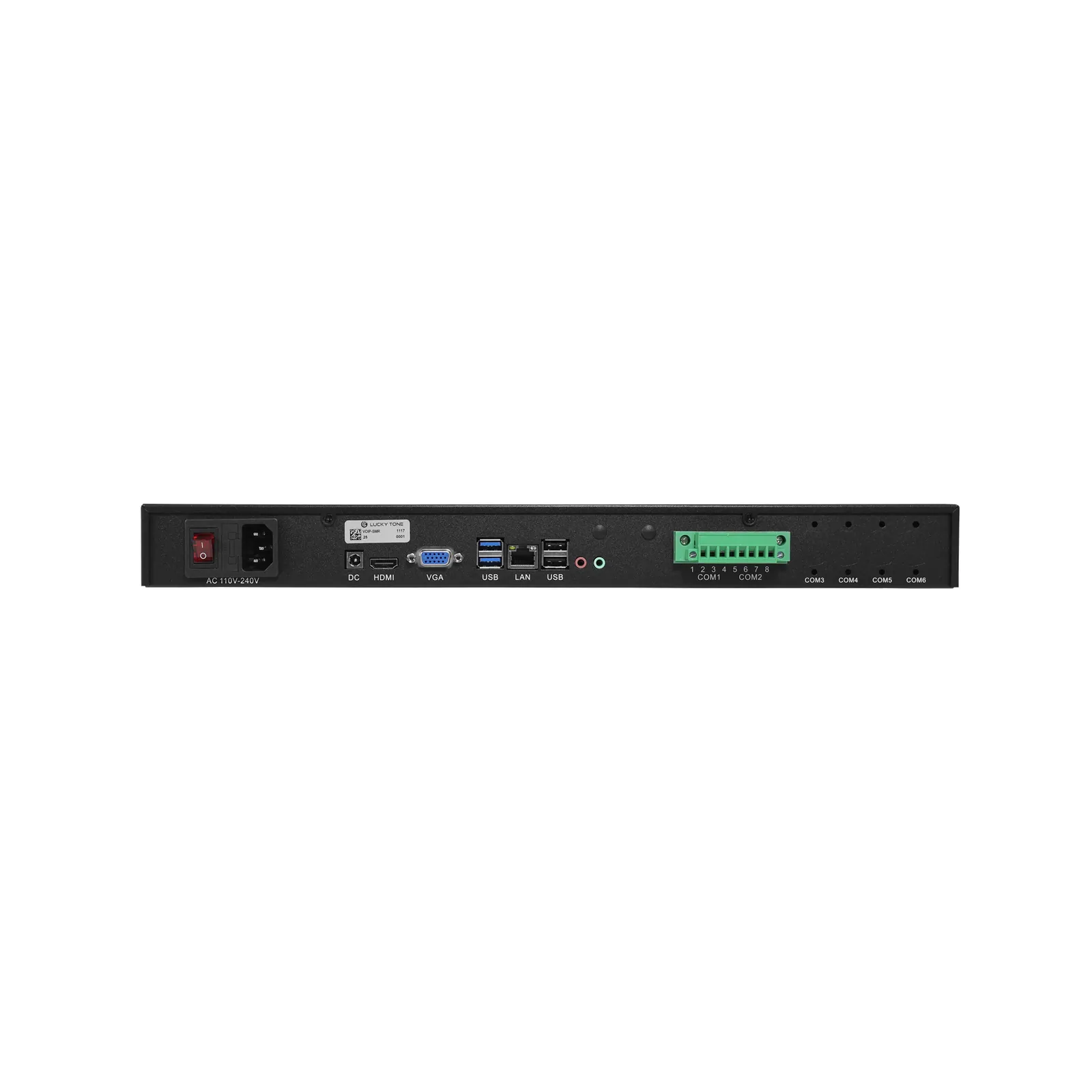

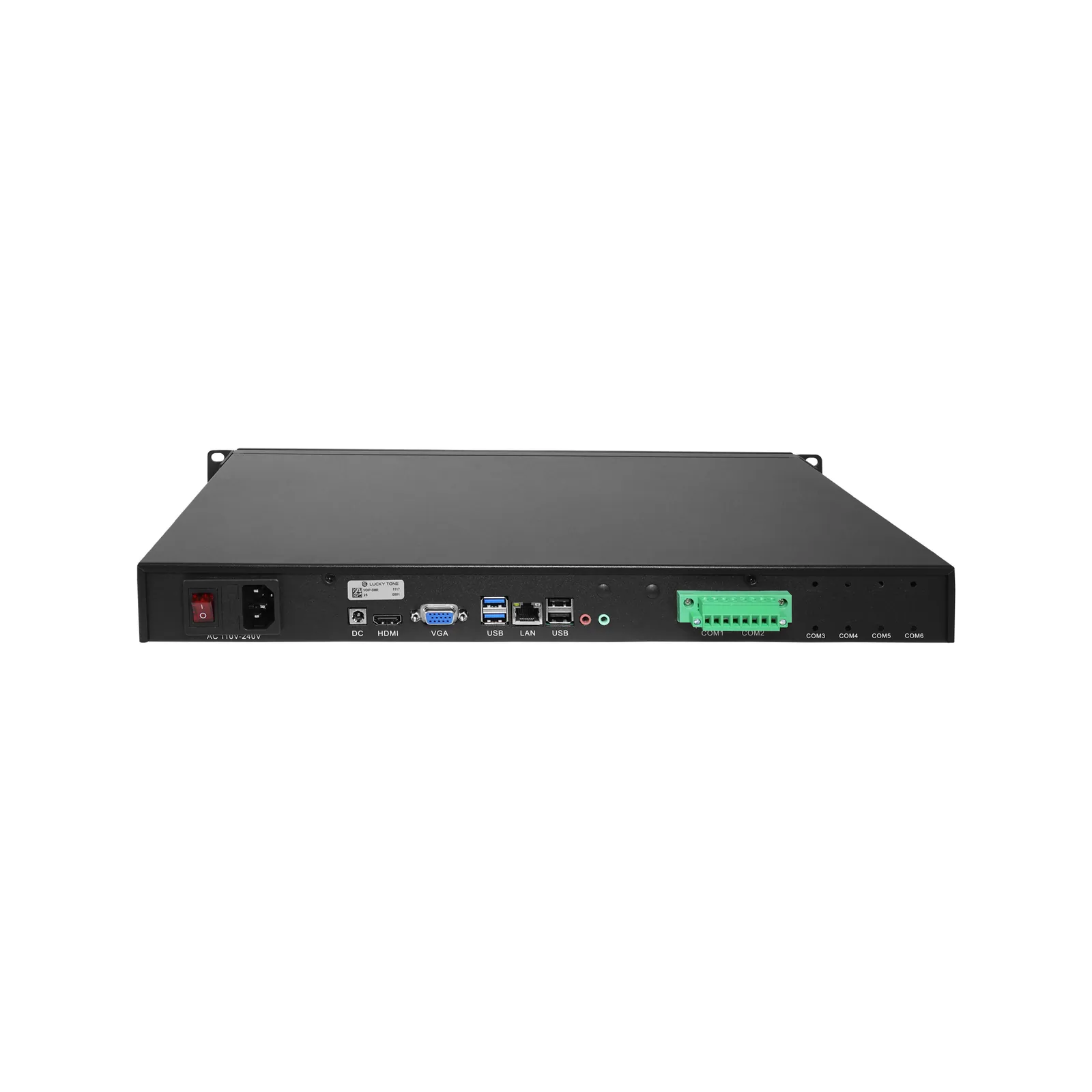

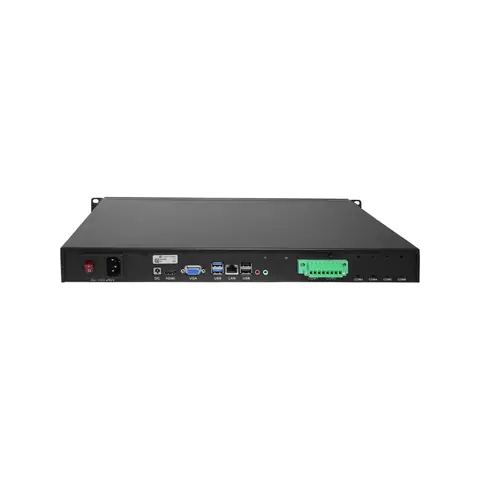

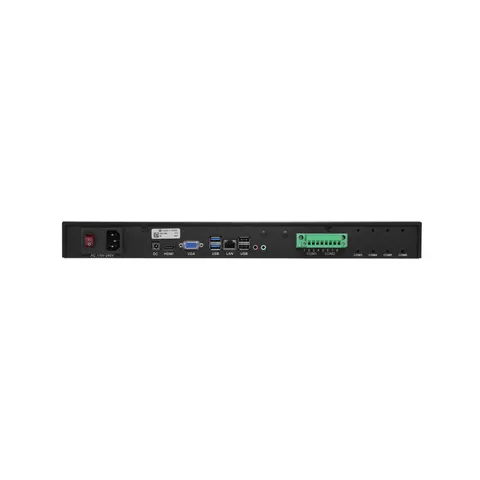

Rear I/O: 2× USB 3.0, 2× USB 2.0, 1× Gigabit Ethernet, 1× HDMI, 1× VGA

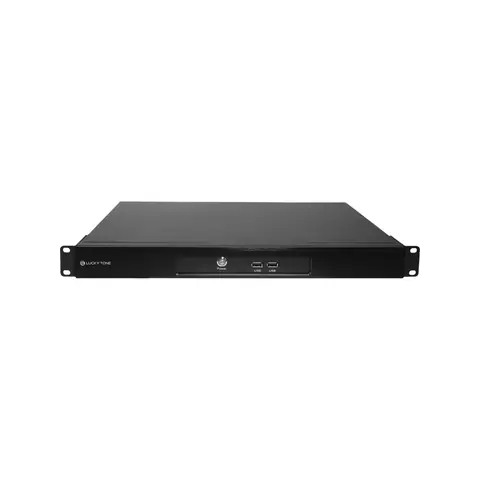

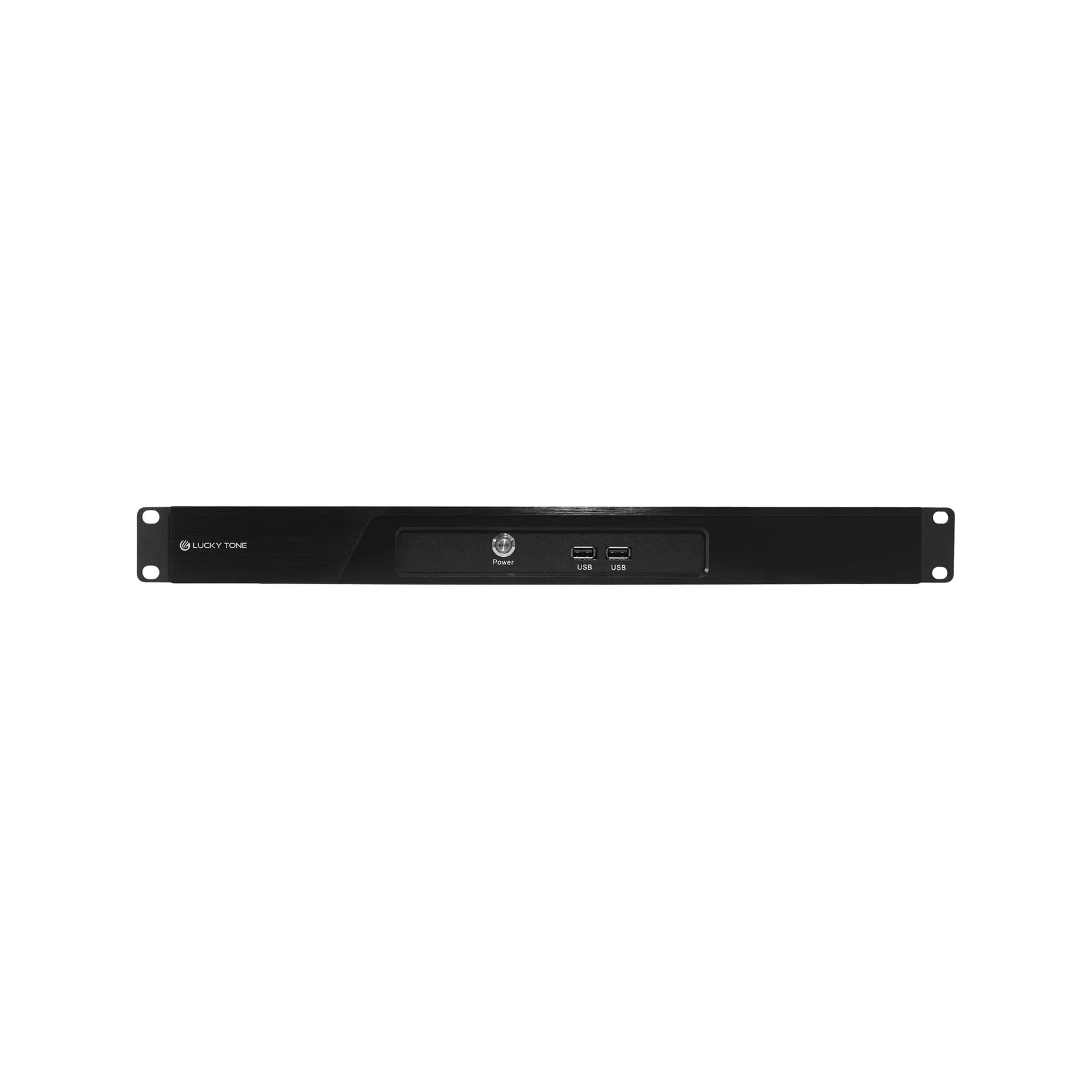

Front I/O: 2× USB 2.0, Power Switch
Operating Temperature: 0°C to 50°C
Operating Humidity: -20% to 80% RH (Non-condensing)
Mounting: Rackmount or Desktop
Dimensions (W×D×H): 440 × 250 × 45 mm
Finish: Matt Black
Net Weight: 3.24kg

02DescriptionManufacturer's description

What it is.

High-Quality Audio Playback

Flexible Zone & Group Management

Unlimited grouping capability allows users to freely create and manage zones based on different sites, functions, or devices with a simple and intuitive system setup.

Advanced Task Scheduling

Supports multiple task types, including Real-time tasks,Time-based rule tasks and Triggered tasks, enables loop playback within defined time periods for automated operation.

Third-Party System Integration*

Supports SIP or IMS relay creation for connection with external SIP servers or telecom carriers, enabling inbound/outbound calling and centralized call control. * Working with VOlP-100 system manager

Stable Server-Grade Platform

Powered by an Intel® Core™ processor and enterprise-class components to ensure stable, long-term operation in mission-critical environments.

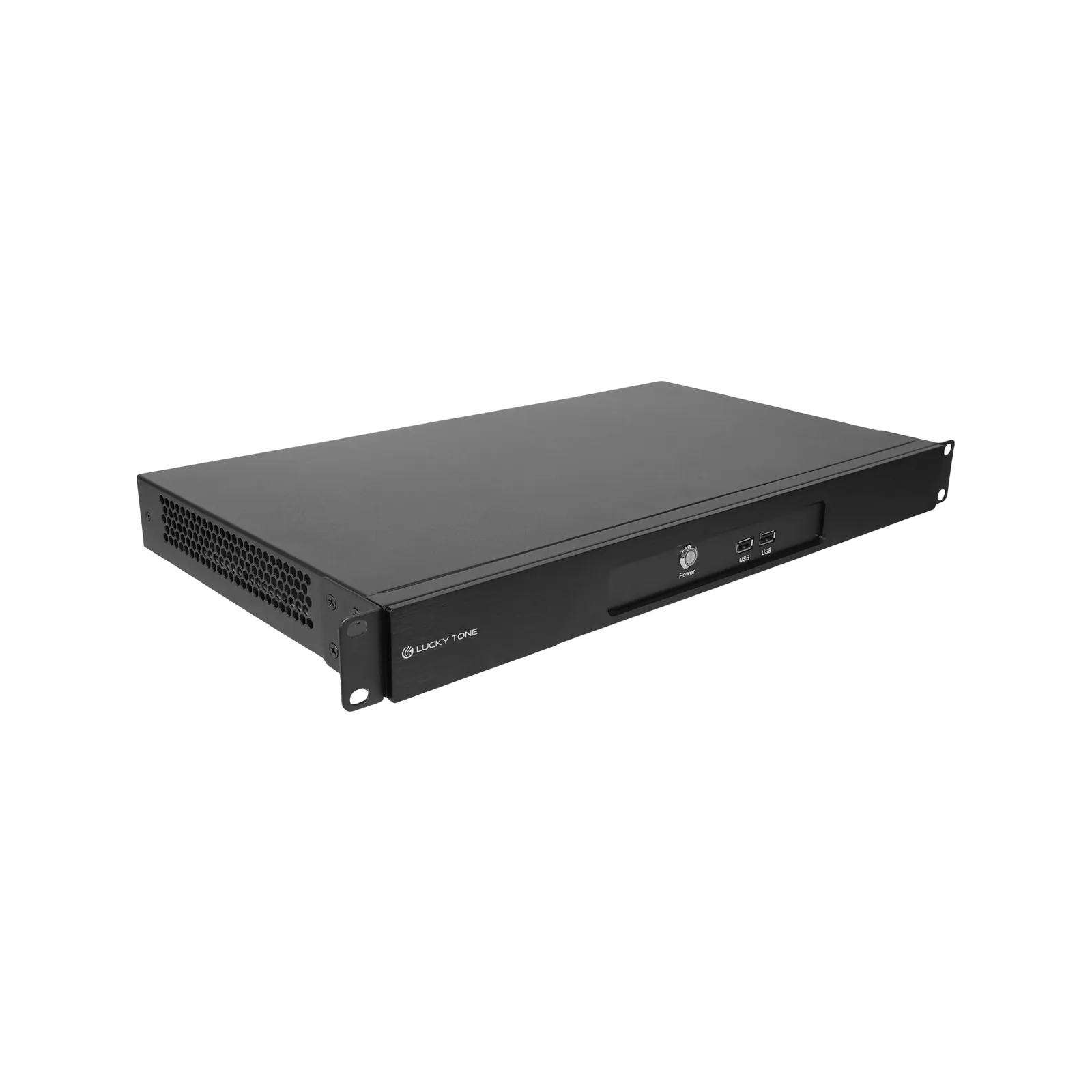

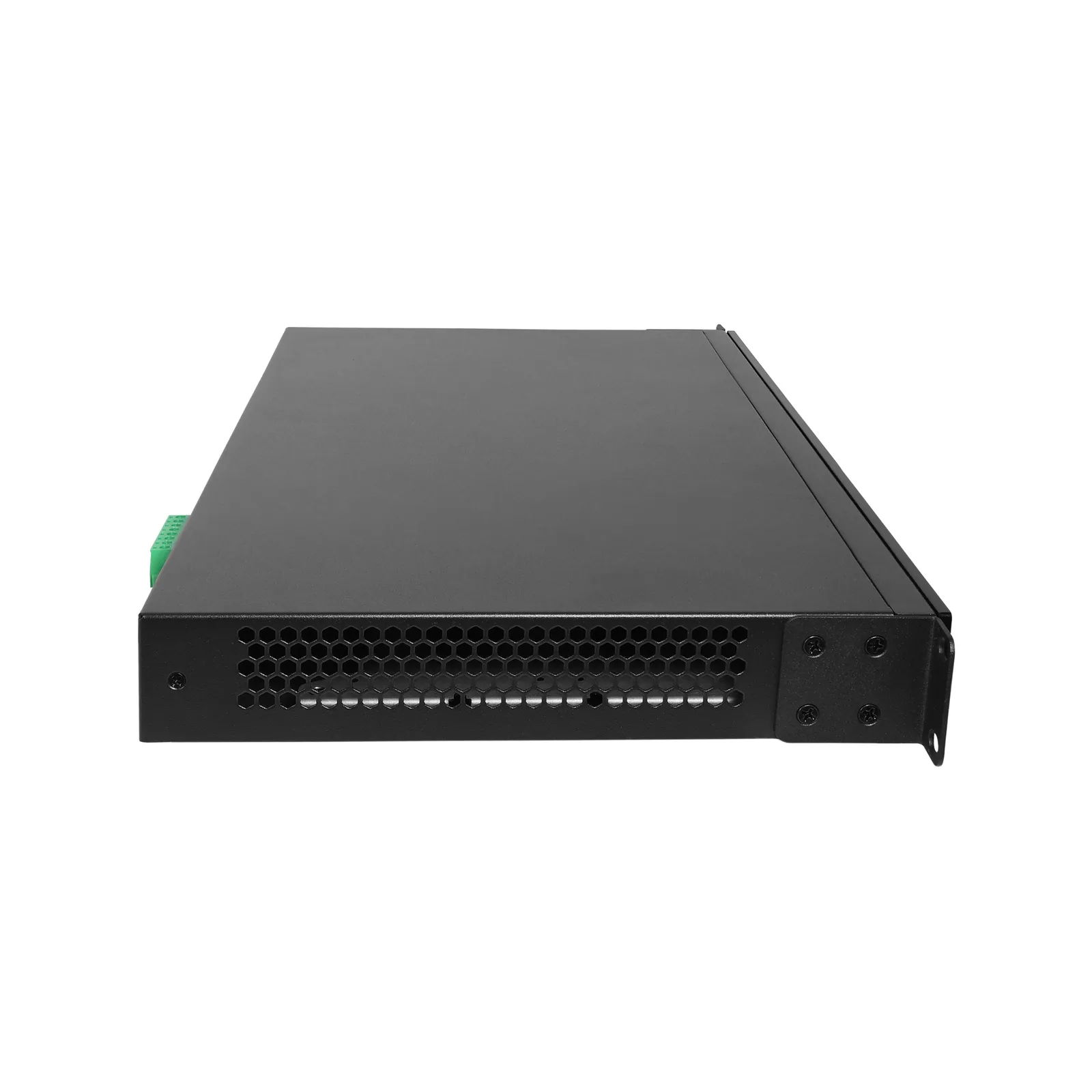

Compact 1U Rackmount Design
Space-saving 1U chassis suitable for standard 19-inch racks, ideal for equipment rooms and data centers.
Reliable Network Connectivity
Gigabit LAN interface ensures stable and secure data transmission for IP audio systems.
