Sheet 05.514
Lucky Tone · Audio sources

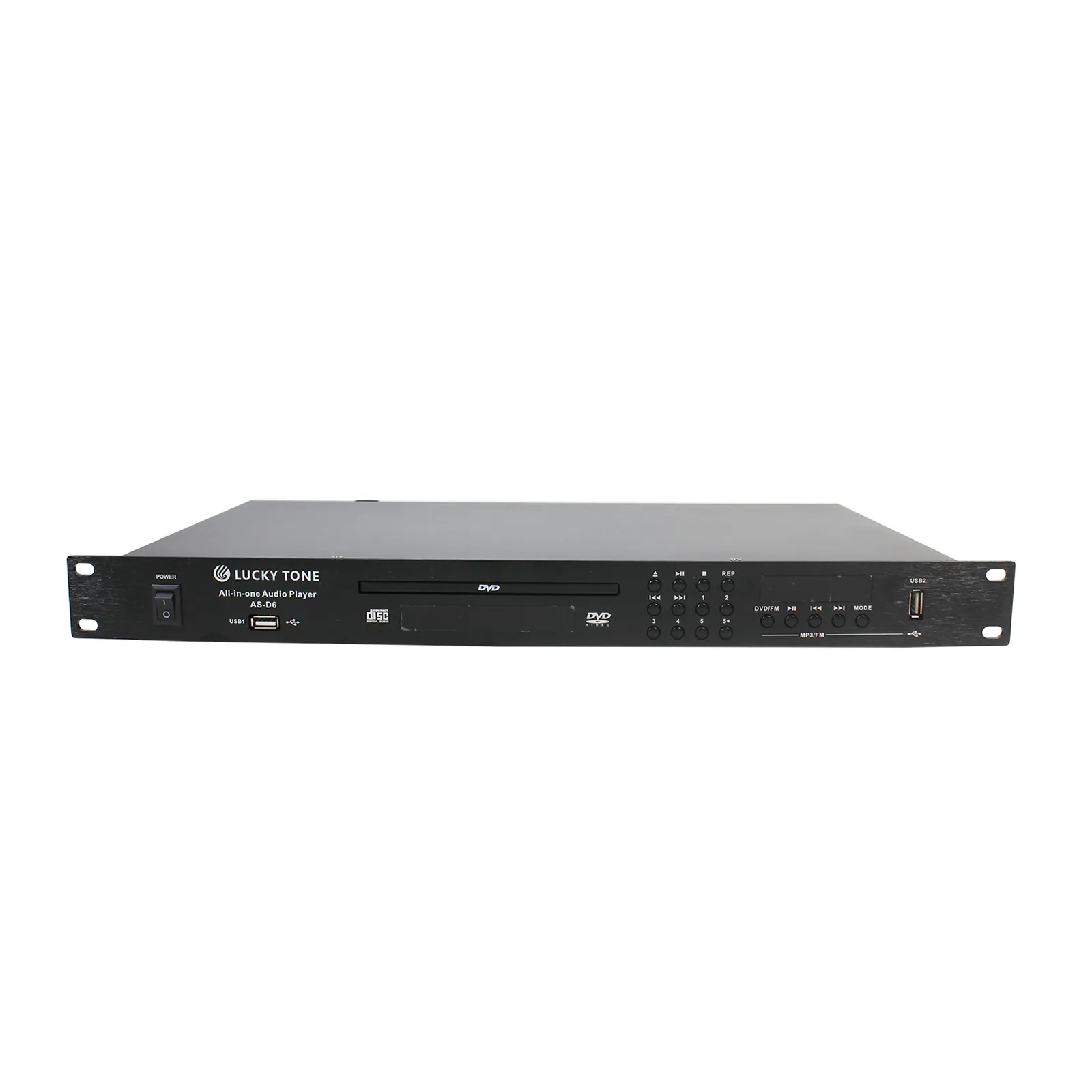

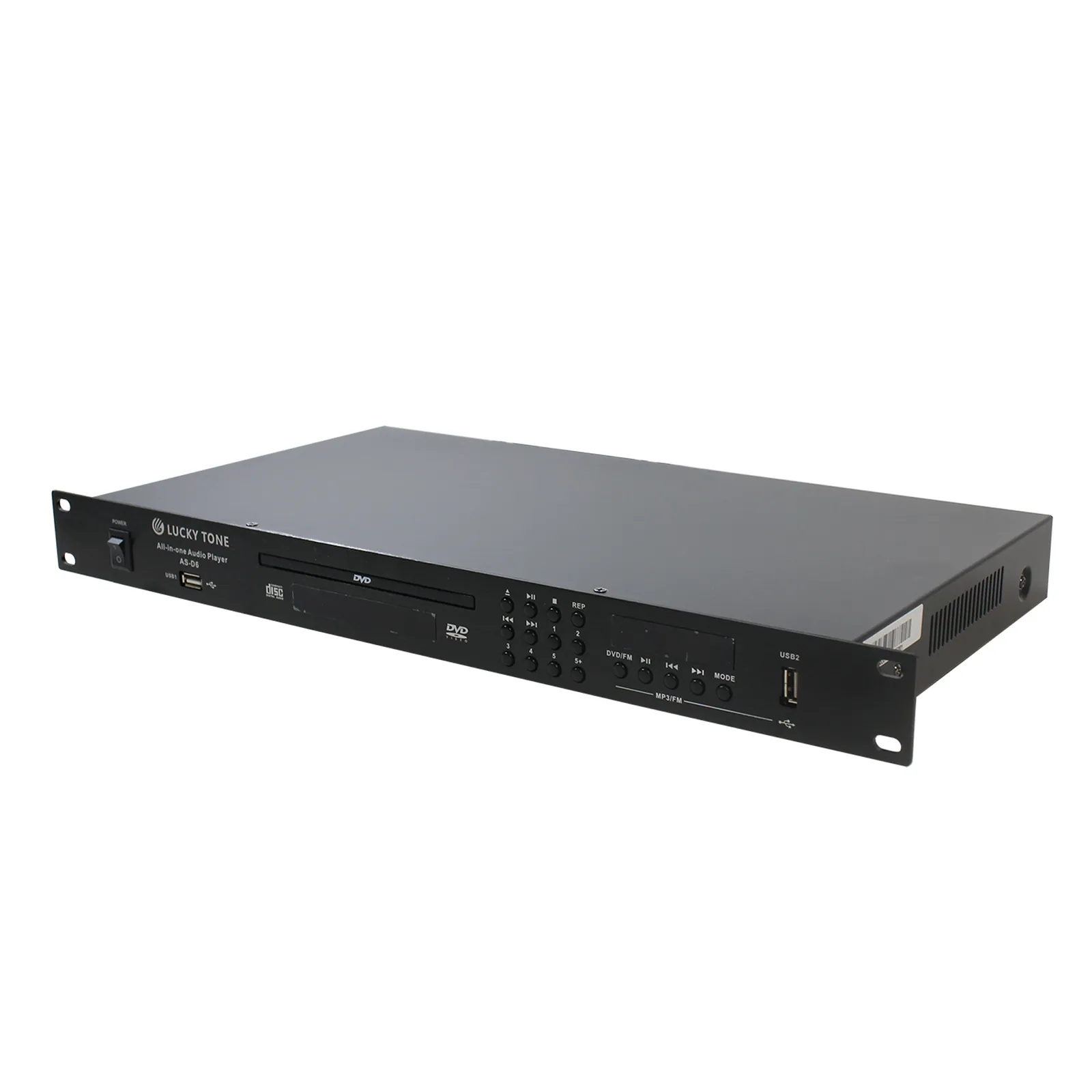

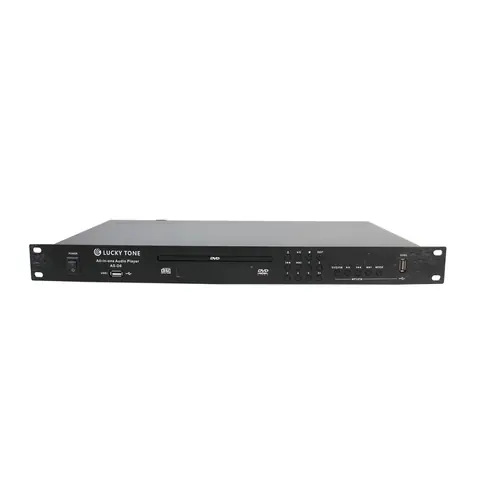

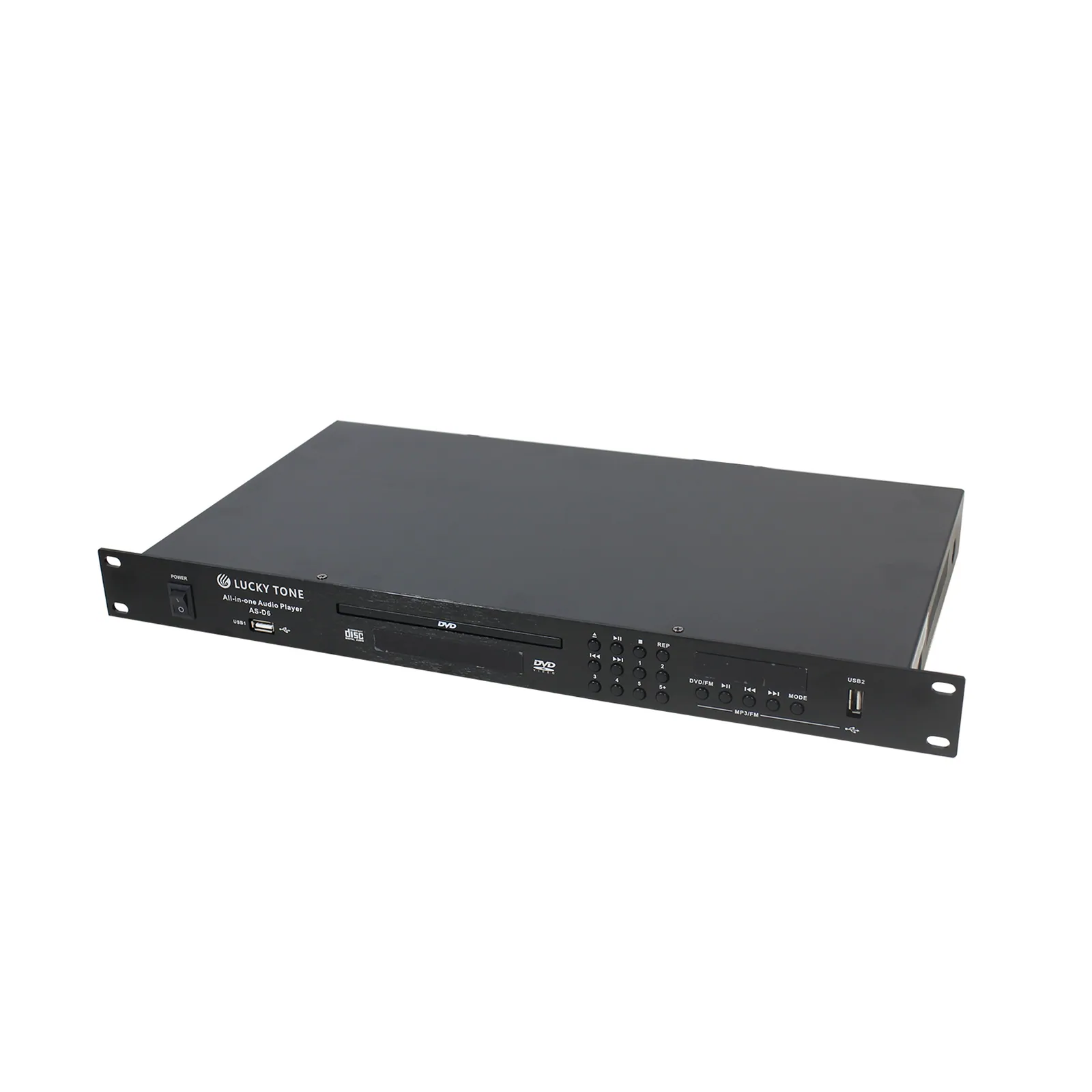

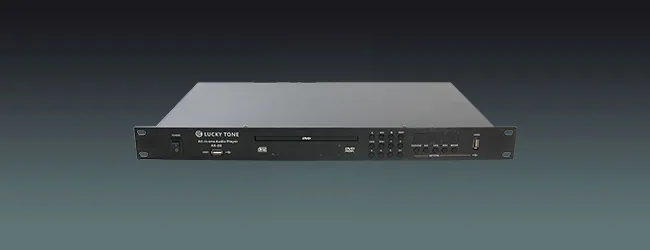

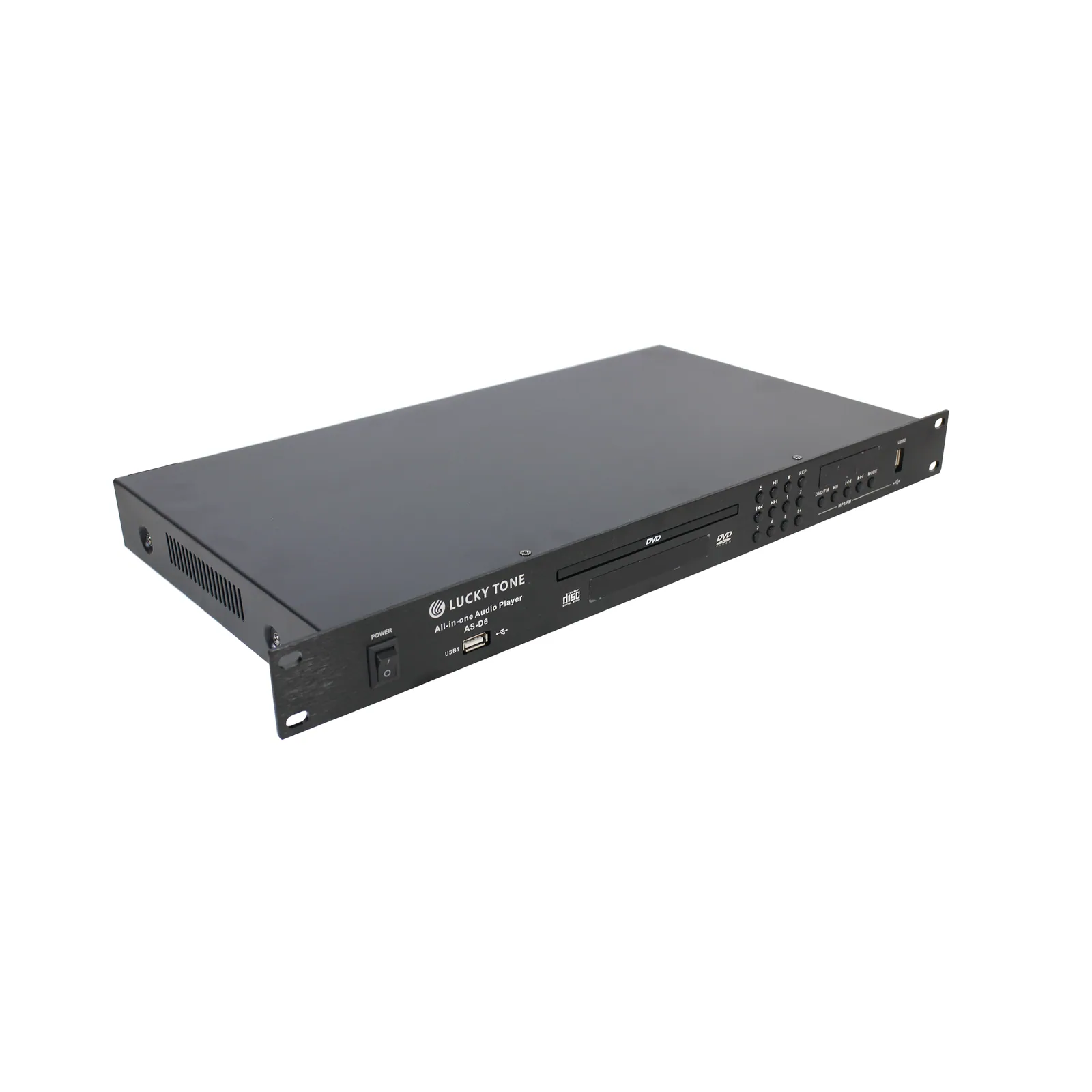

2-Channel All-In-One Audio Player
ModelAS-D6
Integrate with DVD, Mp4, Mp3, CD, tuner USB, and Bluetooth into one U unit
- Frequency response
- FM 87Mhz- 108Mhz
- Dimensions
- 45(H) x 483(W) x 255(D) mm
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
2-Channel All-In-One Audio PlayerPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 12 values
What this product is, in numbers.
PDFSpecifications677 KB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications12
- Model
- AS-D6
- Audio Output
- 10K ohms, less than 500mV unbalanced
- Frequency Range
- FM 87Mhz- 108Mhz
- Antenna Input
- 75 ohms
- THD
- Less than 0.01% at 1kHZ
- S/N Ratio
- FM Bigger than 45dB
- Power Requirements
- 220-240V AC, 50/60 Hz;
- Frequency Response
- 20Hz-18KHz
- Power Consumption
- 10-15 W
- Built-in Dimensions
- 1 U rack 19 inch
- Net/Gross Weight
- 2.3/3.1 kg
- Dimensions
- 45(H) x 483(W) x 255(D) mm
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Features
- With selectable 2 channel outputs.
- Equipped with 2 USB inputs

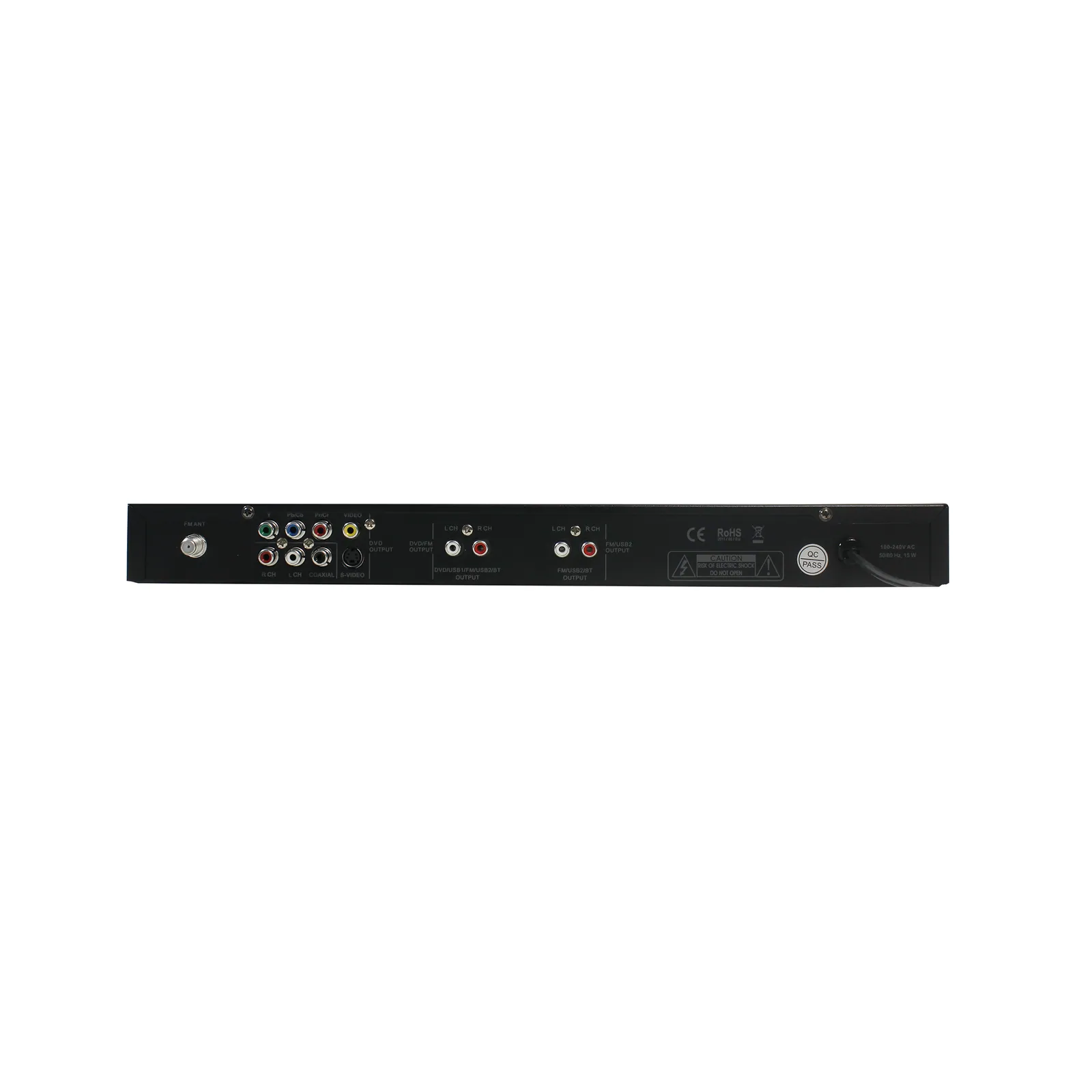

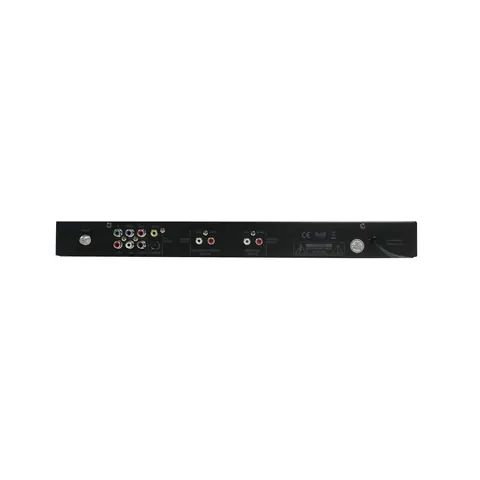

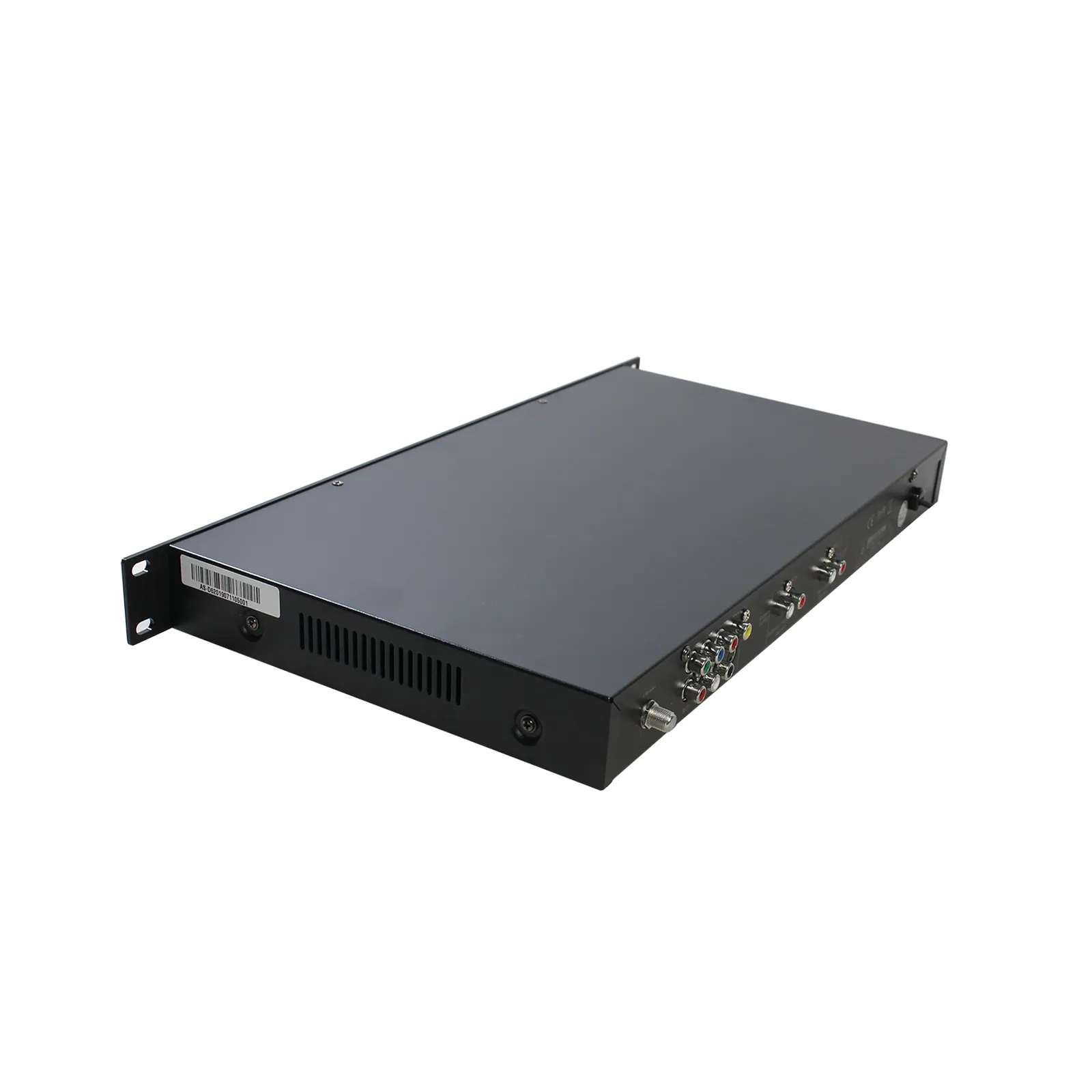

- Stereo line output and video output by RCA
- Fast scan with manual and auto tuning.
- With wireless IR remote controller.
- Up to 60 channel memories can be set.
- Mon and stereo output selection.

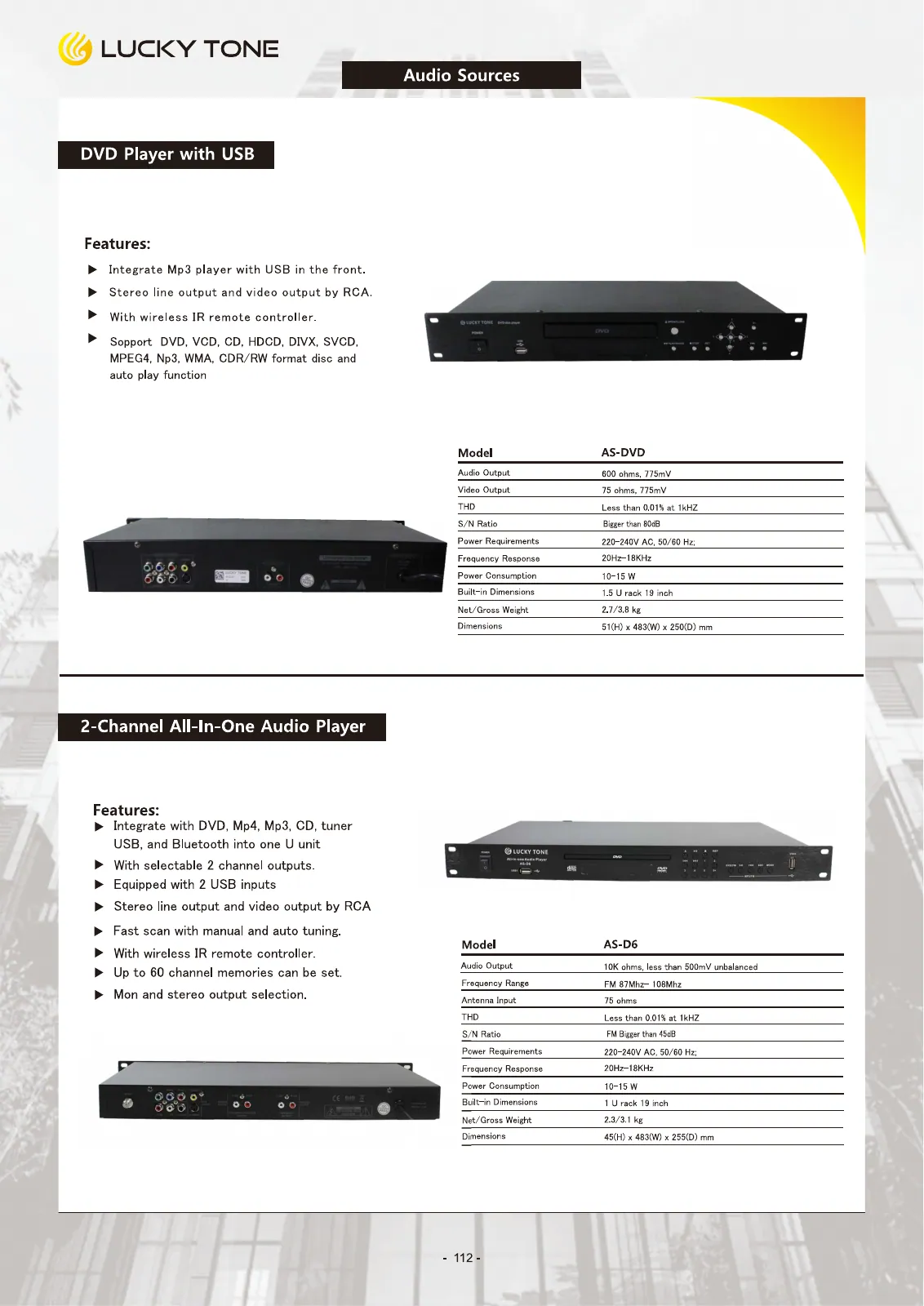

03Documents1 file · 677 KB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
