Sheet 05.220
Lucky Tone · Loudspeakers

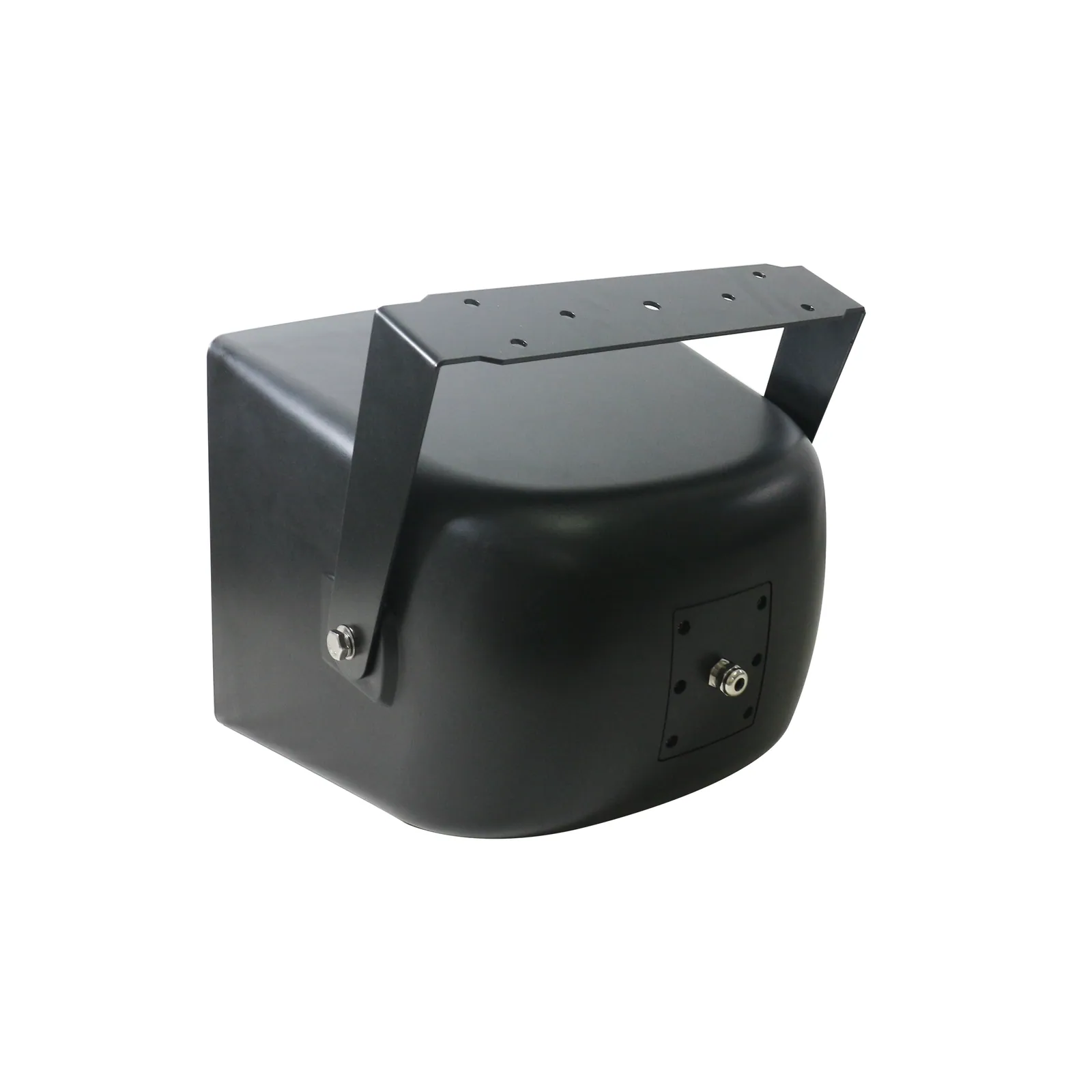

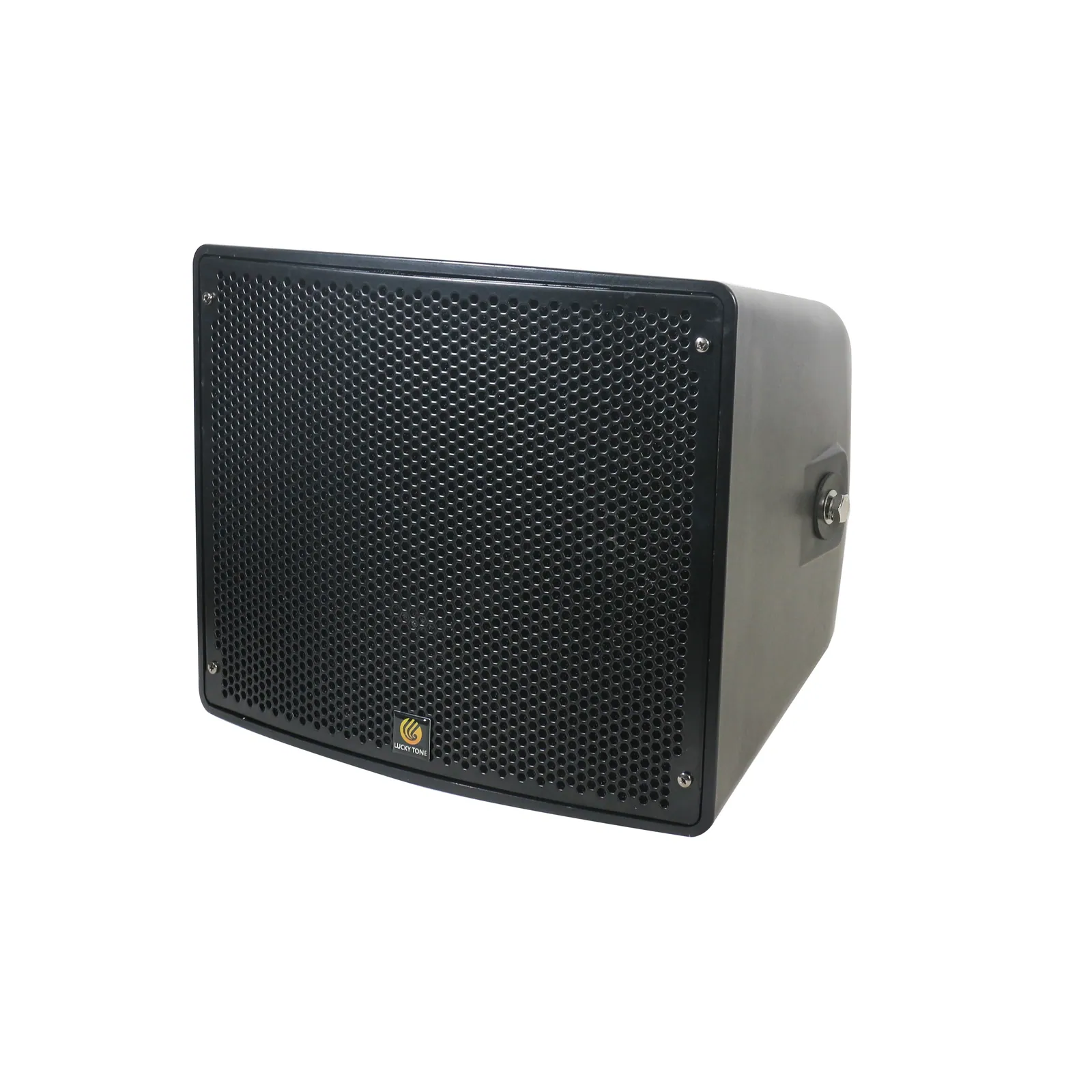

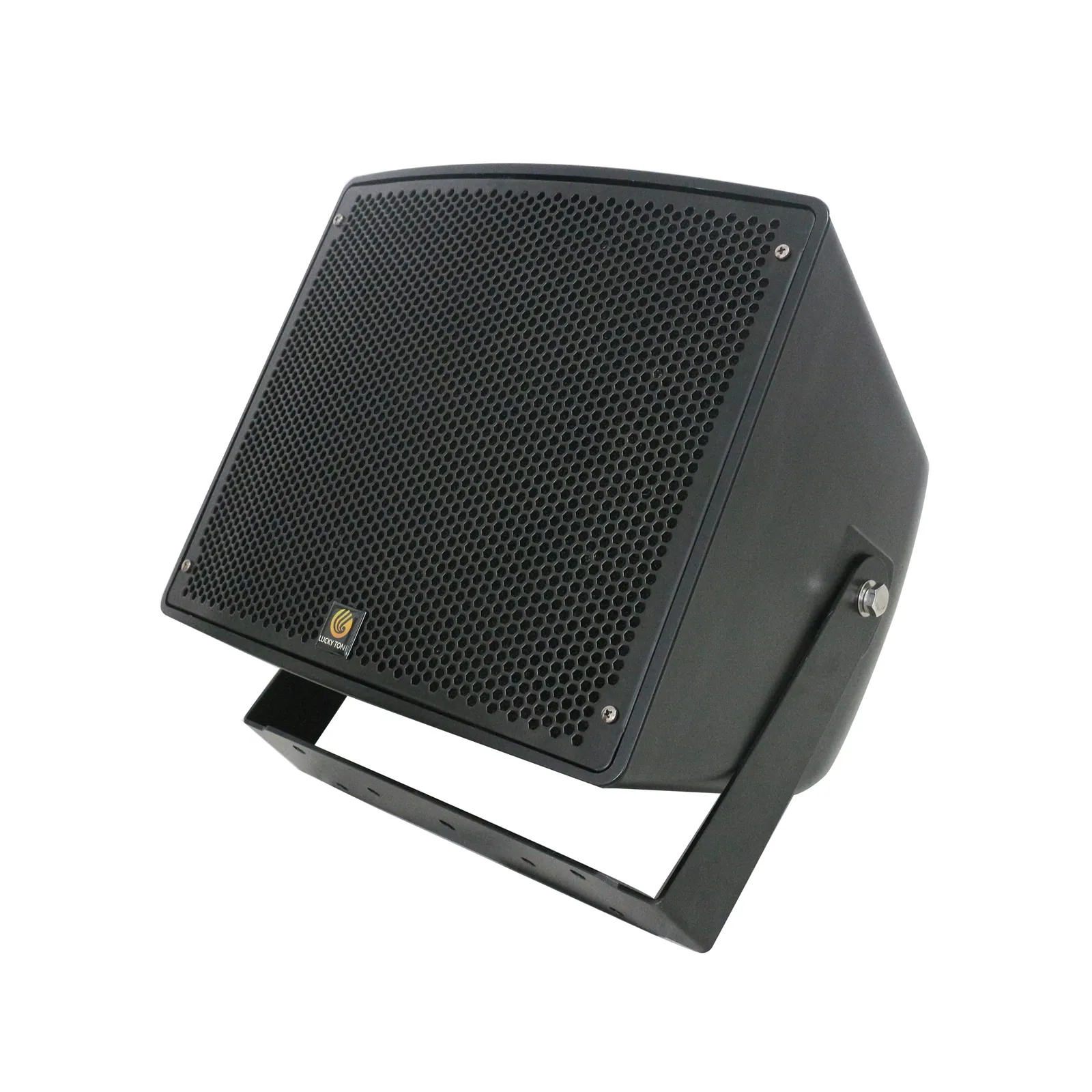

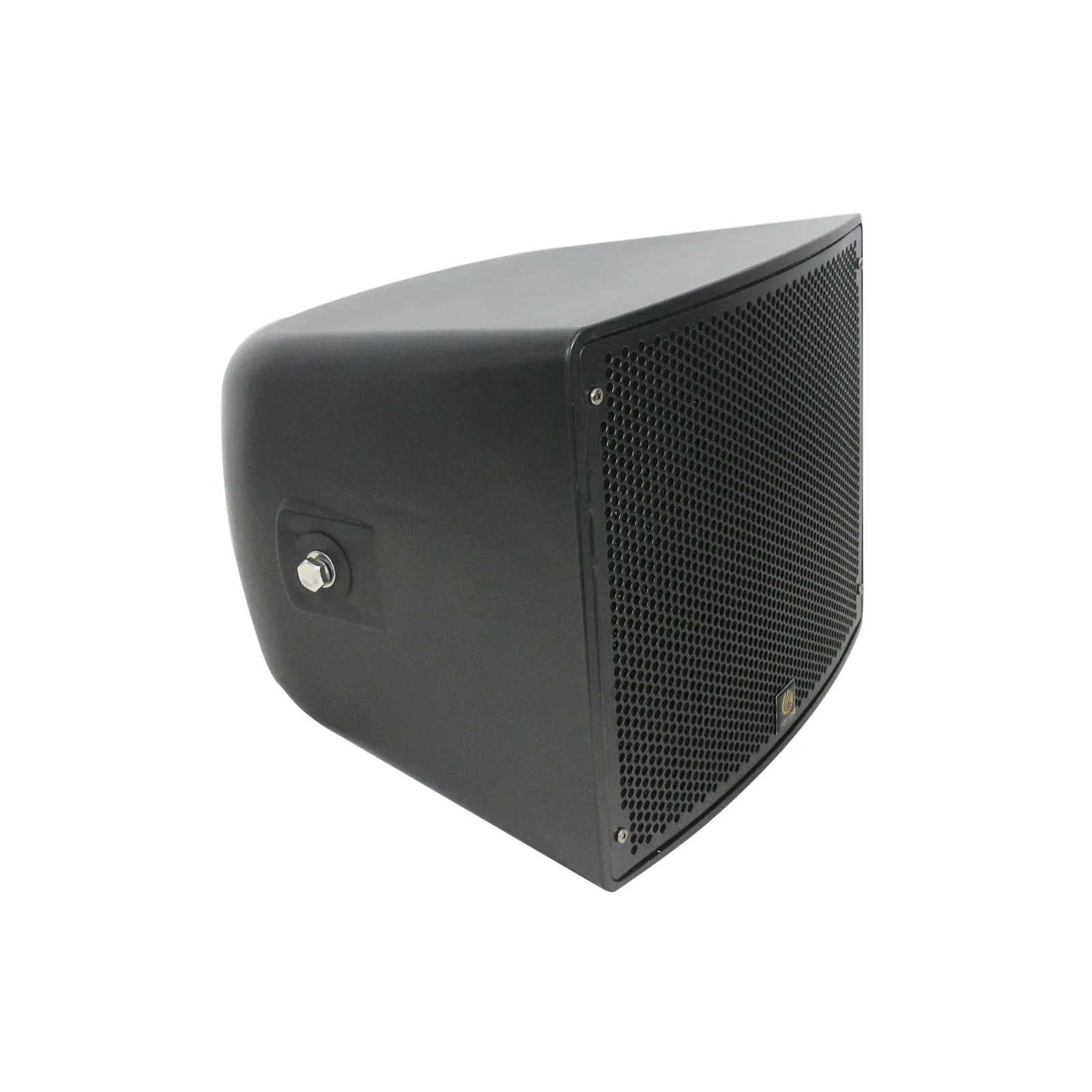

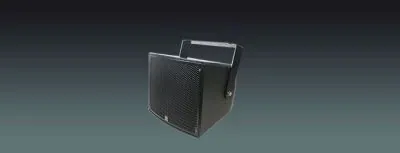

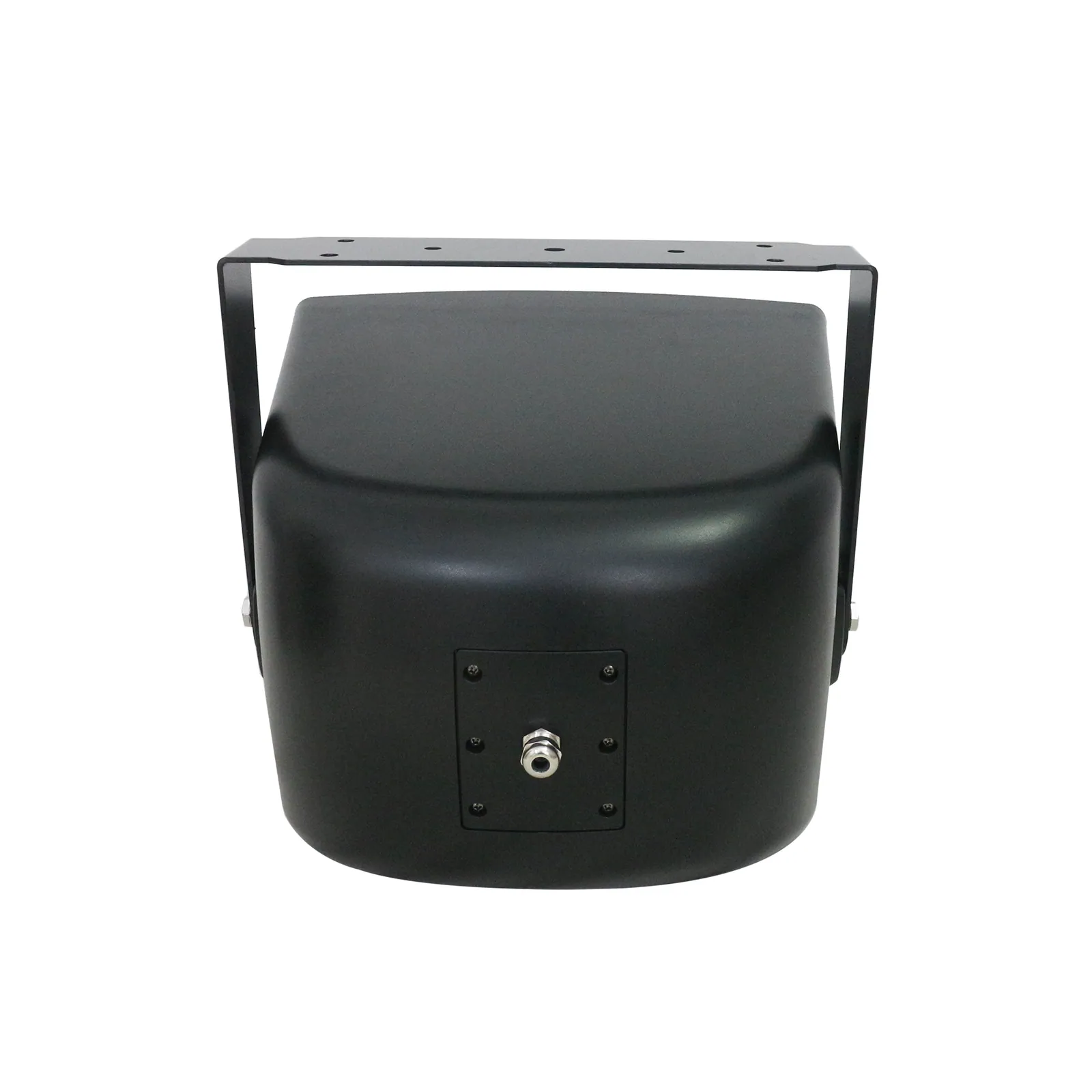

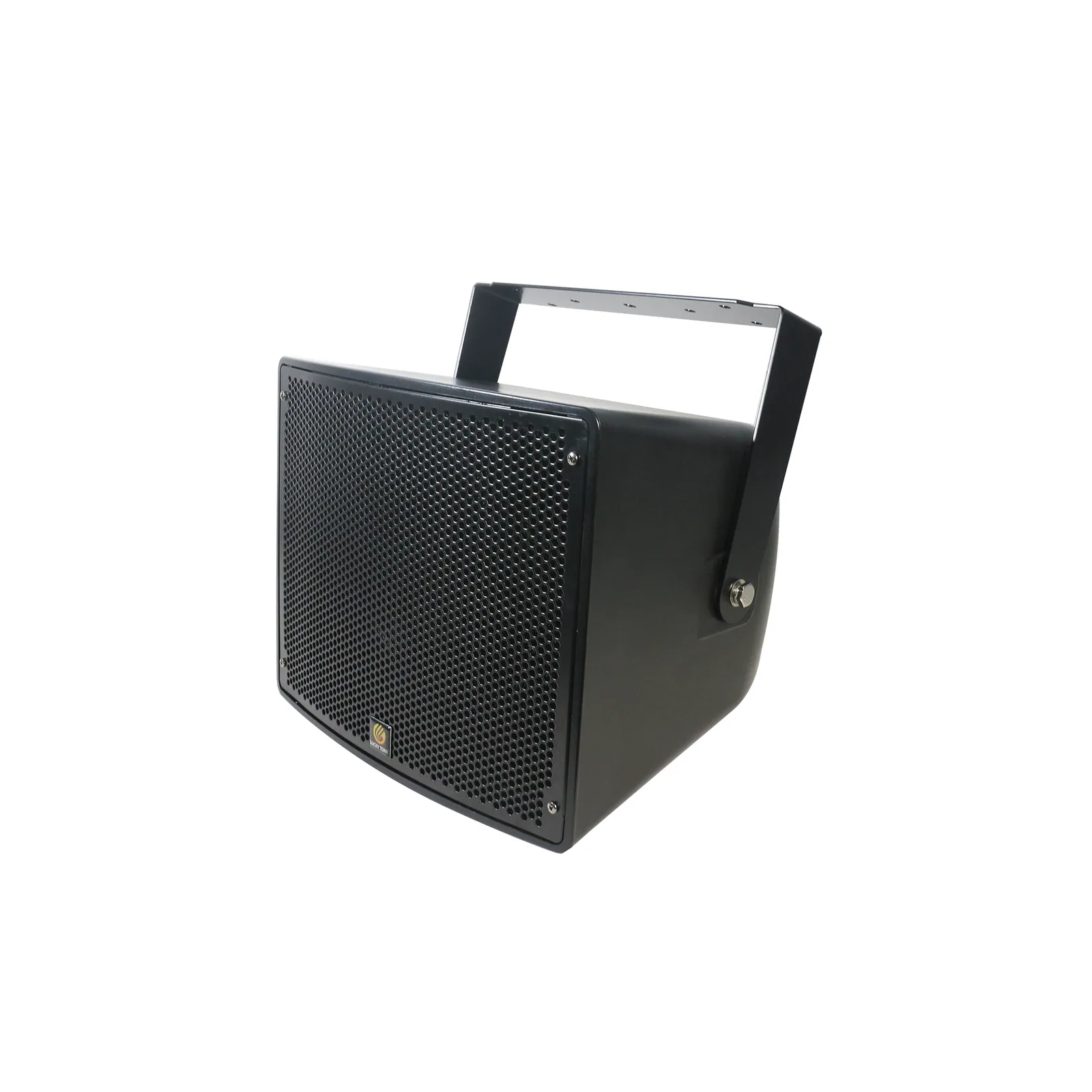

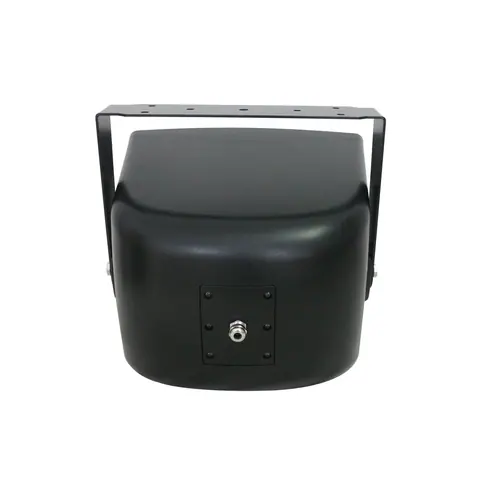

Lucky Tone Ultra-Compact Coaxial Two-Way All-weather Horn Speaker RC-150 / RC-150T / RC-200 / RC-200T / RC-300 / RC-300T
ModelRC-150 / RC-150T / RC-200 / RC-200T / RC-300 / RC-300T
The compact models give systems designers increased flexibility by offering vastly improved music playback, additional coverage patterns and higher output in attractive paintable enclosures.
- Output power
- RC-150: 150W@8ohm; RC-150T: 18.5W/37.5W/75W/150W@100V 9.5W/18.5W/37.5W/75W@70V 150W @8ohm; RC-200: 200W@8ohm; RC-200T: 25W/50W/100W/200W@100V 200W@8ohm; RC-300: 300W@8ohm; RC-300T: 37.5W/75W/150W/300W@100V 300W@8 ohm
- Frequency response
- RC-150: 80Hz-18KHz; RC-150T: 80Hz-18KHz; RC-200: 70Hz-18KHz; RC-200T: 70Hz-18KHz; RC-300: 70Hz-18KHz; RC-300T: 70Hz-18KHz
- Weight
- RC-150: 10.5KG; RC-150T: 11KG; RC-200: 13.5KG; RC-200T: 15KG; RC-300: 18.5KG; RC-300T: 20KG
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Ultra-Compact Coaxial Two-Way All-weather Horn SpeakerPrice on requestRequest a quotation
01Models6 models in the family
Models compared.
| Model | RC-150 | RC-150T | RC-200 | RC-200T | RC-300 | RC-300T |
|---|---|---|---|---|---|---|
| Rated power | 150W@8ohm | 18.5W/37.5W/75W/150W@100V 9.5W/18.5W/37.5W/75W@70V 150W @8ohm | 200W@8ohm | 25W/50W/100W/200W@100V 200W@8ohm | 300W@8ohm | 37.5W/75W/150W/300W@100V 300W@8 ohm |
| Maximum power | 300W | 300W | 400W | 400W | 600W | 600W |
| Input | 8ohm | 70V/100V/8ohm | 8ohm | 70V/100V/8ohm | 8ohm | 70V/100V/8ohm |
| Sensitivity (1W/1M) | 93dB ± 3dB | 93dB ± 3dB | 103dB ± 3dB | 103dB ± 3dB | 103dB ± 3dB | 103dB ± 3dB |
| Frequency response | 80Hz-18KHz | 80Hz-18KHz | 70Hz-18KHz | 70Hz-18KHz | 70Hz-18KHz | 70Hz-18KHz |
| Radiation angle | ∠120° / ∠90-100° | ∠120° / ∠90-100° | ∠90-100° | ∠90-100° | ∠60-120° | ∠60-120° |
| Speaker unit | 10”*1(Bass), 3”*1(Treble) | 10”*1(Bass), 3”*1(Treble) | 10”*1(Bass), 1”*1(Treble) | 10”*1(Bass), 1”*1(Treble) | 12″*1(Bass),1.5*1(Treble) | 12″*1(Bass),1.5*1(Treble) |
| Color | White | White | Black | Black | Black | Black |
| Product size | 345*355*297mm | 345*355*297mm | 385*355*348mm | 385*355*348mm | 375*435*395mm | 375*435*395mm |
| Weight | 10.5KG | 11KG | 13.5KG | 15KG | 18.5KG | 20KG |
02DescriptionManufacturer's description
What it is.
The compact models give systems designers increased flexibility by offering vastly improved music playback, additional coverage patterns and higher output in attractive paintable enclosures. Both models include front-loaded LF drivers in highly reinforced enclosures for natural, nonresonant low frequency reproduction, while identical voicing ensures a uniform listening experience.
Features
- Ultra-compact size, high output
- Premium music applications
- full frequency horn, professional, all weather
- With switch selection 70V, 100V, and 8 ohms
- With IP, SIP Net audio with our Eco IP system
- IP 55 for outdoor application
Ordering Code
- RC-150: 8 ohm 150W
- RC-150T: 100V line 150W
- RC-200: 8 ohm 200W
- RC-300: 8 ohm 300W
- RC-200T: 100V line 200W
- RC-300T: 100V line 300W
- RC-200 IP : 200W IP Net audio, Powered
- RC-300 IP : 300W IP Net audio, Powered
- RC-200 SIP : 200W SIP Net audio, Powered
- RC-300 SIP : 300W SIP Net audio, Powered

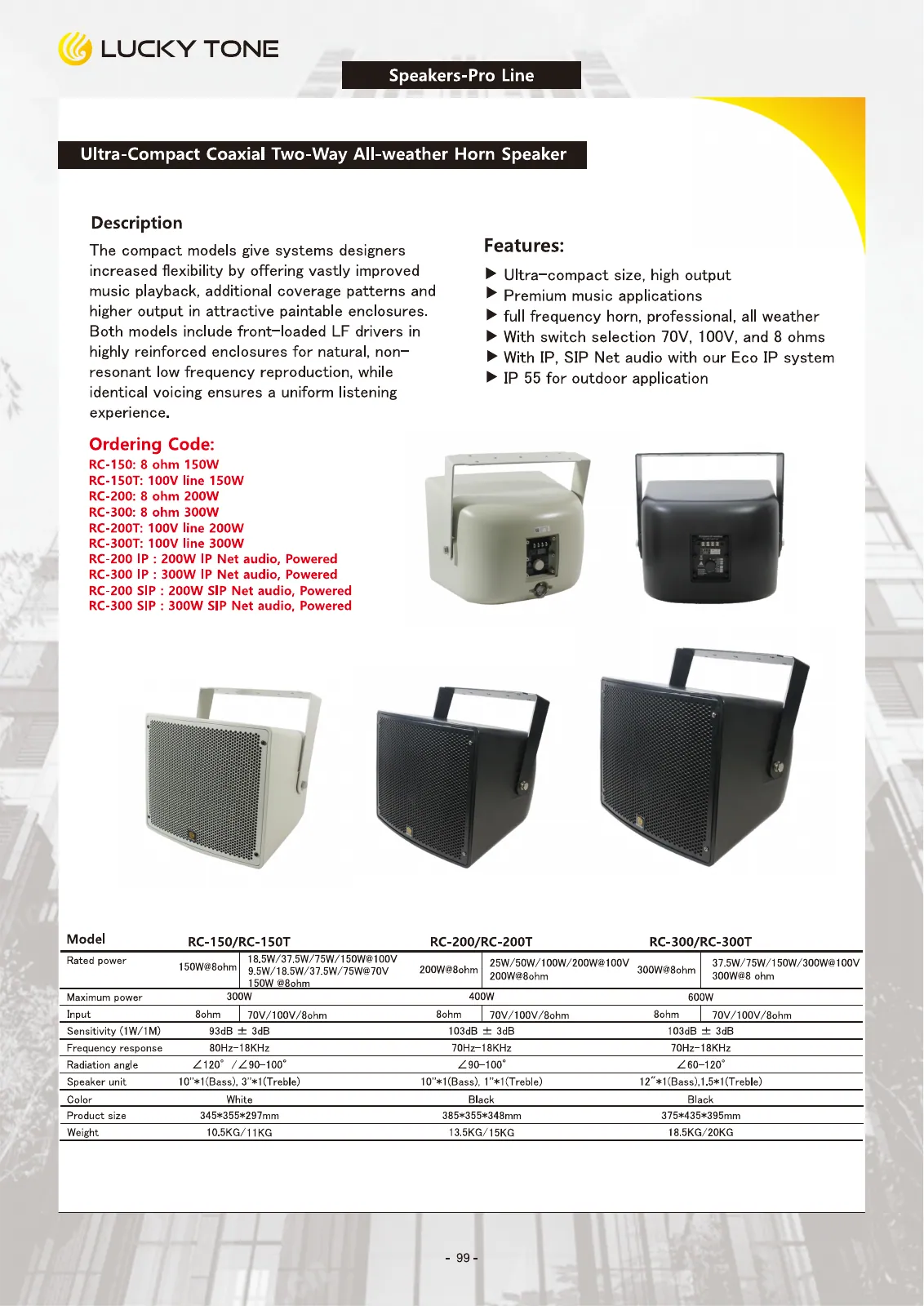

03Documents1 file · 973 KB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
