Sheet 05.171
Lucky Tone · Loudspeakers
IP55 Waterproof Wall Speaker
ModelWP-680B/WP-680W / WP-680LB/WP-680LW
Delivers strong and clear audio performance.
- Frequency response
- 80Hz-18KHZ
- Dimensions
- 200x220x212mm
- Weight
- WP-680B/WP-680W: 4.7Kg; WP-680LB/WP-680LW: 4.6Kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
IP55 Waterproof Wall SpeakerPrice on requestRequest a quotation
01Models2 models in the family
Models compared.
| Model | WP-680B/WP-680W | WP-680LB/WP-680LW |
|---|---|---|
| Power at 8Ω | 80W | 80W |

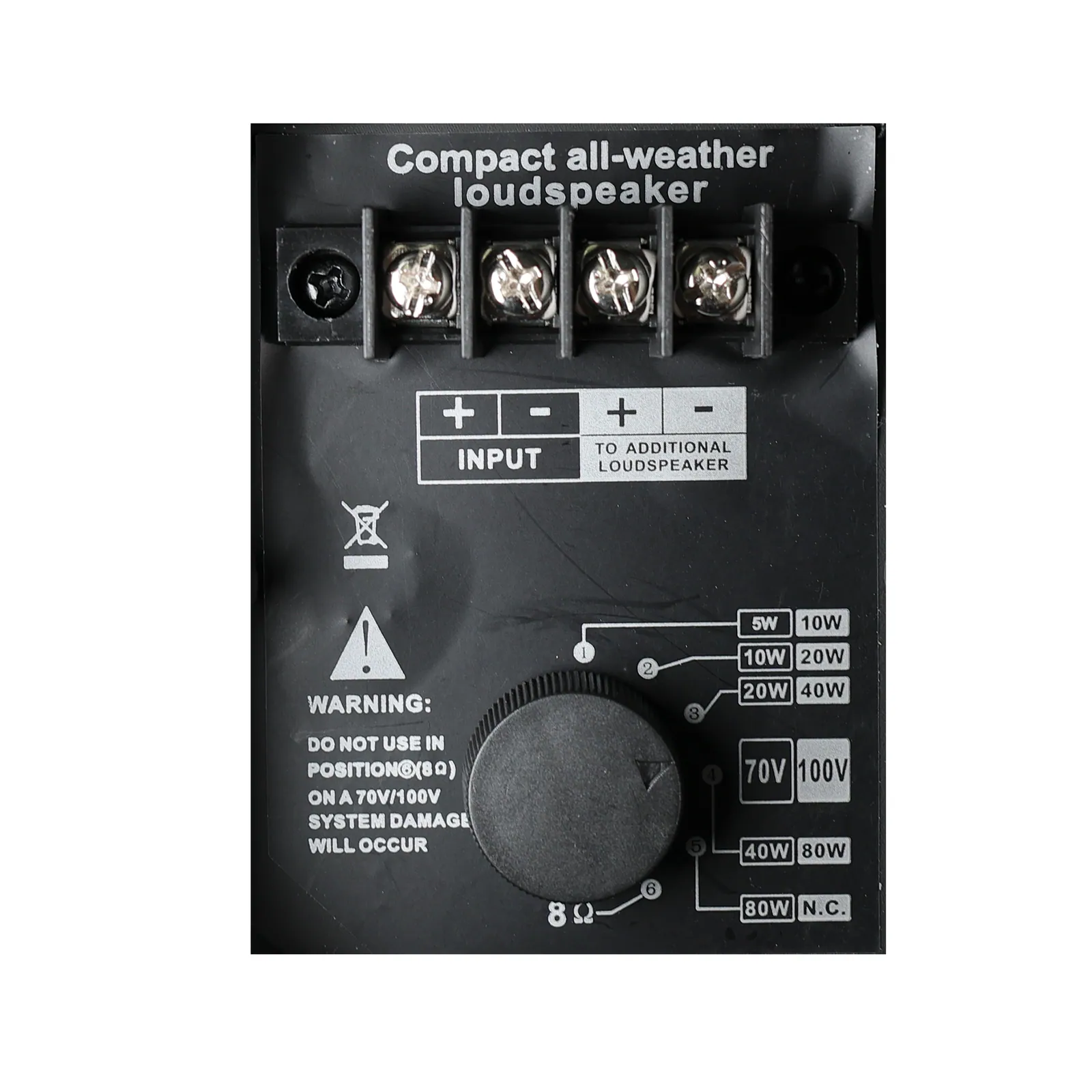

| Power at 100V | 80W/40W/20W/10W | / |
| Power at 70V | 40W/20W/10W/5W | / |
| Peak Power | 200W | 200W |
| Sensitivity | 96±3dB | 96±3dB |
| Frequency Response | 80Hz-18KHZ | 80Hz-18KHZ |
| Coverage Angle (1KHz/-6dB) | <110° | <110° |
| Dimensions (HxWxD) (mm) | 200x220x212mm | 200x220x212mm |
| Weight | 4.7Kg | 4.6Kg |
| Color | Black/White | Black/White |
| Speakers | 6.5″ Wooferx1 , 1″ Tweeter x1 | 6.5″ Wooferx1 , 1″ Tweeter x1 |
02DescriptionManufacturer's description
What it is.
80W High Power Output
IP55 Waterproof Rating
Designed for outdoor environments, providing resistance to dust and water.
PA and BGM Compatibility
Suitable for both Public Address systems and Background Music applications.
Durable Plastic Enclosure
Made with high-quality plastic material for durability and longevity in all-weather conditions.
Wide Sound Coverage
Designed to evenly distribute sound across large areas, perfect for both indoor and outdoor use.
03Documents1 file · 1.6 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
