NovaStar · Controllers and accessories

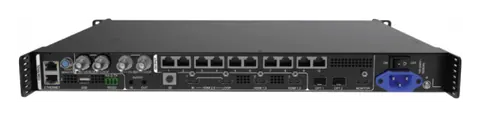

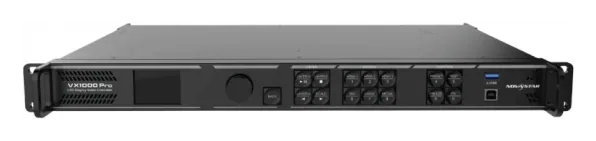

VX1000 Pro

Video Controller.

Loading Capacity
6.5 million pixels
Max Width (pixels)
10240
Max Height (pixels)
8192
Layers
6 *2K×1K
Price, incl. VATAED 6,016.50AED 5,730 excl. VAT

Retail price in UAE dirhams: the larger figure includes 5% VAT, the smaller one is without it. Prices exclude installation, programming and freight; we confirm the configuration, availability and lead time for each project.

01SpecificationManufacturer's data · 1 group · 8 values

What this product is, in numbers.

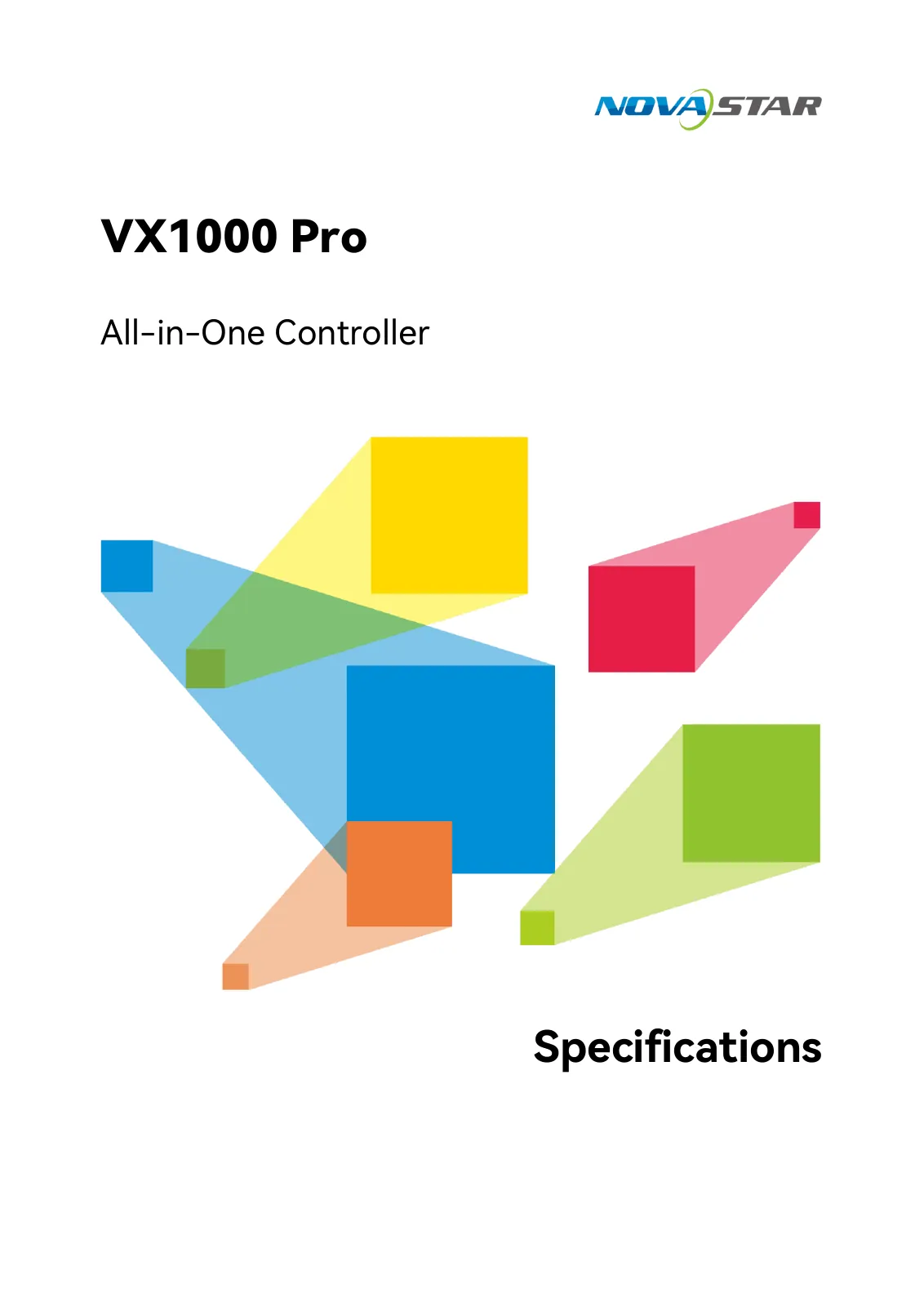

PDFSpecificationsEN · 21 pages · 1.1 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications8
Loading Capacity
6.5 million pixels
Max Width (pixels)
10240
Max Height (pixels)
8192
Layers
6 *2K×1K
Input Connectors
1× HDMI 2.0(IN&LOOP) / 2× HDMI 1.3 / 1× 3G-SDI(IN&LOOP) / 1× 10G OPT Port(OPT1) / 1× USB3.0

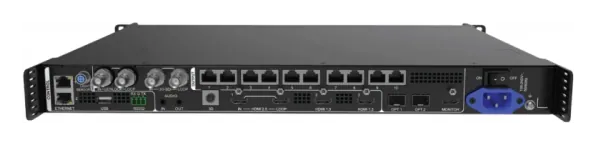

Output Connectors
10× Ethernet Ports / 1× HDMI1.3 / 1× HDMI 2.0 LOOP / 1× 3G-SDI LOOP / 2× OPT
Presets
256
Control Connectors
2× Ethernet Port / 1× USB
02Documents2 files · 10 MB

Documents and files.

Datasheets, manuals, drawings and certificates as the manufacturer publishes them.

04Talk to us
VX1000 ProNovaStar · EQ-6648

Need this priced for your project?

  1. Quantity and site
  2. Configuration and interfaces
  3. Quotation
Price, incl. VATAED 6,016.50AED 5,730 excl. VAT
