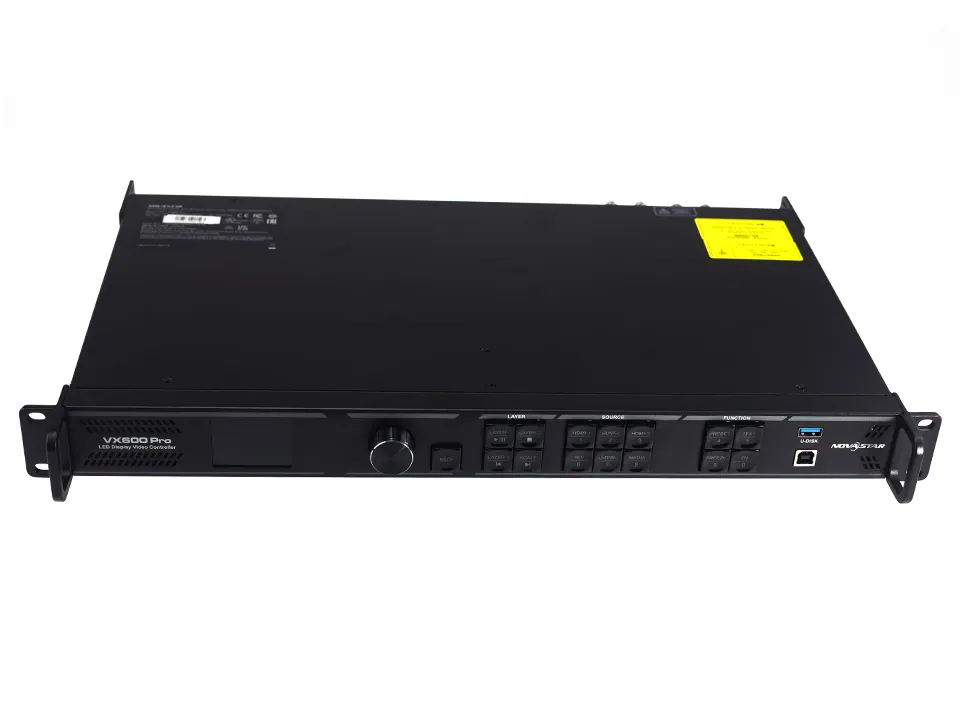

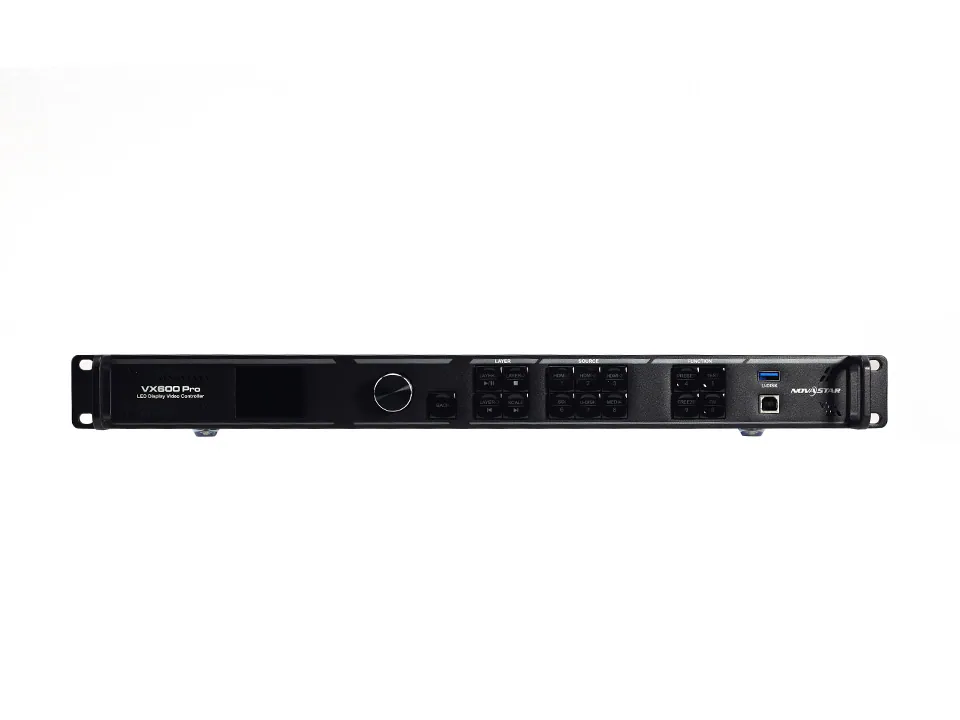

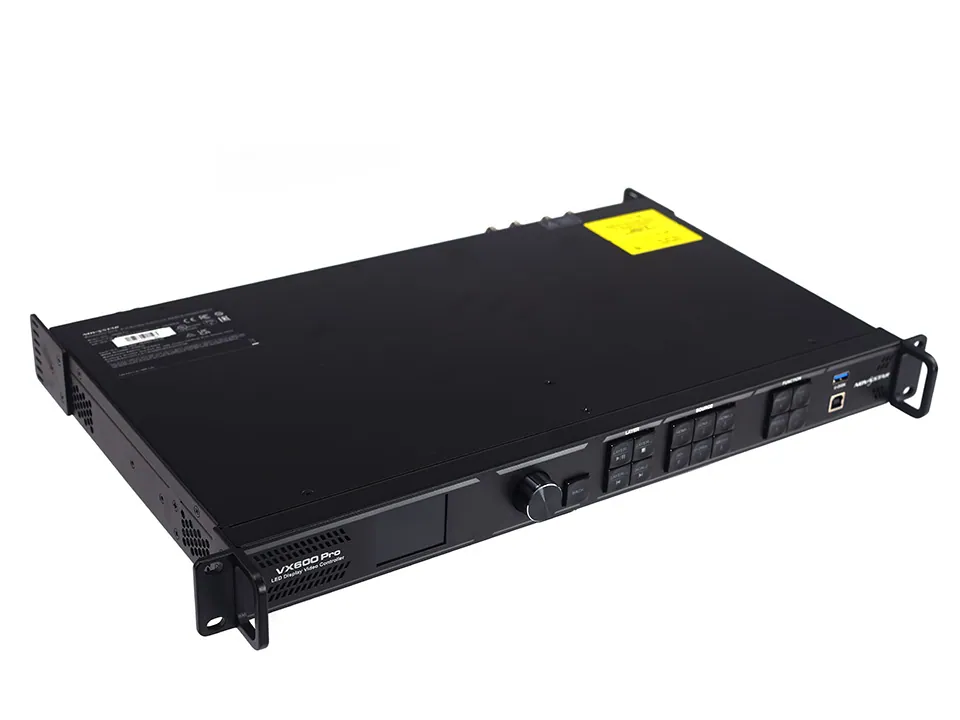

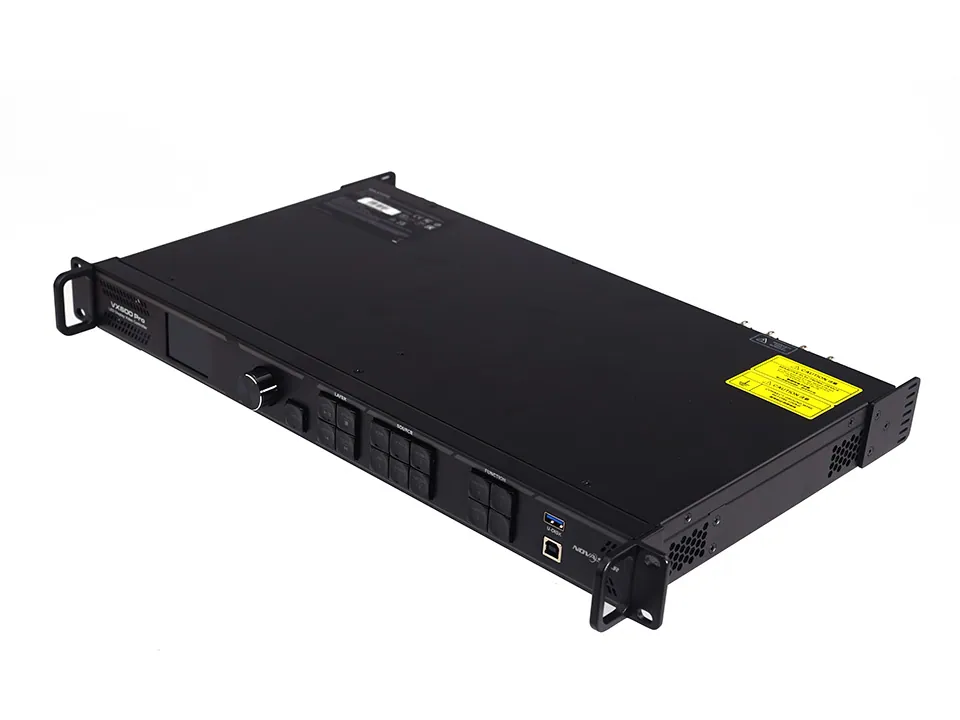

VX600 Pro
Video Controller.
- Loading Capacity
- 3.9 million pixels
- Max Width (pixels)
- 10240
- Max Height (pixels)
- 8192
- Layers
- 6 *2K×1K
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications8
- Loading Capacity
- 3.9 million pixels
- Max Width (pixels)
- 10240
- Max Height (pixels)
- 8192
- Layers
- 6 *2K×1K
- Input Connectors
- 1× HDMI 2.0(IN&LOOP) / 2× HDMI 1.3 / 1× 3G-SDI(IN&LOOP) / 1× 10G OPT Port(OPT1) / 1× USB3.0
- Output Connectors
- 6× Ethernet Ports / 1× HDMI1.3 / 1× HDMI 2.0 LOOP / 1× 3G-SDI LOOP / 2× OPT
- Presets
- 256
- Control Connectors
- 2× Ethernet Port / 1× USB
Show the full specificationHide the rest of the specification0 more groups · 0 values
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.

Datasheets and manuals01
