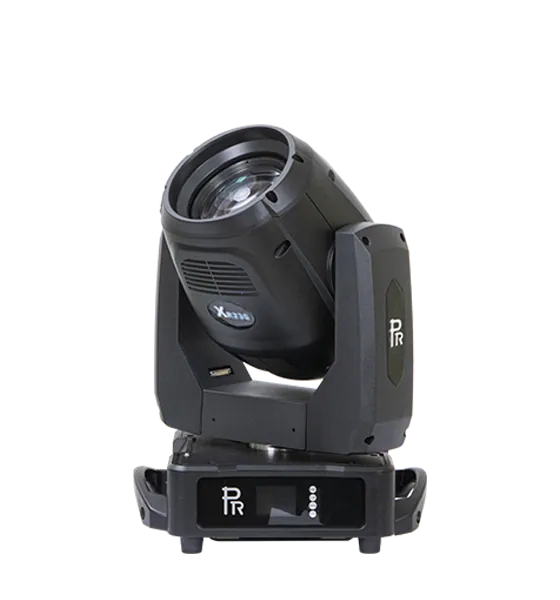

PR Lighting XR 230 Beam PR-2204A

ModelPR-2204A

XR 230 Beam is an extremely bright moving head Beam lighting fixture. It uses Osram 7R lamp.

Light source: Lamp Osram 7R (8000K,2000hrs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 15 groups · 24 values

What this product is, in numbers.

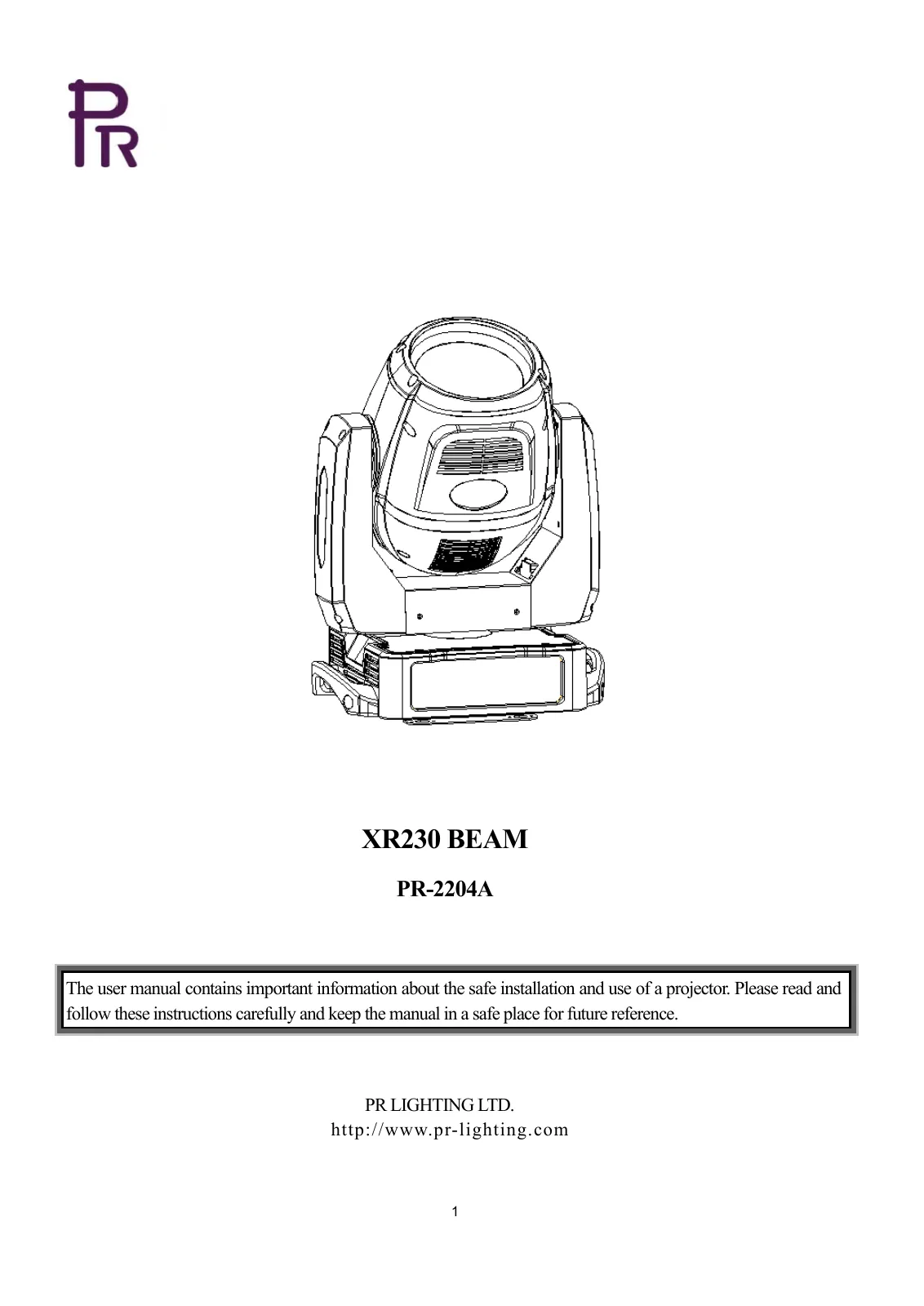

PDFUser manualEN · 22 pages · 3.0 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Input Voltage1

100V~240V AC,50/60Hz

02Input Power2

350W@230V

Power factor PF>0.90

03Light Source1

Lamp Osram 7R (8000K,2000hrs)

04Prism/Frost2

1 16-facet prism, bi-directional rotation from slow to fast

both can be overlapped

05Focus1

DMX linear focus

06Dimmer /Strobe2

Strobe at variable speeds(15 F.P.S at maximum)

0-100% linear dimmer

07Head Movement1

Pan 540º, Tilt 270º with 16 bit control

08Beam Angle1

2.5°

09Control2

International standard DMX 512 protocol, 5-pin interface

16channels in short mode and 20channels in standard mode

10Housing1

High temperature and anti-UV ABS and aluminum , IP20

11Net Weight1

17.5Kg

12Operation Temperature1

Ambient temperature at maximum: 45°C

13Accessories4

Safety cord1 Pc

Clamp2 Pc

Foldable clamp 2 Pc Optional

User manual0 Pc QR code

14Color Wheel3

1 color wheel: 19 colors plus white(including 2 CTO and 1 CTB); Macros and bi-directional rainbow effects with variable speeds; a linear CYM color mixing system

15Fixed Gobo1

1 fixed gobo wheel: 17gobos+open

02DescriptionManufacturer's description

What it is.

XR 230 Beam is an extremely bright moving head Beam lighting fixture. It uses Osram 7R lamp. It has high efficiency and illuminance, fat beam, compact size, light weight and agile movement, low noise , good cooling, stable performance and etc..It has multiple beam angles between 0°and 2.5°.With linear Dimmer, a color wheel(14 colors), a static gobo wheel( 17gobos), an effect wheel( an 16-facet prism, CTO, a linear frost filter) and etc..
