Sheet 05.647
PR Lighting · Beam
AQUA Marine 580 Beam
ModelPR-2568
Corrosion-Resistant versions of AQUA 580 Beam, AQUA Marine 580 Beam can provide superior resistance to a wider range of corrosive media, making them ideal for use on projects close to the seashore or in seawater.
- Light source
- PHILIPS MSD Platinum 25R (550W), (7,800K, 1,500 hrs)
- Beam angle / zoom
- 2°
- Net weight
- 40Kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
AQUA Marine 580 BeamPrice on requestRequest a quotation
01VideoManufacturer's video · 1:50
PR Lighting AQUA Marine 580 Beam: the manufacturer's video
02SpecificationManufacturer's data · 20 groups · 40 values
What this product is, in numbers.

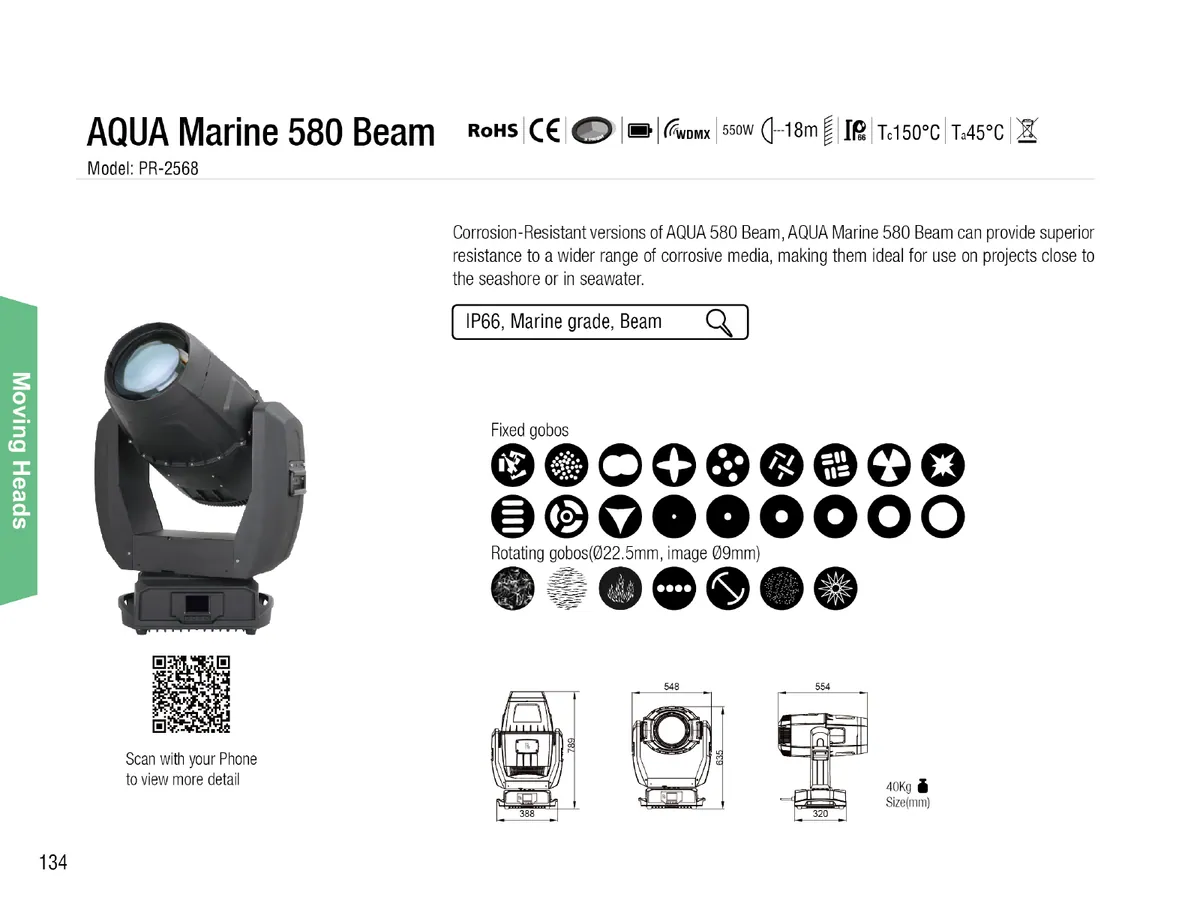

PDFDatasheetEN · 2 pages · 2.2 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Input Voltages1
- 100-240V AC, 50/60Hz
02Power Consumption1
- 800W@220V
03Light Source2
- PHILIPS MSD Platinum 25R (550W), (7,800K, 1,500 hrs)
- Optional
- OSRAM SIRIUS HRI 550W XL, (7,500K, 1,500 hrs)
04Strobe1
- Double shutter blades, 0.3-25 F.P.S
05Dimmer1
- 0-100% linearly dimming
06CTO1
- Independent 0-100% linear CTO
Show the full specificationHide the rest of the specification14 more groups · 33 values
07Prism/Frost2
- Three prisms(standard
- 8-facet circular+4-facetlinear+16-facet circular prisms),
- bi-directional rotation with variable speeds,1combined frost filter
08Focus1
- DMX linear focus
09Head Movement1
- Pan 540°, tilt 270° with auto position correction
10Light Angle1
- Beam angle
- 2°
11Control4
- International DMX512, 5 pins(optional 3 pins) interface
- RDM control protocol
- Short mode 22 channels, standard mode 26 channels and extended mode 30 channels
- Self-test mode
12Other Functions6
- Adjustable pan & tilt speed
- LCD display screen
- Fixture and lamp usage time display
- Modular structure for easy maintenance
- DMX512 wireless receiver
- DMX512 wireless transmitter(optional)
13hysical2
- Housing
- cast aluminum and high temperature UV resistant ABS, IP66
- Ambient temperature
- maximum 45°C
14Weight1
- Net weight
- 40Kg
15Packaging2
- Standard
- 815x725x700(mm)
- Optional
- flight case
16Accessories5
- G clamp, 2 pcs
- 5 Pins XLR connector, 1 set
- Safety cord, 1 pc
- Power cord, 1 pc
- Optional
- Ω clamp, 2 pcs
17CMY1
- CMY linear color mixing system with macros
18Color Wheel3
- 1 Color wheel
- 12 dichroic color filters plus open
- Rainbow effect with bi-directional and variable speeds
- Stepping/linear color changing
19Fixed Gobo2
- 1 Fixed gobo wheel
- 18 gobos plus open
- Bi-directionally rotatable, and shakable effect at variable speeds
20Rotating Gobo2
- 1 Rotating gobo wheel
- 7 interchangeable gobos plus open
- Bi-directionally rotatable, and shakable at variable speeds
