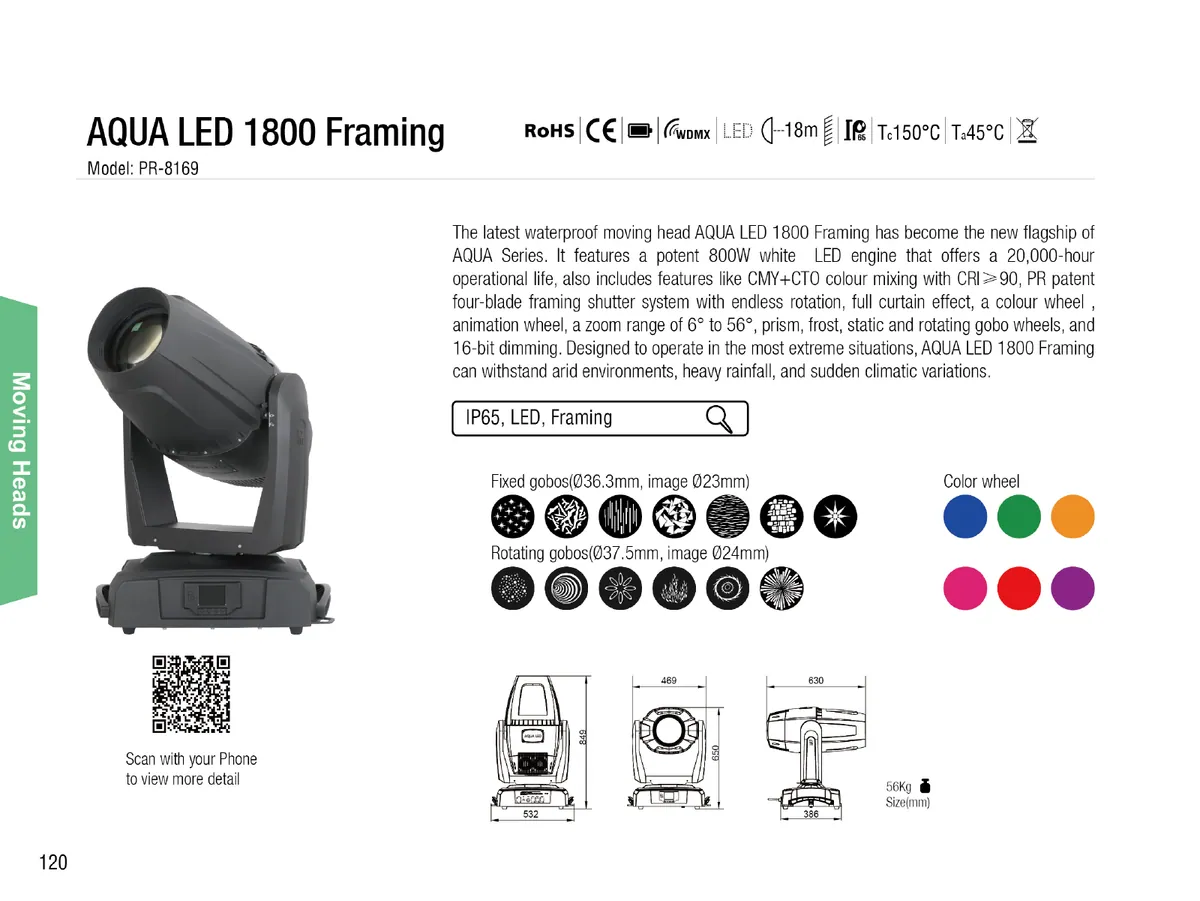

AQUA LED 1800 Framing

ModelPR-8169

The latest waterproof moving head AQUA LED 1800 Framing has become the new flagship of AQUA Series.

Light source: 800W white LED, (8,000K, 20,000 hrs)
Net weight: 58Kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 24 groups · 44 values

What this product is, in numbers.

PDFDatasheetEN · 2 pages · 2.6 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Input Voltages1

100-240V AC, 50/60Hz

02Power Consumption1

1100W@230V

03Light Source2

800W white LED, (8,000K, 20,000 hrs)

CRI≥90(optional)

04Strobe1

Double shutter blades, 0.3-25 F.P.S

05Dimmer1

0-100% linearly dimming

06CTO1

Independent 0-100% linear CTO

Show the full specificationHide the rest of the specification18 more groups · 37 values

07Prism1

One 4-facet prism, bi-directional rotation with variable speeds

08Frost1

One linear frost filter

09Effect1

1 Interchangeable graphic effect wheel, bi-directional rotation with variable speeds

10Iris1

5-100% linearly adjusted with macros

11Light Angle1

6°~56°

12Focus/Zoom1

DMX linear focus/zoom

13Head Movement1

Pan 540°, tilt 270° with auto position correction

14Control4

International DMX512, 5 pins(optional 3 pins) interface

RDM control protocol, ART-Net protocol(optional)

Short mode 35 channels, standard mode 38 channels and extended mode 54 channels

Self-test mode

15Other Functions6

Adjustable pan & tilt speed

LCD display screen

Fixture and lamp usage time display

Modular structure for easy maintenance

DMX512 wireless receiver

DMX512 wireless transmitter(optional)

16Physical2

Housing: cast aluminum and high temperature UV resistant ABS, IP65
Ambient temperature: maximum 45°C

17Weight1

Net weight: 58Kg

18Packaging2

Standard: carton 855x655x815(mm)
Optional: flight case 695x535x820(mm)

19Accessories5

G clamp, 2 pcs; 5 Pins XLR connector, 1 set; Safety cord, 1 pc; Power cord, 1 pc
Optional: Ω clamp, 2 pcs

20CMY1

CMY linear mixing system with macros

21Color Wheel3

1 Color wheel: 6 dichroic color filters plus open; Rainbow effect with bi-directional and variable speeds; Stepping/linear color changing

22Fixed Gobo2

1 Fixed gobo wheel: 7 interchangeable gobos plus open; Bi-directionally rotatable, and shakable effect at variable speeds

23Rotating Gobo2

1 Rotating gobo wheel: 6 interchangeable gobos plus open; Bi-directionally rotatable, and shakable at variable speeds

24Framing2

Bi-directionally rotatable, and shakable at variable speeds

Framing module endless rotation with many graphic of different sizes and shapes, curtain effect

02DescriptionManufacturer's description

What it is.

The latest waterproof moving head AQUA LED 1800 Framing has become the new flagship of AQUA Series. It features a potent 800W white LED engine that offers a 20,000-hour operational life, also includes features like CMY+CTO colour mixing with CRI≥90, PR patent four-blade framing shutter system with endless rotation, full curtain effect, a colour wheel , animation wheel, a zoom range of 6° to 56°, prism, frost, static and rotating gobo wheels, and 16-bit dimming. Designed to operate in the most extreme situations, AQUA LED 1800 Framing can withstand arid environments, heavy rainfall, and sudden climatic variations.
