Sheet 05.568

PR Lighting · Spot and profileOn request

AQUA LED 1800-W Spot

ModelPR-8168

Light source: LED 800W (8000K,20000hrs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 1:28

PR Lighting AQUA LED 1800-W Spot1:28

02SpecificationManufacturer's data · 23 groups · 58 values

What this product is, in numbers.

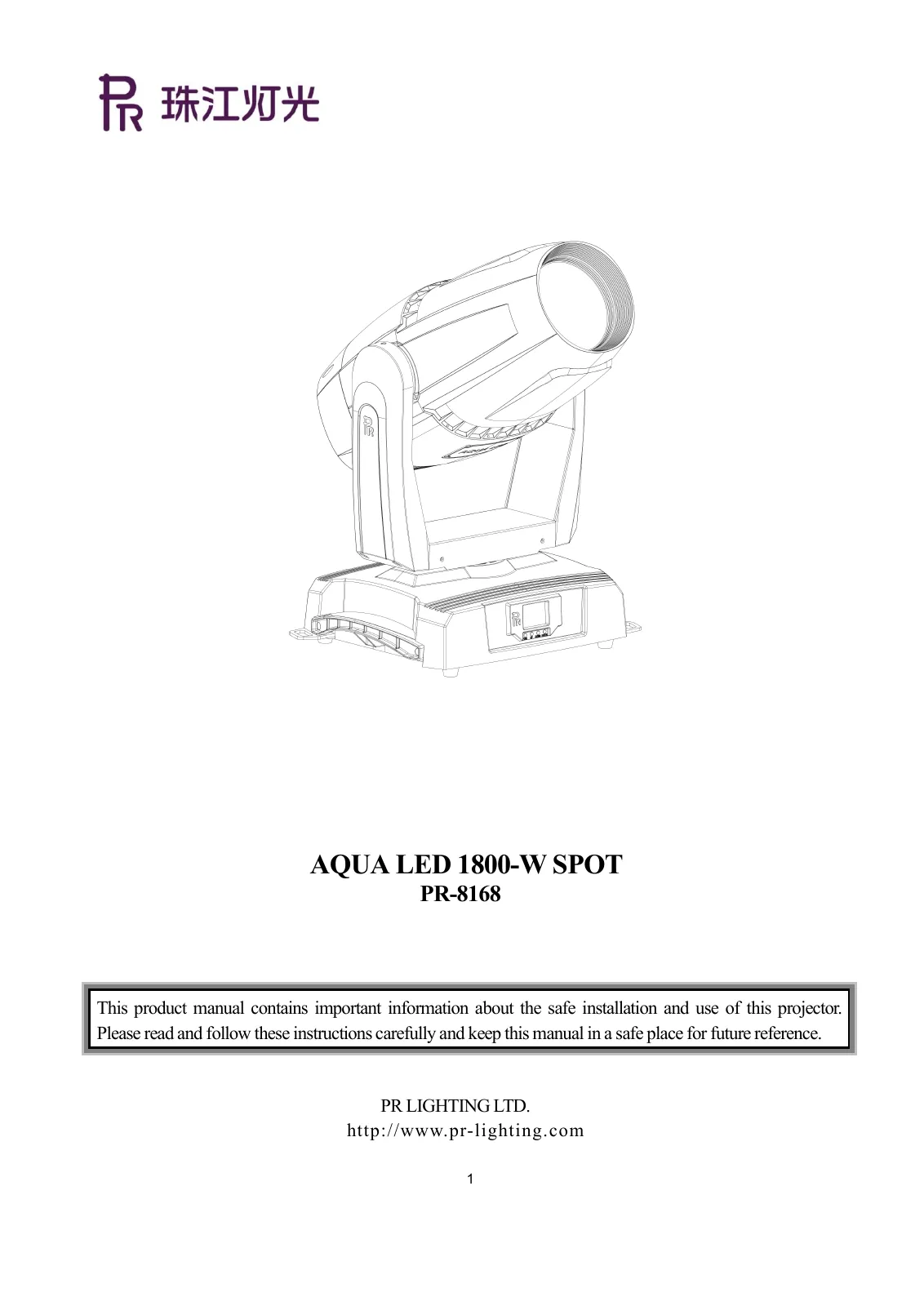

PDFUser manualEN · 31 pages · 4.6 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Input Voltage1

100V-240V AC,50/60Hz

02Input Power3

1140W @ 100V AC; 1080W @ 220V AC
Power factor: PF>0.9

03Light Source3

LED 800W (8000K,20000hrs)

Ra ≥70

Ra ≥90, R9≥90 (Optional)

04Cto1

Linear CTO system(0-100%)

05Prism1

1pc 4 facet prism, bi-directional rotation with varied speeds and indexing function

06Frost1

Linear frost (0-100%)

Show the full specificationHide the rest of the specification17 more groups · 48 values

07Effect Wheel1

1 exchangeable graphic effect wheel, bi-directional rotation with varied speeds

08Focus1

0-100% linearly adjustable by DMX

09Dimmer4

Linear dimmer 0-100%

3 dimmer speeds

4 dimmer gamma curves

Dimmer frequency(1.2K~2.5K) good for high speed 4K video camera

10Iris1

Linear iris 5-100% with macros

11Strobe1

Double shutter blades, 0.3~25 F.P.S

12Head Movement1

Pan 540º, Tilt 270º with auto position correction

13Beam Angle1

Linear zoom 6°~ 56°with 16 bit precision

14Control7

International standard DMX512 signal , 5 pin interface

RDM control protocol

ArtNet protocol

27channels in short mode, 31channels in standard mode,38channel in extended mode

Master/Slave mode

Stand-alone mode

Self test mode

15Other Functions11

Adjustable Pan & Tilt speeds

Pan and Tilt swappable and invertible

Fixture and lamp hours’ display

Color screen, Chinese-English menus, brightness and contrast adjustable

Diagnostic system with sensors

Software version display

Protection and insulation of input signals

Modular construction for easy maintenance

ArtNet interface

DMX512 wireless receiver

DMX512 wireless transmitter (optional)

16Housing1

High tensile cast aluminum and high temperature resistant ABS, IP66

17Ambient Temperature3

-20°C ~ 45°C
Note: if the ambient temperature is below -20°C; please preheat the lamp more than 30 minutes and reset it again

18Weight1

55Kg

19Accessories6

G clamp 2 Pcs

XLR connector 1 Set Male and female

Safety cord 2 Pcs

User manual 1 Pc

Ω clamp 2 Pcs Optional

Power cord 1 Pc

20CMY1

CMY linear coloring mixing system with macros

21Color Wheel3

1 Color Wheel: 6 color + white; Bi-directional rainbow effect with variable speeds and half color effect; Linear /stepping color changing

22Fixed Gobo2

1 Fixed gobo wheel: 7 interchangeable gobos plus open; Bi-directionally rotatable, and shakable effect at variable speeds

23Rotating Gobo3

2 rotating gobo wheels: 6 exchangeable+ white, glass or metal gobos; Bi-directional rotation, indexing, shake with varied speeds, bi-directional; scrolling with varied speeds

03DescriptionManufacturer's description

What it is.

The AQUA LED 1800-W Spot is an innovative IP66 rated moving head spot luminaire which offers complete protection against rain and humidity, and maintains a perfect working temperature for fixtures even in hot or cold conditions. It features 800W LED engine, 8000K, 6°~56° motorized zoom, full CMY color mixing with macros, 1color wheel with 6 dichroic color filters plus open and 2 rotating gobo wheels.

04Documents1 file · 4.6 MB
