Sheet 05.569

PR Lighting · Spot and profile

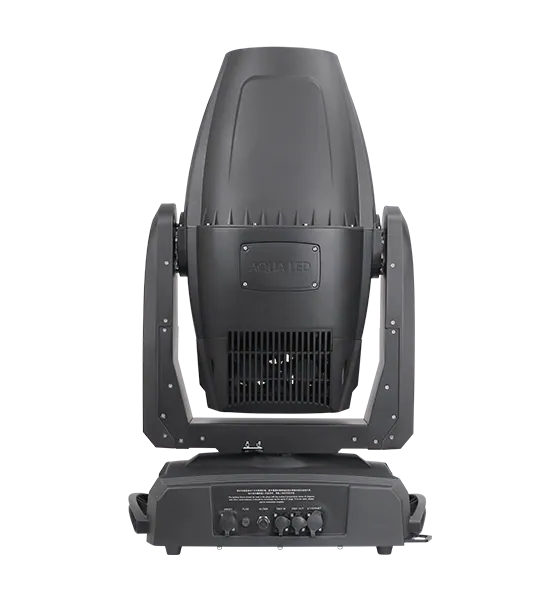

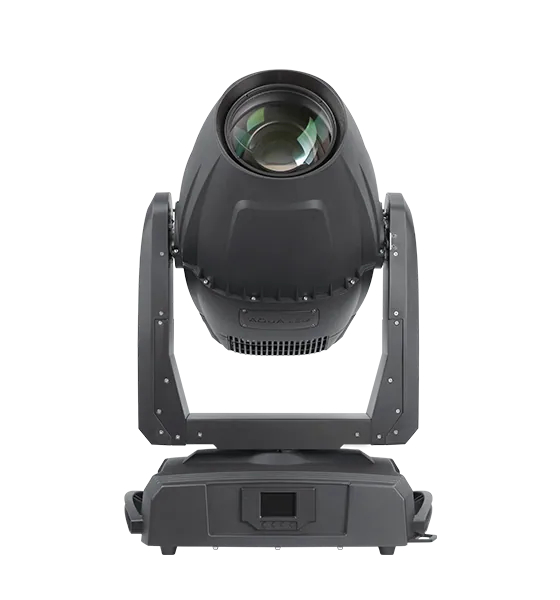

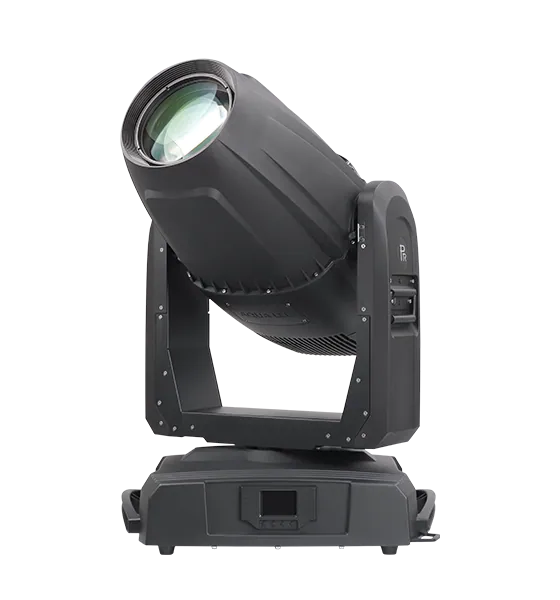

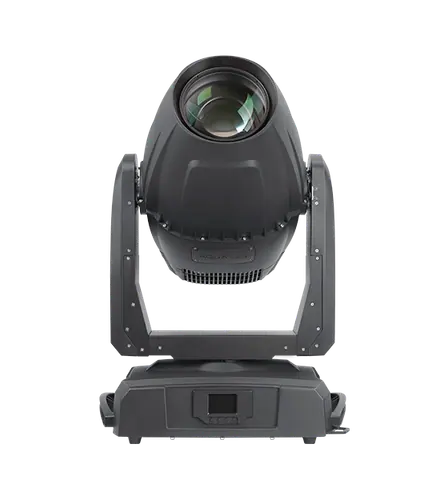

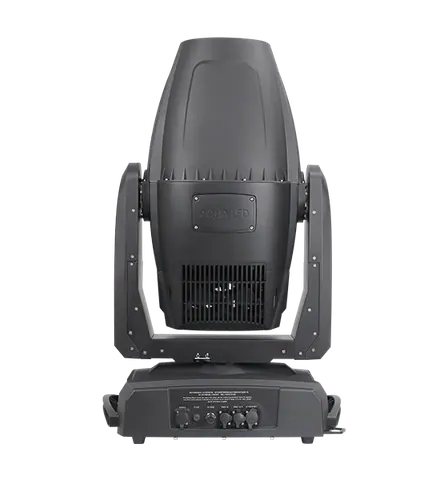

AQUA LED 3000-W Framing

ModelPR-8139

AQUA LED 3000-W FRAMING is an all weather moving head framing lighting fixture with IP66, suitable for harsh places with heavy dust ,rain, strong sunlight and etc..

Light source: Lamp 1200W ,LED white(8000K,20000hrs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 1:55

PR Lighting AQUA LED 3000-W Framing1:55

02SpecificationManufacturer's data · 23 groups · 60 values

What this product is, in numbers.

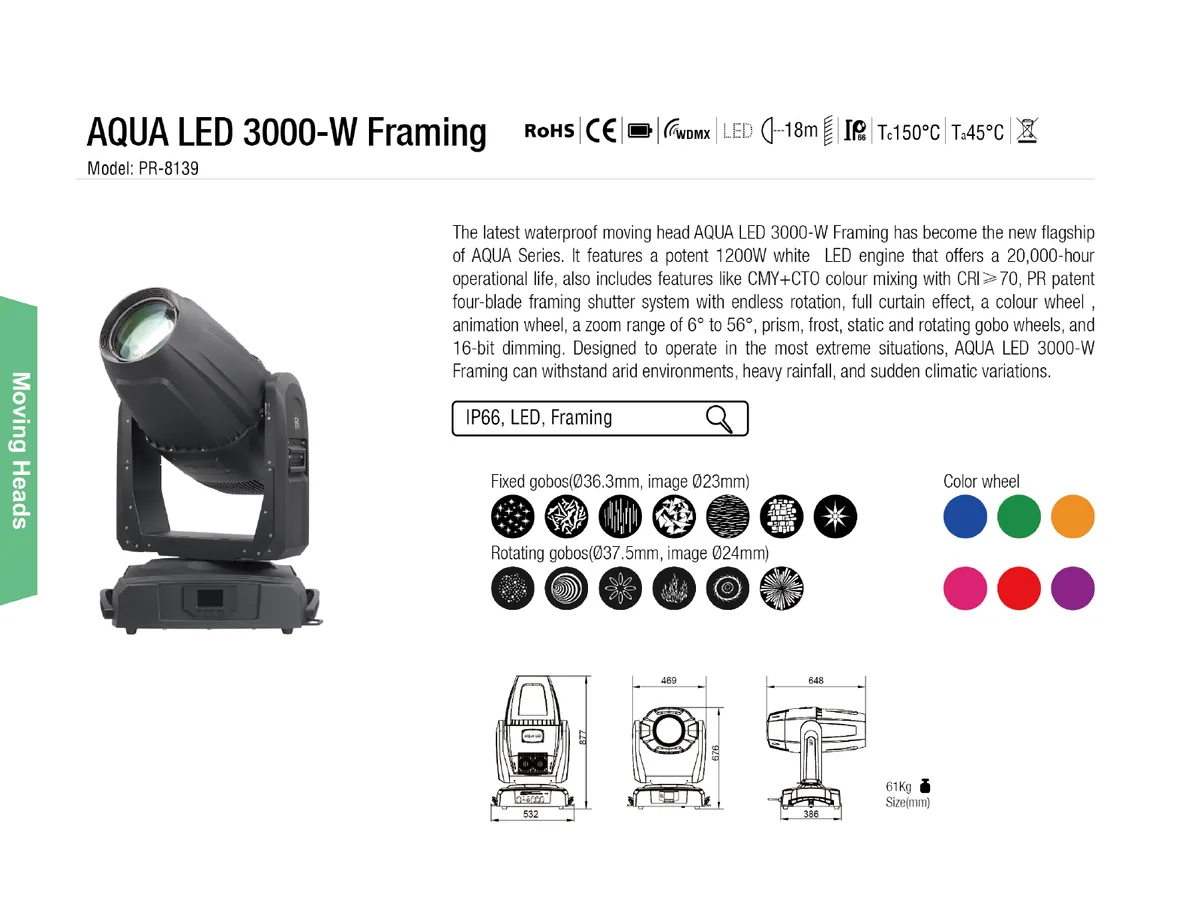

PDFDatasheetEN · 2 pages · 2.1 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Input Voltages1

100V-240V AC,50/60Hz

02Input Power2

1500W@220V
Power factor: PF>0.95

03Light Source2

Lamp 1200W ,LED white(8000K,20000hrs)
CRI: Ra ≥70, Ra ≥95(Optional)

04Cto1

Linear CTO system(0-100%)

05Prism2

1pc of 4-facet circular prism, bi-directional rotation

with varied speeds with indexing function

06Frost1

1frost filter ( 0-100% linear )

Show the full specificationHide the rest of the specification17 more groups · 51 values

07Effect Wheel1

1 animation effect wheel, bi-directional rotation with varied speeds

08Dimmer5

Linear electronic dimmer 0-100% with 16 bit control

3 dimmer speeds

4 dimmer gamma curves

Dimmer frequency(1.2K-25K) good for 4K high speed

video camera

09Head Movement2

Pan 540º, Tilt 270º with auto position correction

and16 bit control

10Control6

International standard DMX512 signal with 5-pin DMX512 interfaces

RDM protocol

ArtNet protocol(optional)

35channels in short mode, 38channels in standard mode,54channel in extended mode

Master/Salve synchronized control mode

Standalone mode

11Other Functions10

Pan and Tilt speeds adjustable

Pan and Tilt swappable and invertible

Touch color screen, Chinese and English menus, brightness and contrast adjustable

Error diagnostic system with sensors

Display of fixture hours and software versions

Modular construction for easy maintenance

Isolated input signals

ArtNet interfaces(optional)

DMX wireless receiver

DMX wireless transmitter(optional)

12Housing And Ingression Protection1

High tensile cast aluminum + high temperature plastics, IP66

13Working Temperature4

Working temperature 45°C at maximum
Note: If the ambient temperature is below minus 20°C,; please reset a projector after preheating it by striking; the lamp for more than 30 minutes.

14Weight1

Net weight 61Kg

15Accessories6

G clamp 2 Pcs

XLR connector 1 Set Male and female

Safety cord 2 Pcs

User manual 1 Pc

Ω clamp 2Pcs Optional

Power cord 1 Pc

16Strobe1

Electronic strobe, 0.3~25 F.P.S

17Iris1

Linear iris 5-100% with macros

18Beam Angle1

Linear zoom 6°~ 56°with 16 bit precision

19CMY1

CMY linear coloring mixing system with macros

20Color Wheel3

6 exchangeable colors+ open

Half color effect, Stepping/linear colors

Bi-directional color rainbow effect with variable speeds

21Fixed Gobo2

1 Fixed Gobo Wheel: 7 exchangeable gobos+ open; Shake effect with varied speeds and bi-directional rotation with varied speeds

22Rotating Gobo3

1 rotating gobo wheel: 6 exchangeable+ open, glass/metal gobos; Bi-directional rotation, indexing, shake with varied speeds; bi-directional scrolling with varied speeds

23Framing3

Framing module: 4 framing blades to make graphics with different sizes and shapes; Each blade to make full curtain effect; Bi-directional continual rotation for the whole module

03DescriptionManufacturer's description

What it is.

AQUA LED 3000-W FRAMING is an all weather moving head framing lighting fixture with IP66, suitable for harsh places with heavy dust ,rain, strong sunlight and etc.. It has a 360°continually rotating framing module made of 4 framing blades greatly improving produced graphics’ flexibility and artistry. It has Dimmer, Zoom, Focus, CMY color mixing, Iris, CTO and etc. being linearly adjusted, and only the lighting fixture with high standard technologies can express stage arts subtly and show skillful designs by stage art designers perfectly.

04Documents2 files · 4.2 MB
