Sheet 05.572

PR Lighting · Spot and profile

PR-6000 Framing(1400W)

ModelPR-2927

Colour temperature: 6000K

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 1:54

PR Lighting PR-6000 Framing(1400W)1:54

02SpecificationManufacturer's data · 23 groups · 51 values

What this product is, in numbers.

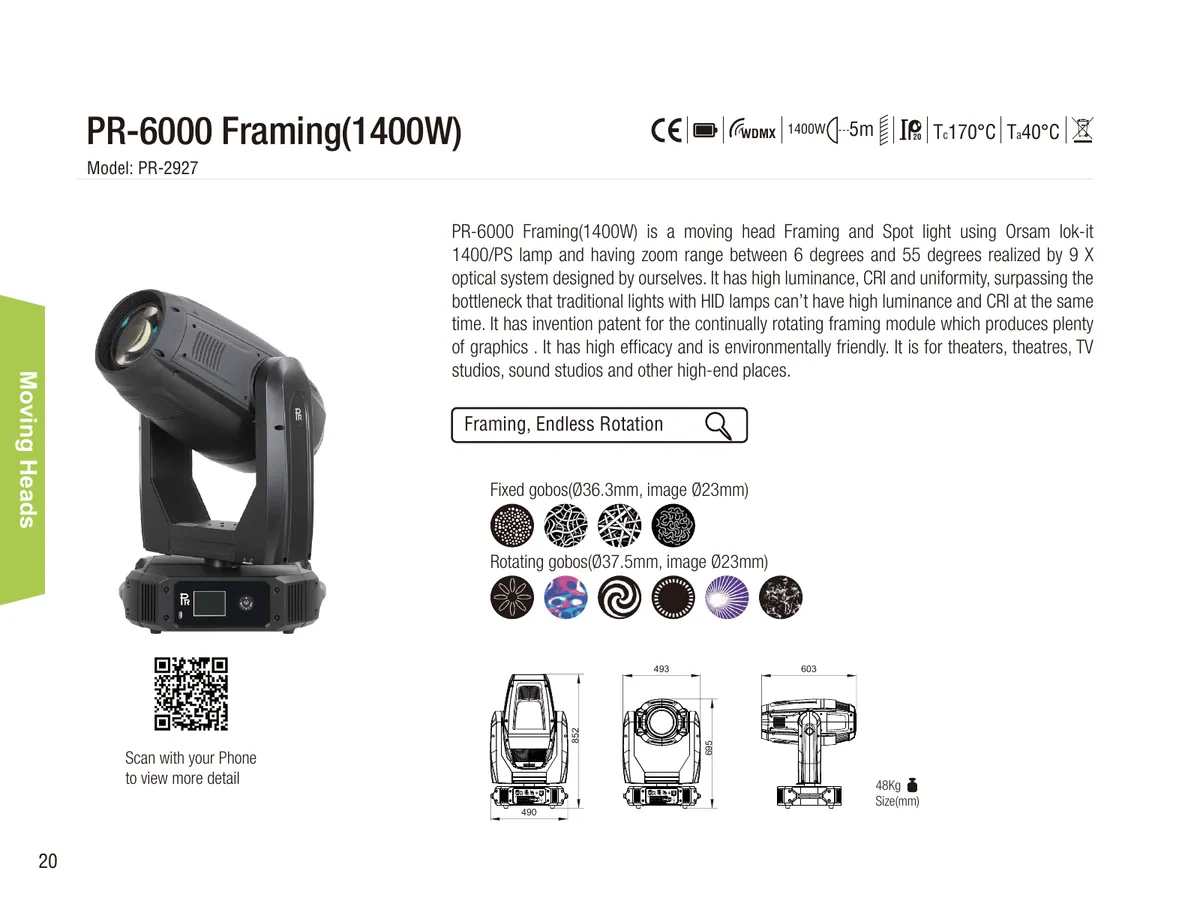

PDFDatasheetEN · 2 pages · 871 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Input voltage1

208V-240V AC,50/60Hz

02Rated power1

1800W@220V

03source5

OSRAM lok-it 1400/PS
Color temperature: 6000K
CRI: >90
lamp stand: single ended
rated life: 750hrs

04TO1

0-100% linear CTO

05Prism2

1pc of 3 facet prism

Bi-directional rotation with variable speeds and indexing function

06Frost1

1pc frost filter, linear frost effect

Show the full specificationHide the rest of the specification17 more groups · 40 values

07Focus1

DMX linear Focusing

08Dimmer1

0-100% Linear adjustment

09Iris1

5-100% linear adjustment with macros

10Strobe1

Double shutter blades, 0.3~25 F.P.S

11Head movement1

Pan 540º, Tilt 270º with auto position correction

12Beam angle1

linear zoom 6°~55°with 16 bit function

13Control4

DMX512 5 pin interfaces

RDM control protocol

33channels in short mode, 36channels in standard mode

and 52channels in extended mode ,Self-test mode

14Other functions11

Adjustable Pan & Tilt speed; Lamp and Total hours displayed; LCD English and Chinese Display with Contrast and brightness adjustable; Energy saving ballast; Built-in sensor diagnostic system; Input signal isolation; Modular Structure for easy maintenance; Ethernet Interface; DMX512 wirless reciever, DMX512 Transmitter ( Optional); ArtNet and sACN (Optional)
Fan mode: Standard/ Theater

15Housing1

High temperature ABS, IP20

16Net weight1

48Kg

17Operation temperature1

Highest ambient temperature 40°C

18General1

【Version: 20231108】

19CMY1

CMY linear mixing system with macros

20Color Wheel3

1 Color wheel: 7colors+ Open; Half Color effect,Rainbow effect with bi-directional and variable speeds; Stepping/linear color changing

21Fixed Gobo3

1 Fixed Gobo Wheel: 4 replaceable gobos+ Dynamic effect+open; Gobo Shake Effect with variable speeds, bi-directional scrolling with variable speeds; Dynamic waves and fire effects combined with rotating gobos

22Rotating Gobo5

1 Rotating Gobo Wheel: 6 replaceable gobos+ White; Glass or Metal Gobo, Bi-directional Rotation with variable speeds; With Indexing Function; Gobo Shake Effect with Variable Speeds; Bi-directional Scrolling with Variable Speeds

23General3

1 Framing Module: 4 Framing Blades; Framing Module continual rotation with many graphics of different sizes and shapes; 4 Framing blades to make full curtain effect

03DescriptionManufacturer's description

What it is.

PR-6000 Framing(1400W) is a moving head Framing and Spot light using Orsam lok-it 1400/PS lamp and having zoom range between 6 degrees and 55 degrees realized by 9 X optical system designed by ourselves. It has high luminance, CRI and uniformity, surpassing the bottleneck that traditional lights with HID lamps can’t have high luminance and CRI at the same time. It has invention patent for the continually rotating framing module which produces plenty of graphics.

04Documents2 files · 7.8 MB
