Sheet 05.649
PR Lighting · Beam

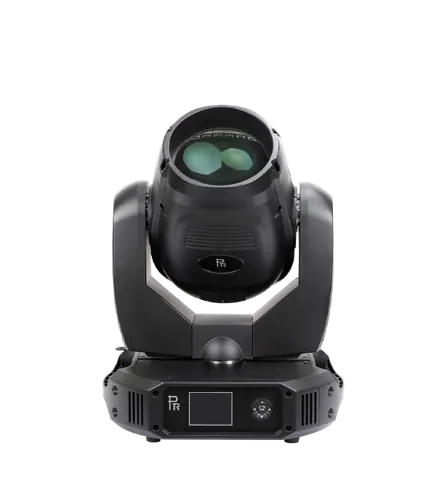

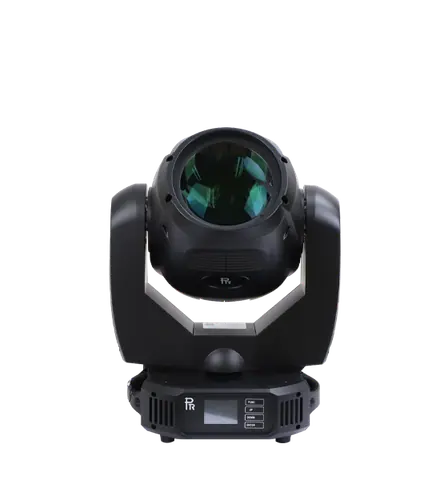

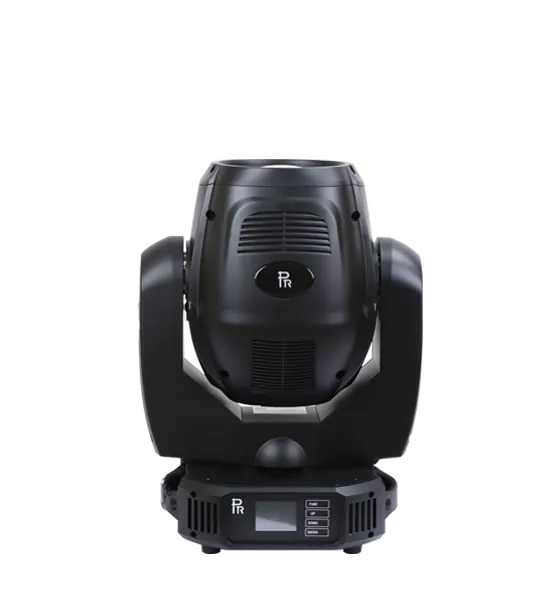

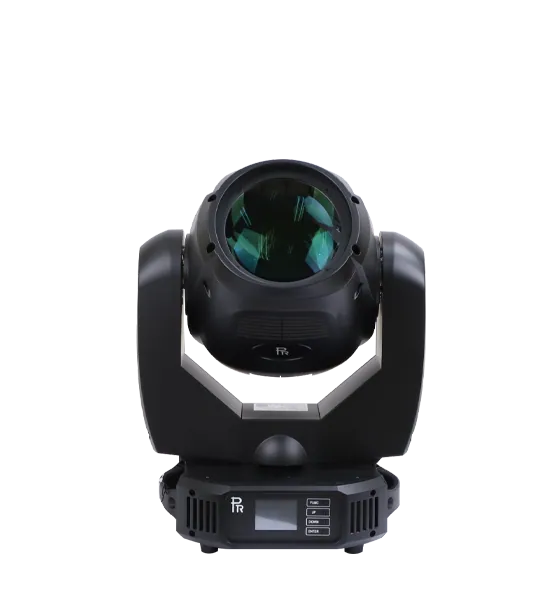

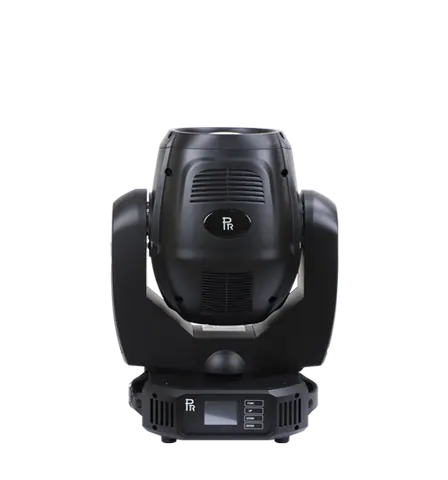

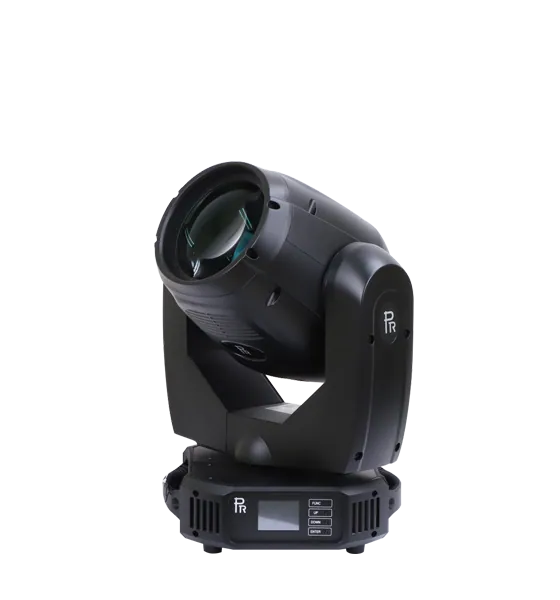

PR Lighting XR 230 Beam PR-2207
ModelPR-2207
- Power consumption
- 350W@220V
- Power supply
- 100V~240V AC,50/60Hz
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
XR 230 BeamPrice on requestRequest a quotation
01VideoManufacturer's video · 1:24
PR Lighting XR 230 Beam: the manufacturer's video
02SpecificationManufacturer's data · 14 groups · 29 values
What this product is, in numbers.

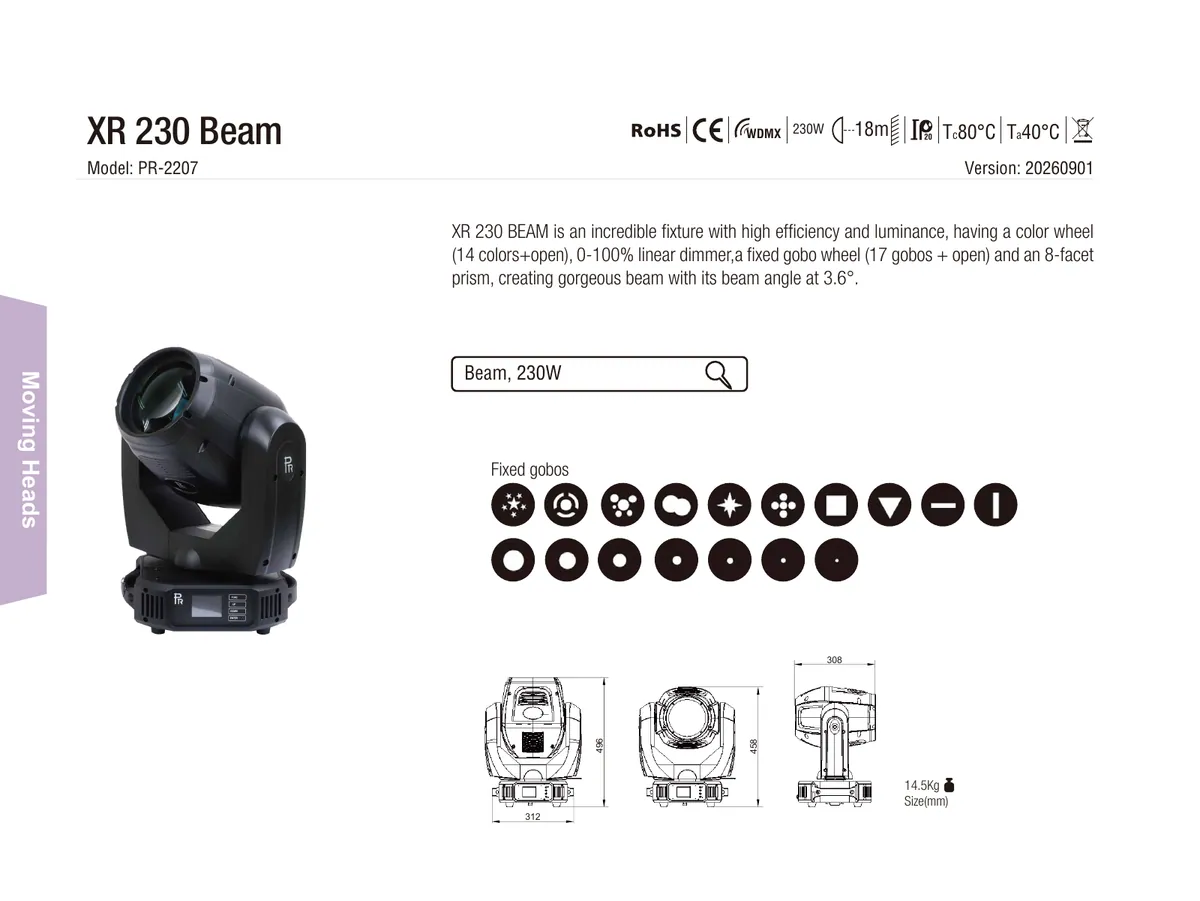

PDFDatasheetEN · 2 pages · 312 KB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01ELECTRIC PARAMETERS4
- Input voltage
- 100V~240V AC,50/60Hz
- Input power
- 350W@220V
- Power factor
- PF>0.90
- MAX. Current
- 1.5A @ 220V
02THE SPECIFICATIONS OF THE LAMP4
- Osram SIRIUS HRI 231W
- Color temperature 7900K
- Rated life 2000hrs
- Energy save mode 2500hrs
03PRISM/FROST2
- 1 8-facet prism(bi-directional rotation with variable speeds)+frost filter+open
- 3-24 facet prism(Optional)
04FOCUS1
- DMX linear focus
05DIMMER/STROBE1
- 0-100% linearly adjustable/ Double shutter blades, 0.3~25 F.P.S
06HEAD MOVEMENT1
- Pan 540º, Tilt 270º with 16 bit control
07BEAM ANGLE1
- 0°~ 3.6°
08CONTROL3
- International standard DMX 512 protocol, 5-pin interface
- 13channels in short mode ,14channels in standard mode and16 channels in extended mode
- Adjusting mode
09OPERATION TEMPERATURE1
- Maximum ambient temperature 40°C
10OTHER FUNCTIONS3
- Adjustable Pan & Tilt speed
- Lamp’s and fixture’s hours displayed
- Modular Structure for easy maintenance
11HOUSING1
- High temperature ABS, IP20
12WEIGHT2
- 14.5 kg
- 【Version
- 20260901】
13Colors3
- 1color wheel
- 14colors+ Open
- rainbow effect with bi-directional and variable speeds
- Stepping/linear color changing
14FIXED GOBO WHEEL2
- 1 fixed gobo wheel
- 17gobos+open
- bi-directionally rotatable, and shakable at variable speeds
Show the full specificationHide the rest of the specification0 more groups · 0 values
03Documents2 files · 5.2 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
