Sheet 05.982
PR Lighting · Other fixturesOn request

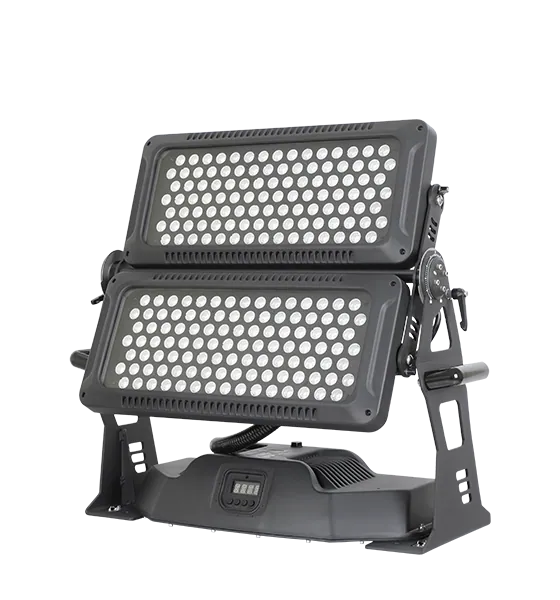

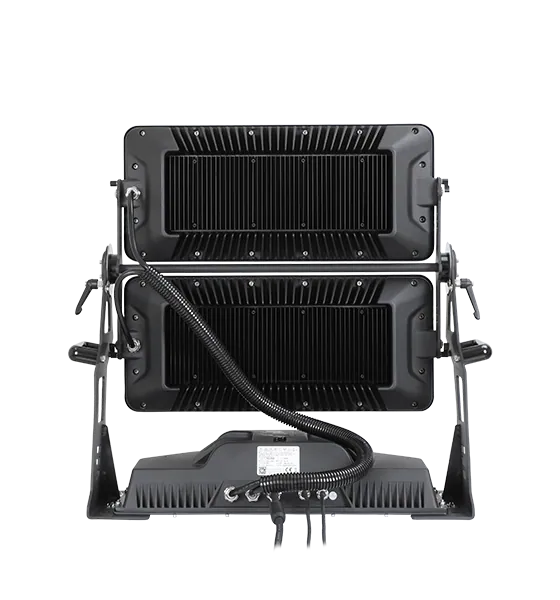

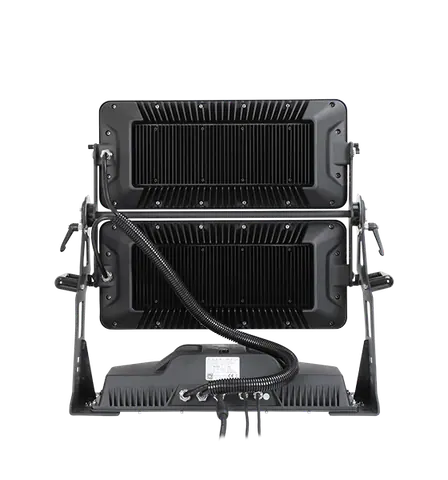

ARC LED 3216
ModelPR-6210
ARC LED 3216 is a new launched exterior architectural luminaire, with two independent heads. It features 216 pcs of Philips 3W LEDs(RGBW, RGBL, RGBA and RGWA), color temperture linear adjustment, amazing wash effect with rating IP67.
- Light source
- PHILIPS 216x3W(RGBW, RGB/Lemon, RGB/Amber, RGW/Amber), 50,000 hrs
- Net weight
- 30kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
ARC LED 3216Price on requestRequest a quotation
01SpecificationManufacturer's data · 13 groups · 29 values
What this product is, in numbers.

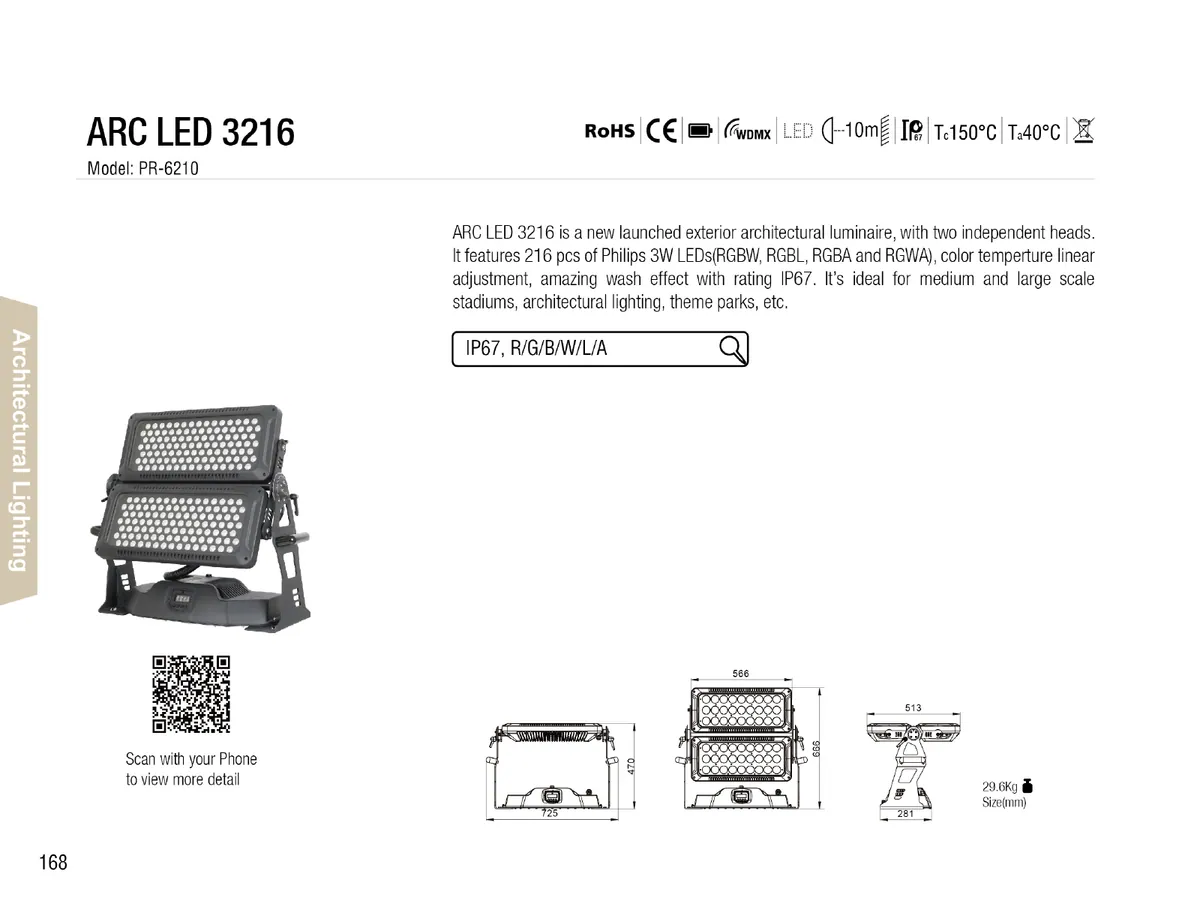

PDFDatasheetEN · 2 pages · 1.9 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Input Voltages1
- 100-240V AC, 50/60Hz
02Power Consumption1
- 700W@220V
03Light Source1
- PHILIPS 216x3W(RGBW, RGB/Lemon, RGB/Amber, RGW/Amber), 50,000 hrs
04Strobe1
- Electronic strobe, 0.5-33 F.P.S
05Dimmer1
- 0-100% linearly adjustable
06Light Angle1
- Beam angle(1/2peak) θ1/2
- 9°
07Control6
- International DMX512, 3 pins interface
- Standard mode 6 channels and extended mode 11 channels,
- HIS mode 5 channels and HSIC mode 6 channels
- Master-slave mode, test mode
- 16 Preset memories, 16 user memories
- Preset memories and user memories can be loaded by control channels
08Other Functions8
- LED board temperature display
- Fixture usage time display
- Brightness level control
- Timer control
- DMX mode, setting status
- operation mode and user memory data can be transmitted by synchronous control
- DMX512 wireless receiver(optional)
- DMX512 wireless transmitter(optional)
09Physical2
- Housing
- high-intensity die-casting aluminum, IP67
- Ambient working temperature
- -20°C~40°C
10Weight1
- Net weight
- 30kg
11Packaging2
- Standard
- carton 815x785x420(mm)
- Optional
- flight case
12Accessories3
- G clamp, 2 pcs
- Signal adapter cord, 2 pc
- Safety cord, 1pc Optional
- omega clamp, 2 pcs
13Color System1
- RGBW, RGB/Lemon, RGB/Amber, RGW/Amber , with macro
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
ARC LED 3216 is a new launched exterior architectural luminaire, with two independent heads. It features 216 pcs of Philips 3W LEDs(RGBW, RGBL, RGBA and RGWA), color temperture linear adjustment, amazing wash effect with rating IP67. It’s ideal for medium and large scale stadiums, architectural lighting, theme parks, etc.
