Sheet 05.980
PR Lighting · Other fixturesOn request

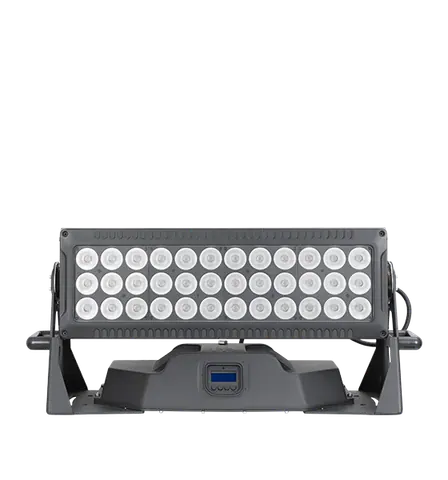

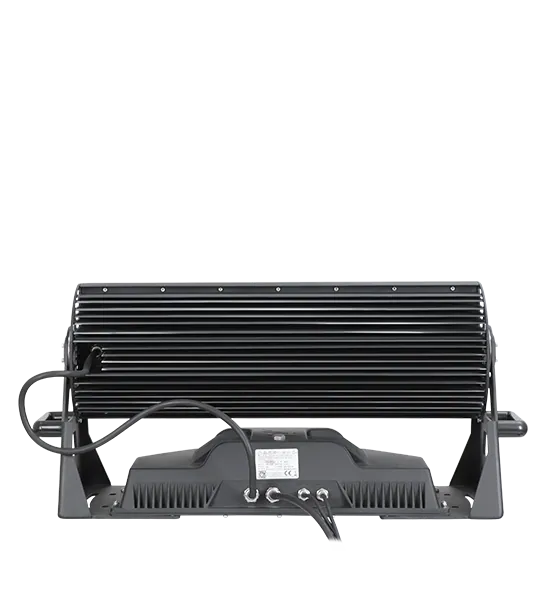

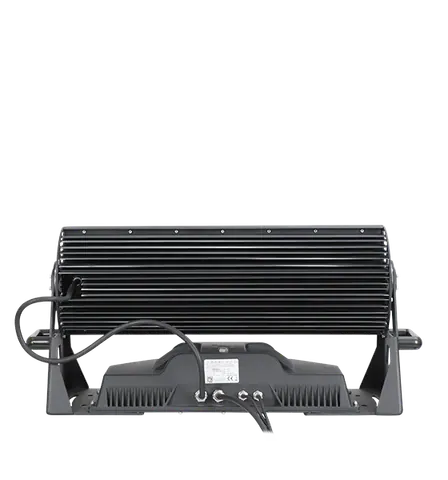

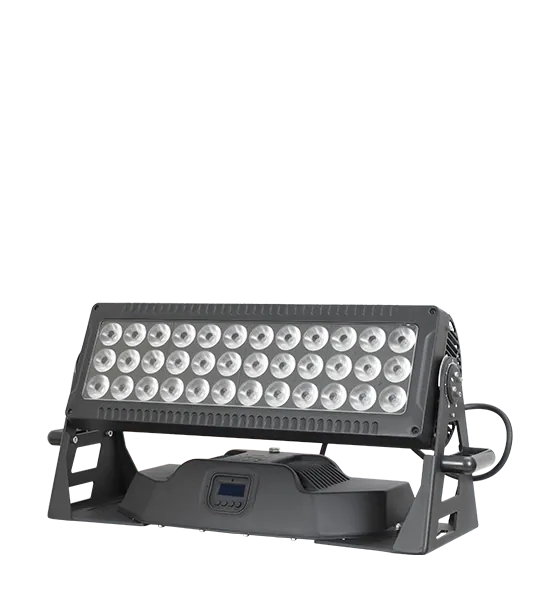

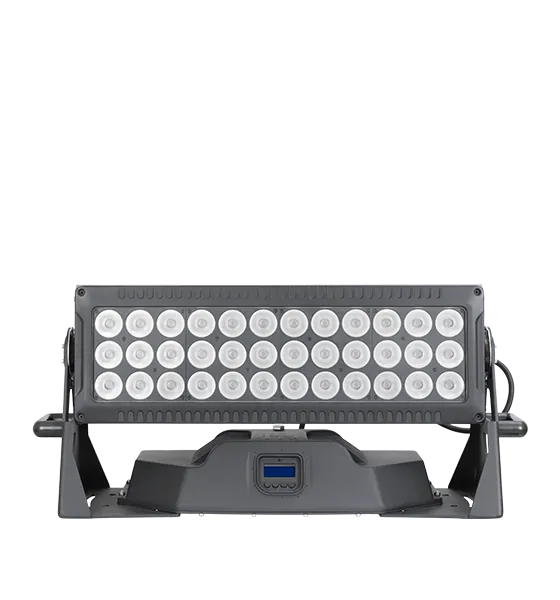

ARC LED 1536
ModelPR-6260
ARC LED 1536 is a new powerful architectural light, contains PHILIPS 36 pcs 15W LEDs (RGBW 4 in 1). It’s ideal for corporate event, festivals and outdoor stage washes.
- Net weight
- 27kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
ARC LED 1536Price on requestRequest a quotation
01SpecificationManufacturer's data · 15 groups · 31 values
What this product is, in numbers.

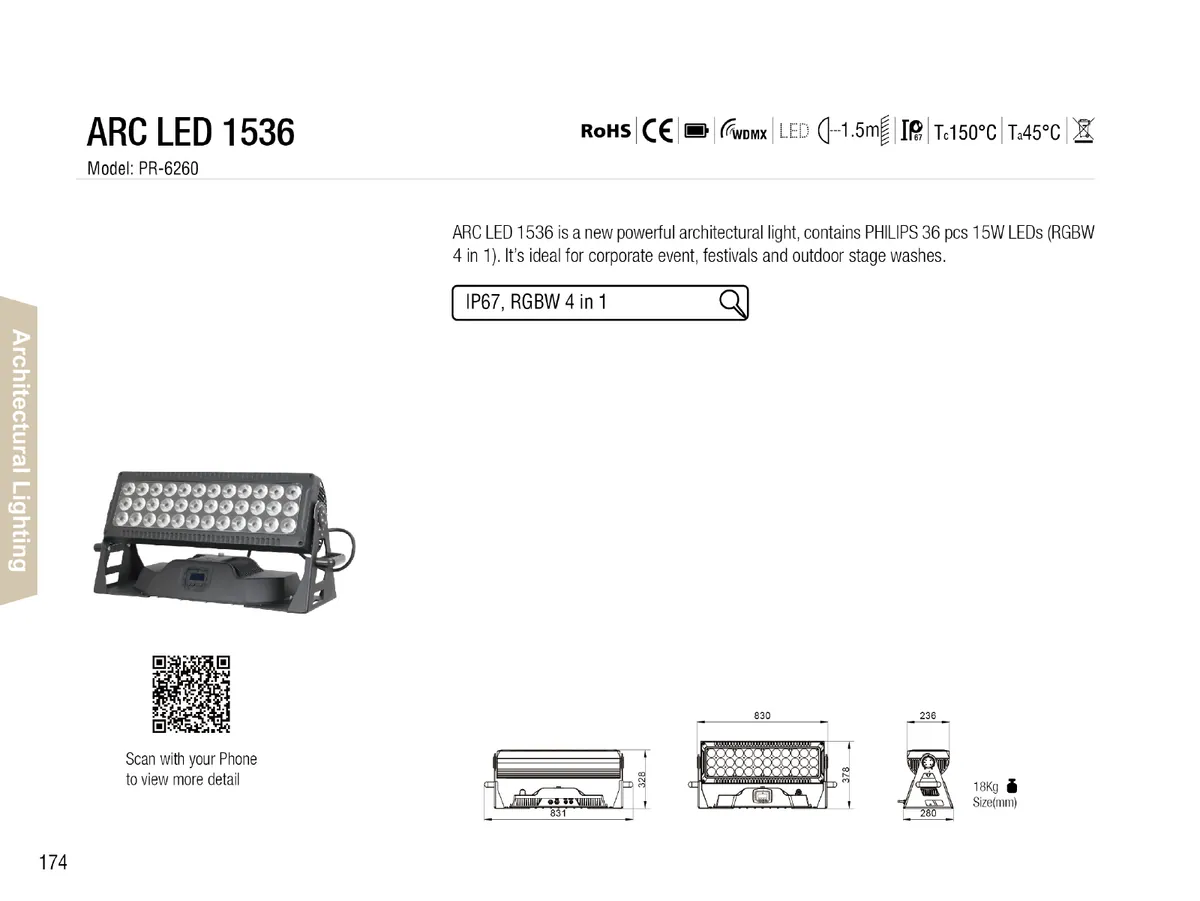

PDFDatasheetEN · 2 pages · 1.9 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Input Voltages1
- 100-240V AC, 50/60Hz
02Power Consumption1
- 540W@230V
03Light Source1
- 36x15W(RGBW 4 in 1), 50,000 hrs
04Strobe1
- Electronic strobe, 0-25 F.P.S
05Dimmer1
- 0-100% linearly adjustable
06Colors1
- R/G/B/W and color mixing , with macro
07Head Movement1
- Tilt 270°, manual adjustment
08Light Angle2
- Field angle(1/2 peak) θ1/2
- 16°x18°
- Field angle (1/10 peak) θ1/10
- 34°x 56°
09Control4
- International DMX512, 3 pins(optional 5 pins) interface
- Standard mode 10 channels, extended mode 23 channels,
- Master-slave mode, test mode
- DMX mode, preset memory mode and user memory mode
10Other Functions8
- LED board temperature display
- Fixture usage time display
- Brightness level control
- Timer control
- Parameters like operation mode and etc.
- transmitted under synchronization
- DMX512 wireless receiver
- DMX512 wireless transmitter(optional)
11Physical2
- Housing
- high-intensity die-casting aluminum, IP67
- Ambient working temperature
- -20°C~40°C
12Weight1
- Net weight
- 27kg
13Packaging2
- Standard
- carton 948x440x473(mm)
- Optional
- flight case 1040x625x537(mm), 2 in 1
14Accessories4
- G clamp, 2 pcs
- Signal adapter cord, 2 pcs
- Safety cord, 1pc
- Optional
- barndoor 1 set; transparent water proof panel+seal+screwsx8
15Color System1
- R/G/B/W and color mixing , with macro
Show the full specificationHide the rest of the specification0 more groups · 0 values
