ARC LED 1572
ModelPR-6262

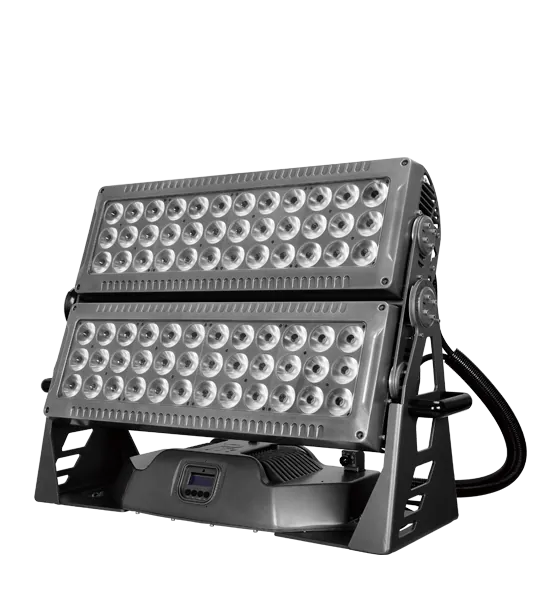

ARC LED 1572 is a new launched exterior architectural luminaire, with two independent heads. It features 72 pcs of Philips 15W LEDs(RGBW 4 in 1), color temperture linear adjustment, combined with 4 individual areas control, 37° x 57° square light, rating IP67.
- Light source
- PHILIPS 72x15W(RGBW 4 in 1), 50,000 hrs
- Net weight
- 46kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
ARC LED 1572Price on requestRequest a quotation
01VideoManufacturer's video · 1:35
PR Lighting ARC LED 1572: the manufacturer's video
02SpecificationManufacturer's data · 13 groups · 31 values
What this product is, in numbers.

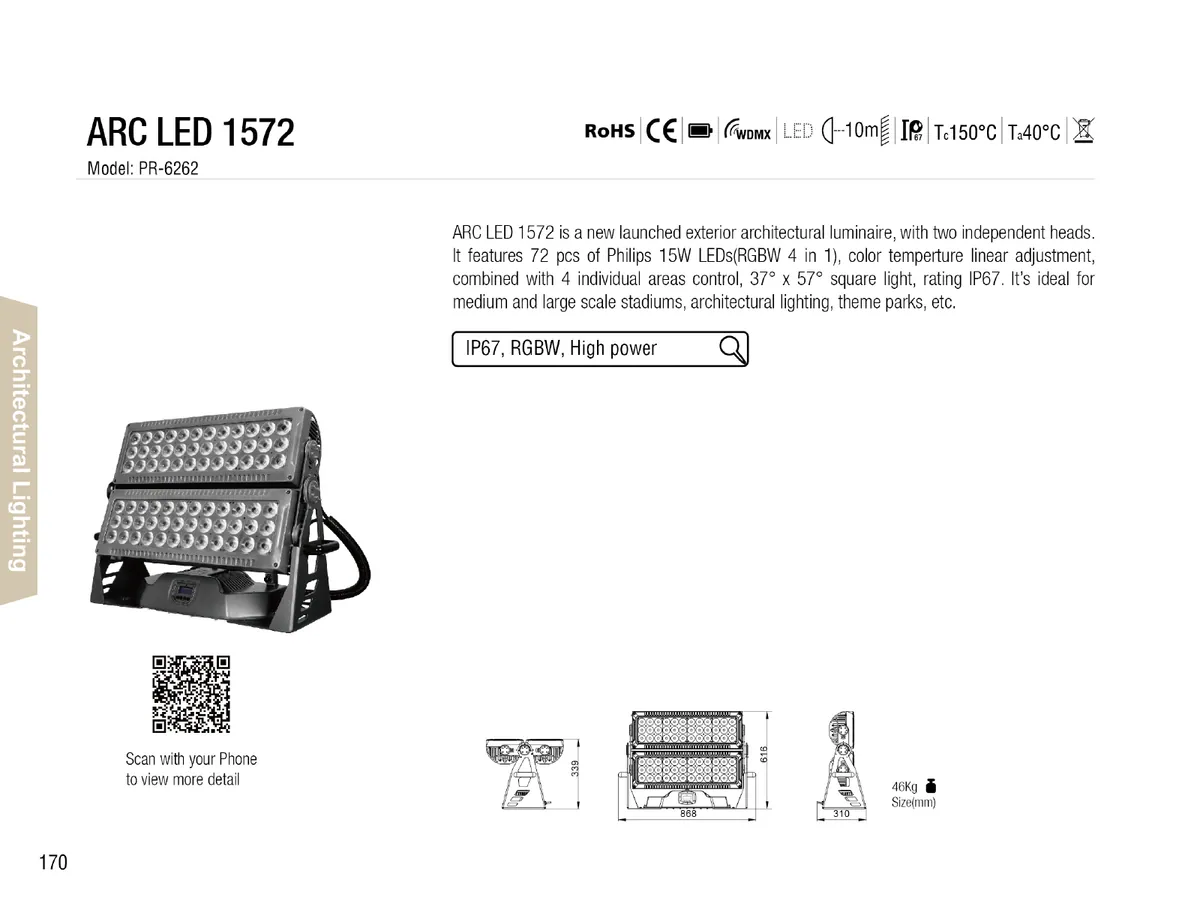

PDFDatasheetEN · 2 pages · 2.1 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Input Voltages1
- 100-240V AC, 50/60Hz
02Power Consumption1
- 1080W@230V
03Light Source1
- PHILIPS 72x15W(RGBW 4 in 1), 50,000 hrs
04Strobe1
- Electronic strobe, 0-25 F.P.S(pulse strobe effect)
05Dimmer1
- 0-100% linearly adjustable
06Light Angle2
- Beam angle(1/2peak) θ1/2
- 14°
- Field angle(1/10peak) θ1/10
- 37° x 57°
07Control6
- International DMX512, 3 pins(optional 5 pins) interface
- Standard mode 10 channels and extended mode 23 channels
- Master-slave mode, stand-alone mode, test mode
- 16 Preset memories, 16 user memories
- Preset memories and user memories can be loaded by control channels
- 16 level speeds adjustable
08Other Functions8
- LED board temperature display
- Fixture usage time display
- Brightness level control
- Timer control
- DMX mode, setting status
- operation mode and user memory data can be transmitted by synchronous control
- DMX512 wireless receiver(optional)
- DMX512 wireless transmitter(optional)
09Physical2
- Housing
- high-intensity die-casting aluminum, IP67
- Ambient working temperature
- -20°C~40°C
10Weight1
- Net weight
- 46kg
11Packaging2
- Standard
- carton 968x718x393(mm)
- Optional
- flight case 1095x520x652(mm)
12Accessories4
- G clamp, 2 pcs
- XLR cable, 1 pc
- Safety cord, 1pc
- Optional
- omega clamp, 2 pcs
13Color System1
- R/G/B/W and color mixing , with macro
Show the full specificationHide the rest of the specification0 more groups · 0 values
03DescriptionManufacturer's description
What it is.
ARC LED 1572 is a new launched exterior architectural luminaire, with two independent heads. It features 72 pcs of Philips 15W LEDs(RGBW 4 in 1), color temperture linear adjustment, combined with 4 individual areas control, 37° x 57° square light, rating IP67. It’s ideal for medium and large scale stadiums, architectural lighting, theme parks, etc.
