Sheet 05.866
PR Lighting · PAR and static lightOn request
LS PAR 1524
ModelPR-6220
The unit is a high temperature resistant and high-brightness luminaire, equipped with PHILIPS 24 pcs 15W LEDs(RGBW 4 in 1) engine. It features color mixing system, combined with 16° light angle(optional: 22°, 30°), super-fast strobe, rating IP65, etc.
- Light source
- PHILIPS 24x15W LEDs(RGBW 4 in 1), 50,000 hrs
- Net weight
- 20kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
LS PAR 1524Price on requestRequest a quotation
01SpecificationManufacturer's data · 13 groups · 25 values
What this product is, in numbers.

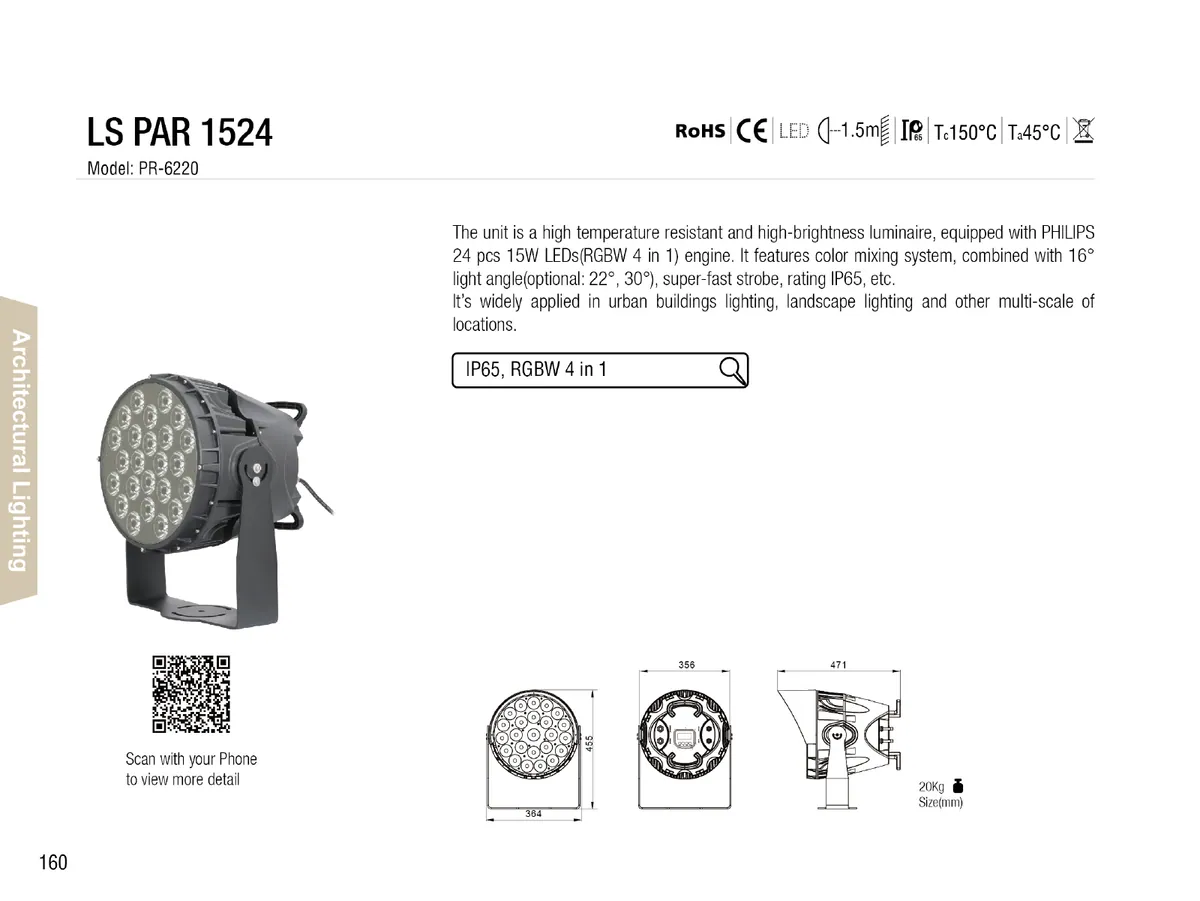

PDFDatasheetEN · 2 pages · 1.7 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Input Voltages1
- 100V~240V AC,50/60Hz
02Power Consumption1
- 320W@230V
03Light Source1
- PHILIPS 24x15W LEDs(RGBW 4 in 1), 50,000 hrs
04Strobe1
- Electronic strobe, 1-25 F.P.S
05Dimmer1
- 0-100% linear adjustment
06Light Angle1
- Beam angle (1/2 peak) θ1/2
- 16°(optional: 22° and 30°)
07Other Functions5
- LCD panel
- Over temperature protection
- Fast and convenient software upgrade via DMX512 interface
- Built in NTC temperature detecting function, If LED lamp is over heat
- its power will be decreased intelligently
08Control3
- International DMX512, 3 pins interface
- Short mode 7 channels, standard mode 10 channels
- Master-slave mode, stand-alone mode
09Physical2
- Housing
- high-intensity die-casting aluminum, IP65
- Ambient working temperature
- -20°C~45°C
10Weight1
- Net weight
- 20kg
11Packaging2
- Standard
- carton 550x480x470(mm)
- Optional
- flight case
12Accessories5
- C clamp, 1 pc
- Signal adapter cord, 2 pcs
- Power cord, 1 pc
- Safety cord, 1 pc
- Optional
- transparent cover+ seal+ screws x6, 1set
13Color System1
- RGBW and color mixing
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
The unit is a high temperature resistant and high-brightness luminaire, equipped with PHILIPS 24 pcs 15W LEDs(RGBW 4 in 1) engine. It features color mixing system, combined with 16° light angle(optional: 22°, 30°), super-fast strobe, rating IP65, etc. It’s widely applied in urban buildings lighting, landscape lighting and other multi-scale of locations.
03Documents1 file · 1.7 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
