Sheet 05.990

PR Lighting · Other fixtures

XLED 1061

ModelPR-8121

Light source: CREE 61x10W LEDs(RGBW, 4 in 1), 50,000 hrs
Net weight: 20.3kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 1:39

PR Lighting XLED 10611:39

02SpecificationManufacturer's data · 15 groups · 32 values

What this product is, in numbers.

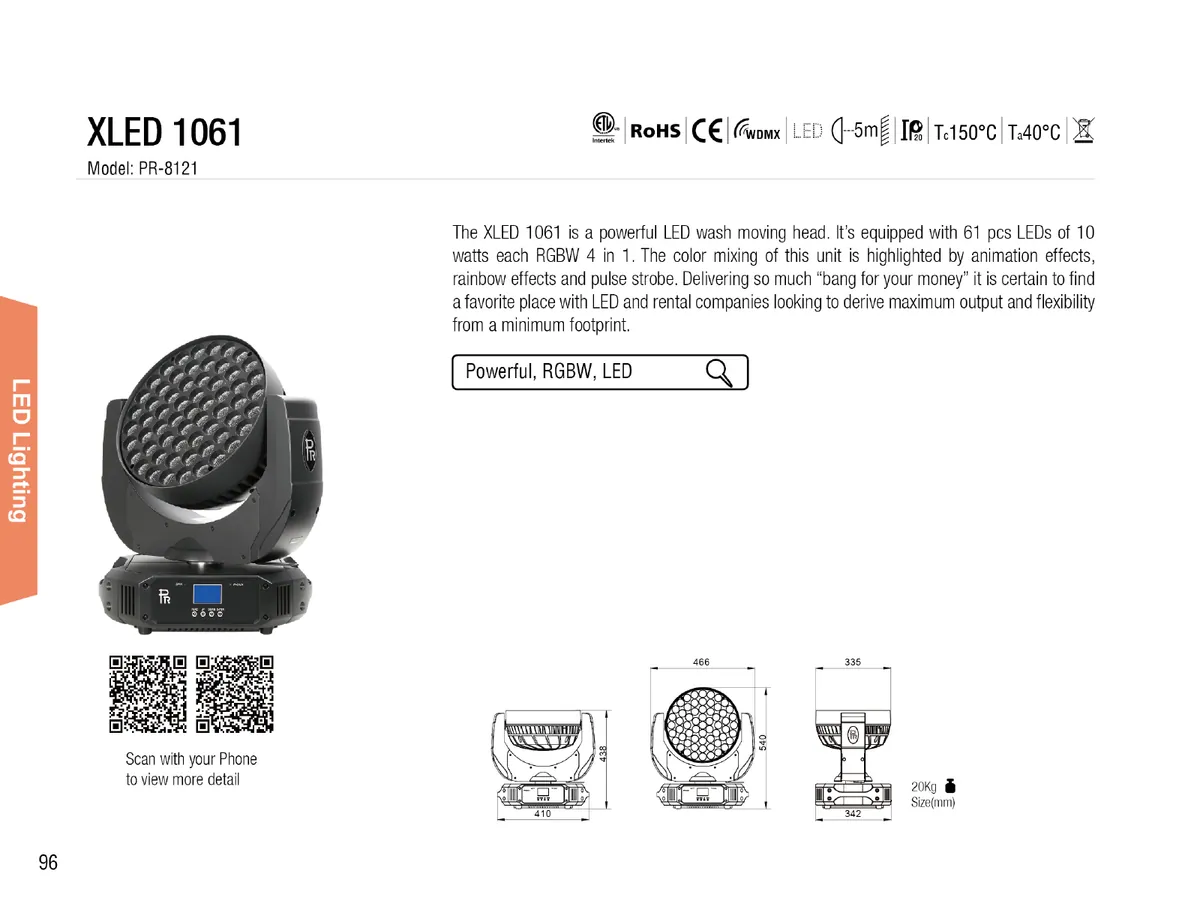

PDFDatasheetEN · 2 pages · 1.9 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Input Voltages1

100-240V AC, 50/60Hz

02Power Consumption1

650W@220V

03Light Source1

CREE 61x10W LEDs(RGBW, 4 in 1), 50,000 hrs

04Strobe1

Electronic strobe, 0-25 F.P.S, pulse strobe

05Dimmer1

0-100% linear adjustment

06Head Movement2

Pan 540º, tilt 270º with auto position correction

Swap and invert functions of pan and tilt

07Light Angle2

Beam angle(1/2 peak): 13°~52°
Filed angle(1/10 peak): 30°~70°

08Control4

International DMX512, 3 pins and 5 pins interface

RDM control protocol

Standard mode 17 channels and extended mode 30 channels

Master/salve mode, stand-alone mode, static scene mode, self test mode

09Other Functions6

Adjustable pan & tilt speed

LCD display and its brightness adjustable

Lamp temperature & project’s use time display

Menu invert function

DMX512 wireless receiver

DMX512 wireless transmitter(optional)

10Physical2

Housing: high temperature, ABS+die-casting aluminum, IP20
Ambient working temperature: -20°C~40°C

11Weight1

Net weight: 20.3kg

12Packaging2

Standard: 560x525x435(mm)
Optional: 1127x520x745(mm) 2 in 1

13Accessories5

Power cord, 1 pc; G clamp, 2 pcs; 5 pins XLR connector, 1 set; Safety cord, 1 pc
Optional: Ω clamp, 2 pcs

14Color System2

R/G/B/W and color mixing, with macros

Rainbow and animation effects

15Color Temperature1

Linear color temperature correction from 2,700K to 10,000K

03DescriptionManufacturer's description

What it is.

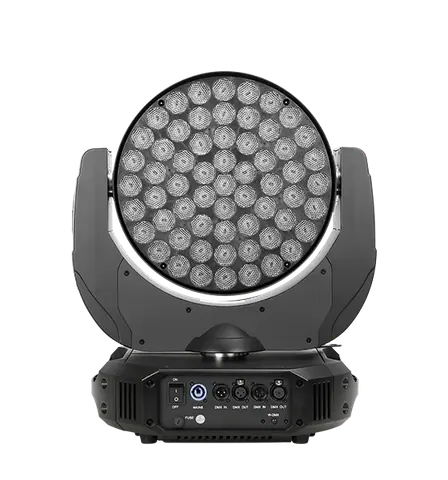

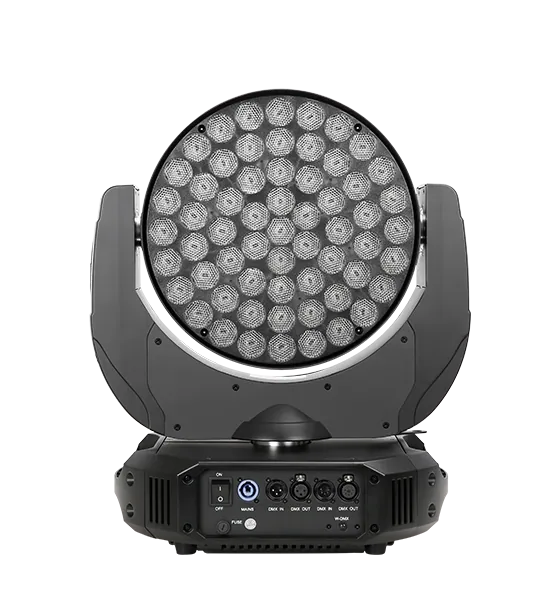

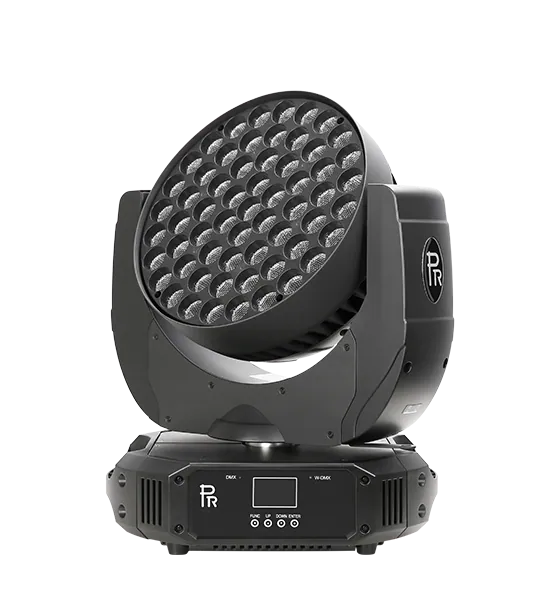

The XLED 1061 is a powerful LED wash moving head. It’s equipped with 61 pcs LEDs of 10 watts each RGBW 4 in 1. The color mixing of this unit is highlighted by animation effects, rainbow effects and pulse strobe. Delivering so much “bang for your money” it is certain to find a favorite place with LED and rental companies looking to derive maximum output and flexibility from a minimum footprint.

04Documents5 files · 3.8 MB
