Sheet 05.989
PR Lighting · Other fixturesOn request

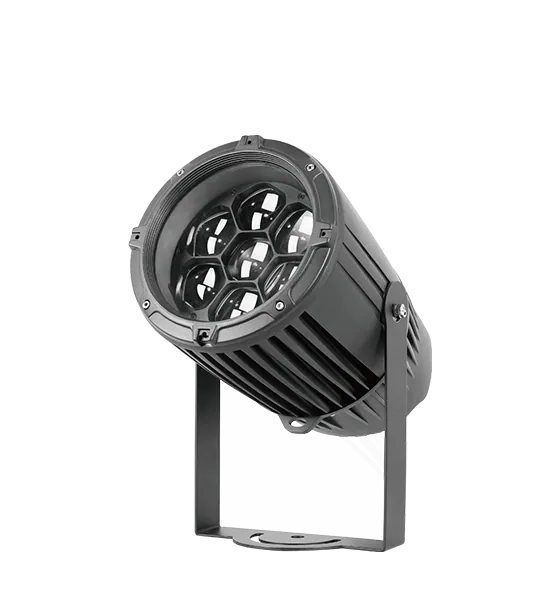

POLARIS
ModelPR-6805
- Light source
- 7x15W LEDs(RGBW 4 in 1), 50,000 hrs
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
POLARISPrice on requestRequest a quotation
01SpecificationManufacturer's data · 16 groups · 27 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Input Voltages1
- 90-277V AC, 50/60Hz
02Input Power1
- 150W@220V
03Light Source1
- 7x15W LEDs(RGBW 4 in 1), 50,000 hrs
04Strobe1
- Electronic strobe, 0-25 F.P.S(pulse strobe effect)
05Dimmer1
- 0-100% linear adjustment
06Colors1
- R/G/B/W and color mixing , with macro
07Color Temperature1
- 3200K~10,000K linear adjustment
08Effect1
- Rainbow, wash, beam, spot ,mode(kaleidoscope, swirl),multiple macros
09Light Angle1
- 4°~40°
10Control3
- International DMX512, 3 pins(optional 5 pins) interface
- Standard mode 14 channels and extended mode 39 channels
- DMX control mode, master-slave mode, stand-alone mode,test mode, and static scene mode
11Other Functions5
- Ring control, pixel control, each color of RGBW of a LED lamp controllable
- Bi-directional and continual rotation of the front lens panel LCD panel
- Over temperature protection
- Fast and convenient software upgrade via DMX512 interface
- Wireless control(optional)
12Housing1
- high-intensity die-casting aluminum, IP67
13Net Weight1
- Net weight 7.5kg
14Operation Temperature1
- Ambient working temperature
- 40°C
15Packaging2
- Standard
- carton 595x355x320(mm)
- Optional
- flight case 940x465x585(mm), 6 in 1
16Accessories5
- C clamp, 1 pc
- Signal adapter cord, 2 pcs
- Power cord, 1 pc
- Safety cord, 1 pc
- Optional
- transparent cover+ seal+ screws x6, 1set
Show the full specificationHide the rest of the specification0 more groups · 0 values
