Sheet 05.991

PR Lighting · Other fixtures

XLED 1537

ModelPR-8120L

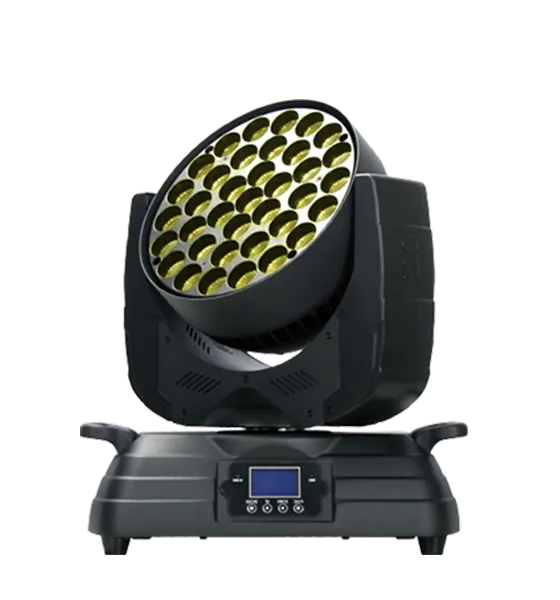

XLED 1537 is a moving head wash lighting fixture with RGBW 4 in 1 LED lamps offering infinite color mixing effects and its ZOOM function meeting different requirements of stage designs.

Light source: LED lamp ( RGBW 15W, 37pcs, 50000hrs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 1:27

PR Lighting XLED 15371:27

02SpecificationManufacturer's data · 16 groups · 36 values

What this product is, in numbers.

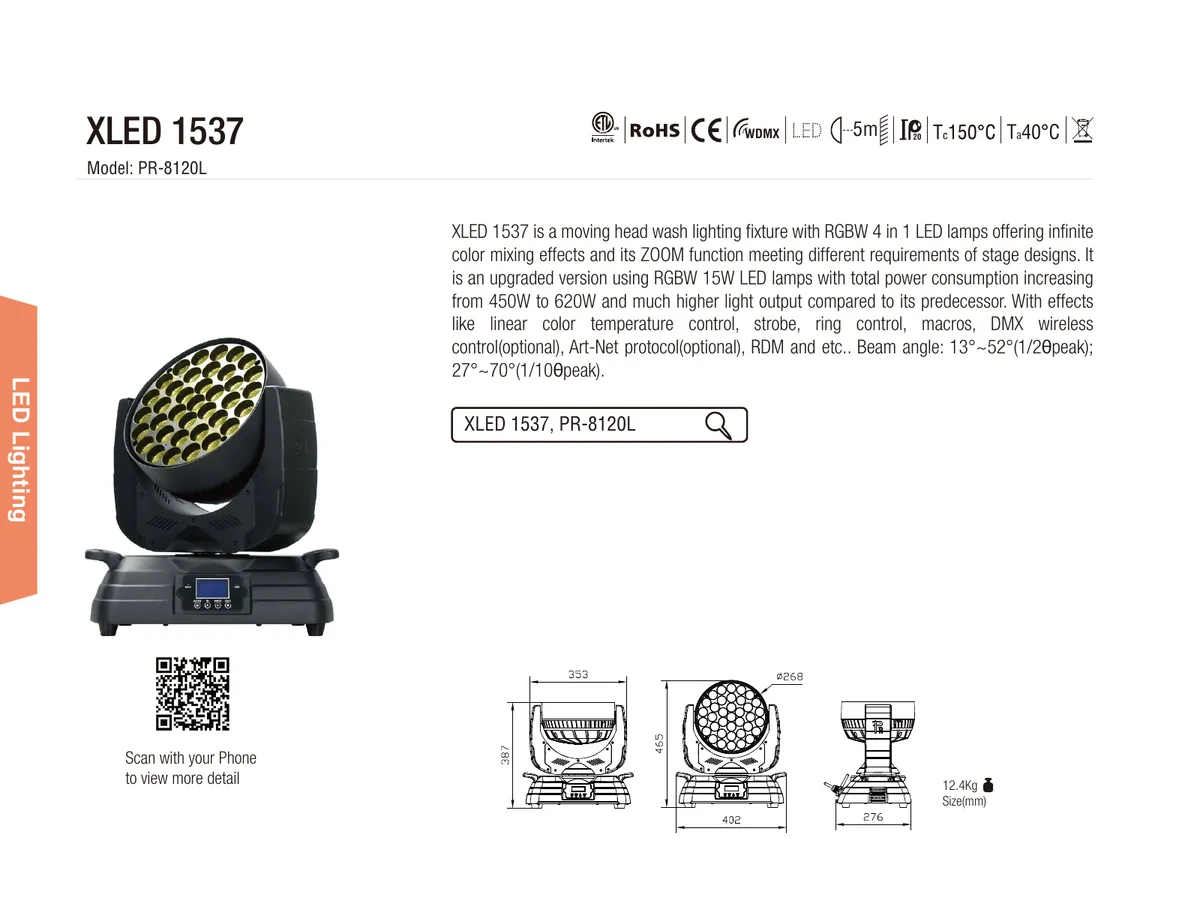

PDFDatasheetEN · 2 pages · 399 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Input Voltage1

100V~240V AC,50/60Hz

02Input Power3

650W @ 100V; 620W @ 220V
Power factor: PF〉0.9

03Light Source1

LED lamp ( RGBW 15W, 37pcs, 50000hrs)

04Pan And Tilt1

Pan: 540°;Tilt:270°with auto-positioning correction

05Dimmer1

0-100% linearly adjustable

06Color Temperature1

Color temperature linearly adjustable(2700K ~10000K)

07Beam Angle2

Beam Angle(1/2 peak) θ1/2: 13°~52°
Field Angle(1/10 Peak) θ: 27°~70°

08Control7

DMX512, 5 pins interfaces

RDM protocol

25 in short mode,29channels in standard mode, and 41 channels in extended mode

Master/Salve Synchronous Control Mode

Static scene

Standalone mode

Self-test mode

09Strobe1

Electronic strobe: 0.3-25 F.P.S.

10Other Functions7

Pan and Tilt speed adjustable

Auto-adjusting fan speed

Auto power off if LED board temperature too high

Display brightness and contrast adjustable

LED lamp-ON hours and power on hours displayed

DMX512 channels displayed

Display inverted

11Housing1

High temperature ABS+ cast aluminum , IP20

12Weight1

Net weight 12.4Kg; Gross weight 16.5Kg 2 in 1

13Packaging2

Standard: 450x450x420(mm)
Optional: 780x440x660(mm) 2 in 1

14Ambient Temperature1

Max. Ambient temperature: 45°C

15Accessories5

G Clamp 2 Pcs

XLR Connectors 1 Set Male and Female

Safety Cord 1 Pc

User Manual 1 Pc

Ω Clamp 2 Pcs Optional

16Color System1

RGBW linear color mixing, with color macros

03DescriptionManufacturer's description

What it is.

XLED 1537 is a moving head wash lighting fixture with RGBW 4 in 1 LED lamps offering infinite color mixing effects and its ZOOM function meeting different requirements of stage designs. It is an upgraded version using RGBW 15W LED lamps with total power consumption increasing from 450W to 620W and much higher light output compared to its predecessor. With effects like linear color temperature control, strobe, ring control, macros, DMX wireless control(optional), Art-Net protocol(optional), RDM and etc.. Beam angle:13°~52°(1/2θpeak);27°~70°(1/10θpeak).
