Sheet 05.573
PR Lighting · Spot and profile

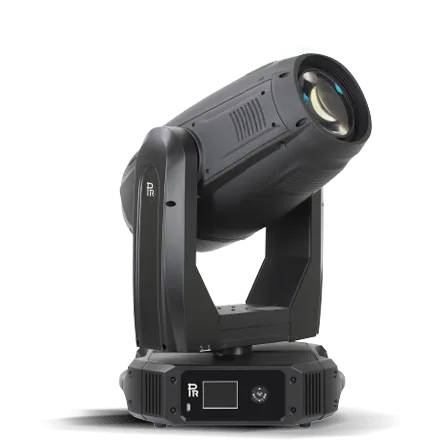

PR-6000 Spot(1400W)
ModelPR-2920
PR 6000 Spot 1400W is a very powerful moving head fixture for professional applications having an lok-it 1400/PS, a CMY system with color macros, 19 gobos, an animation wheel, a prism, a linear frost and an Iris.
- Power consumption
- 1800W@220V
- Power supply
- 200V~240V AC,50/60Hz
- Colour temperature
- 6000K
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
PR-6000 Spot(1400W)Price on requestRequest a quotation
01VideoManufacturer's video · 2:02
PR Lighting PR-6000 Spot(1400W): the manufacturer's video
02SpecificationManufacturer's data · 19 groups · 47 values
What this product is, in numbers.

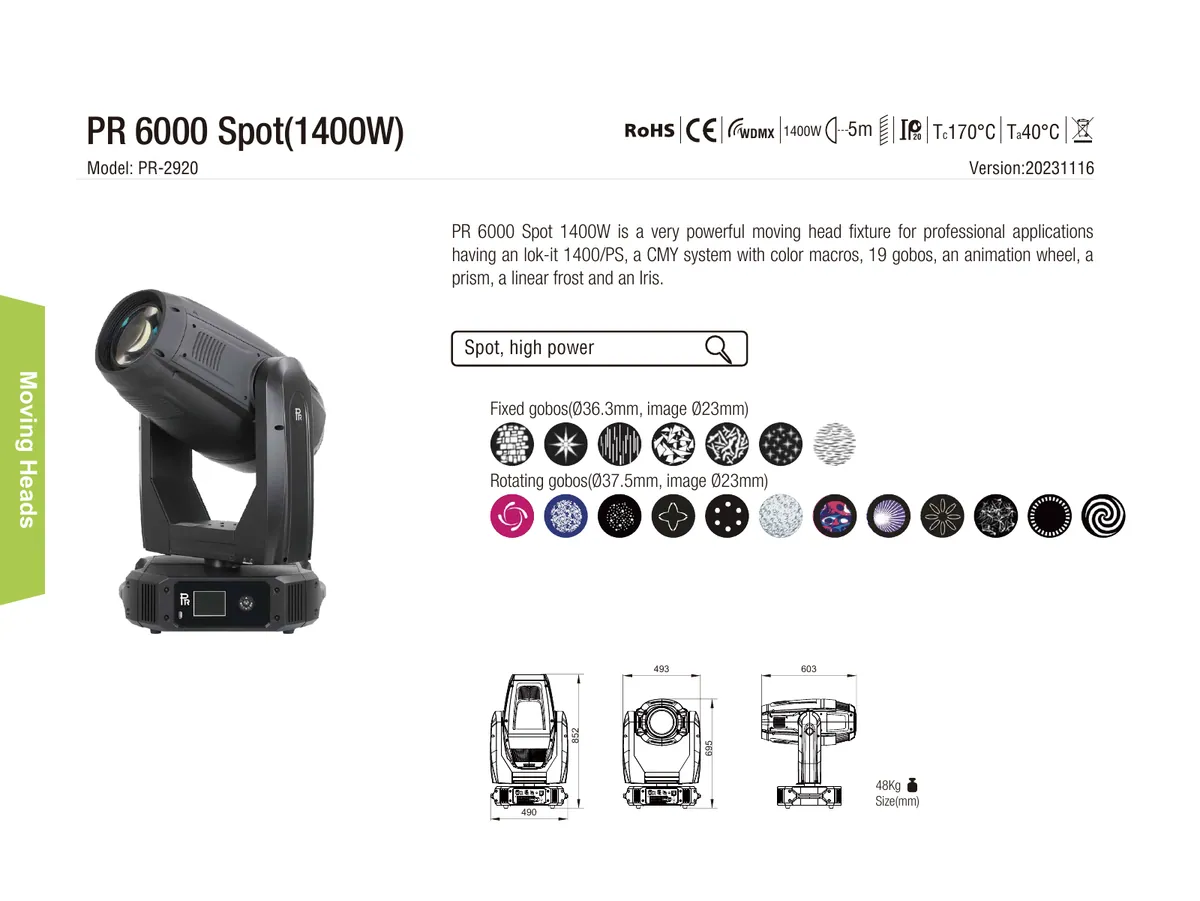

PDFDatasheetEN · 2 pages · 886 KB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01ELECTRIC PARAMETERS3
- Input voltage
- 200V~240V AC,50/60Hz
- Input power
- 1800W@220V
- Power factor
- PF>0.9
02THE SPECIFICATIONS OF THE LIGHT SOURCE1
- (WITH 1400W BALLAST AND IGNITER)
- OSRAM
03lok-it 1400/PS4
- Color temperature
- 6000K
- CRI
- >95
- Lamp stand
- single ended
- Rated life
- 750hrs
04CTO1
- 0-100% linear CTO
05PRISM1
- 1pc of 3 facet prism , Bi-directional rotation with variable speeds and indexing function
06FROST1
- 1pc frost filter, linear frost effect
Show the full specificationHide the rest of the specification13 more groups · 36 values
07EFFECT WHEEL1
- 1pc, replaceable, bi-directional rotation with variable speeds
08FOCUS1
- DMX linear Focusing
09DIMMER1
- 0-100% Linear adjustment
10IRIS1
- 5-100% linear adjustment with macros
11STROBE1
- Double shutter blades, 0.3~25 F.P.S
12HEAD MOVEMENT1
- Pan 540º, Tilt 270º with auto position correction
13BEAM ANGLE1
- linear zoom 6°~ 55°with 16 bit function
14CONTROL4
- DMX512, 5 pin interfaces
- RDM control protocol
- 28channels in short mode, 32channels in standard mode and 39channels in extended mode
- Self-test mode
15OTHER FUNCTION11
- Adjustable Pan & Tilt speed
- Lamp and Total hours displayed
- Touch screen English and Chinese Display with Contrast and brightness adjustable
- Energy saving ballast
- Built-in sensor diagnostic system
- Input signal isolation
- Modular Structure for easy maintenance
- Ethernet Interface
- DMX512 wireless reciever
- DMX512 Transmitter( Optional)
- ArtNet and sACN ( Optional)
16HOUSING1
- High temperature ABS, IP20
17NET WEIGHT1
- 48Kg
18OPERATION TEMPERATURE1
- Ambient temperature at maximum
- 40°C
19General11
- CMY linear mixing system with macros
- 1 color wheel
- 7colors+ Open, Half Color effect,
- rainbow effect with bi-directional and variable speeds,
- Stepping/linear color changing
- 2 Rotating Gobo Wheel
- 6 replaceable gobos+ White, Glass or Metal Gobo
- Bi-directional Rotation with variable speeds
- With Indexing Function
- Gobo Shake Effect with Variable Speeds
- Bi-directional Scrolling with Variable Speeds
- 1 fixed gob wheel
- 7 replaceable gobos+ White
- Gobo Shake Effect with variable speeds, bi-directional scrolling with variable speeds
