Sheet 05.574
PR Lighting · Spot and profile
PR-6000 Wash/Framing
ModelPR-2926
PR-6000Wash/Framing(1400W)is a moving head fixture with highly photoelectic efficiency,low noise and mutipile functions including Wash and Framing.
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
PR-6000 Wash/FramingPrice on requestRequest a quotation
01SpecificationManufacturer's data · 13 groups · 41 values
What this product is, in numbers.
PDFDatasheetEN · 2 pages · 766 KB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01ELECTRICAL PARAMETER9
- Input voltage 200V~240V AC,50/60Hz
- Input power 1800W@220V
- Power Factor
- PF >0.9
- Specifications of light source(with 1400W ballast and igniter)
- Osram Lok-it 1400/PS
- Color temperature 6000K
- CRI 90
- Ceramic stand single-ended
- Rated life 750hrs
02CTO1
- 0-100% linearCTO system
03FOCUS1
- DMX linearfocus
04DIMMER1
- 0-100% linear adjustment
05STROBE1
- Double shutter blades, 0.3~25 F.P.S
06HEADMOVEMENT1
- Pan 540º,Tilt 270º with auto position correction
Show the full specificationHide the rest of the specification7 more groups · 27 values
07BEAMANGLE1
- linear zoom 10°~ 60°with 16 bitfunction
08CONTROL4
- DMX512, 3 pin and 5 pin interfaces
- RMD control protocol
- 27channelsin shortmode, 32channelsin standardmode and 45channelsin extendedmode
- Self-testmode
09OTHER FUNCTIONS11
- AdjustablePan&Tiltspeed
- Lamp and Total hours displayed
- LCD English andChinese DisplaywithContrast and brightness adjustable
- Energy saving ballast
- Built-in sensor diagnostic system
- Inputsignal isolation
- ModularStructure for easymaintenance
- EthernetInterface
- DMX512wirelessreciever
- DMX512Transmitter ( Optional)
- ArtNet and sACN ( Optional)
10HOUSING1
- High temperatureABS, IP20
11NETWEIGHT1
- 46Kg
12OPERATIONTEMPERATURE2
- Ambient temperature atmaximum
- 40°C
- 【Version
- 20250912】
13General7
- CMY colormixing withmacros
- 2 color wheels
- each with 7 colors+ open
- Half color effect, bi-directionalrotationwith varied speedsforrainbow effect
- Stepping/Linear color changing
- 1 Framing Module
- 4 Framing Blades
- Framing Module continual rotation with many graphics of different sizes and shapes
- 4 Framing blades to make full curtain effect
02DescriptionManufacturer's description
What it is.

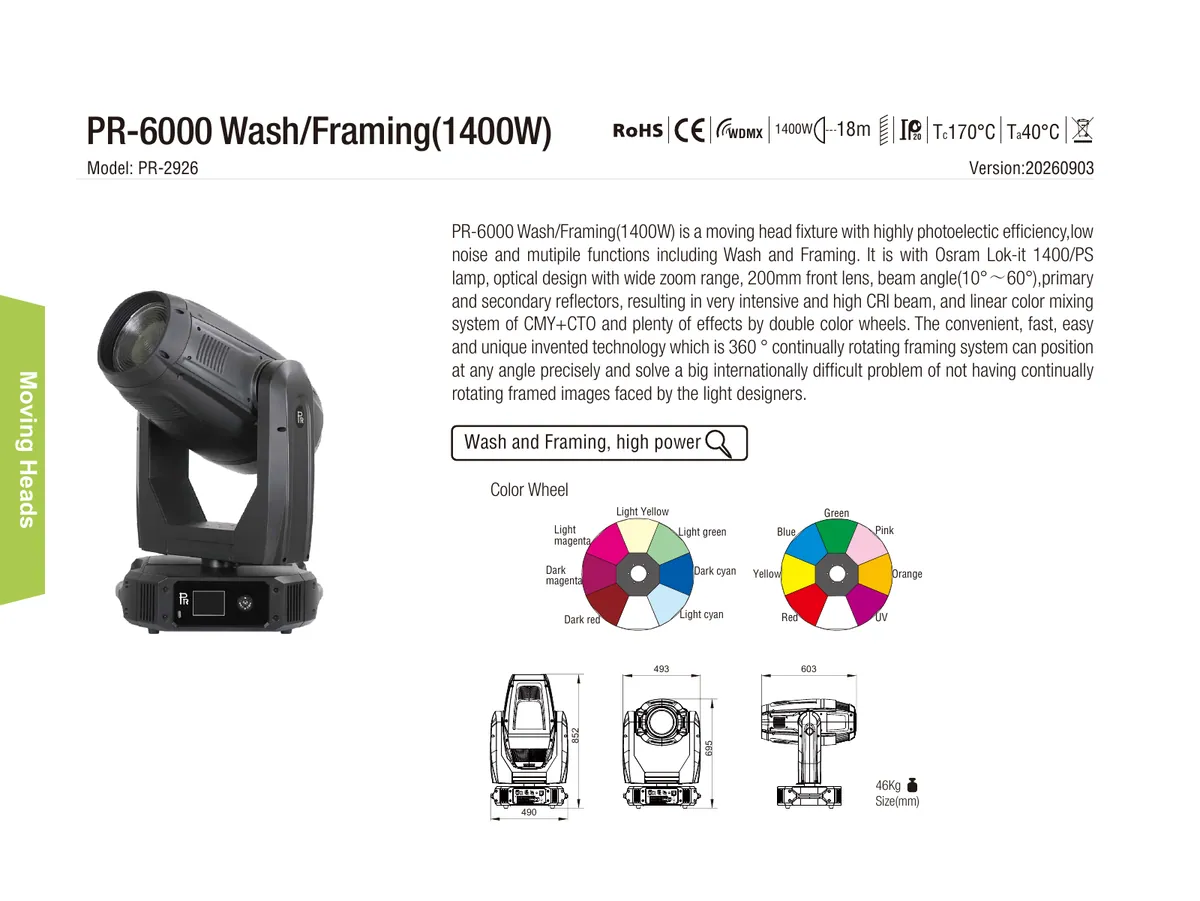

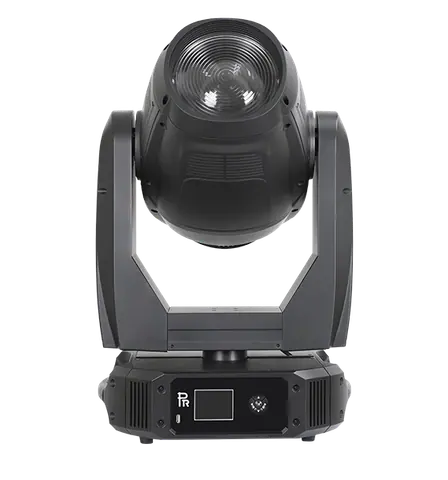

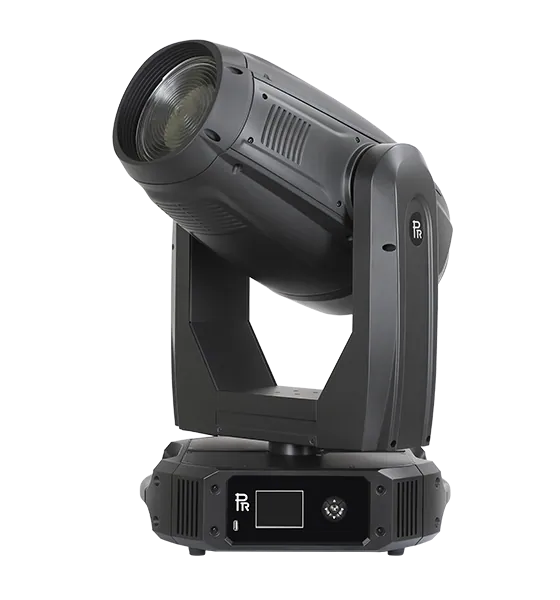

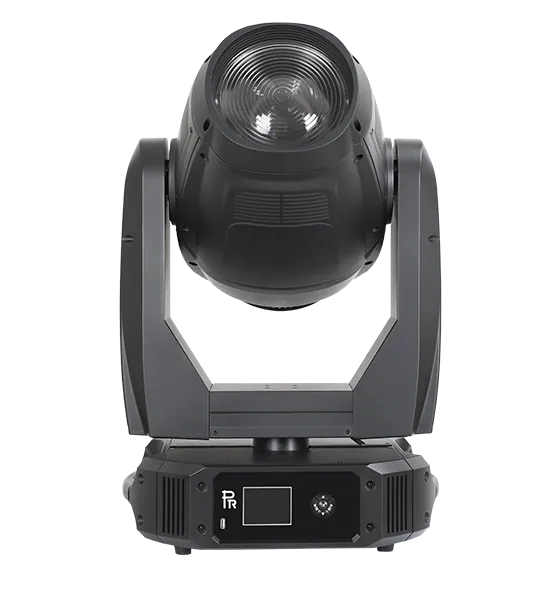

PR-6000Wash/Framing(1400W)is a moving head fixture with highly photoelectic efficiency,low noise and mutipile functions including Wash and Framing. It is with Osram Lok-it 1400/PS lamp, optical design with wide zoom range, 200mm front lens, beam angle(10°~60°),primary and secondary reflectors, resulting in very intensive and high CRI beam, and linear color mixing system of CMY+CTO and plenty of effects by double color wheels. The convenient, fast, easy and unique invented technology which is 360 ° continually rotating framing system can position at any angle precisely and solve a big internationally difficult problem of not having continually rotating framed images faced by the light designers.
03Documents2 files · 6.9 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
