Sheet 05.575
PR Lighting · Spot and profileOn request

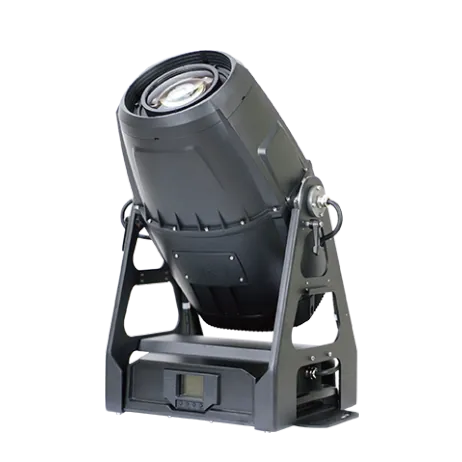

TANGO 680 Spot DE
ModelPR-6629
Tango 680 SPOT DE is a waterproof water wave spot fixture using 500 W white LED engine with ingress protection up to IP 66 and a high performance fixture that can be used in different places indoors and outdoors.
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
TANGO 680 Spot DEPrice on requestRequest a quotation
01SpecificationManufacturer's data · 18 groups · 40 values
What this product is, in numbers.

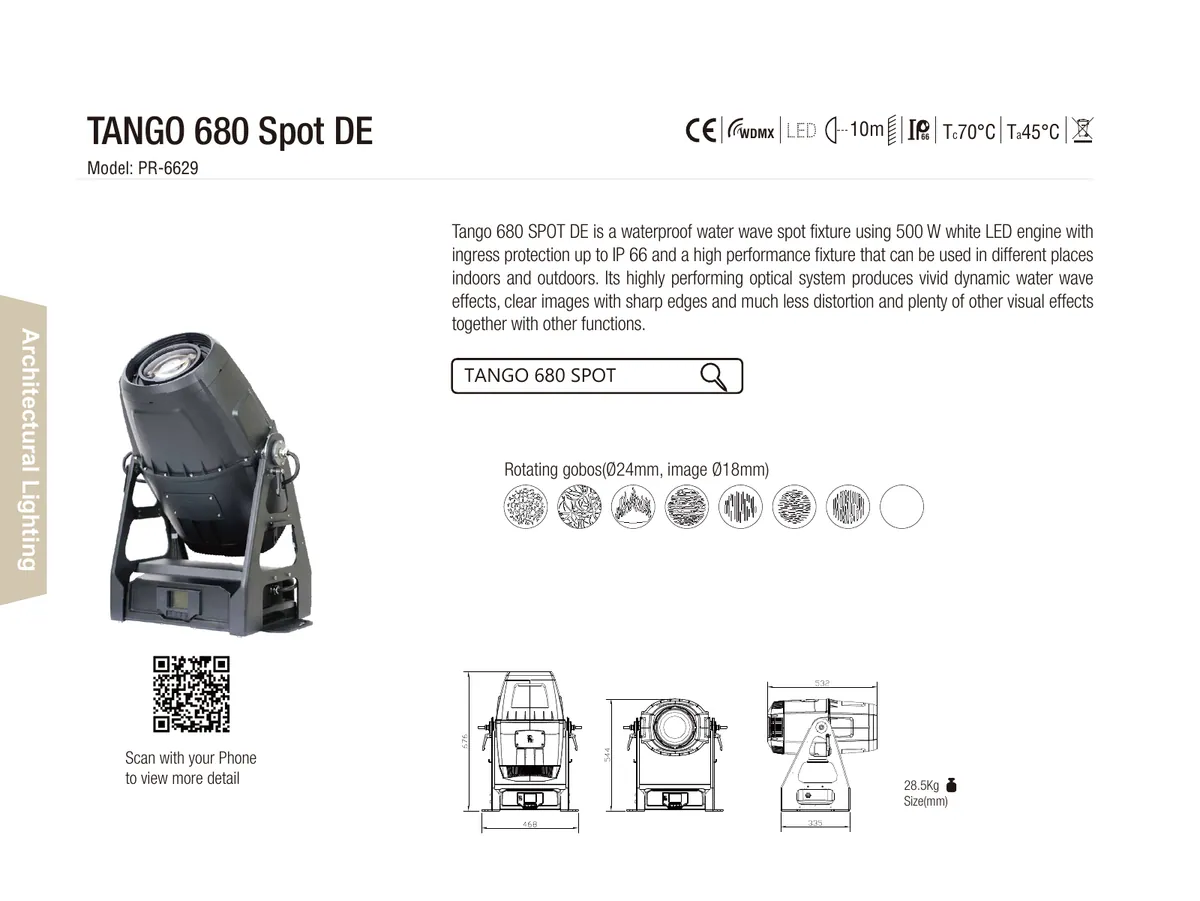

PDFDatasheetEN · 2 pages · 361 KB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Input voltage1
- 200V~240V AC,50/60Hz
02Input power1
- 640W@220V AC
03Light Source1
- 500W White LED(9000K),20000hrs, Ra≥70( Option
- Ra≥90)
04Prism4
- 1pc of 3 facet circular prism
- Bi-directional rotation with variable speeds and indexing function
- 1pc of 4 facet linear prism
- Bi-directional rotation with variable speeds and indexing function
05Effect wheel2
- 1 double effect wheel
- both rotating in the same direction or opposite one with variable speeds
06Water wave Wheel1
- 1pcs, bi-directional rotation with variable speeds
Show the full specificationHide the rest of the specification12 more groups · 30 values
07Focus1
- DMX linear Focusing
08Dimmer1
- 0-100% Linear adjustment
09Strobe1
- Electronic strobe, 0.3~25 F.P.S
10Tilt1
- 270°
11Beam angle1
- linear zoom 6°- 50° with 16 bit function
12Control6
- DMX512 , 5 pin interfaces
- RDM control protocol
- 14 channels in short mode, 17 channels in standard mode
- and 19 channels in extended mode
- Master/Slave synchronized mode
- Stand-alone mode
13Other function6
- Total hours displayable
- English and Chinese menus
- Built-in sensor diagnostic system
- Software versions displayable
- Input signal isolation
- Modular Structure for easy maintenance
14Housing1
- High temperature ABS+ High tensile cast aluminum , IP66
15Operation Temperature3
- Highest ambient temperature 45°C
- Note
- If the ambient temperature is below -20°C
- reset a projector before pre-heating it for more than 30 minutes
16Net weight1
- 28.5 Kg
171 Color Wheels3
- 7 colors+ Open
- Half color effect, rainbow effect with bi-directional and variable speeds
- Stepping/linear color changing
18Rotating Gobo5
- 1 Rotating Gobo Wheel
- 8 replaceable gobos+ Open, Glass or Metal Gobo
- Bi-directional Rotation with variable speeds
- With Indexing Function
- Gobo Shake Effect with Variable Speeds
- Bi-directional Scrolling with Variable Speeds
02DescriptionManufacturer's description
What it is.
Tango 680 SPOT DE is a waterproof water wave spot fixture using 500 W white LED engine with ingress protection up to IP 66 and a high performance fixture that can be used in different places indoors and outdoors. Its highly performing optical system produces vivid dynamic water wave effects, clear images with sharp edges and much less distortion and plenty of other visual effects together with other functions.
03Documents2 files · 5.0 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
