Sheet 05.731
PR Lighting · Hybrid fixtures
PR Lighting XR 380 BWS PR-2392A
ModelPR-2392A
- Light source
- Philips MSD Silver 380W LL-2
- Colour temperature
- 7800K+/-300K
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
XR 380 BWSPrice on requestRequest a quotation
01SpecificationManufacturer's data · 13 groups · 29 values
What this product is, in numbers.

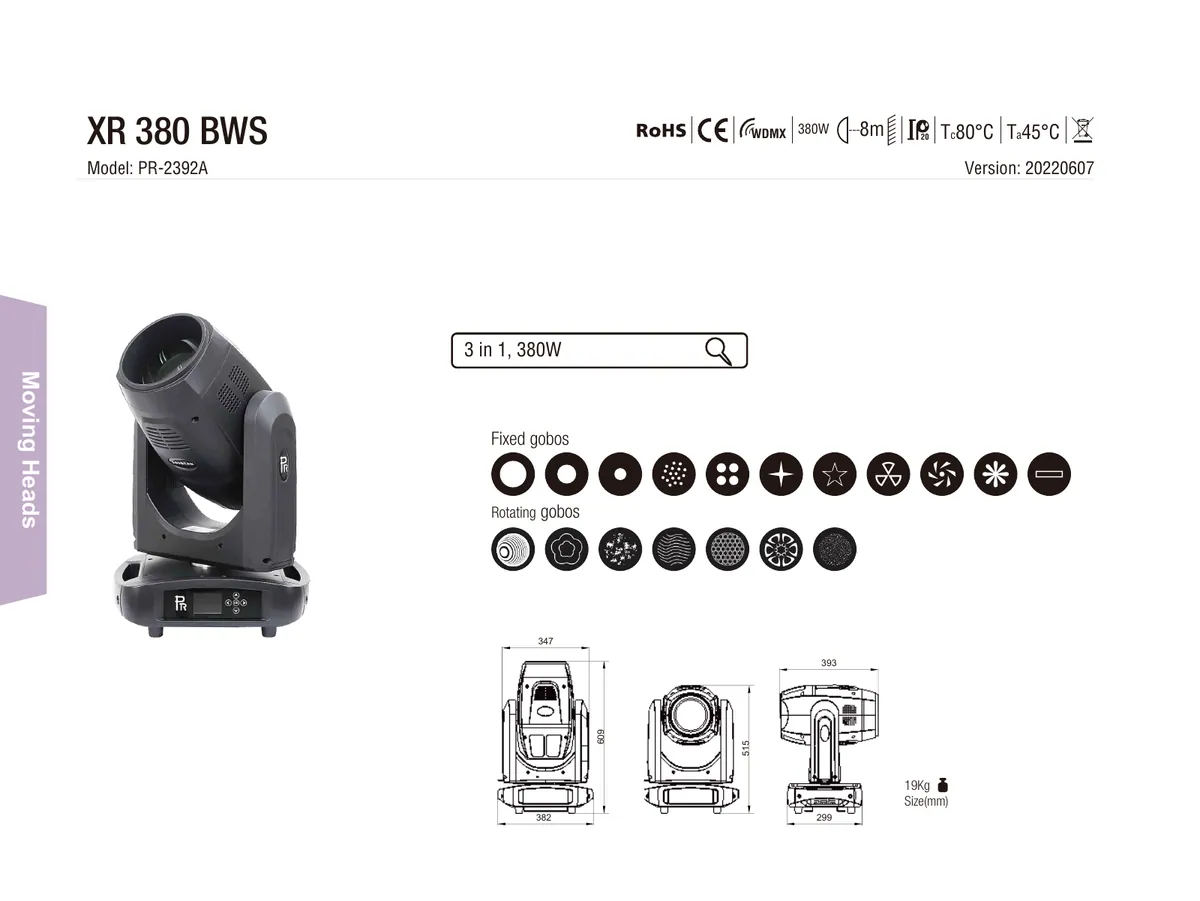

PDFDatasheetEN · 2 pages · 212 KB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01ELECTRIC PARAMETERS3
- Input voltage 200V~240V AC,50/60Hz
- Input power 500W@230V
- Power factor PF>0.90
02THE SPECIFICATIONS OF THE LIGHT SOURCE3
- Lamp
- Philips MSD Silver 380W LL-2
- Color temperature
- 7800K+/-300K
- rated life
- 3000hrs
03PRISM/FROST1
- 1 8-facet prism and 1 16-facet prism, bi-directional rotation from slow to fast
04FOCUS1
- DMX linear focus
05DIMMER /STROBE2
- Strobe at variable speeds(15 F.P.S at maximum)
- 0-100% linear dimmer
06HEAD MOVEMENT1
- Pan 540º, Tilt 270º with 16 bit control
07BEAM ANGLE3
- Beam mode 2°-20°
- Spot mode 6°-30°
- Wash mode 17°-45°
08CONTROL5
- Projector and lamp information readable, external DMX value received and thermal sensor built-in for error and malfunction analysis
- Preset memory
- Unintentional head move to cause power-off, quiet fans for cooling
- International standard DMX 512 protocol, 5-pin interface
- 23channels in short mode and 28channels in standard mode
09OPTIONAL WIRELESS CONTROL MODULE/RDM MODULE4
- Compliant with USITT DMX-512(1986 and 1990)and 512-A Full DMX for fidelity and DMX framing integrity
- Auto-detecting DMX framing size and speed
- <5ms DMX delay
- Frequency range 2402-2480 MHz
10HOUSING1
- High temperature ABS and aluminum , IP20
11NET WEIGHT1
- 19Kg
12OPERATION TEMPERATURE1
- Ambient temperature at maximum
- 45°C
13General3
- 3color wheels
- 12colors+ Open+CMY
- 1 fixed gobo wheel
- 10gobos+open
- 1 rotating gobo wheel
- 7 gobos +open
Show the full specificationHide the rest of the specification0 more groups · 0 values
