Sheet 05.730

PR Lighting · Hybrid fixtures

DRAGON 1600-W BWSF

ModelPR-6517

Light source: 700W, White LED module
Power consumption: 800W @ 220V
Power supply: DC 48V
Colour temperature: 8000K

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:29

PR Lighting DRAGON 1600-W BWSF2:29

02SpecificationManufacturer's data · 28 groups · 64 values

What this product is, in numbers.

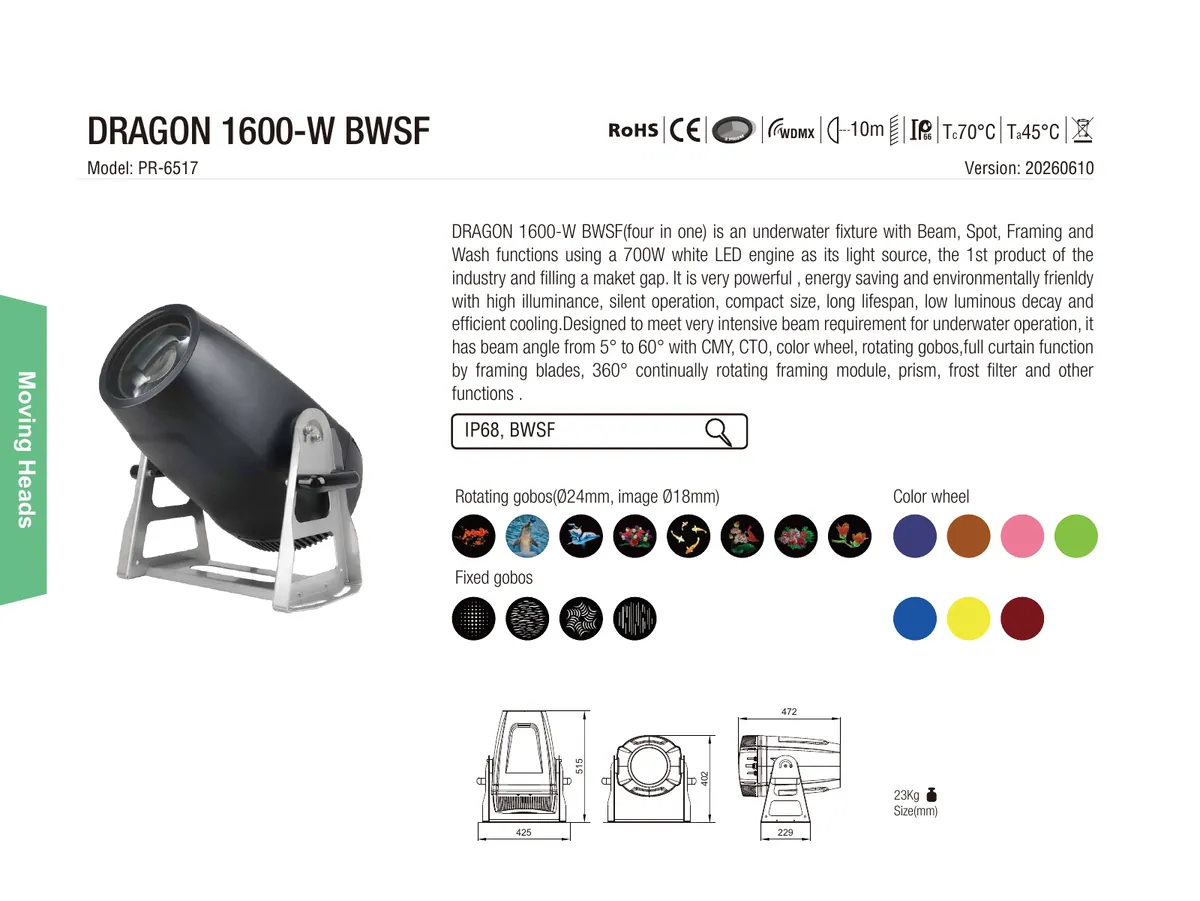

PDFDatasheetEN · 2 pages · 391 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01TECHNICAL DATA1

The product is with a separate power supply unit.

021)The underwater head4

Input voltage: DC 48V
Ingress protection: IP68 (for underwater running)\
Electric shock protection class: III class lighting fixture( Safe low voltage/SELV, no electric shock)
Standards: as per IEC 60598-1 and GB/T 50034-2024, DC 60V and lower is safe low voltage/SELV. And DC 48V is safe voltage and without electric shock under normal operation.

032)Power supply control box7

Input voltages: 100V~240V AC,50/60Hz
Input Power: 800W @ 220V
Power factor: PF〉0.95
Max. Current: 3.6 A @ 220V
Output voltage: DC 48V
Output current: 16.7A@48V/DC
Ingress protection: IP66 (waterproof for outdoor application, not for underwater running)

04LIGHT SOURCE SPECIFICATIONS(Yellow)4

Power consumption: 700W, White LED module
Color Temperature: 8000K
Manufacturers Rated Lamp Life: more than 20000hrs
CRI: Ra≥70 (Optional high CRI version Ra≥96,R9≥95)

05CTO1

Linear CTO system(0-100%, 1800K - 6500K)

06EFFECT WHEEL1

Bi-directional rotation at variable speeds

Show the full specificationHide the rest of the specification22 more groups · 46 values

07IRIS1

5-100% linear with macros

08PRISM1

1pc, 3-facet circular prism, bi-directional rotation at variable speeds with indexing function

09FROST1

1 frost filter ,0-100% linear

10BEAM ANGLE1

5°~60°,linear with 16 bit control

11FOCUS1

DMX linear with auto focus function

12DIMMER4

Linear electronic dimmer 0-100% with 16 bit control

3 dimmer speeds

5 dimmer curves

Dimmer frequency(1.2K-25K) good for 4K high speed video camera

13STROBE1

Electronic strobe 0.3~25 Hz, optional pulse, synchronized or non-synchronized strobe at slow, medium and fast speeds

14HEAD MOVEMENT1

Tilt: ±100°

15ADVANCED MACROS2

Color temperature macros: optional 2700K,3000K,3500K,4000K,4500K,5000K,5700K
Standard color macros: 89 color options based on standard color chart

16BRIGHTNESS CALIBRATION FUNCTION2

With brightness calibration function to calibrate initial brightness for a single fixture or multiple ones and store brightness

values into the fixtures

17CRI MODE1

Running at high CRI mode via DMX channel to ensure high CRI optical effect.

18CONTROL5

International standard DMX512 signal and RDM function

32channels in short mode, 38channels in standard mode,51channel in extended mode

Master/Slave mode

Standalone mode

Master Mode

19CONTROL INTERFACE1

DMX512 ports(5-pin)

20OTHER FUNCTIONS3

Modular construction for easy maintenance,

DMX channel voltages monitoring

Firmware upgrade via DMX cable

21HOUSING AND INGRESS PROTECTION2

The housing of the head: ABS or stainless steel, IP68 , for landscape, entertainment ,cultural tourism and other underwater applications.
The material for power supply control box: Aluminum, IP66, installed in safe areas, forbidden for underwater applications

22AMBIENT TEMPERATURE2

The head: the depth under water ≤5m , the temperature of water 0°C~40°C
The power supply control box: -20°C~40°C

23WEIGHT3

Net weight of the head 23KG; Net weight of the power supply control box 7KG
Gross weight in the carton: 33KG( head+ power supply control box)

24Cardboard box(mm)(L*W*H)2

515*515*620( 1pc/case )
【Version: 20260610】

25General4

CMY color mixing system with macros
1 Color wheel: 7colors+ Open,; Half color , bi-directional rainbow effect at variable speeds,; Stepping/linear color changing

26ROTATING GOBO WHEEL3

1 Rotating gobo wheel: 8Rotating Gobos +Open; Bi-directionally rotatable, and shakable at variable speeds
Gobo Replaceable, Gobo diameter: Φ24mm ,Gobo image diameter: Φ18mm

27FIXED GOBO WHEEL2

1 fixed gobo wheel(optional): 4 fixed Gobos + Open; Bi-directionally rotatable, and shakable at variable speeds

28General3

1 Framing Module: 4 Framing Blades; Framing Module continual(360°) rotation with many graphics of different sizes and shapes; 4 Framing blades to make full curtain effect

03DescriptionManufacturer's description

What it is.

DRAGON 1600-W BWSF(four in one) is an underwater fixture with Beam, Spot, Framing and Wash functions using a 700W white LED engine as its light source, the 1st product of the industry and filling a maket gap. It is very powerful , energy saving and environmentally frienldy with high illuminance, silent operation, compact size, long lifespan, low luminous decay and efficient cooling.Designed to meet very intensive beam requirement for underwater operation, it has beam angle from 5° to 60° with CMY, CTO, color wheel, rotating gobos,full curtain function by framing blades , 360° continually rotating framing module, prism, frost filter and other functions . Underwater, it creates cubic effects like a kaleidoscopic as if descending into a dim abyss, while dynamic water ripples project undulating patterns into the air, evoking a serene and mesmerizing atmosphere. Utilizing an internal air contracting and expanding theory, it ensures long lifespan and safety. Incorporating multiple patented technologies from PR Lighting, it is suitable for underwater up to a maximum depth of 5 meterswith an ingress protection of IP68 . The product is ideal for underwater applications in Landscaping, entertainment, cultural tourism, and similar underwater places.
