Sheet 05.732

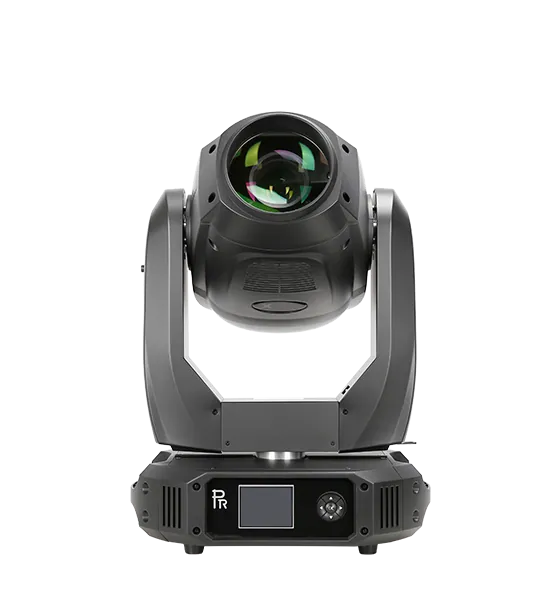

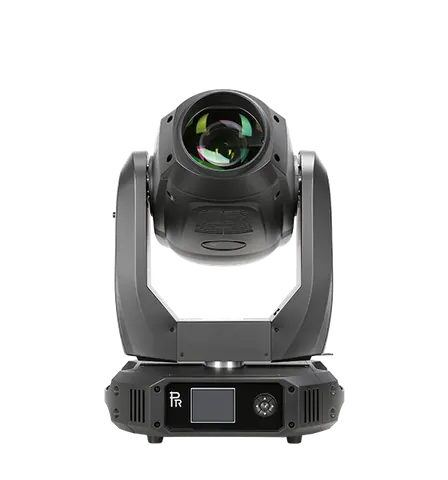

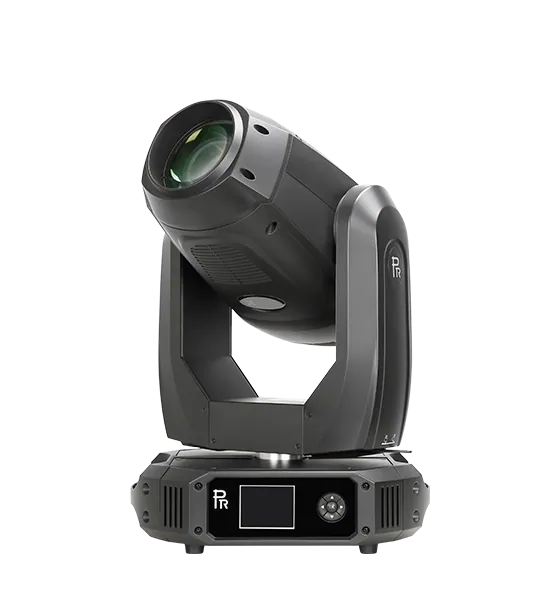

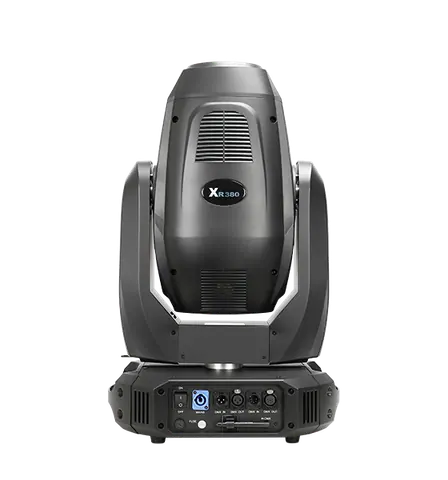

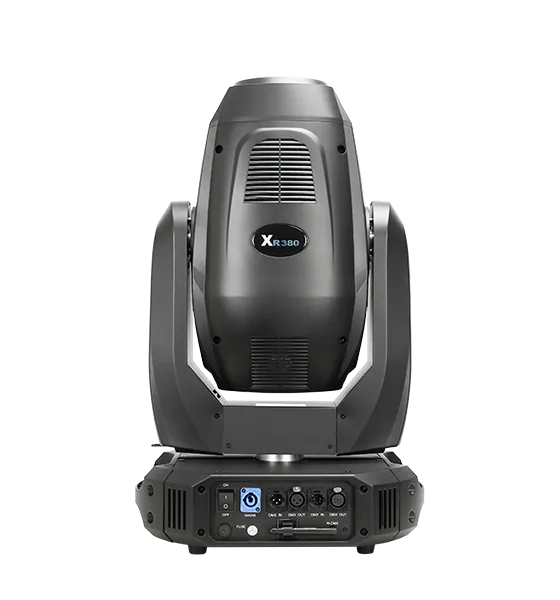

PR Lighting XR 380 BWS, product photo 1 of 3 — Fig. 01 / 03 · manufacturer’s images

PR Lighting · Hybrid fixtures

PR Lighting XR 380 BWS PR-2393

ModelPR-2393

The XR 380 BWS is a new hybrid versatile 3-in-1(Beam, Wash, Spot) luminaire which boasts the same features as XR 350B BWS including the new PHILIPS MSD Platinum Flex 300S lamp.

Power consumption: 570W@220V
Colour temperature: 7800K+/-300K

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 1:20

PR Lighting XR 380 BWS1:20

02SpecificationManufacturer's data · 18 groups · 44 values

What this product is, in numbers.

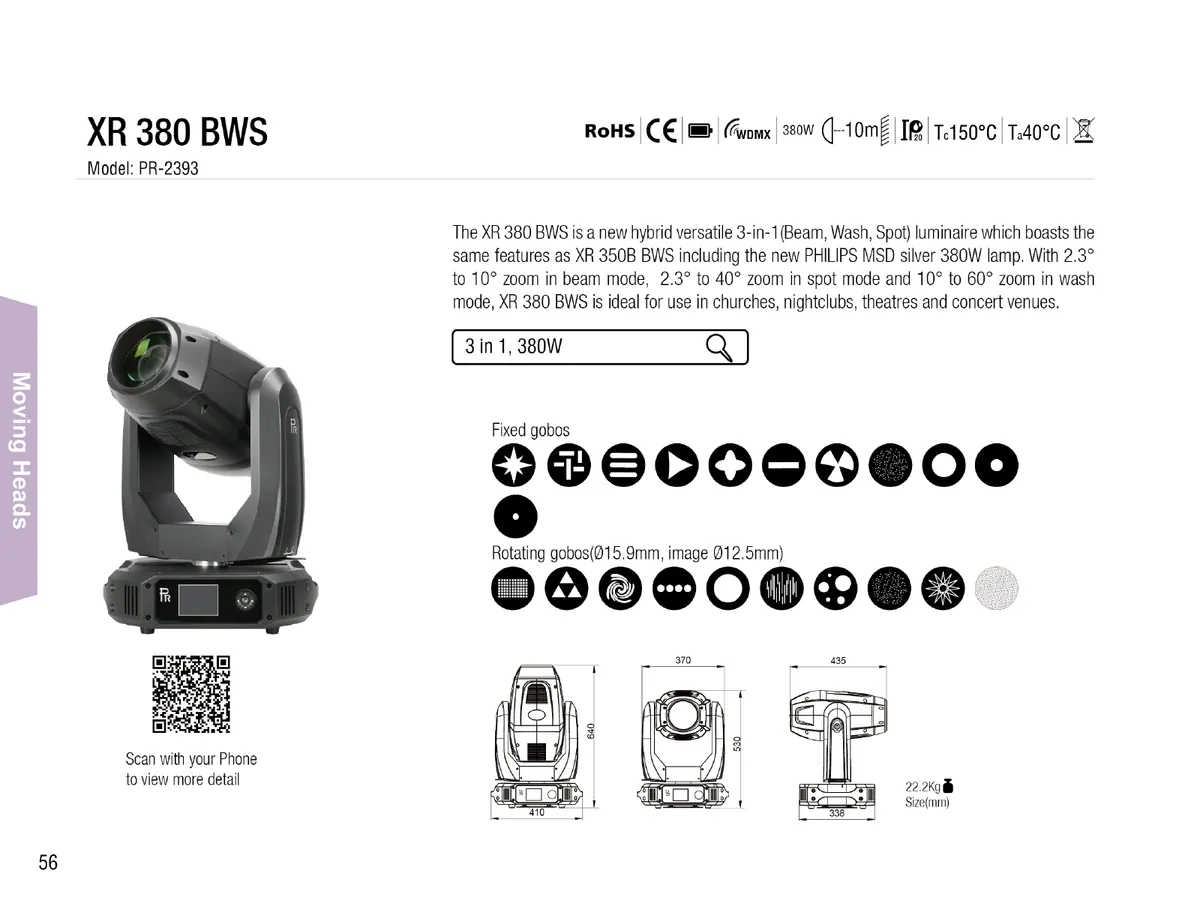

PDFDatasheetEN · 2 pages · 2.2 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01ELECTRONIC PARAMETERS4

Input voltage100V~240VAC,50/60Hz
Input power: 570W@220V
Max. current: 6.0A; Powerfactor PF>0.9

02LAMP SPECIFICATIONS3

PHILIPS: MSD Platinum Flex 300S
ColorTemperature: 7800K+/-300K
ManufacturersRatedLampLife: 6000 Hrs

03CMY COLORMIXINGSYSTEM1

CMYlinear colormixingwithmacros

04PRISM1

2pcs,(STD 8-facet and 16 facet Prisms)Bi-directionalrotation with variable speeds(options 3facet, 16 facet, liner prism, gradient prism)

05DIFFUSER2

1pcs ofindependent diffuser

Optional even beammode

06FROST1

1pc frostfilter

Show the full specificationHide the rest of the specification12 more groups · 32 values

07FOCUS1

DMX linear Focus

08ZOOM1

DMX linearZoom

09DIMMER/STROBE1

0-100% linearly adjustable/ Double shutter blades, 0.3~25 F.P.S

10HEADMOVEMENT1

Pan 540º,Tilt 270º with auto position correction

11BEAMANGLE3

Beam: 2.3°-- 10°, LinearAdjustment
Spot: 2.3°-- 40°, LinearAdjustment
Wash: 5°-- 50°, LinearAdjustment23

12CONTROL3

DMX512 and 5 pin interfaces

24channelsin shortmode, 28channelsin standardmode , 33channelsin extendedmode

Self-testmode

13OTHER FUNCTIONS6

AdjustablePan&Tiltspeed

Lamp’s and fixture’s hours displayed

Modular Structure for easymaintenance

DMX512wirlessreciever

DMX512Transmitter ( Optional)

ArtNet and sACN ( Optional)

14HOUSING1

High temperatureABS, IP20

15NETWEIGHT1

22.2Kg

16GROSSWEIGHT2

79Kg in flight case(2pcs/case) and accessories

26.5Kg in carton(1pc/ctn) and accessories

17OPERATIONTEMPERATURE2

Maximumambient temperature 40°C
【Version: 20230612】

18General10

1 colorwheel 13colors(plus 1CTO)+ Open

rainbow effectwith bi-directional and variable speeds

Stepping/linear color changing

1 fixed gobo wheel

10 gobos +open+ animation effect

bi-directionally rotatable, and shakable at variable speeds, 2channelsto control gobos and shift between animation effects

1Rotating gobo wheel

9 interchangeable gobos+white

bi-directionally rotatable, and shakable at variable speeds

GoboReplaceable

03DescriptionManufacturer's description

What it is.

The XR 380 BWS is a new hybrid versatile 3-in-1(Beam, Wash, Spot) luminaire which boasts the same features as XR 350B BWS including the new PHILIPS MSD Platinum Flex 300S lamp. With 2.3° to 10° zoom in beam mode, 2.3° to 40° zoom in spot mode and 5° to 50° zoom in wash mode, XR 380 BWS is ideal for use in churches, nightclubs, theatres and concert venues.

04Documents3 files · 7.1 MB
