Sheet 05.729

PR Lighting · Hybrid fixtures

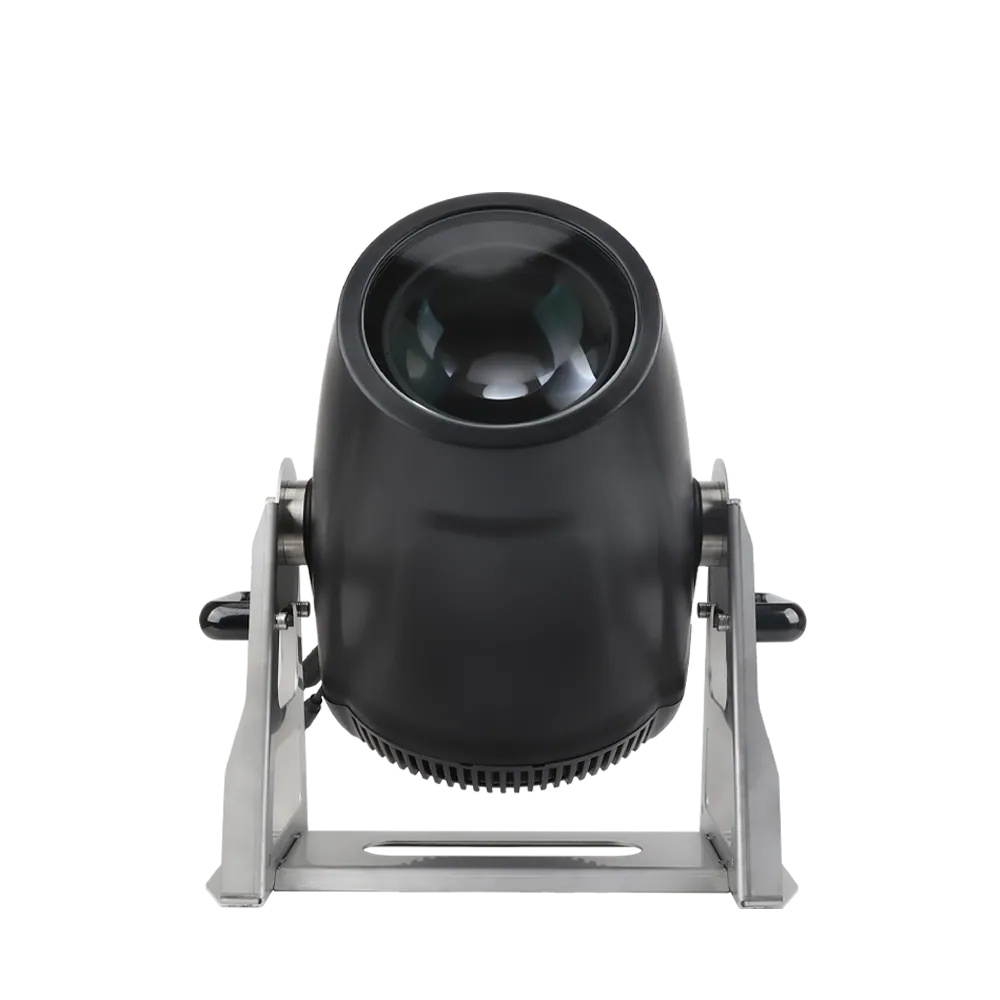

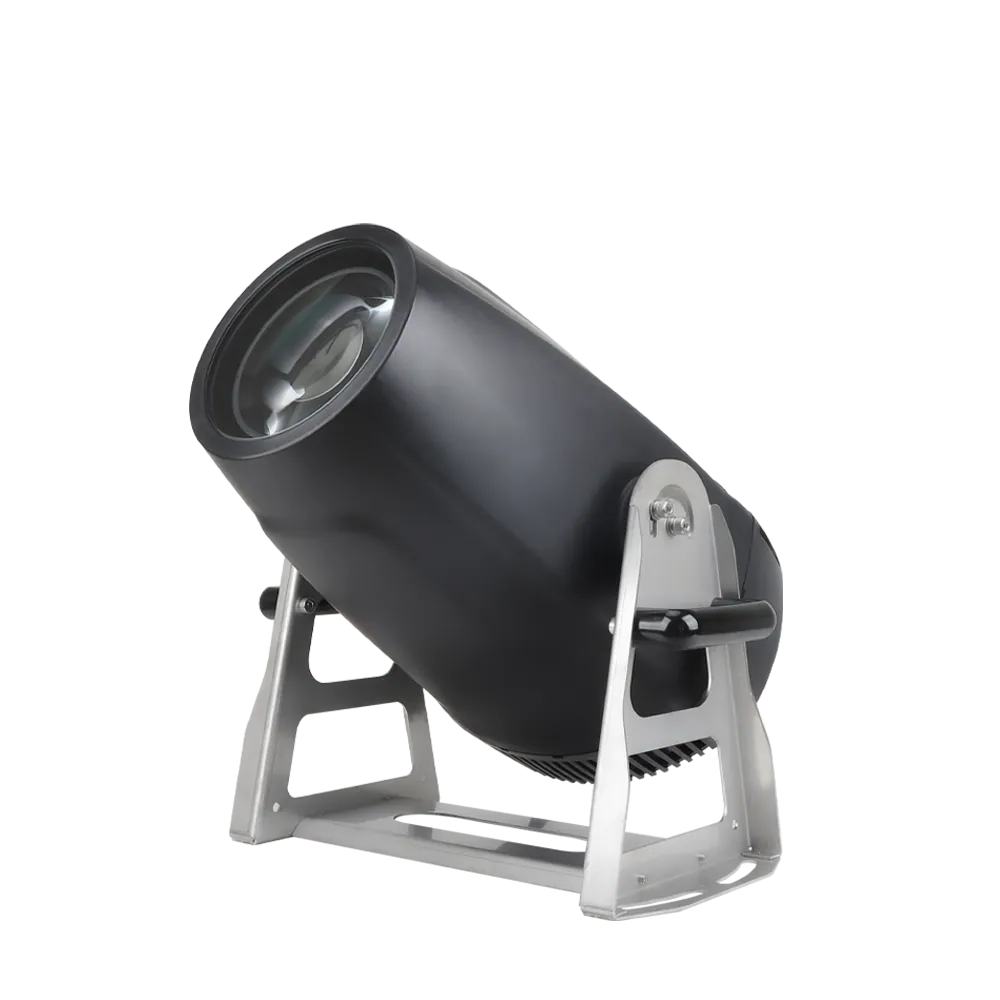

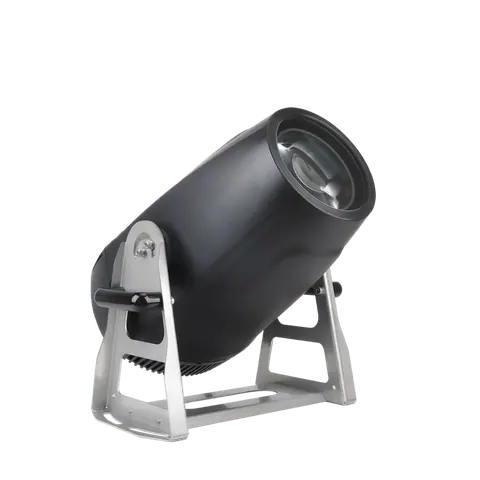

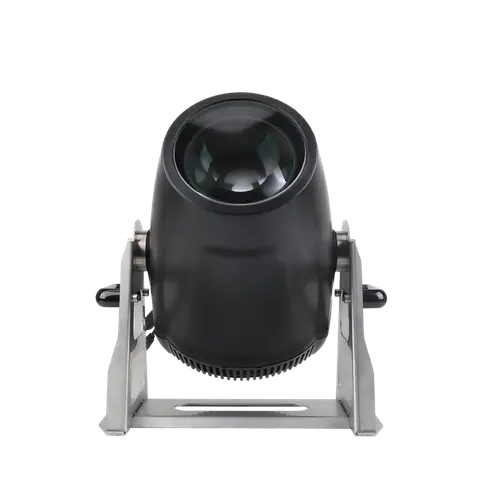

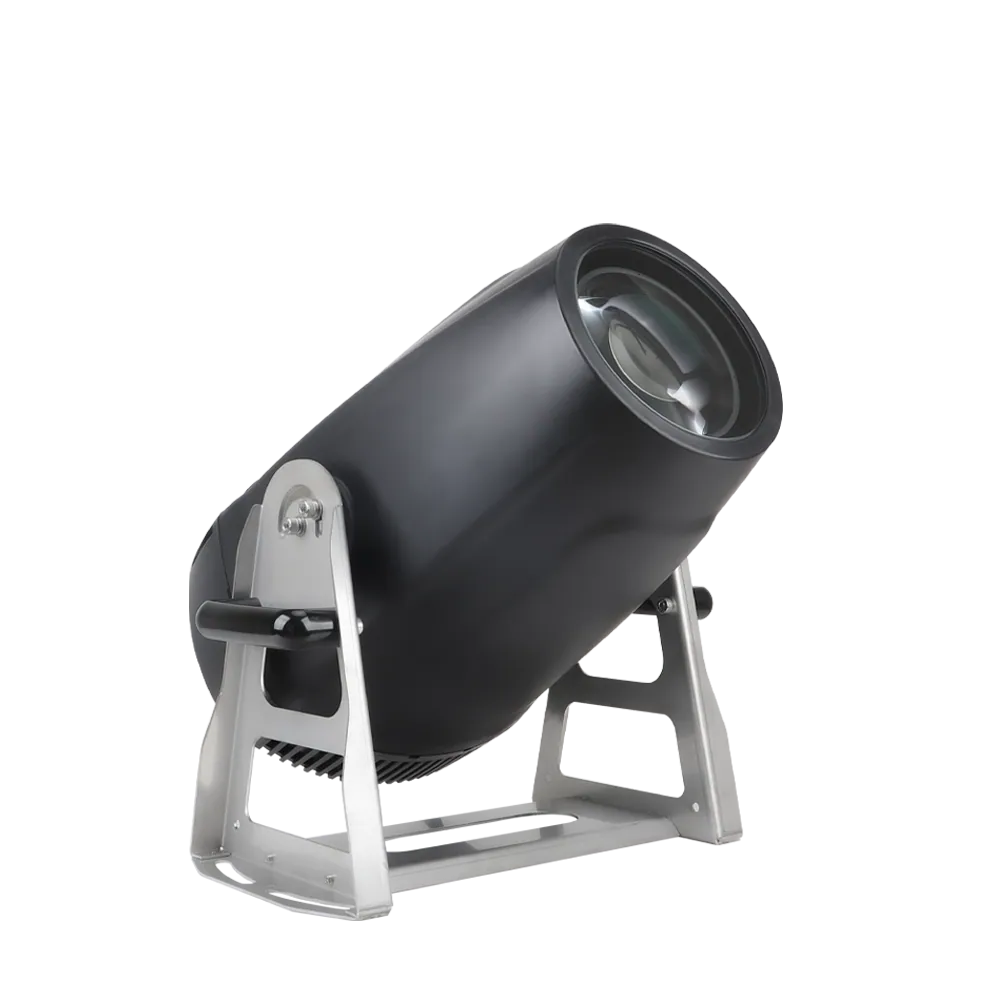

DRAGON 700-W BWS

ModelPR-6513

DRAGON 700-W BWS is an underwater fixture with Beam, Spot and Wash functions using a 350W white LED engine as its light source, the 1st product of the industry and filling a maket gap.

Light source: 350W, White LED module
Power consumption: 550W@ 220V
Power supply: DC48V
Colour temperature: 9000K

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:15

PR Lighting DRAGON 700-W BWS2:15

02SpecificationManufacturer's data · 23 groups · 65 values

What this product is, in numbers.

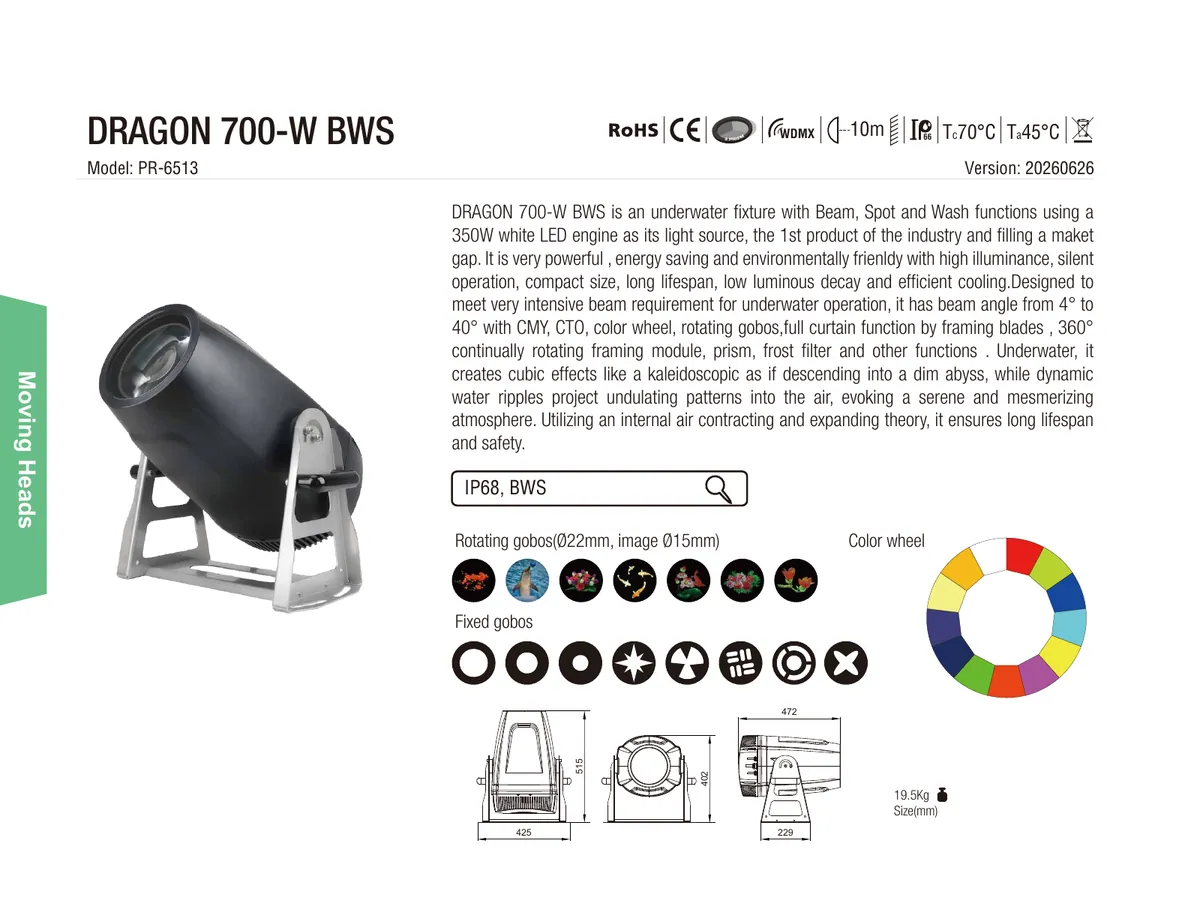

PDFDatasheetEN · 2 pages · 357 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01A SEPARATE POWER SUPPLY UNIT13

1) The underwater head
Input voltage: DC48V
Ingress protection: IP68 (for underwaterrunning)\
Electric shock protection class: III classlighting fixture( Safe low voltage/SELV, no electric shock)
Standards: as per IEC 60598-1 and GB/T 50034-2024, DC 60V and lower is safe low voltage/SELV. And DC 48V is safe; voltage and without electric shock under normal operation. 2) Powersupply control box
Input voltages: 100V~240VAC,50/60Hz
Input Power: 550W@ 220V
Powerfactor: PF〉0.95
Max.Current: 2.5A@220V
Output voltage: DC48V
Output current: 11.5A@48V/DC
Ingress protection: IP66 (waterprooffor outdoor application,notfor underwaterrunning)

02LIGHT SOURCE SPECIFICATIONS(Yellow)4

Power consumption: 350W, White LED module
Color Temperature: 9000K
Manufacturers Rated Lamp Life: more than 20000hrs
CRI: Ra≥70

03CTO1

Linear CTO system(0-100%, 1800K - 9000K)

04EFFECT WHEEL1

Animation effects, bi-directional rotation at variable speeds

05PRISM1

1pc, 3-facet circular prism, bi-directional rotation at variable speeds with indexing function

06FROST1

1 frost filter ,0-100% linear

Show the full specificationHide the rest of the specification17 more groups · 44 values

07BEAM ANGLE3

Beam and Spot modes: 4°- 40°, linear
Wash mode: 5°- 45°, linear; (with 16 bit control )

08FOCUS1

DMX linear with auto focus function

09ZOOM1

Linear zoom

10DIMMER5

Linear electronic dimmer 0-100% with 16 bit control

3 dimmer speeds

5 dimmer curves

Dimmer frequency(1.2K-25K) good

for 4K high speed video camera

11STROBE1

Electronic strobe 0.3~25 Hz, optional pulse, synchronized or non-synchronized strobe at slow, medium and fast speeds

12HEAD MOVEMENT1

Tilt: ±100°

13ADVANCED MACROS2

Color temperature macros: optional 2700K,3000K,3500K,4000K,4500K,5000K,5700K
Standard color macros: 89 color options based on standard color chart.

14BRIGHTNESS CALIBRATION FUNCTION2

With brightness calibration function to calibrate initial brightness for a single fixture or multiple ones and store brightness

values into the fixtures

15CRI MODE1

Running at high CRI mode via DMX channel to ensure high CRI optical effect.

16CONTROL5

International standard DMX512 signal and RDM function

20channels in short mode, 25channels in standard mode,29channel in extended mode

Master/Slave mode

Standalone mode

Master Mode

17CONTROL INTERFACE1

DMX512 ports(3-pin, optional 5-pin)

18OTHER FUNCTIONS3

Modular construction for easy maintenance,

DMX channel voltages monitoring

Firmware upgrade via DMX cable

19HOUSING AND INGRESS PROTECTION2

The housing of the head: ABS or stainless steel, IP68 , for landscape, entertainment ,cultural tourism and other underwater applications.
The material for power supply control box: Aluminum, IP66, installed in safe areas, forbidden for underwater applications

20AMBIENT TEMPERATURE2

The head: the depth under water ≤5m , the temperature of water 0°C~40°C
The power supply control box: -20°C~40°C

21WEIGHT3

Net weight of the head 19.5 KG; Net weight of the power supply control box 7KG
Gross weight in the carton: 29.5KG( head+ power supply control box)

22Cardboard box(mm)(L*W*H)2

515*515*620(1pc/case)
【Version: 20260606】

23General9

CMYcolormixing system withmacros
1Colorwheel: 12colors+Open,; Half color, bi-directionalrainbow effect at variable speeds; Stepping/linear color changing
1 Fixed gobowheel: 7 gobos +AnimationEffect+Open; Bi-directionally rotatable, and shakable at variable speeds
1Rotating gobowheel: 7RotatingGobos +Open; Bi-directionally rotatable, and shakable at variable speeds19; GoboReplaceable

03DescriptionManufacturer's description

What it is.

DRAGON 700-W BWS is an underwater fixture with Beam, Spot and Wash functions using a 350W white LED engine as its light source, the 1st product of the industry and filling a maket gap. It is very powerful , energy saving and environmentally frienldy with high illuminance, silent operation, compact size, long lifespan, low luminous decay and efficient cooling.Designed to meet very intensive beam requirement for underwater operation, it has beam angle from 4° to 40° with CMY, CTO, color wheel, rotating gobos,full curtain function by framing blades , 360° continually rotating framing module, prism, frost filter and other functions . Underwater, it creates cubic effects like a kaleidoscopic as if descending into a dim abyss, while dynamic water ripples project undulating patterns into the air, evoking a serene and mesmerizing atmosphere. Utilizing an internal air contracting and expanding theory, it ensures long lifespan and safety. Incorporating multiple patented technologies from PR Lighting, it is suitable for underwater up to a maximum depth of 5 meterswith an ingress protection of IP68 .
