Sheet 05.734
PR Lighting · Hybrid fixtures

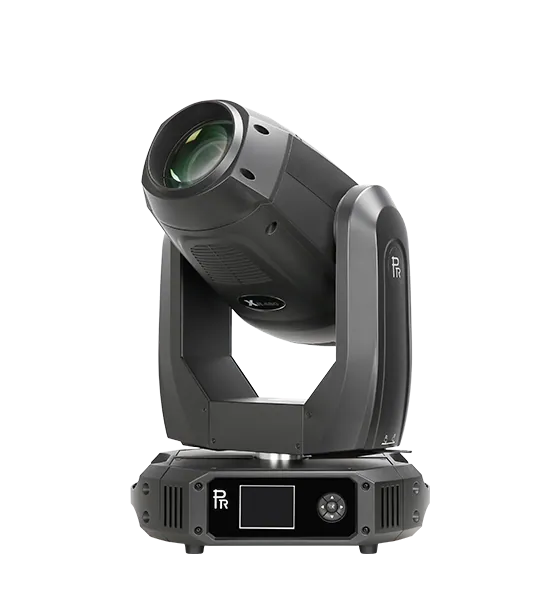

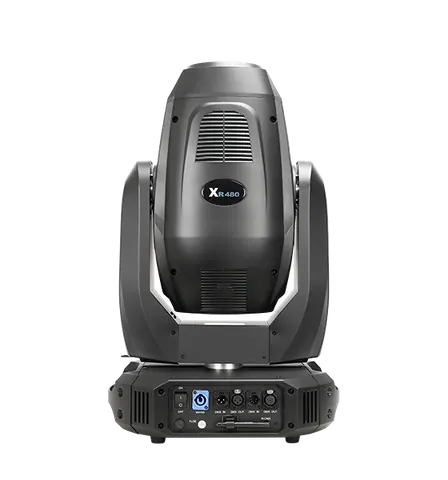

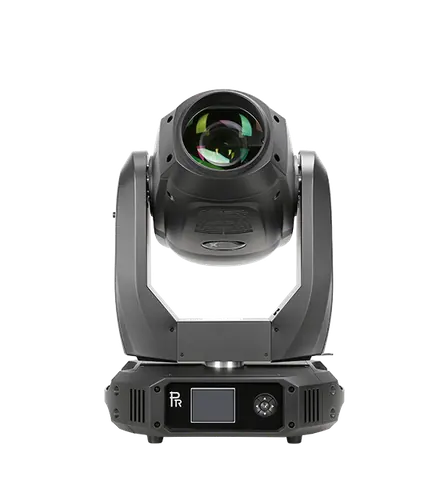

XR 450 BWS
ModelPR-2481
The new hybrid versatile 3-in-1 luminaire XR 450 BWS integrates three features(Beam, Wash, Spot) in a single unit. It has adopted PR patented technology, combines advanced OSRAM SIRIUS HRI 420W lamp technology with superb optical system.
- Light source
- Lamp SIRIUS HRI® 420W S (7700K)
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
XR 450 BWSPrice on requestRequest a quotation
01VideoManufacturer's video · 1:43
PR Lighting XR 450 BWS: the manufacturer's video
02SpecificationManufacturer's data · 21 groups · 45 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Input Voltages1
- 100V~240V AC,50/60Hz
02Rated Power1
- 650W @ 220V
03Light Source1
- Lamp SIRIUS HRI® 420W S (7700K)
04Manufacturers Rated Lamp Life2
- 2,500 hrs typical @ 420W (SO)
- 4,000 hrs typical @ 330W (Eco)
05Colors4
- 1 Color wheel
- 13colors(plus 1CTO)+ Open,
- rainbow effect with bi-directional and variable speeds,
- Stepping/linear color changing
- CMY linear color mixing with macros
06Fixed Gobo Wheel4
- 1 Fixed gobo wheel
- 10 gobos +open+ animation effect
- Bi-directionally rotatable,
- and shakable at variable speeds,
- 2channels to shift between gobos and animation effects.
Show the full specificationHide the rest of the specification15 more groups · 32 values
07Rotating Gobo Wheel4
- 1 Rotating gobo wheel
- 9Interchangeable Gobos +Open
- Bi-directionally rotatable,
- and shakable at variable speeds
- Gobo Replaceable
08Prism3
- 2Pcs,(STD 8-facet and 16 facet Prisms)
- Bi-directional rotation with variable speeds
- (options
- 3-facet/ 16-facet liner prism or gradient prism)
09Independent Diffuser1
- 1Pcs of independent diffuser
10Frost1
- 1Pc frost filter
11Focus1
- DMX linear Focus
12Zoom1
- DMX linear Zoom
13Dimmer/Strobe1
- 0-100% Linearly adjustable/ Double shutter blades, 0.3~25 F.P.S
14Head Movement1
- Pan 540º, Tilt 270º with auto position correction
15Beam Angle3
- Beam Mode
- 2.3°-- 10°Linear Adjustment
- Spot Mode
- 5°-- 40°Linear Adjustment
- Wash Mode
- 5°-- 50°Linear Adjustment
16Control3
- DMX512, 5 pin interfaces
- 24channels in short mode, 28channels in standard mode , 33channels in extended mode
- Self-test mode
17Other Functions5
- Adjustable Pan & Tilt speeds
- Lamp’s and fixture’s hours displayed
- Modular Structure for easy maintenance
- DMX512 wirless reciever
- Optional DMX512 Wireless Transmitter
18Housing1
- High temperature ABS, IP20
19Net Weight1
- 22.2Kg
20Operation Temperature1
- Maximum ambient temperature
- 40°C
21Accessories5
- G clamps2 Pcs
- XLR connector1 Set Male and female
- Safety cord 1 Pc
- User manual 1 Pc
- Ω clamps 2 Pcs Optional
03DescriptionManufacturer's description
What it is.
The new hybrid versatile 3-in-1 luminaire XR 450 BWS integrates three features(Beam, Wash, Spot) in a single unit. It has adopted PR patented technology, combines advanced OSRAM SIRIUS HRI 420W lamp technology with superb optical system. XR 450 BWS can enhances any shows with its massive 2.3° to 50° zoom range.
