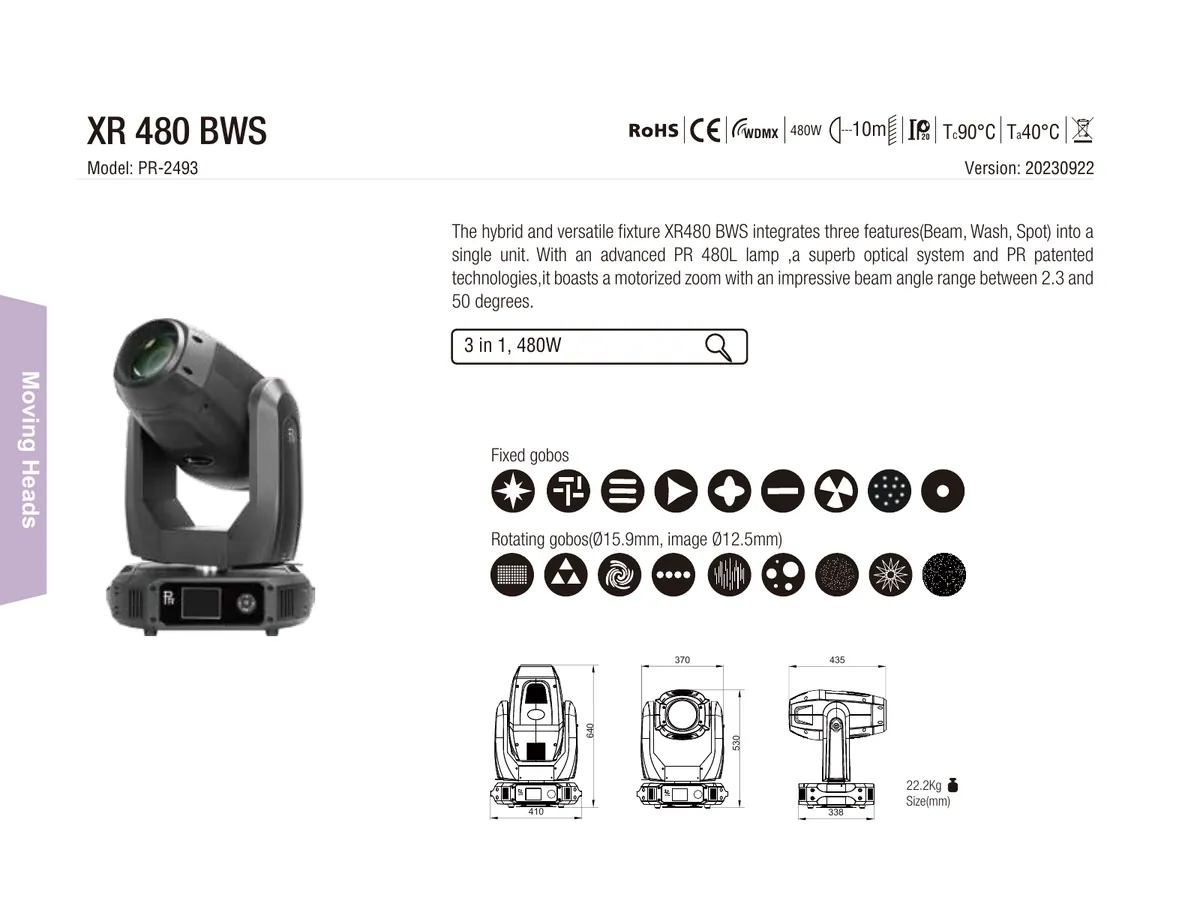

XR 480 BWS

ModelPR-2493

Light source: PR480L
Power consumption: 650W @ 220V
Power supply: 100V~240V AC,50/60Hz
Colour temperature: 6900K
Net weight: 22.2Kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 2 groups · 38 values

What this product is, in numbers.

PDFUser manualEN · 2 pages · 1.0 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01ELECTRICAL PARAMETER14

Input Voltages: 100V~240V AC,50/60Hz
Rated Power: 650W @ 220V
Power Factor: PF >0.9
LAMP SPECIFICATIONS
Lamp: PR480L
ColorTemperature: 6900K
ManufacturersRatedLampLife: 1500hours
PRISM
2Pcs,(STD 8-facet and 16 facet Prisms) Bi-directional rotation with variable speeds(options: 3-facet/ 16-facet liner prism or gradient prism)
INDEPENDENTDIFFUSER: 1Pcs ofindependent diffuser; Optional even beammode
FROST: 1Pc frostfilter
FOCUS: DMX linearFocus
ZOOM: DMX linearZoom
DIMMER/STROBE: 0-100% Linearly adjustable/Double shutter blades, 0.3~25 F.P.S
HEADMOVEMENT: Pan 540º,Tilt 270º with auto position correction

02General24

BEAMANGLE
Beam Mode: 2.3°-- 10°, LinearAdjustment
SpotMode: 5°-- 40°LinearAdjustment
WashMode: 5°-- 50°LinearAdjustment
CONTROL: DMX512, 5 pin interfaces; 24channelsin shortmode, 28channelsin standardmode , 33channelsin extendedmode; Self-testmode
OTHER FUNCTIONS: AdjustablePan&Tiltspeeds; Lamp’s and fixture’s hours displayed; Modular Structure for easymaintenance; DMX512wirlessreciever; OptionalDMX512WirelessTransmitter22
HOUSING: High temperatureABS,IP20
NETWEIGHT: 22.2Kg
WEIGHT
NetWeight: 22.2Kg
GrossWeight: 79Kg in flight case(2pcs/case) and accessories
NetWeight: 26.5Kg in carton(1pc/ctn) and accessories
OPERATIONTEMPERATURE
Maximumambient temperature: 40°C
【Version: 20230921】
1 Color wheel: 13colors(plus 1CTO)+ Open, rainbow effect with bi-directional and variable speeds, Stepping/linear color changing; CMY linear color mixing with macros
1 Fixed gobo wheel: 10 gobos +open+ animation effect; Bi-directionally rotatable, and shakable at variable speeds, 2channels to shift between gobos and animation effects.
1 Rotating gobo wheel: 9Interchangeable Gobos +Open; Bi-directionally rotatable, and shakable at variable speeds

02DescriptionManufacturer's description

What it is.

XR 480 BWS is a multi-function(Beam, Spot and Wash modes, 3 in 1) fixture using a highly efficient 480 W discharge lamp integrated with a reflector as its light source. For Beam mode , its beam angle 2.3°- 10°; for Spot mode ,5°- 40°;for Wash mode 5°- 50°. The narrowest beam is 0 °with narrow beams for long distance projection. For Wash mode, the biggest beam angle is 50°. Two independent prisms can individually and bi-directionally rotate in the same or opposite directions with variable speeds and overlap for combined effects, resulting in fantastic effects. It has 3 patented technologies with low power consumption, high luminance and is environmentally friendly and energy saving . It has rotating gobo wheel, fixed gobo wheel, animation effect combined with CMY color mixing system, producing beam, spot, wash and other fantastic stage effects. For control, it has touch screen, Chinese/English menus, RDM, smart fan control, error detecting sensors and others with light weight.
