Sheet 05.736

PR Lighting · Hybrid fixtures

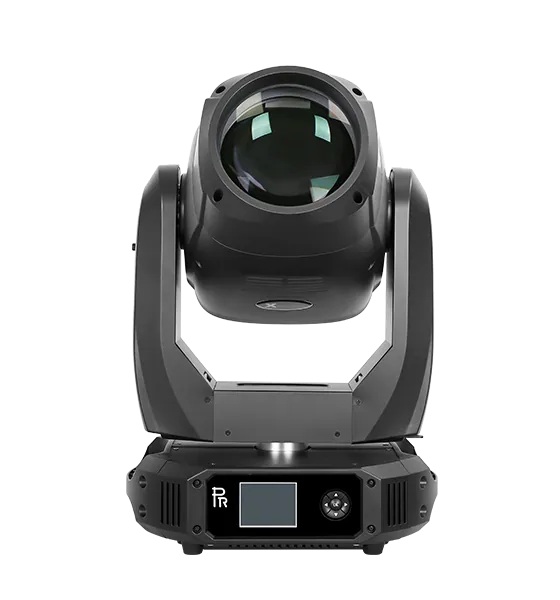

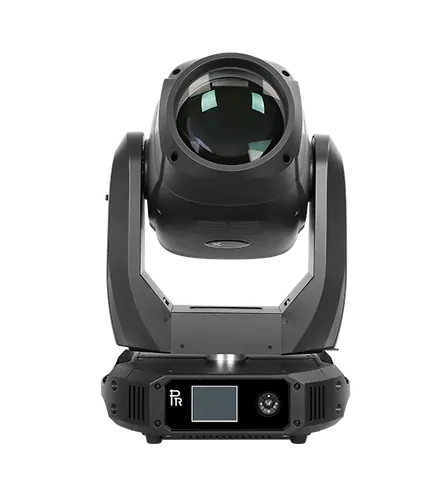

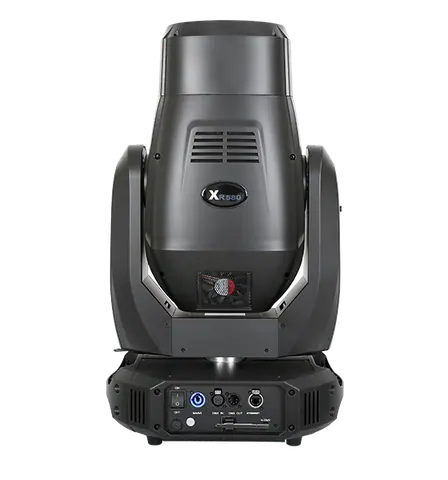

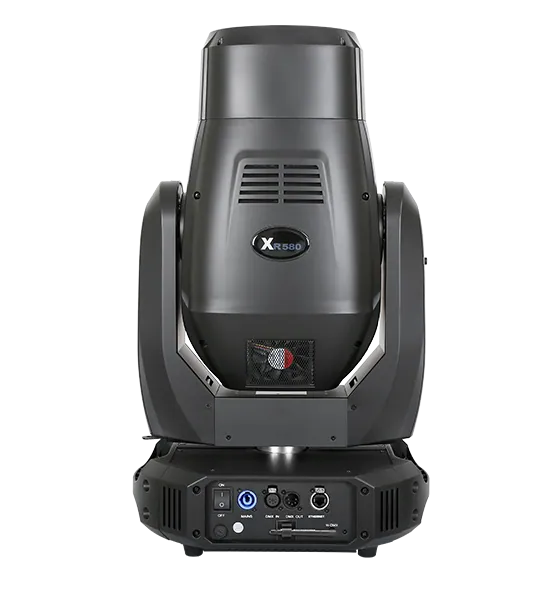

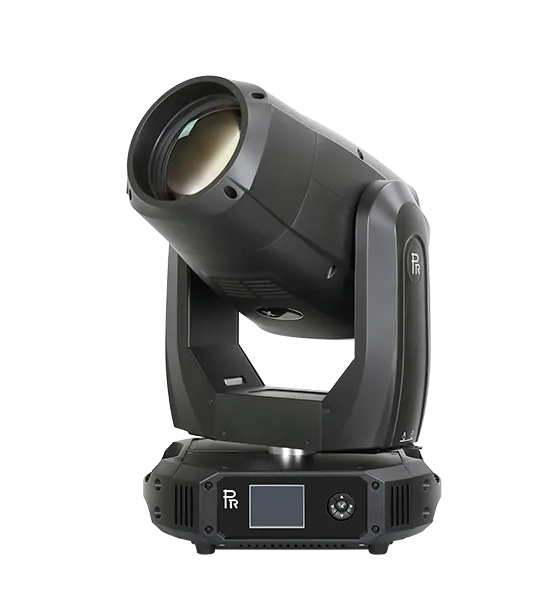

XR 580 BWS

ModelPR-2552

Power consumption: 800W @ 220V
Power supply: 100V~240V AC,50/60Hz
Net weight: 26Kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 1:57

PR Lighting XR 580 BWS1:57

02SpecificationManufacturer's data · 16 groups · 39 values

What this product is, in numbers.

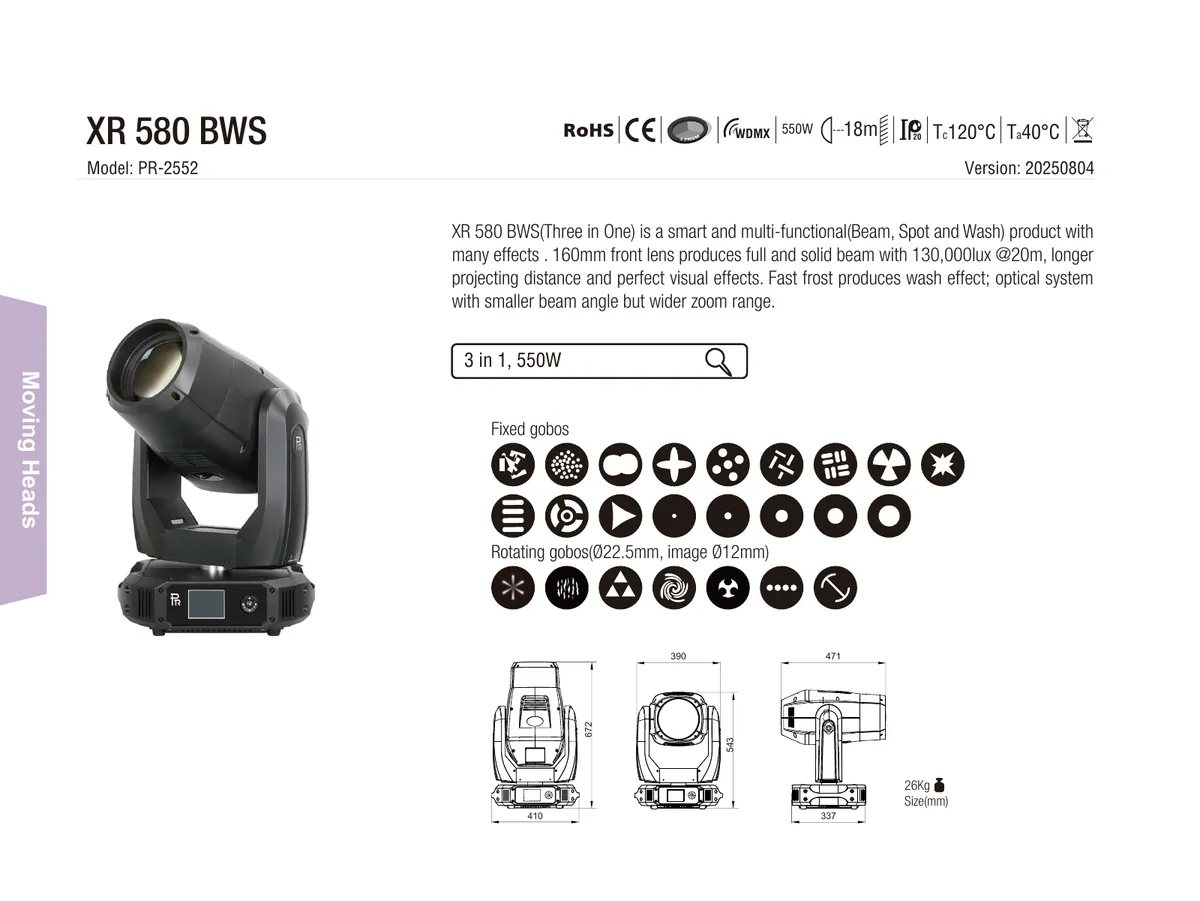

PDFDatasheetEN · 2 pages · 524 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01ELECTRIC PARAMETERS4

Input voltages: 100V~240V AC,50/60Hz
Input Power: 800W @ 220V
Current at Maximum: 8A
Power factor: PF〉0.9

02LAMP SPECIFICATIONS4

Lamp PHILIPS MSD Platinum 500L Flex (550W)

Color Temperature 7800K

Manufacturers Rated Lamp Life 1500hours

Energy Save Mode 4000hours

03INDEPENDENT CTO SYSTEM1

Linear CTO system (0-100%)

04PRISM1

3 overlapping prisms (9 facet circular prism)(8 facet circular prism+4 facet linear prism) and some other optional prisms

05EFFECT WHEEL1

1 graphic effect wheel, bi-directional rotation with variable speeds, and overlapping fixed and rotating gobo wheels

06FROST1

1Pc frost filter

Show the full specificationHide the rest of the specification10 more groups · 27 values

07FOCUS1

DMX linear focus

08ZOOM1

DMX linear focus

09DIMMER/STROBE1

0-100% Linearly adjustable/ Double shutter blades, 0.3~25 F.P.S

10HEAD MOVEMENT1

Pan 540º, Tilt 270º with auto position correction

11BEAM ANGLE3

Beam Mode: 0°-- 2.0°
Spot Mode: 2.0°-- 40°Linear Adjustment
Wash Mode: 3°-- 50° Linear Adjustment

12CONTROL3

DMX512, 5 pin interfaces (Optional 3-pin)

25channels in short mode, 31channels in standard mode , 35channels in extended mode

Self-test mode

13OTHER FUNCTIONS6

Adjustable Pan & Tilt speeds

Lamp’s and fixture’s hours displayed

Modular Structure for easy maintenance

DMX512 wireless receiever

DMX512 Wireless Transmitter ( Optional)

ArtNet and sACN ( Optional)

14HOUSING2

High temperature ABS, IP20
NET WEIGHT: 26Kg

15AMBIENT TEMPERATURE3

Temperature at maximum 40°C
Waterproof projector: When the ambient temperature is below minus 20 Celsius, please preheat the lamp not less than 10 minutes and then reset the projector.
【Version: 20250804】

16General6

CMY color mixing system with macros
1 Color wheel: 12colors+ Open, rainbow effect with bi-directional and variable speeds, Stepping/linear color changing
1 Fixed gobo wheel: 17 gobos +Open; Bi-directionally rotatable, and shakable at variable speeds
1 Rotating gobo wheel: 7Interchangeable Gobos +Open; Bi-directionally rotatable, and shakable at variable speeds

03DescriptionManufacturer's description

What it is.

XR 580 BWS(Three in One) is a smart and multi-functional(Beam, Spot and Wash) product with many effects . 160mm front lens produces full and solid beam with 130,000lux @20m, longer projecting distance and perfect visual effects. Fast frost produces wash effect; optical system with smaller beam angle but wider zoom range, double strobe flags and 3 prisms proudce dynamic and plentiful in-air effects; a rotating gobo wheel(7gobos+open),a fixed gobo wheel(17gobos+open), a animation effect, linear CMY color mixing, linear CTO and a color wheel(12colors+open), the combination of which produces infinite colors and hues. And rainbow effect by continually and fast rotating color wheel. It’s for TV studio, theaters, entertainment, concerts and etc..
