Sheet 05.737

PR Lighting · Hybrid fixtures

XRLED 400 BWS

ModelPR-8152

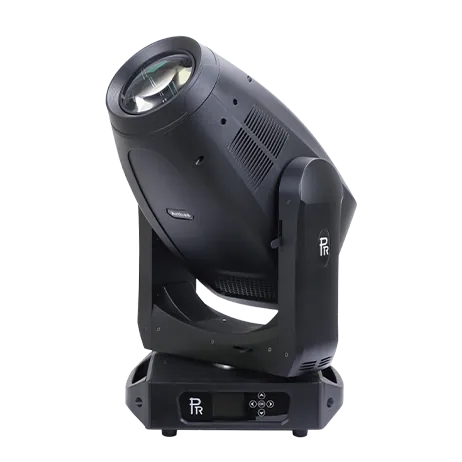

XRLED 400 BWS(Three in One) is a moving head light with modes for Beam, Spot and Wash.

Light source: 500W White LED Engine(7800K±200K)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 1:23

PR Lighting XRLED 400 BWS1:23

02SpecificationManufacturer's data · 18 groups · 37 values

What this product is, in numbers.

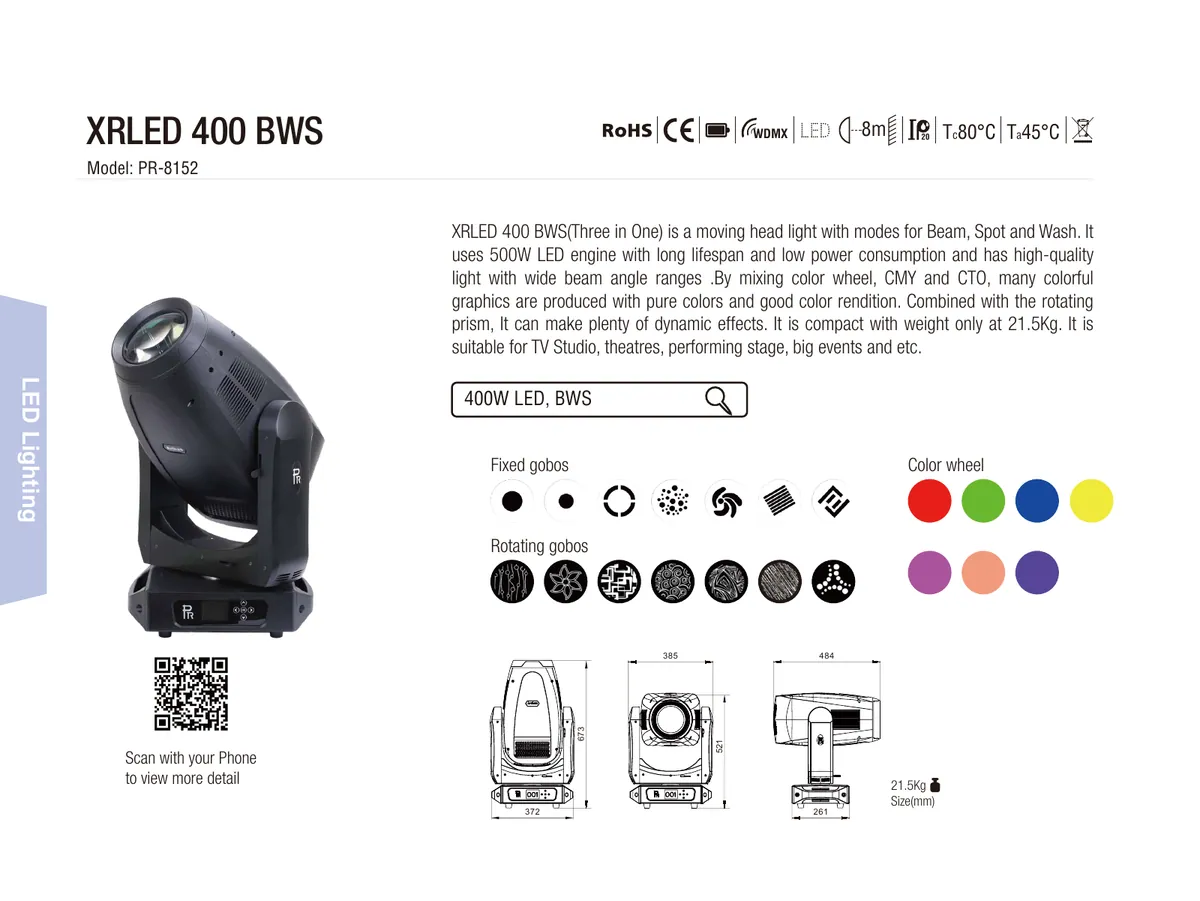

PDFDatasheetEN · 2 pages · 430 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Input Voltage1

120V~240VAC,50/60Hz

02Input Power1

600W @ 220V

03Light Source1

500W White LED Engine(7800K±200K)

04CRI2

CRI >72 (Standard)

CRI>90 (Optional)

05Colors2

1Color wheel: 7colors + Open; CMY+CTO

06Fixed Gobo Wheel/Effectwheel2

1 fixed gobo wheel: 7 gobos+open; 1 fire effect wheel

Show the full specificationHide the rest of the specification12 more groups · 28 values

07Rotating Gobo Wheel1

1 rotating gobo wheel: 7 gobos +open Gobo diameter Ø19.5mm, 4mm thick

08Prism/Frost2

1 4-facet prism

1 Frost

09Focus1

DMX linear focus

10Dimmer /Strobe2

Strobe at variable speeds

0-100% linear dimmer

11Head Movement1

Pan 540º, Tilt 270º with 16 bit control

12ngle3

Beam: 5°~ 45°
Spot: 11°~ 46°
Wash: 8°~ 48°

13Control5

Projector and lamp information readable, external DMX value received and thermal sensor

built-in for error and malfunction analysis Preset memory

Unintentional head move to cause power-off, quiet fans for cooling

International standard DMX 512 protocol, 5-pin interface 22channels in short mode and

28channels in standard mode

14Optionalwireless Controlmodule/Rdm Module5

Compliant with USITT DMX-512(1986 and 1990)and 512-AFull DMX for fidelity and; DMX framing integrity; Auto-detecting DMX framing size and speed; <5ms DMX delay
Frequency range: 2402-2480 MHz

15Housing1

High temperature ABS and aluminum , IP20

16Operation Temperature2

Ambient temperature at maximum: 45°C
Ambient temperature at minimum: -5°C

17Net Weight1

21.5Kg

18Accessories4

Safety cord 1 Pc

Clamp 2 Pc

Foldable clamp 2 Pc (Optional)

User manual 1 Pc

03DescriptionManufacturer's description

What it is.

XRLED 400 BWS(Three in One) is a moving head light with modes for Beam, Spot and Wash. It uses 500W LED engine with long lifespan and low power consumption and has high-quality light with wide beam angle ranges .By mixing color wheel, CMY and CTO, many colorful graphics are produced with pure colors and good color rendition. Combined with the rotating prism, It can make plenty of dynamic effects. It is compact with weight only at 21.5Kg. It is suitable for TV Studio, theatres, performing stage, big events and etc.
