Sheet 05.583

PR Lighting · Spot and profileOn request

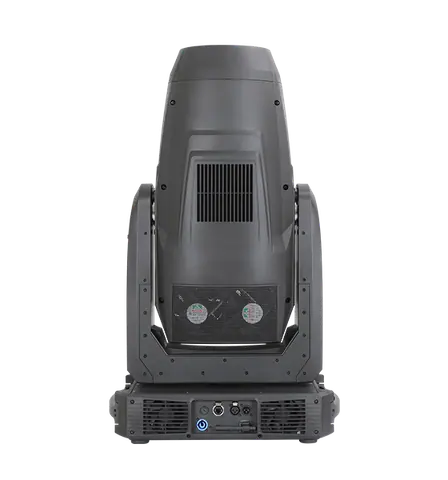

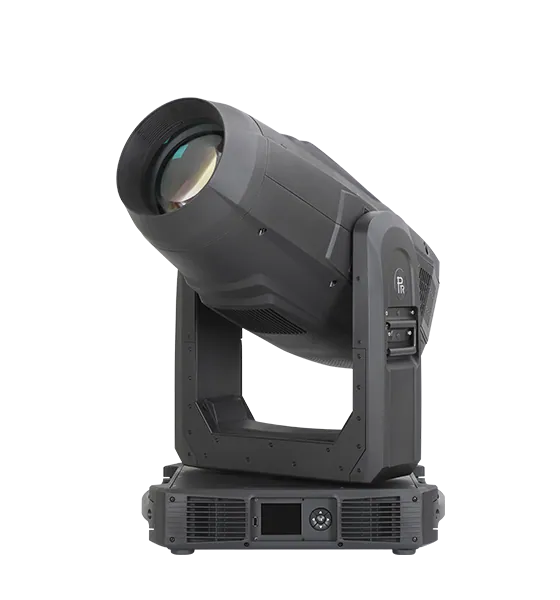

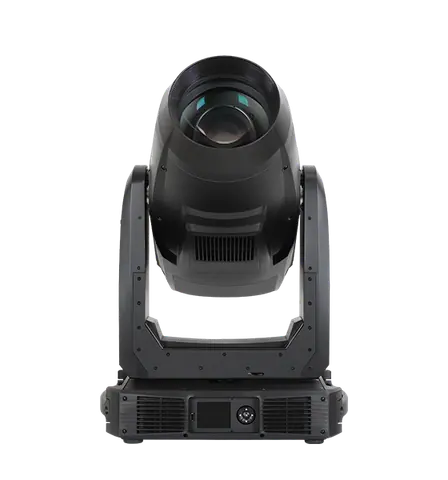

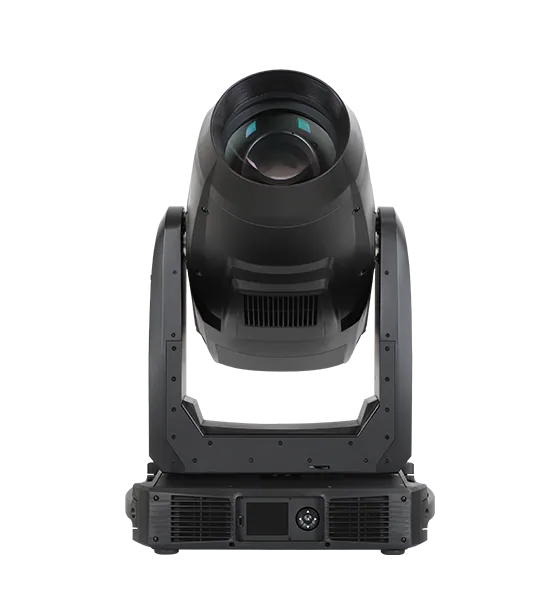

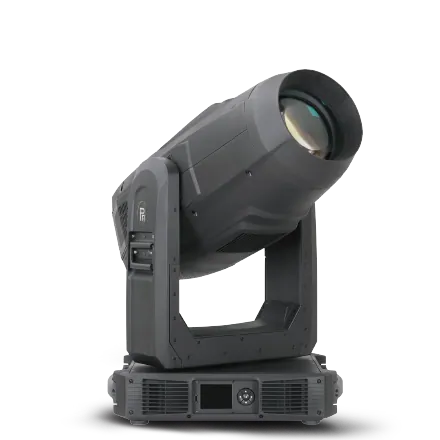

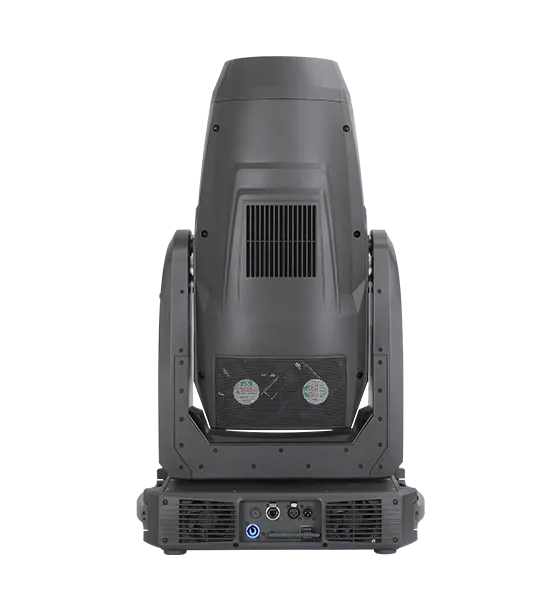

XRLED 2500-W Framing

ModelPR-8157

Light source: 1000W white LED module,6900K

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 24 groups · 52 values

What this product is, in numbers.

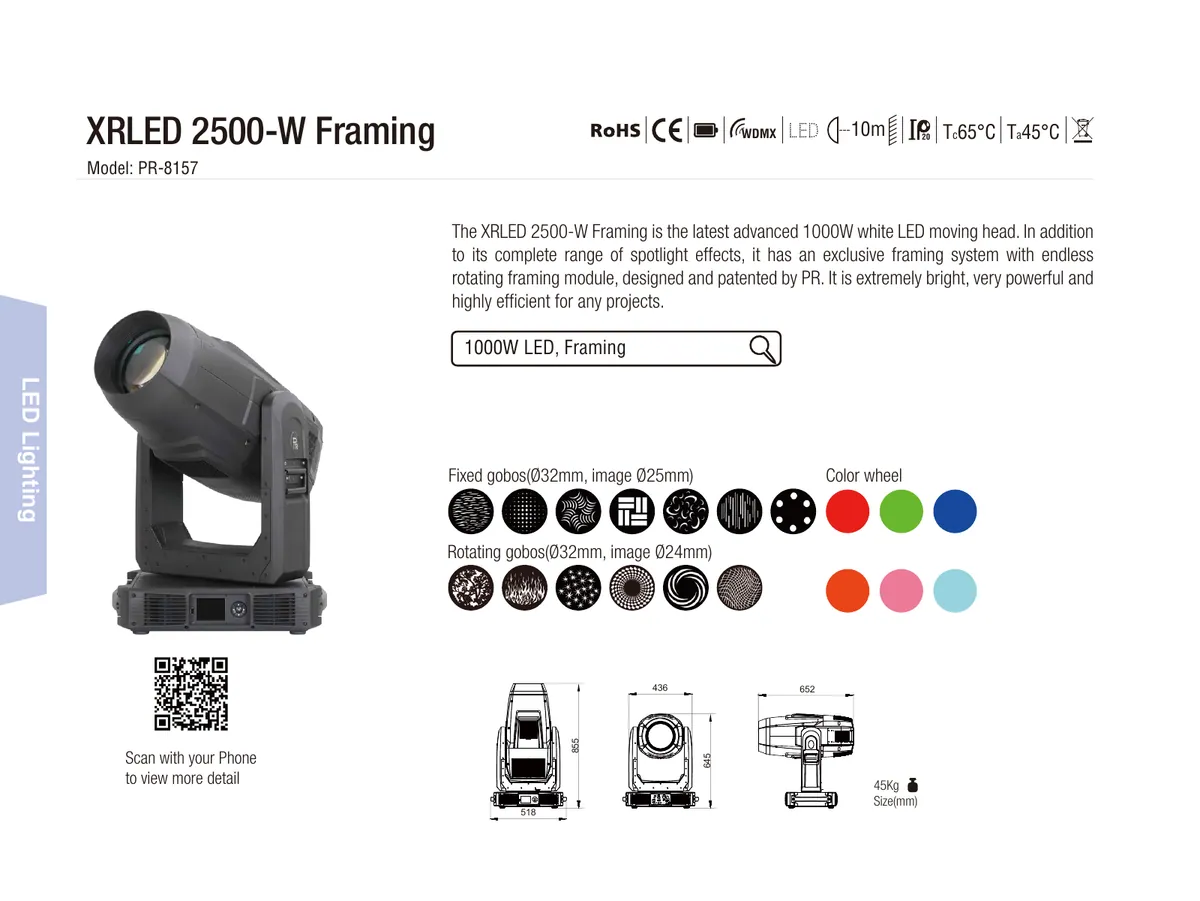

PDFDatasheetEN · 2 pages · 1.1 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Input voltage1

100V-240V AC,50/60Hz

02Input power2

1450W@220V

1600W@100V

03Light sources3

1000W white LED module,6900K
Ra≥95, R9≥95 ( Optional highly bright version: Ra≥70)
Manufacturers Rated Lamp Life: >20000hrs

04Cto1

Linear CTO system(0-100%, 1800K-6500K)

05Effect wheel1

1 animation effect wheel, bi-directional rotation with varied speeds

06Iris1

Linear iris 5-100% with macros

Show the full specificationHide the rest of the specification18 more groups · 43 values

07Prism1

1 pc of 4-facet circular prism, bi-directional rotation with varied speeds with indexing function

08Frost1

1 heavy frost filter (0-100% linear)

09Beam angle1

Linear zoom 6°~ 54° with 16 bit precision

10Focus1

Linear focus with auto-focus function

11Dimmer4

Linear electronic dimmer 0-100% with 16 bit control

3 dimmer speeds

4 dimmer gamma curves

Dimmer frequency adjustable between 1.2K and 25K

12Strobe1

Electronic strobe, 0.3~25 F.P.S

13Head movement1

Pan 540º, Tilt 270º with auto position correction and 16 bit control

14Control2

International standard DMX512 signal and RDM function

38channels in short mode, 42channels in standard mode,57channel in extended mode

15Control interface2

DMX512 ports(5-pin)

Ethernet port RJ45

16Other functions14

Pan and Tilt speeds adjustable

Pan and Tilt swappable and invertible

High precision magnet sensor for positioning

3.2-inch touch color screen, Chinese and English menus,

Screen automatic lock –up while standby

Error diagnostic system with sensors

Smart fan cooling system

Display of fixture hours and software versions

Modular construction for easy maintenance

Isolated input signals

Firmware update via DMX cable or USB port

DMX512 wireless reciever

DMX512 Transmitter(Optional)

ArtNet and sACN(Optional)

17IP Rating1

IP20

18Operation temperature1

Ambient temperature 45°C at maximum

19Weight1

Net weight 45Kg

20CMY1

CMY linear coloring mixing system with macros

21Color Wheel4

1 Color Wheels: 6 colors+Open
Color Wheel: Red, Green, Blue, Orange, Pink, Light cyan, Open; Bi-directional rainbow effect with variable speeds; Full color/half color/linear color

22Rotating Gobo3

1 rotating gobo wheel: 6 exchangeable+ open; Bi-directional rotation, indexing, shake with varied speeds; bi-directional scrolling with varied speeds

23Fixed Gobo2

1 Fixed gobo wheel: 7 exchangeable gobos+ open; Shake effect with varied speeds and bi-directional rotation with varied speeds

24Framing2

Framing module: 4 framing blades to make graphics with different sizes and shapes; Each blade to make full curtain effect .Continual and bi-directional rotation for the whole module
