Sheet 05.584

PR Lighting XRLED 3000-W Framing, product photo 1 of 3 — Fig. 01 / 03 · manufacturer’s images

PR Lighting · Spot and profile

PR Lighting XRLED 3000-W Framing PR-8137

ModelPR-8137

The XRLED 3000-W Framing is the latest advanced 1200W white LED moving head. In addition to its complete range of spotlight effects, it has an exclusive framing system with endless rotating framing module, designed and patented by PR.

Net weight: 45kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 1:51

PR Lighting XRLED 3000-W Framing1:51

02SpecificationManufacturer's data · 25 groups · 56 values

What this product is, in numbers.

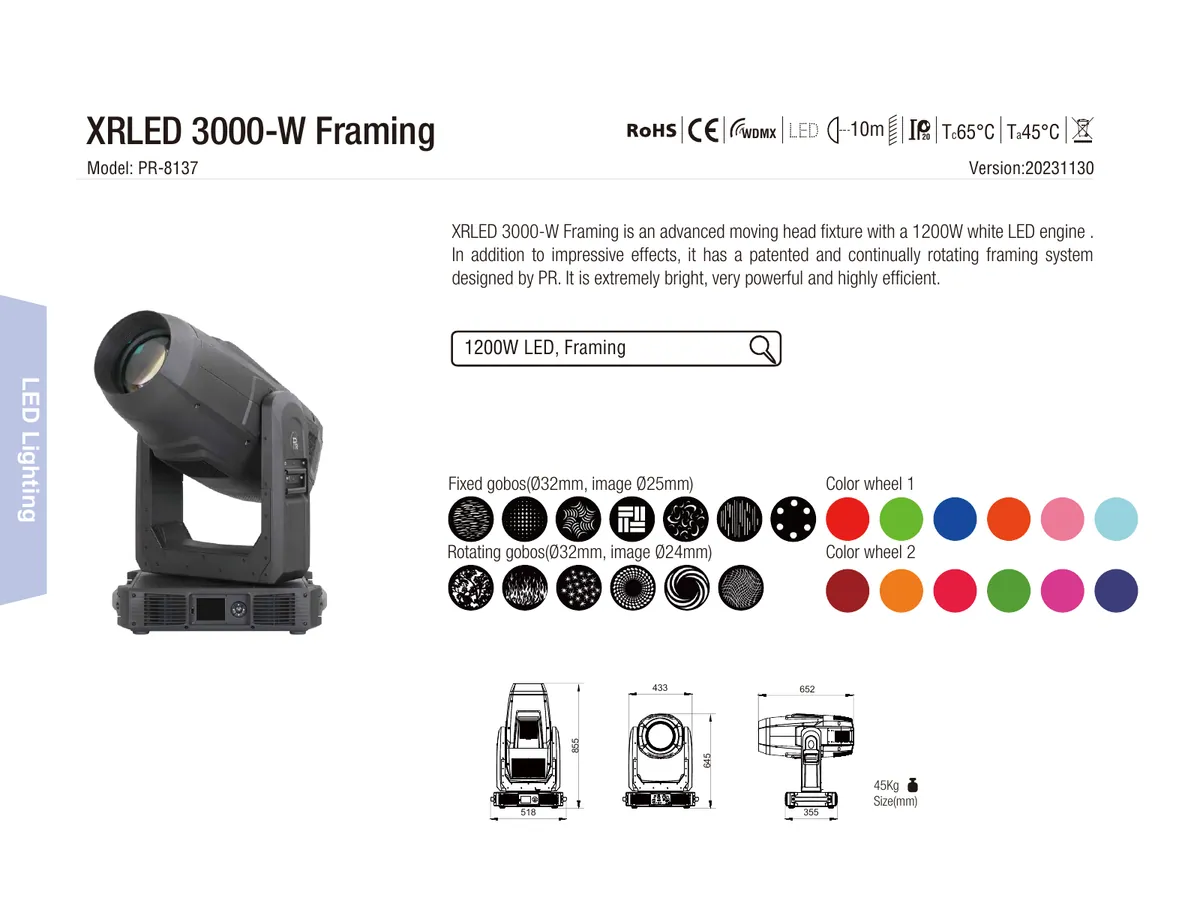

PDFDatasheetEN · 2 pages · 1.0 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Input Voltages2

100-240V AC, 50/60Hz
Input power: 1550W@220V,1700W@100V

02Light Source1

1200W white LED( 6900K), 20000 hrs, CRI: Ra≥95( Optional high out version: Ra≥70)

03CTO1

Linear CTO system(0-100%, 1800K-6500K)

04Dimmer4

Linear electronic dimmer 0-100% with 16 bit control

3 dimmer speeds

4 dimmer gamma curves

Dimmer frequency(1.2K-25K)

05Framing2

4 framing blades to make graphics with different sizes and shapes Each blade to make

full curtain effect,Continual and bi-directional rotation for the whole module

06Effect1

1 animation effect wheel, bi-directional rotation with varied speeds

Show the full specificationHide the rest of the specification19 more groups · 45 values

07Iris1

Linear iris 5-100% with macros

08Prism2

1pc of 4-facet circular prism+1 pc of linear prism

bi-directional rotation with varied speeds with indexing function

09Frost1

2 frost filters: 1 heavy frost filter + 1 light frost filter (0-100% linear )

10Beam Angle1

Linear zoom 6°~ 54°with 16 bit precision

11Focus1

Linear focus with auto-focus function

12Strobe1

Electronic strobe, 0.3~25 F.P.S

13Head Movement1

Pan 540º, Tilt 270º with auto position correction and 16 bit control

14Control3

International standard DMX512 signal and RDM function

42channels in short mode, 47channels in standard mode,62channel in extended mode

Art Net protocol and sCAN protocol(optional), DMX512 wireless control

15Control Interface2

DMX512 ports(5-pin)

Ethernet port RJ45

16Other Functions11

Pan and Tilt speeds adjustable

Pan and Tilt swappable and invertible

High precision magnet sensor for positioning

3.2-inch touch color screen, Chinese and English menus

Screen automatic lock –up while standby

Error diagnostic system with sensors

Smart fan cooling system

Display of fixture hours and software versions

Modular construction for easy maintenance

Isolated input signals

Firmware update via DMX cable or USB port

17Weight1

Net weight: 45kg

18Physical2

Housing: composite plastic, IP20
Ambient working temperature: maximum 45°C

19Accessories5

G clamp, 2 pcs; 5 pins XLR connector, 1 set; Safety cord, 2 pcs; Power cord, 1 pc
Optional: Ω clamp, 2 pcs

20Packaging2

Standard: carton 555x655x820(mm)
Optional: flight case 725x625x855(mm)

21CMY1

CMY linear coloring mixing system with macros

22Color Wheel3

2 Color wheels: each with 6 dichroic colors filters plus open; Full color/half color/linear color; Bi-directional rainbow effect with variable speeds

23Fixed Gobo2

1 fixed gobo wheel: 7 exchangeable gobos+ open; Shake effect with varied speeds and bi-directional rotation with varied speeds

24Rotating Gobo3

1 rotating gobo wheel: 6 exchangeable+ open; Bi-directional rotation, indexing, shake with varied speeds; bi-directional scrolling with varied speeds

25Framing2

4 framing blades to make graphics with different sizes and shapes Each blade to make full curtain effect

Continual and bi-directional rotation for the whole module
