PR Lighting XRLED 3000-W Framing PR-8837

Name: PR Lighting XRLED 3000-W Framing PR-8837
Brand: PR Lighting

ModelPR-8837

The XRLED 3000-W Framing is the latest advanced 1200W white LED moving head. In addition to its complete range of spotlight effects, it has an exclusive framing system with endless rotating framing module, designed and patented by PR.

PriceOn request

Request a quotation Discuss your project

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:24

PR Lighting XRLED 3000-W Framing2:24

02SpecificationManufacturer's data · 30 groups · 70 values

What this product is, in numbers.

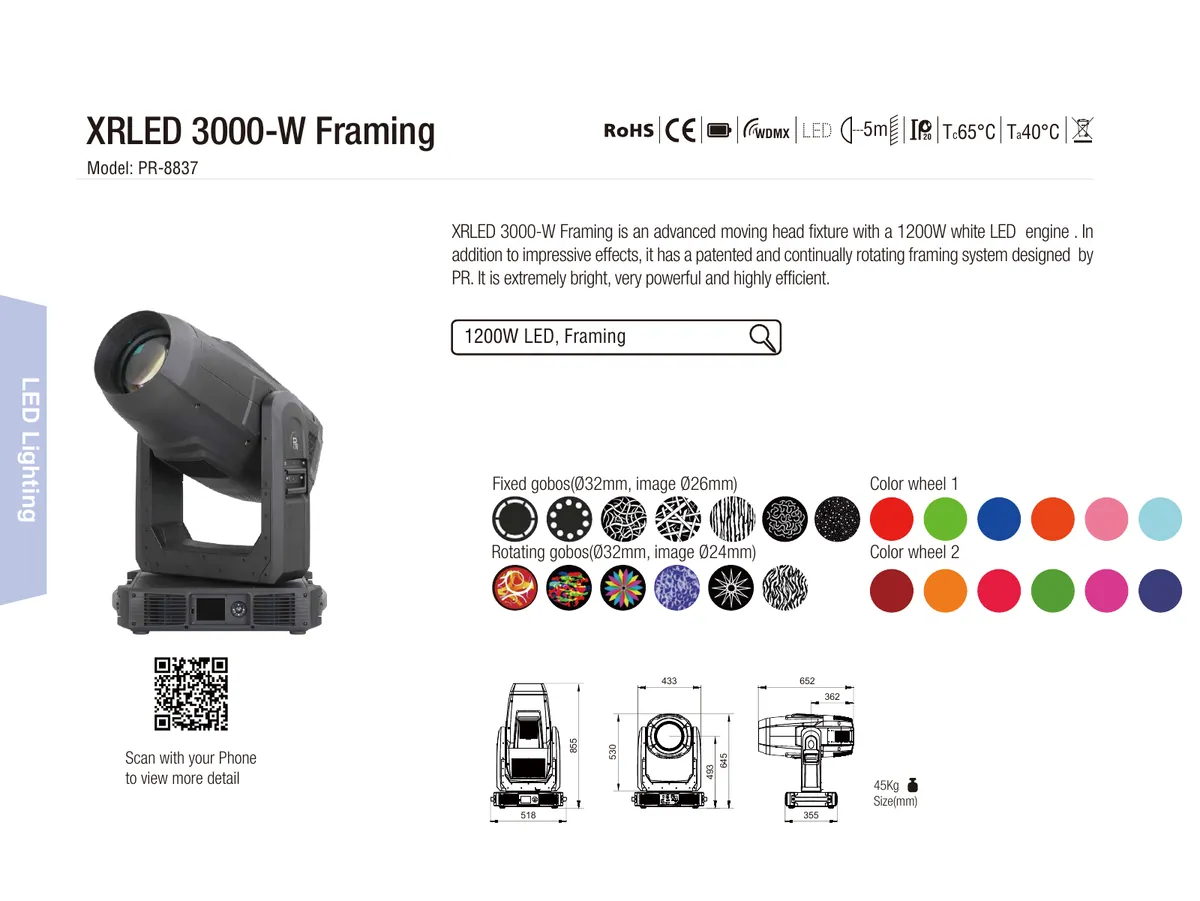

PDFDatasheetEN · 2 pages · 1.0 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Input Voltages1

100V-240V AC,50/60Hz

02Input Power3

1550W@220V; 1700W@100V
Power factor: PF>0.95

03Light Sources1

1200W white LED module (6900K), CRI: Ra≥95, R9≥95

04Cto1

Linear CTO system(0-100%, 1800K-6500K)

05Effect Wheel1

1 animation effect wheel, bi-directional rotation with varied speeds

06Iris1

Linear iris 5-100% with macros

Show the full specificationHide the rest of the specification24 more groups · 62 values

07Prism2

1pc of 4-facet circular prism+1 pc of linear prism

bi-directional rotation with varied speeds with indexing function

08Frost1

2 frost filters: 1 heavy frost filter + 1 light frost filter (0-100% linear )

09Beam Angle1

Linear zoom 6°~ 54°with 16 bit precision

10Focus1

Linear focus with auto-focus function

11Dimmer4

Linear electronic dimmer 0-100% with 16 bit control

3 dimmer speeds

4 dimmer gamma curves

Dimmer frequency(1.2K-25K)

12Strobe1

Electronic strobe, 0.3~25 F.P.S

13Head Movement1

Pan 540º, Tilt 270º with auto position correction and 16 bit control

14Advanced Macros2

Color temperature macros: optional 2700K,3000K,3500K,4000K,4500K,5000K,5700K
Standard color macros: 89 color options

15Brightness Calibration Function3

With brightness calibration function to calibrate initial brightness

for a single fixture or multiple ones and store brightness

values into the fixtures

16Fan Mode1

Standard mode and theater modes. Theater mode is quiet mode

17Fixture Types5

Including moving head light, fixed-focus profile light, zoom profile light; Moving head light with beam angle range(6-54°); Fixed focus profile light with beam angle options including 6°,10°,19°,26°,36°,50°; Zoom profile light with beam angle ranges including 6-15°,15-35°,35-54°
(Note: Auto quiet theater mode for fixed focus profile light and zoom profile light)

18CRI Mode1

Running at high CRI mode via DMX channel to ensure high CRI optical effect

19Control3

International standard DMX512 signal and RDM function

47channels in short mode, 52channels in standard mode,67channel in extended mode

Art Net protocol , sCAN protocol(optional), DMX512 wireless control

20Control Interface2

DMX512 ports(5-pin)

Ethernet port RJ45

21Other Functions12

Pan and Tilt speeds adjustable

Pan and Tilt swappable and invertible

High precision magnet sensor for positioning

3.2-inch touch color screen

Chinese and English menus

Screen automatic lock –up while standby

Error diagnostic system with sensors

Smart fan cooling system

Display of fixture hours and software versions

Modular construction for easy maintenance

Isolated input signals

Firmware update via DMX cable or USB port

22IP Rating1

IP20

23Operation Temperature1

45°C at Maximum

24Weight1

Net weight 45Kg

25Accessories5

G clamp2 Pcs

XLR connector 1 Set Male and female

Safety cord2 Pcs

User manual1 Pc

Ω clamp2 Pcs Optional

26CMY1

CMY linear coloring mixing system with macros

27Color Wheel5

2 Color Wheels
Color wheel1: Red,Yellow,Blue,Green,Pink,Orange,Open
Color Wheel2: Dark Red,Dark Magenta,Light Yellow,Light Green,Dark Cyan, UV, Open; Bi-directional rainbow effect with variable speeds; Full color/half color/linear color

28Fixed Gobo3

1 rotating gobo wheel: 6 exchangeable+ open; Bi-directional rotation, indexing, shake with varied speeds; bi-directional scrolling with varied speeds

29Rotating Gobo2

1 Fixed gobo wheel: 7 exchangeable gobos+ open; Shake effect with varied speeds and bi-directional rotation with varied speeds

30Framing3

Framing module: 4 framing blades to make graphics with different sizes and shapes; Each blade to make full curtain effect .Continual and bi-directional rotation for the whole module; Framing module rotates bi-directionally up to 360 °and continually, each framing blade produces full curtain effect
