Sheet 05.587

PR Lighting · Spot and profile

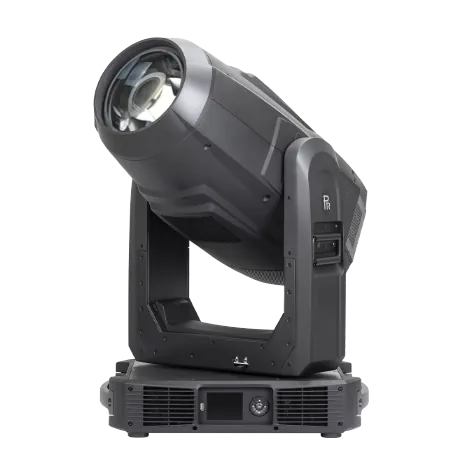

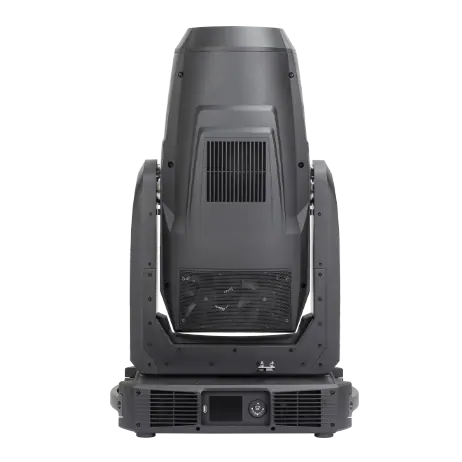

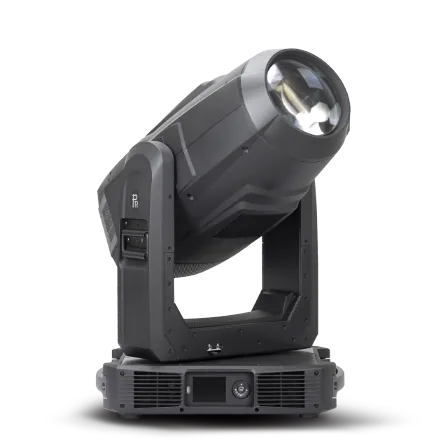

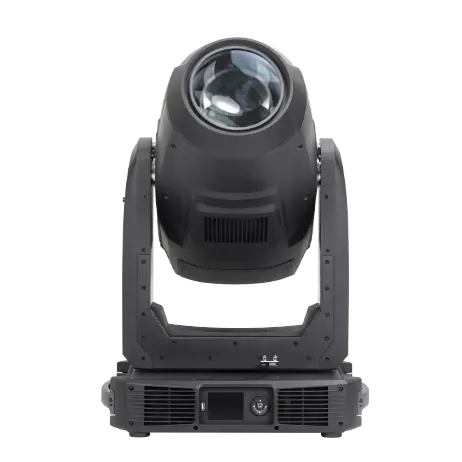

XRLED 3500-W Framing

ModelPR-8847

Light source: 1500W white LED module(6500K, ≥20000hrs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:15

PR Lighting XRLED 3500-W Framing2:15

02SpecificationManufacturer's data · 29 groups · 59 values

What this product is, in numbers.

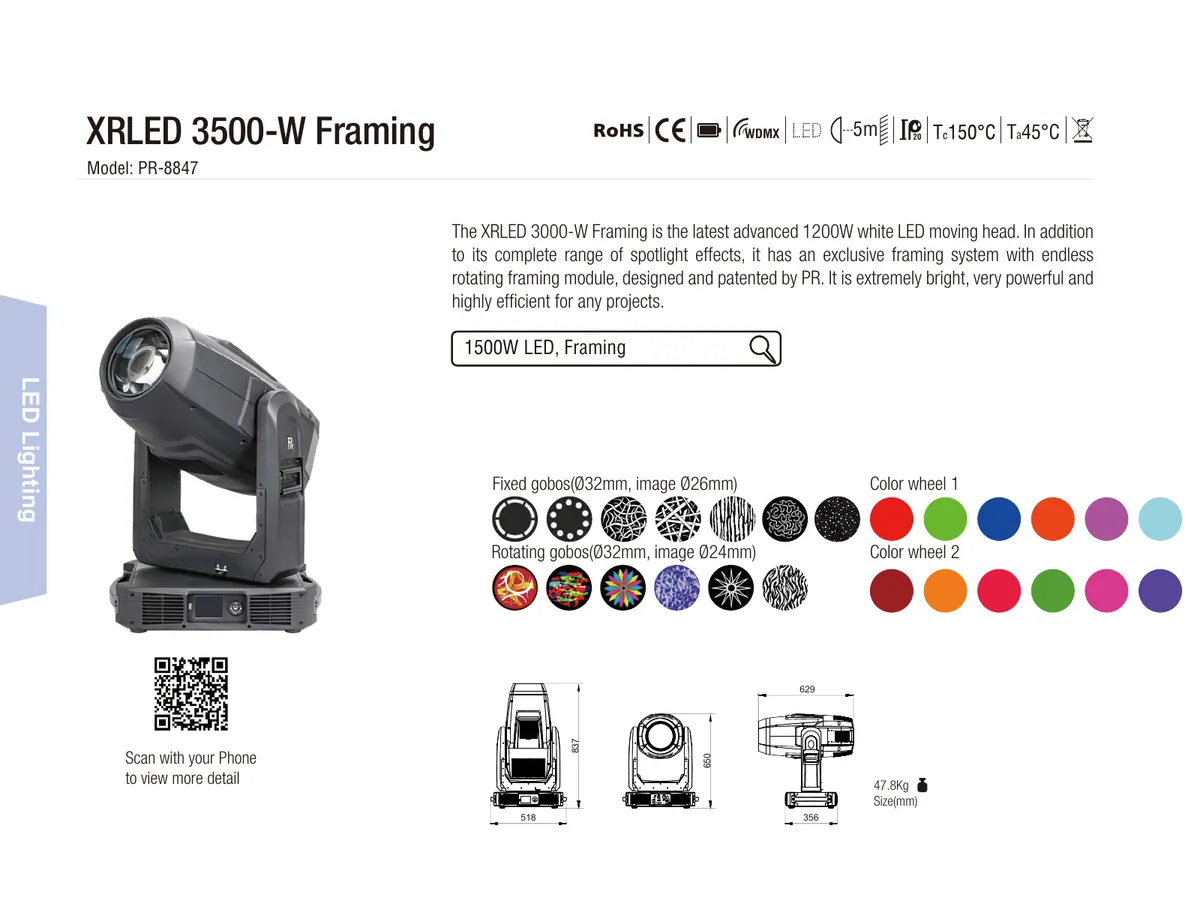

PDFDatasheetEN · 2 pages · 1.0 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Input voltage1

100V-240V AC,50/60Hz

02Input power1

1900W@220V

03Light sources1

1500W white LED module(6500K, ≥20000hrs)

04Cto1

Linear CTO system(0-100%, 1800K-6500K)

05Effect wheel1

1 animation effect wheel, bi-directional rotation with varied speeds

06Iris1

Linear iris 5-100% with macros

Show the full specificationHide the rest of the specification23 more groups · 53 values

07Prism2

1pc of 4-facet circular prism+1 pc of linear prism,

bi-directional rotation with varied speeds with indexing function

08Frost1

2 frost filters: 1 heavy frost filter + 1 light frost filter( 0-100% linear )

09Beam angle1

Linear zoom5°~50°with 16 bit precision

10Focus1

Linear focus with auto-focus function

11Dimmer4

Linear electronic dimmer 0-100% with 16 bit control

3 dimmer speeds

4 dimmer gamma curves

Dimmer frequency(1.2K-25K)

12Strobe1

Electronic strobe, 0.3~25 F.P.S

13Head movement1

Pan 540º, Tilt 270º with auto position correction and 16 bit control

14Advanced macros2

Color temperature macros: optional 2700K,3000K,3500K,4000K,4500K,5000K,5700K
Standard color macros: 89 color options based on standard color chart.

15Fan mode1

Standard mode and theater modes. Theater mode is quiet mode

16Fixture types5

Including moving head light, fixed-focus profile light, zoom profile light; Moving head light with beam angle range(5-50°); Fixed focus profile light with beam angle options including 5°,10°,19°,26°,36°,50°; Zoom profile light with beam angle ranges including 5-15°,15-35°,35-50°
(Note: Auto quiet theater mode for fixed focus profile light and zoom profile light)

17Brightness calibration function2

With brightness calibration function to calibrate initial brightness for

a single fixture or multiple ones and store brightness values into the fixtures

18CRI mode1

Running at high CRI mode via DMX channel to ensure high CRI optical effect.

19Control3

International standard DMX512 signal and RDM function

47channels in short mode, 52channels in standard mode,67channel in extended mode

Art Net protocol , sACN protocol, DMX512 wireless control

20Control interface2

DMX512 ports(5-pin)

Ethernet port RJ45

21Other functions10

Pan and Tilt speeds adjustable

Pan and Tilt swappable and invertible

High precision magnet sensor for positioning

Built-in rechargeable battery for control panel without mains power

3.2-inch touch color screen, Chinese and English menus,

Screen automatic lock –up while standby

Error diagnostic system with sensors, Smart fan cooling system

Display of fixture hours and software versions

Modular construction for easy maintenance, Isolated input signals

Firmware update via DMX cable

22IP rating1

IP20

23Operation temperature1

45°C at Maximum

24Weight1

Net weight 47.8 Kg

25CMY1

CMY linear coloring mixing system with macros

262 Color Wheels4

Color Wheels 1: Red, Green, Blue, Orange ,Pink, Light cyan,+ open
Color Wheels 2: Dark Red, Amber, Tea red, Apple green, Dark magenta,UV+ open; Full color/half color/linear color; Bi-directional rainbow effect with variable speeds

27Fixed Gobo3

1 rotating gobo wheel: 6 exchangeable+ open; Bi-directional rotation, indexing, shake with varied speeds; bi-directional scrolling with varied speeds

28Rotating Gobo2

1 Fixed gobo wheel: 7 exchangeable gobos+ open; Shake effect with varied speeds and bi-directional rotation with varied speeds

29Framing3

Framing module: 4 framing blades to make graphics with different sizes and shapes; Each blade to make full curtain effect .Continual and bi-directional rotation for the whole module; Framing module rotates bi-directionally up to 360 °and continually, each framing blade produces full curtain effect
