Sheet 05.589

PR Lighting · Spot and profile

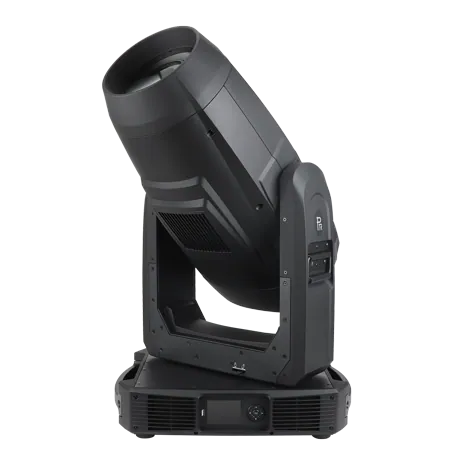

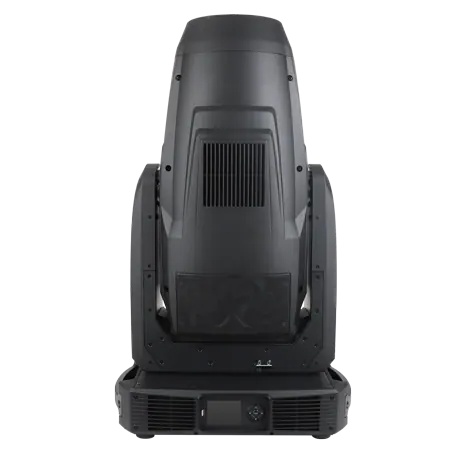

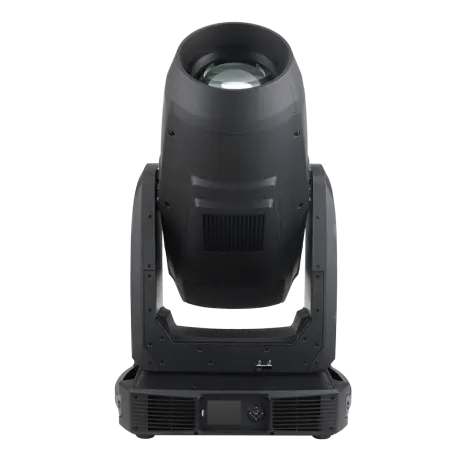

XRLED 4000-W Framing

ModelPR-8154

Power consumption: 2100W@220V
Power supply: 100V-240V AC,50/60Hz

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:29

PR Lighting XRLED 4000-W Framing2:29

02SpecificationManufacturer's data · 26 groups · 66 values

What this product is, in numbers.

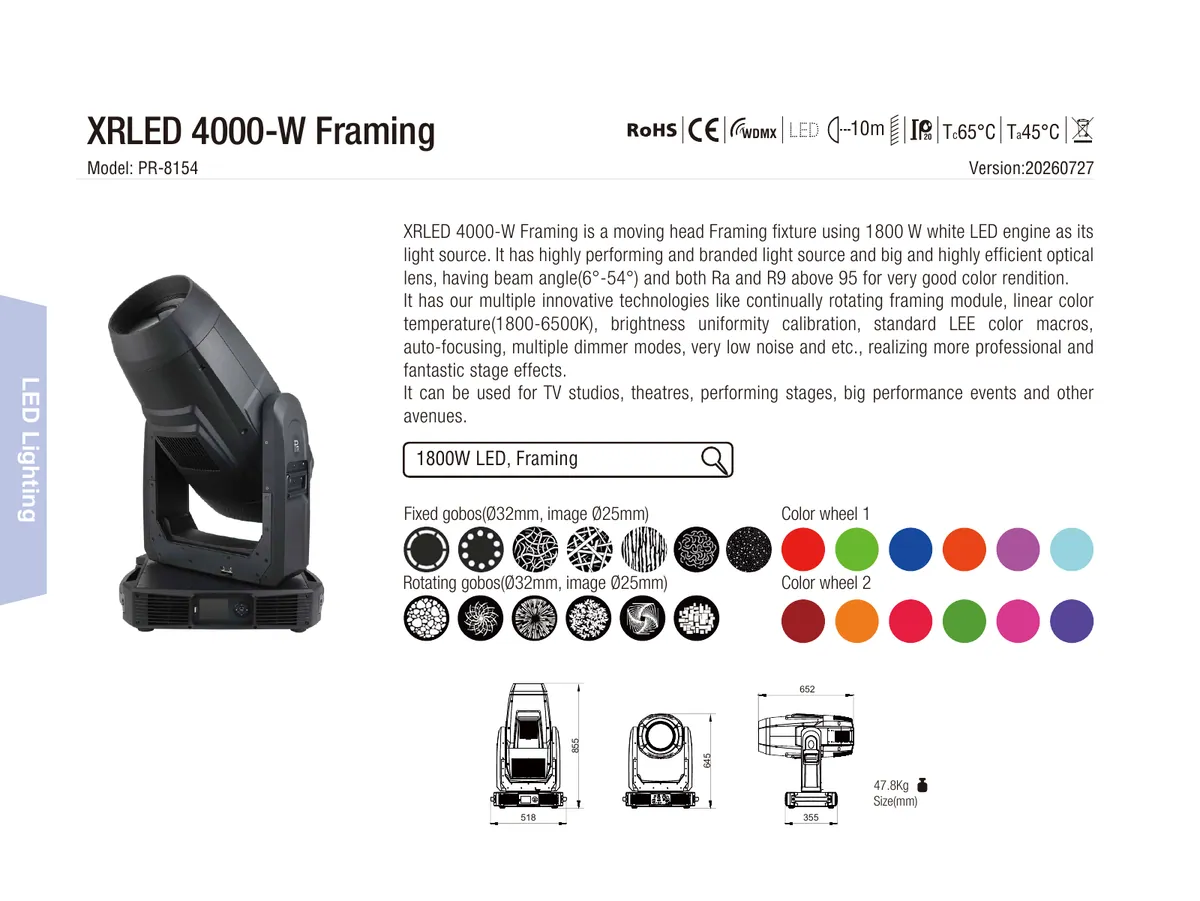

PDFDatasheetEN · 2 pages · 1.1 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01ELECTRICAL PARAMETERS4

Input voltage: 100V-240V AC,50/60Hz
Input power: 2100W@220V
Power factor: PF>0.95
Current at maximum: 9.5A @ 220V

02OPTICAL SYSTEM5

Light sources: 1800W white LED module
Colour Temperature: 8000K
CRI: Ra≥95、R9≥95
High out version: Ra ≥70
Manufacturers Rated Lamp Life: ≥20000hrs

03CTO1

Linear CTO system(0-100%, 1800K-6500K)

04EFFECT WHEEL1

1 animation effect wheel, bi-directional rotation with varied speeds

05IRIS1

Linear iris 5-100% with macros

06PRISM1

1pc of 4-facet circular prism+1 pc of linear prism, bi-directional rotation with varied speeds with indexing function

Show the full specificationHide the rest of the specification20 more groups · 53 values

07FROST1

2 frost filters: 1 heavy frost filter + 1 light frost filter (0-100% linear )

08BEAM ANGLE1

Linear zoom 6°-54°with 16 bit precision

09FOCUS1

Linear focus with auto-focus function

10DIMMER4

Linear electronic dimmer 0-100% with 16 bit control

3 dimmer speeds

5 dimmer gamma curves

Dimmer frequency(1.2K-25K)

11STROBE1

Electronic strobe, 0.3~25 Hz, optional synchronized/ non-synchronized strobes

12HEAD MOVEMENT1

Pan 540º, Tilt 270º with auto position correction and 16 bit control

13ADVANCED MACROS2

Color temperature macros: optional 2700K,3000K,3500K,4000K,4500K,5000K,5700K
Standard color macros: 89 color options

14FAN MODE1

Standard mode and theater modes. Theater mode is quiet mode

15FIXTURE TYPES5

Including moving head light, fixed-focus profile light, zoom profile light; Moving head light with beam angle range(6-54°); Fixed focus profile light with beam angle options including 6°,10°,19°,26°,36°,50°; Zoom profile light with beam angle ranges including 6-15°,15-35°,35-54°
(Note: Auto quiet theater mode for fixed focus profile light and zoom profile light)

16BRIGHTNESS CALIBRATION FUNCTION2

With brightness calibration function to calibrate initial brightness for a single fixture or multiple ones and store brightness

values into the fixtures

17CRI MODE1

Running at high CRI mode via DMX channel to ensure high CRI optical effect.

18CONTROL3

International standard DMX512 signal and RDM function

47channels in short mode, 52channels in standard mode,67channel in extended mode

Art Net protocol , sCAN protocol(optional), DMX512 wireless control

19CONTROL INTERFACE2

DMX512 ports(5-pin)

Ethernet port RJ45

20OTHER FUNCTIONS10

Pan and Tilt speeds adjustable

Pan and Tilt swappable and invertible

High precision magnet sensor for positioning

3.2-inch touch color screen, Chinese and English menus, Screen automatic lock –up while standby

Error diagnostic system with sensors

Smart fan cooling system

Display of fixture hours and software versions

Modular construction for easy maintenance

Isolated input signals

Firmware update via DMX cable port

21IP RATING1

IP20

22OPERATION TEMPERATURE1

45°C at Maximum

23WEIGHT1

Net weight 47.8Kg

24Cardboard box(mm)(L*W*H)1

815*615*810( 1pc/case )

25Flight case(mm) (L*W*H)2

765*665*895( 1pc/case )
【Version: 20260727】

26General12

CMY linear coloring mixing system with macros; 2 Color Wheels
Color Wheels 1: Red, Green, Blue, Orange ,Pink, Light cyan,+ open
Color Wheels 2: Dark Red, Amber, Tea red, Apple green, Dark magenta,UV+ open; Full color/half color/linear color; Bi-directional rainbow effect with variable speeds
1 rotating gobo wheel: 6 exchangeable+ open; Bi-directional rotation, indexing, shake with varied speeds and bi-directional scrolling with varied speeds
1 fixed gobo wheel: 7 exchangeable gobos+ open; Shake effect with varied speeds and bi-directional rotation with varied speeds
Framing module: 4 framing blades to make graphics with different sizes and shapes; Each blade to make full curtain effect .Continual and bi-directional 360°rotation for the whole module
