Sheet 05.588

PR Lighting · Spot and profile

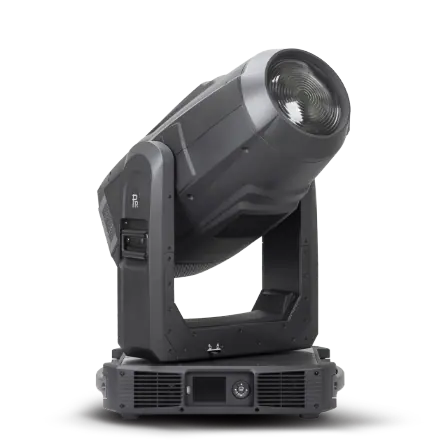

XRLED 3500-W Wash/Framing

ModelPR-8846

XRLED 3500-W Wash/Framing is a moving head light using 1500 W white LED engine. It has high-quality and highly bright light with both Ra and R9 above 95 for very good color rendition.

Light source: 1500W white LED module (6500K)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 23 groups · 49 values

What this product is, in numbers.

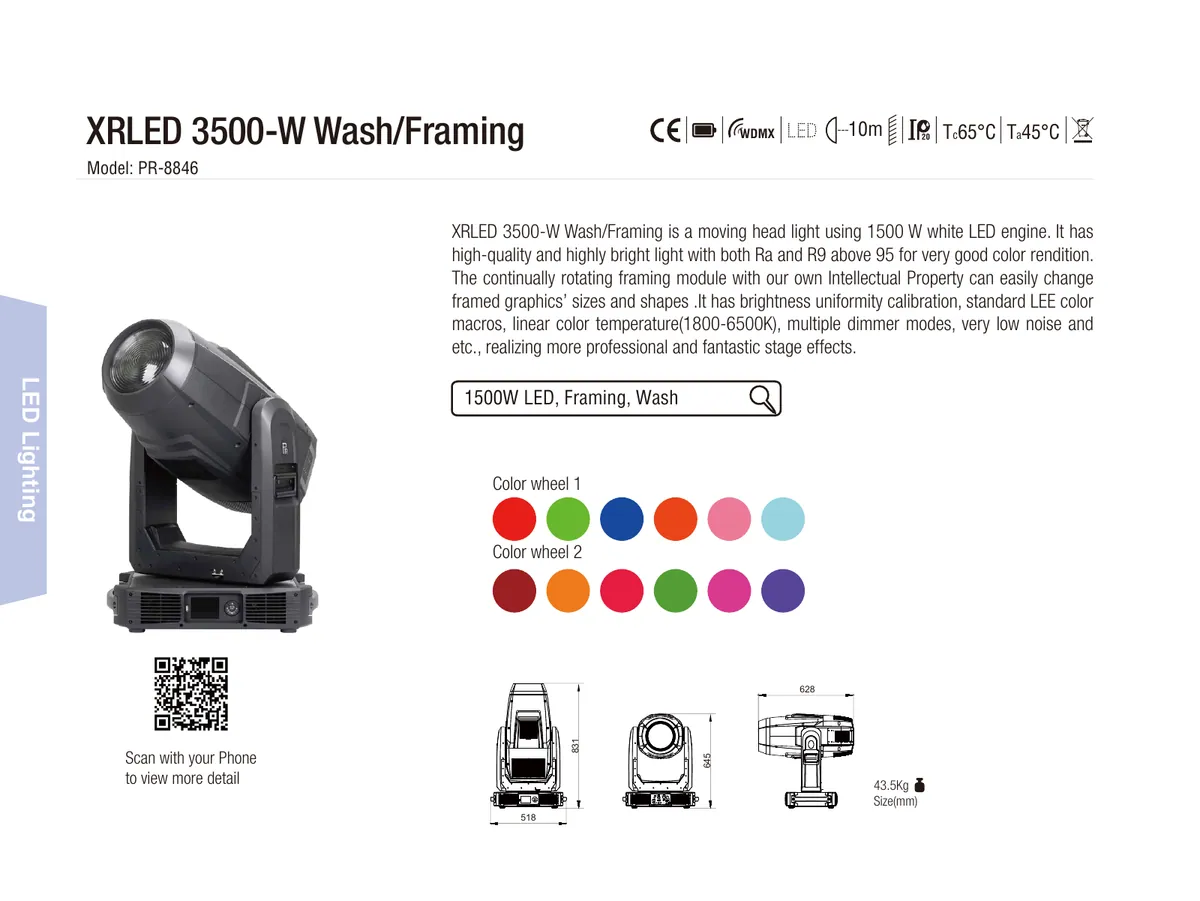

PDFDatasheetEN · 2 pages · 888 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Input voltage1

100V-240V AC,50/60Hz

02Input power1

1900W @ 220V

03Light sources2

1500W white LED module (6500K)
CRI: Ra≥95、R9≥95, Lamp Life : ≥20000hrs

04Cto1

Linear CTO system(0-100%, 1800K-6500K)

05Beam angle2

1/2θ(peak): 7°~40°, with 16 bit precision
1/10θ(peak): 12°~60°, with 16 bit precision

06Focus1

DMX linear focus

Show the full specificationHide the rest of the specification17 more groups · 41 values

07Dimmer4

Linear electronic dimmer 0-100% with 16 bit control

3 dimmer speeds

4 dimmer gamma curves

Dimmer frequency(1.2K-25K) adjustable, suitable for 4K high speed video camera

08Strobe1

Electronic strobe, 0.3~25 F.P.S, optional synchronized or non-synchronized strobe

09Head movement1

Pan 540º, Tilt 270º with auto position correction and 16 bit control

10Advanced macros2

Color temperature macros: optional 2700K,3000K,3500K,4000K,4500K,5000K,5700K
Standard color macros: 89 color options based on standard color chart

11Fan mode1

Standard mode and theater modes.Theater mode is quiet mode

12Brightness calibration function1

With brightness calibration function to calibrate initial brightness for

13General2

a single fixture or multiple ones and store brightness

values into the fixtures

14CRI mode1

Running at high CRI mode via DMX channel to ensure high CRI optical effect

15Control5

International standard DMX512 signal and RDM function

31channels in short mode, 35channels in standard mode,49channel in extended mode

DMX512 wireless control

Art Net protocol(optional)

sACN protocol(optional)

16Control Interface2

DMX512 ports(5-pin)

Ethernet port RJ45

17Other functions10

Pan and Tilt speeds adjustable,Pan and Tilt swappable and invertible

High precision magnet sensor for positioning

3.2-inch touch color screen, Chinese and English menus

Screen automatic lock –up while standby

Error diagnostic system with sensors

Smart fan cooling system

Display of fixture hours and software versions

Modular construction for easy maintenance

Isolated input signals

Firmware update via DMX cable

18IP rating1

IP20

19Operation temperature1

Ambient temperature at maximum: 45°C

20Weight1

Net weight 43.5 KG

21CMY1

CMY linear coloring mixing system with macros

222 Color Wheels4

Color Wheels 1: Red, Green, Blue, Orange , Pink, Light cyan,+ open
Color Wheels 2: Dark Red, Amber, Tea red, Apple Green, Dark Magenta, UV+ open; Full color/half color/linear color; Bi-directional rainbow effect with variable speeds

23Framing3

1 Framing module

4 framing blades to make graphics with different sizes and shapes

Framing module rotates bi-directionally up to 360 °and continually, each framing blade produces full curtain effect

02DescriptionManufacturer's description

What it is.

XRLED 3500-W Wash/Framing is a moving head light using 1500 W white LED engine. It has high-quality and highly bright light with both Ra and R9 above 95 for very good color rendition. The continually rotating framing module with our own Intellectual Property can easily change framed graphics’ sizes and shapes .It has brightness uniformity calibration, standard LEE color macros, linear color temperature(1800-6500K), multiple dimmer modes, very low noise and etc., realizing more professional and fantastic stage effects.

03Documents2 files · 6.7 MB
